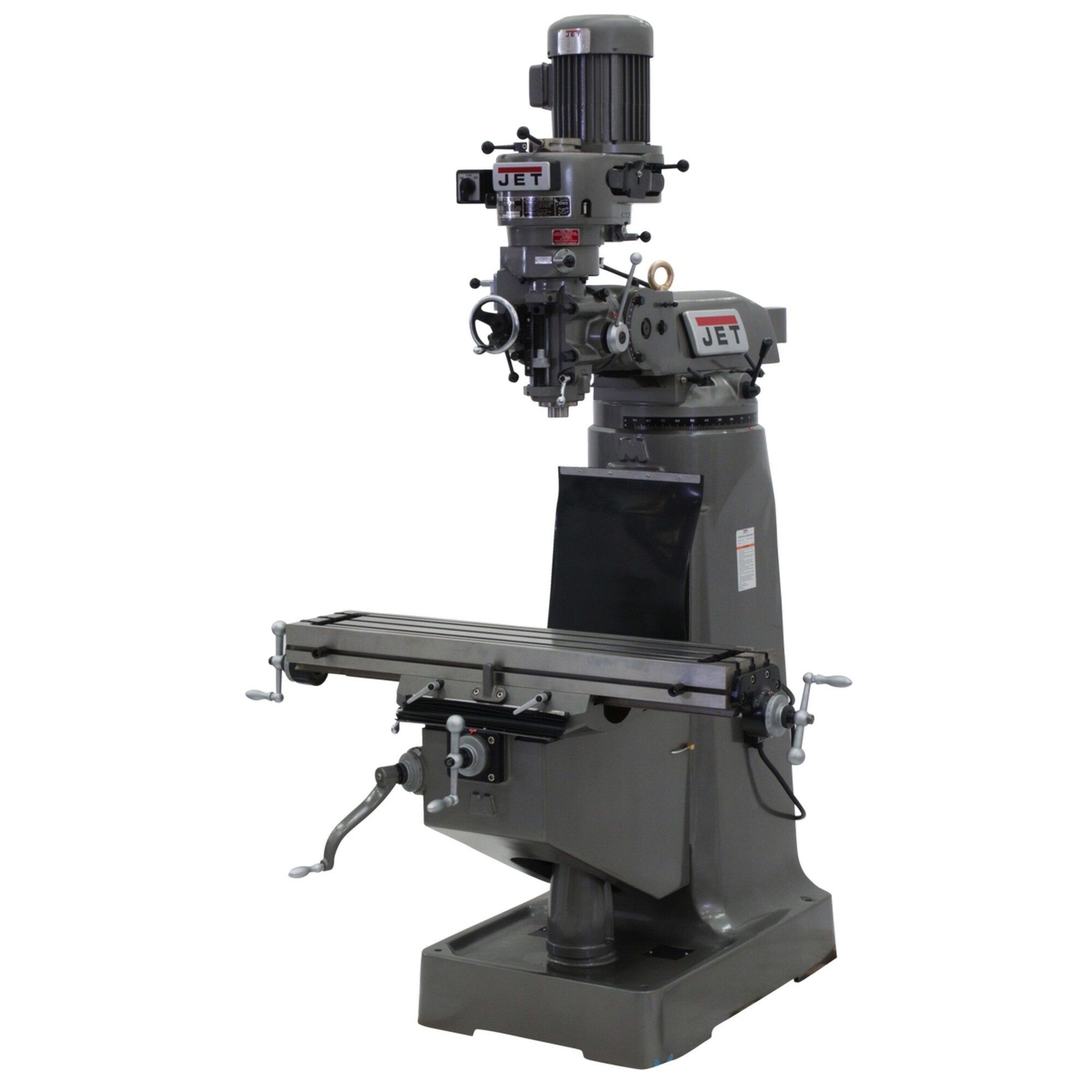

JET, Milling Machine, Horsepower 2 HP, Volts 230 Model# JTM-1

Item# 5754119
JET, Milling Machine, Horsepower 2 HP, Volts 230 Model# JTM-1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET, Milling Machine, Horsepower 2 HP, Volts 230 Model# JTM-1

Click or Tap image to Zoom

$16,075.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Heavy duty splined motor drive
  • Internal coolant tank built into base for use with coolant system (Coolant pump not included)
  • Large Diameter quill is chromed

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The JTM-1 Mill With 3-Axis Newall DP500 DRO (Quill) With X-Axis Powerfeeds has a three-stage power down feed with automatic stop, high precision Class 7 spindle bearings and the rugged stability of Certified Meehanite castings which ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty.

What's Included

    (1) Milling Machine

Features + Benefits

  • Heavy duty splined motor drive
  • Internal coolant tank built into base for use with coolant system (Coolant pump not included)
  • Large Diameter quill is chromed

Key Specs

AttributeSpecification

item#

5754119

Brand

JET

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2200.0 LB

Horsepower

2 HP

Volts

230

Max. Speed

5,440 rpm

360 Degree Head Swivel

No

Speeds (qty.)

36

Product Type

Milling Machine

Vertical Stroke

5 in
AttributeSpecification

Drilling Capacity

5 in

Chuck Size

Multiple in

Light Included

No

Stand Included

Yes

Min. Speed

80 rpm

Variable Speed

Yes

Max. Spindle Distance

17.5 in

Draw Bar

Yes

Swing

19 in

Product Weight

2200.0000 lb

Dimensions L x W x H (in.)

64.0 x 57.0 x 82.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
