Thank you for your further explanation.
This measurement is just shy of 10 ¼ inches.

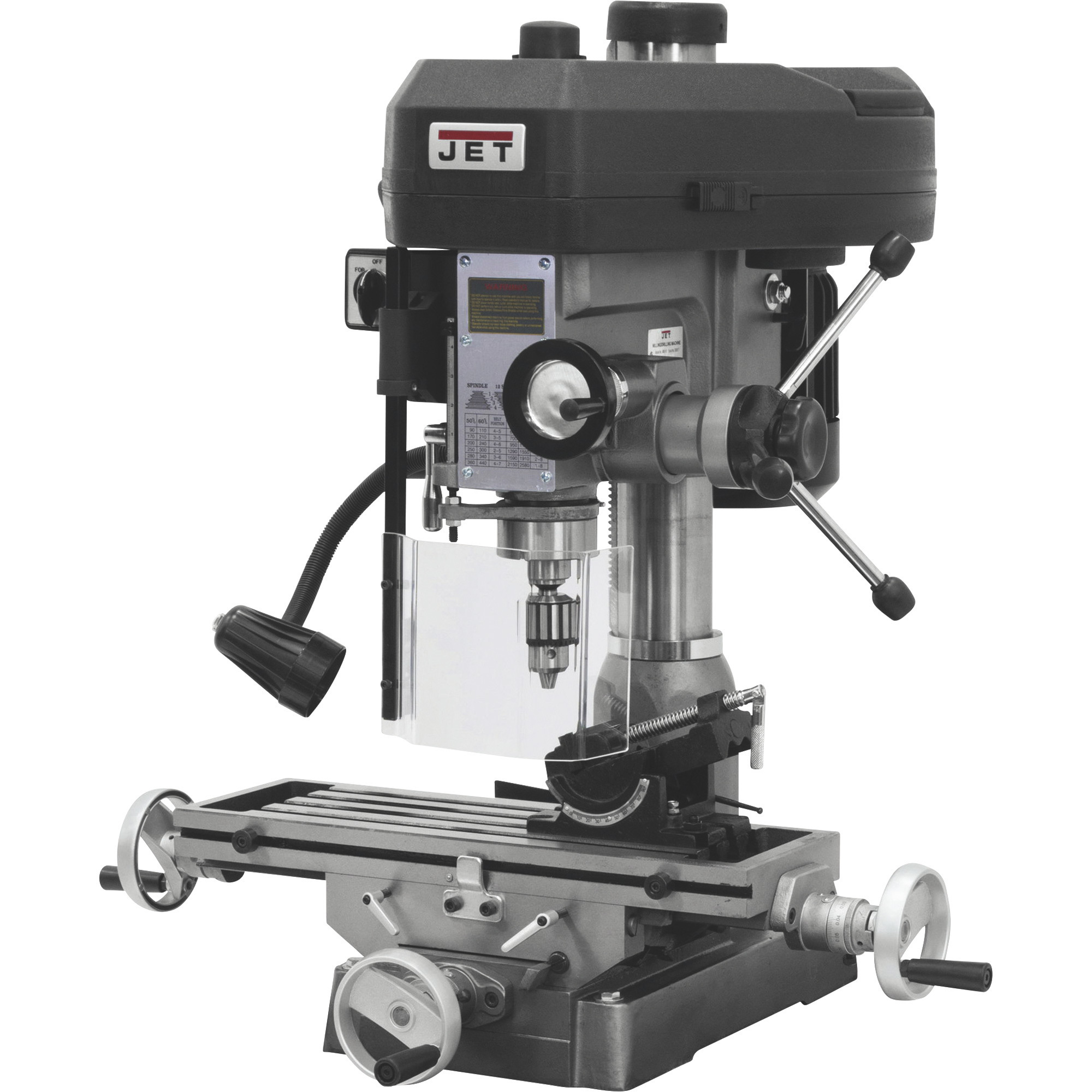

JET Milling/Drilling Machine, 18in., 2 HP, 230V, Model# JMD-18
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$3871.99
- UL listed motor
- Adjustable carbide facemill
- Drill press angle vise
Prop 65 Warning: See Details
See full description
Price for all four:
$4886.96
-
Guys I will like to Know the distance between the center of the drill chuck to the center of the Rack Sleeve. Please.
Guys I will like to Know the distance between the center of the drill chuck to the center of the Rack Sleeve. Or the center of the Column Base.
I know that the distance or height of the Drill chuck to the table or base is 18"
I'm asking because the table that I have is modified. And the drill press that I want to replace with this jet drilling machine has a distance of approximately 12" between the center of the drill chuck. to the center of the Rack Sleeve.
-
Helpful?
-
The distance between the center of the drill chuck to the center of the rack sleeve on the JET Milling/Drilling Machine is 10 1/4".
Helpful?
-
-
I will like to know the distance between the Drill chuck and the Colum Base of the Rack Sleeve. Please.
I will like to know the distance between the Drill chuck and the Colum Base of the Rack Sleeve. Please.
JET Milling/Drilling Machine — 18in., Model# JMD-18
Item 80181639-
On this JET Milling/Drilling Machine the maximum distance from the spindle to the table is 18".
Helpful?
-
The maximum distance from the spindle to the table is 18". I hope this information is helpful.
Thank you for your inquiry.
Helpful?
-
-
Is this unit (JMD-18) compatible with a DRO? Especially a 3 axis one?
1 answer-
The JMD-18 is not available in a 3 axis.
Helpful?
-
-
Is the spindle reversible?
1 answer-
The spindle would be reversible.
Helpful?
-
-
Does this model have an R8 taper
1 answer-
The milling/drilling machine has an R8 Taper.
Helpful?
-
-
Where is this machine Manufactured?
1 answer-
This 18'' Milling/Drilling machine is manufactured in China.
Helpful?
-
-
Is the table made of cast iron or aluminum?
1 answer-
The table is cast iron.
Helpful?
-
-
Power requirements
Product headline says 2HP, 230V
Spec says 2HP, 115V
1 answer-
This unit is 230 Volt.
Helpful?
-
-
Will the JMD-18 drill a 1" diameter hole that is 12" deep in a 4x4 piece of wood?
1 answer-
This JET Milling/Drilling Machine could be used to drill 12 inches deep with the correct 1 inch bits. It is important to note the spindle travel distance is 5 inches and the maximum distance from table to spindle is 18 inches. A floor mounted drill press with a longer spindle travel distance would be better suited for this type of job. See the link below for an option.
Helpful?
-
-
How much is the bench life life? For this machine
what is the useful life for this machine.
1 answer-
Because there are many variables that go into the life of this item, the manufacturer does not rate a bench life for this item.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Milling Machines + Drill Presses
See All JET Milling Machines + Drill Presses
Currently Viewing This Product
Specifications
Specifications
JET Milling/Drilling Machine, 18in., 2 HP, 230V, Model# JMD-18
JET Floor Drill Press with Power Downfeed, Electronic Variable Speed, 20in., 2 HP, 115V, Model# JDPE-20EVS-PDF
Shop Fox Radial Drill Press - 1/2 HP, 5 Speeds, Tilting Table and Headstock, Model# W1670
Powermatic Variable Speed Drill Press with Digital Readout, 5/8in., 1 HP, 1 PH, 115/230V, Model# PM2800B
Horsepower
Same
2 HP
2 HP
0.5 HP
1
Volts
Same
115
115
110
115/230
Max. Speed
Same
3,000 rpm
390 rpm
1,725 rpm
-
360 Degree Head Swivel
Same
Yes
No
Yes
-
Speeds (qty.)
Same
12
-
5
-
Product Type
Same
Milling Machine/Drill Press
Drill Press
Drill Press
Woodworking Drill Presses
Drilling Capacity
Same
1-1/4 in
1-1/4 in
1/2 in
-
Chuck Size
Same
1/2 in
1/2 in
5/8 in
0.625 in
Light Included
Same
Yes
No
No
Yes
Stand Included
Same
No
Yes
No
-
Variable Speed
Same
No
Yes
No
-
Max. Spindle Distance
Same
18 in
32.66 in
49 in
-
Draw Bar
Same
Yes
-
-
-
Product Weight
Same
lb
lb
lb
266.0000 lb
Dimensions L x W x H (in.)
Same
42.5 x 39.75 x 43.5 in
32.59 x 22.63 x 70.39 in
32.0 x 14.0 x 64.5 in
58.0 x 26.0 x 5.0 in
Vertical Stroke
Same
-
5 in
-
-
Swing
Same
-
19.687 in
33.5 in
-
Amps
Same
-
-
-
15
Max. Vertical Travel
Same
-
-
-
6 in
