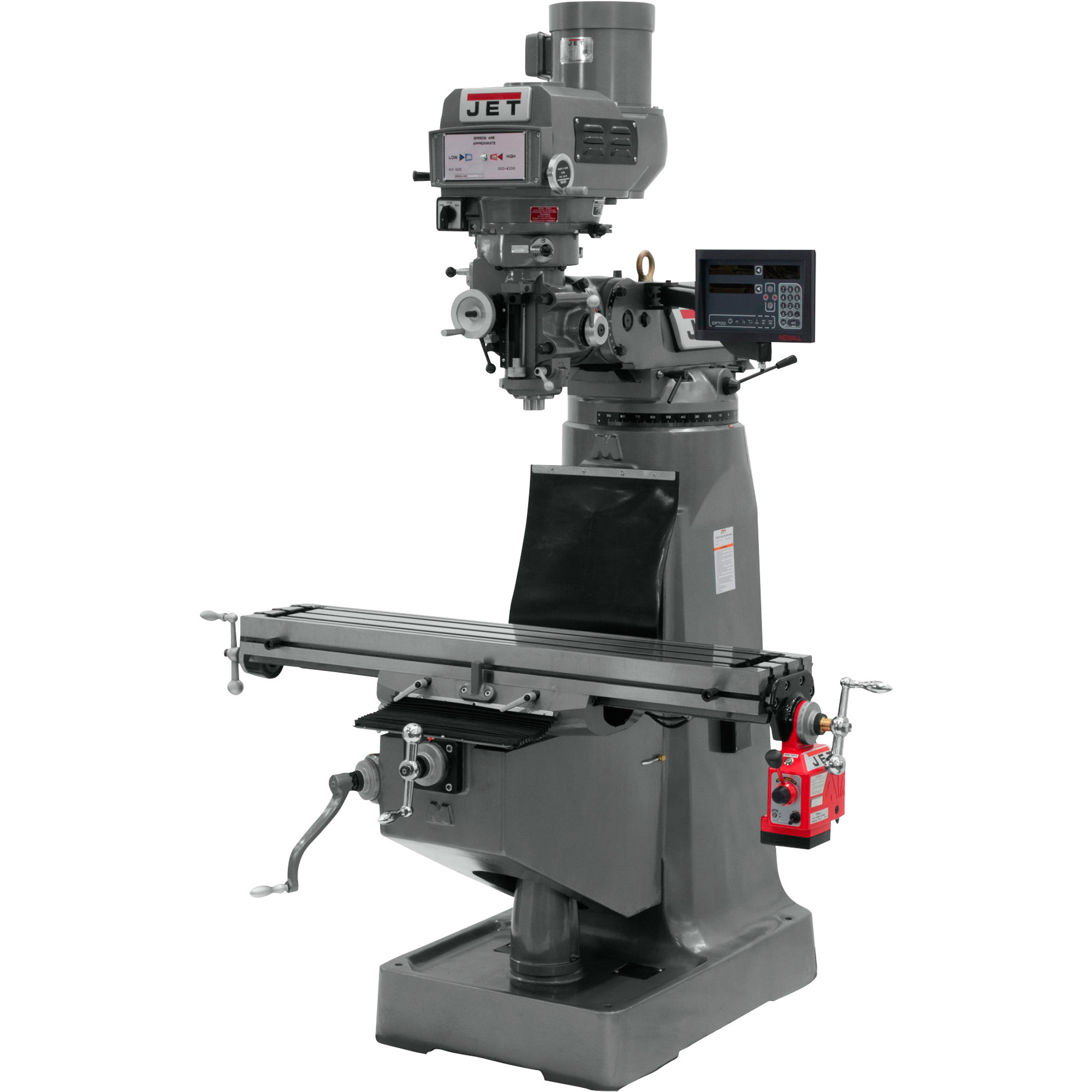

JET Mill With Newall DP700 DRO and X-Axis Powerfeed, Variable Speed, 3 Phase, Model# JTM-4VS/690087

Item# 70608
JET Mill With Newall DP700 DRO and X-Axis Powerfeed, Variable Speed, 3 Phase, Model# JTM-4VS/690087

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Mill With Newall DP700 DRO and X-Axis Powerfeed, Variable Speed, 3 Phase, Model# JTM-4VS/690087

Click or Tap image to Zoom

$19,465.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision Class 7 spindle bearings
  • Chrome plated motor shaft with lower bearing support
  • Spindle head is internally cooled

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Mill With Newall DP700 DRO and X-Axis Powerfeed, Variable Speed, 3 Phase, Model# JTM-4VS/690087
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • Radians Earplug Neckband, NRR 25dB, Orange, Model# RB2120
  • Milwaukee Men's Cut 1 Nitrile Utility Gloves, Red/Black, Large, Model# 48-22-8902
Price for all four:

$19,489.44

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This variable speed JET Mill With Newall DP700 DRO and X- Axis Powerfeed provides consistent and reliable operation. The precision bored and honed milling head ensures quality cuts, and the 3-stage power downfeed with automatic stop makes it easy to use. 3 phase power configuration. 2-year limited warranty. Item too large for lift gate. Forklift required for on-site unloading. Please closely verify all details prior to confirming this order. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications, it is not eligible for cancellation, refund or return once the order has been placed.

What's Included

    (1) Mill With Newall DP700 DRO and X- Axis Powerfeed

Features + Benefits

  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision Class 7 spindle bearings
  • Chrome plated motor shaft with lower bearing support
  • Spindle head is internally cooled
  • Heavy-duty splined motor drive
  • One-piece quill pinion and shaft
  • 3-stage power downfeed with automatic stop
  • 9in. x 49in. table size
  • Constructed using the certified Meehanite® casting process for strength, durability and reliability
  • Heavy-duty spindle brake
  • Locks on all movable surfaces
  • Precision hardened and ground ways and table
  • Adjustable gibs throughout Internal coolant tank built into casting base for use with coolant system (coolant pump not included)
  • Tolerance test sheet included
  • One shot lubrication system
  • Way covers draw bar tool box with tools

Key Specs

AttributeSpecification

item#

70608

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

2420.0 LB

Horsepower

3 HP

Volts

230/460

Max. Speed

4,200 rpm

360 Degree Head Swivel

No

Product Type

Milling Machine
AttributeSpecification

Vertical Stroke

5 in

Light Included

No

Stand Included

Yes

Variable Speed

Yes

Max. Spindle Distance

17.5 in

Draw Bar

Yes

Product Weight

lb

Dimensions L x W x H (in.)

63.0 x 65.5 x 85.0 in

Reviews

Questions & Answers

Questions

  1. Does the unit come as described in the picture?

    Does the unit have the digital Readout?
    If not, please provide quote as pictured

    1 answer

    1. Yes, it has a two access digital readout.

      Helpful?
