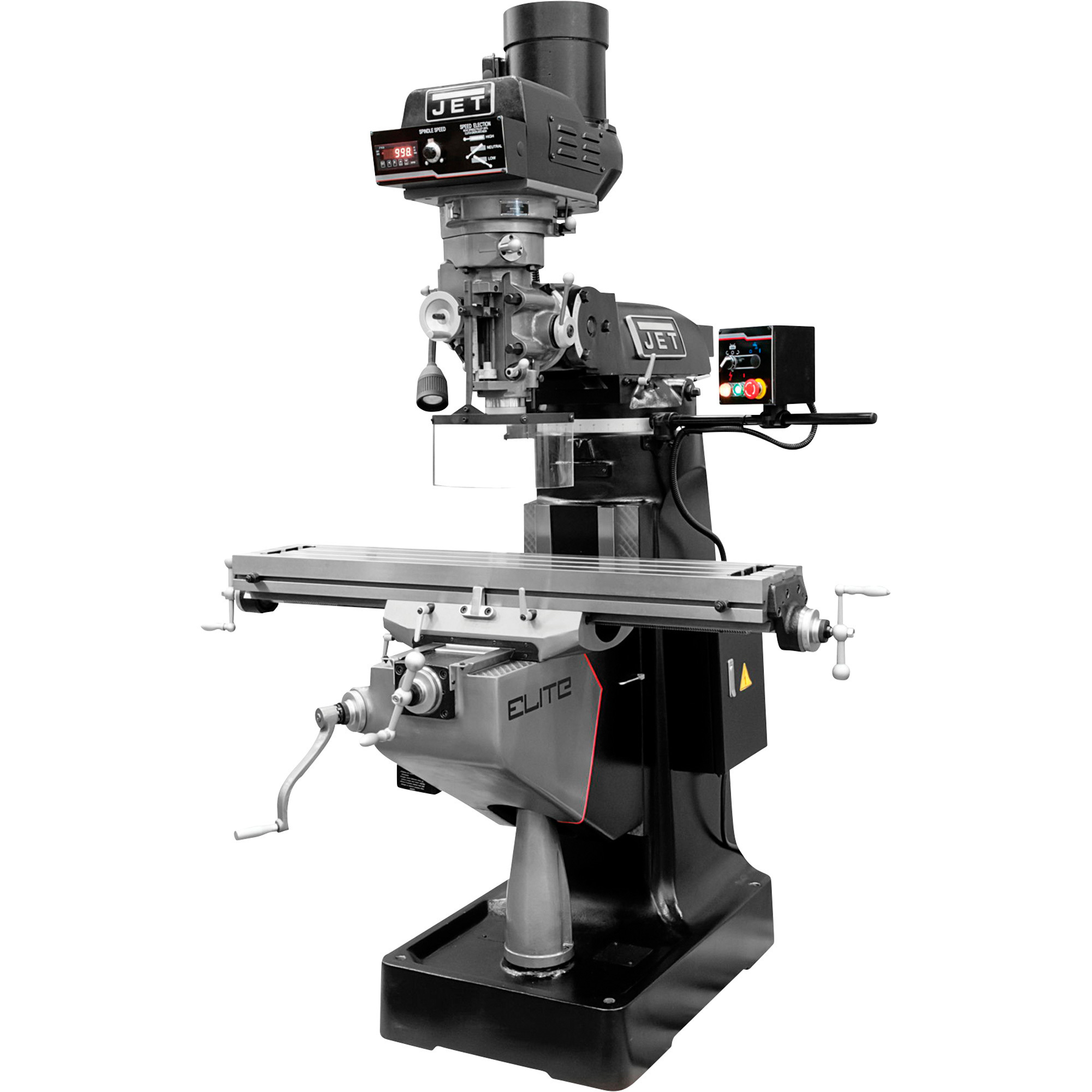

JET Elite Metalworking Mill with Servo X, Y, Z-Axis Powerfeeds and USA Air Powered Draw Bar, Model# EVS-949

Item# 79339
JET Elite Metalworking Mill with Servo X, Y, Z-Axis Powerfeeds and USA Air Powered Draw Bar, Model# EVS-949

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Elite Metalworking Mill with Servo X, Y, Z-Axis Powerfeeds and USA Air Powered Draw Bar, Model# EVS-949

Click or Tap image to Zoom

$32,849.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Spindle utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry leading spindle taper runout of 0.00012in.
  • Chromium Molybdenum spindle is fully hardened through a carbonizing treatment and is precisely ground to maintain strict tolerances
  • Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy
  • Y and Z-Axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements
  • Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load

See full description

Complete Your Solution

  • JET Elite Metalworking Mill with Servo X, Y, Z-Axis Powerfeeds and USA Air Powered Draw Bar, Model# EVS-949
  • Milwaukee Men's Cut 1 Nitrile Utility Gloves, Red/Black, Large, Model# 48-22-8902
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • Radians Earplug Neckband, NRR 25dB, Orange, Model# RB2120
Price for all four:

$32,872.45

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This JET Elite Metalworking Mill with Servo X, Y and Z-Axis Powerfeeds as well as a USA air powered draw bar, is a world class mill that's fully loaded with features. The accurate spindle assembly meets strict tolerance requirements. Standard equipment includes a halogen machine lamp, dual locks on all surfaces and a spindle safety guard for operator safety. CSA/CUS Certified. Item too large for lift gate. Forklift required for on-site unloading. Please closely verify all details prior to confirming this order. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications, it is not eligible for cancellation, refund or return once the order has been placed.

What's Included

    (1) Metalworking mill

Features + Benefits

  • Spindle utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry leading spindle taper runout of 0.00012in.
  • Chromium Molybdenum spindle is fully hardened through a carbonizing treatment and is precisely ground to maintain strict tolerances
  • Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy
  • Y and Z-Axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements
  • Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load
  • Table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements
  • Patented vari-disc key provides up to 10 times greater wear resistance than aluminum or brass keys
  • Variable speed pulleys are ground and multi-plane dynamically balanced, reducing vibration and ensuring smooth speed transitions
  • Ball bearing support of the motor shaft ensures proper loading, support and alignment for quiet, accurate operation at any speed
  • Hardened and ground table provides a stable and accurate platform for milling a diverse variety of materials

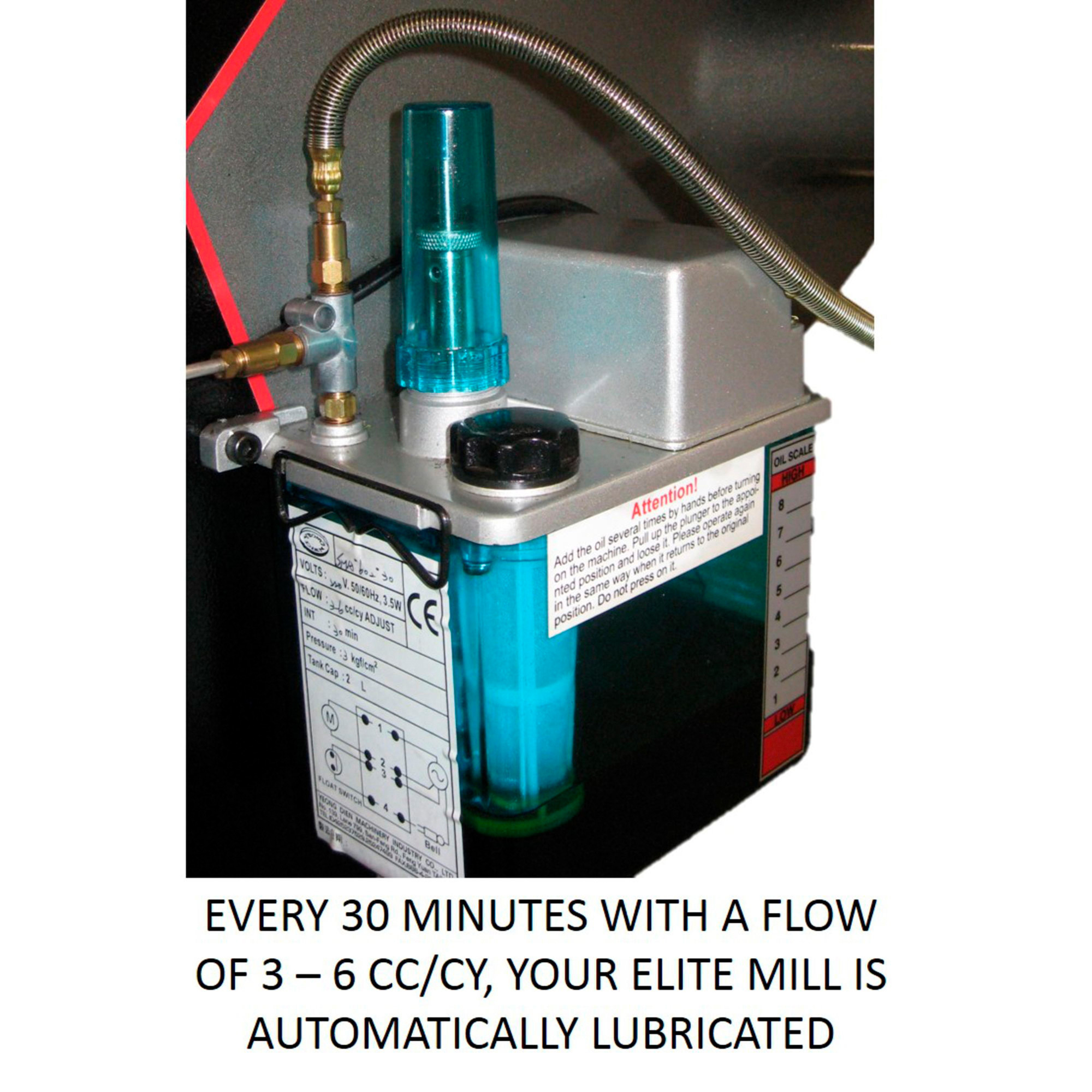

  • Automatic lubrication every 30 minutes, with a flow of 3 to 6 cc/cy
  • Stainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal cover
  • Certified Meehanite® castings retain their tolerances and remain rigid through many years of machining
  • Electronic spindle brake, when activated, interrupts power to the spindle to prevent accidental start ups
  • Mounted control box houses major mill functions as well as an emergency stop button
  • For added safety, the ETM-949 Mill follows strict guidelines and electrical requirements to be certified by CSA Group

Key Specs

AttributeSpecification

item#

79339

Brand

JET

Manufacturer's Warranty

3 year limited warranty

Ship Weight

2300.0 LB

Horsepower

3 HP

Volts

230

Max. Speed

5,000 rpm

360 Degree Head Swivel

No

Product Type

Milling Machine

Vertical Stroke

5 in
AttributeSpecification

Drilling Capacity

3-3/8 in

Light Included

Yes

Stand Included

Yes

Variable Speed

Yes

Max. Spindle Distance

18.75 in

Draw Bar

Yes

Swing

21.406 in

Product Weight

lb

Dimensions L x W x H (in.)

68.0 x 63.0 x 84.0 in
