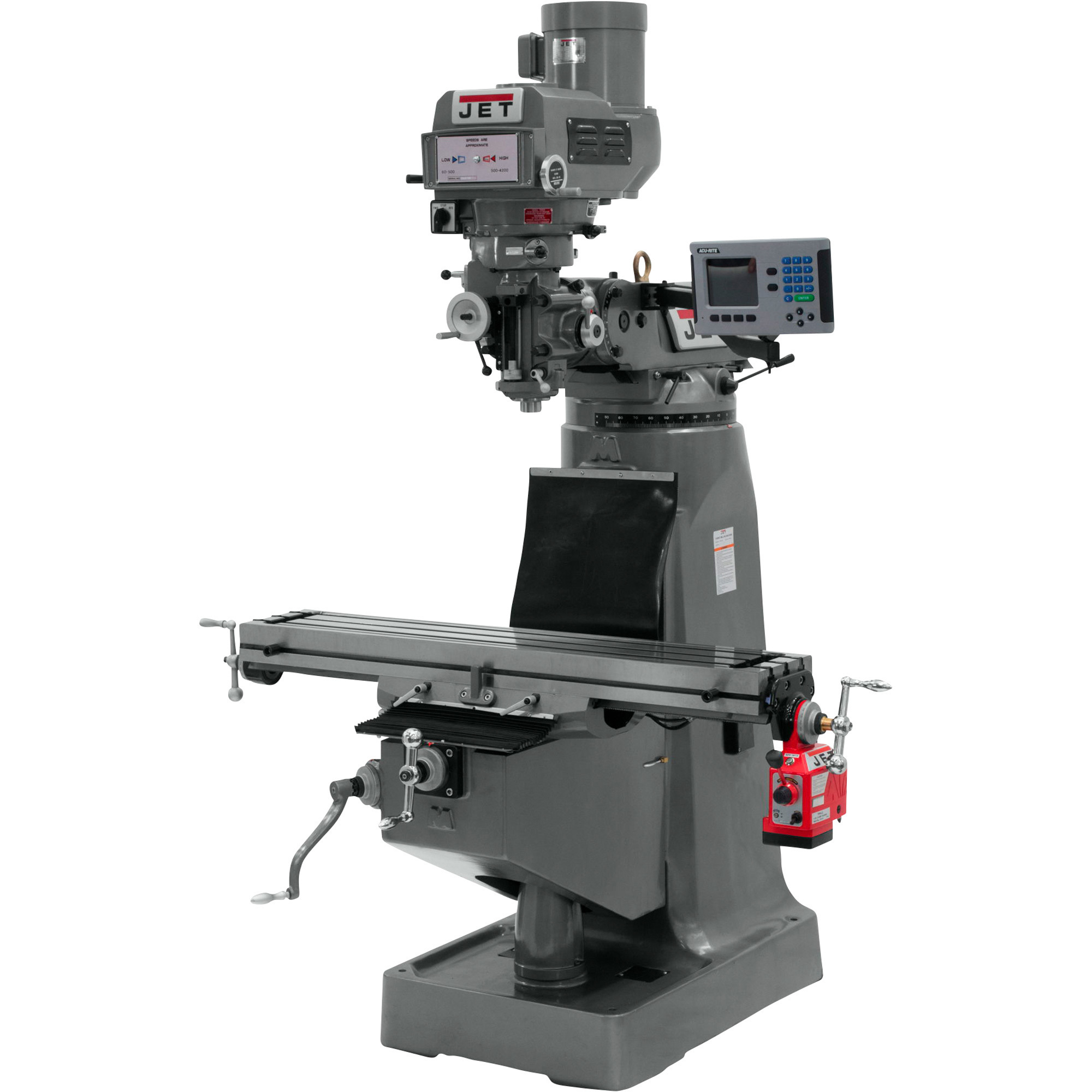

JET Mill With Acu-Rite 203 DRO and X-Axis Powerfeed, Variable Speed, 3 Phase, Model# JTM-4VS/690107

Item# 70609
JET Mill With Acu-Rite 203 DRO and X-Axis Powerfeed, Variable Speed, 3 Phase, Model# JTM-4VS/690107

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Mill With Acu-Rite 203 DRO and X-Axis Powerfeed, Variable Speed, 3 Phase, Model# JTM-4VS/690107

Click or Tap image to Zoom

$19,795.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision Class 7 spindle bearings
  • Chrome plated motor shaft with lower bearing support
  • Spindle head is internally cooled

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This variable speed JET Mill with Acu-Rite 203 DRO and X- Axis Powerfeed provides consistent and reliable operation. The precision bored and honed milling head ensures quality cuts, and the 3-stage power downfeed with automatic stop makes it easy to use. 3 phase power configuration. 2-year limited warranty. Item too large for lift gate. Forklift required for on-site unloading. Please closely verify all details prior to confirming this order. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications, it is not eligible for cancellation, refund or return once the order has been placed.

What's Included

    (1) Mill with Acu-Rite 203 DRO and X- Axis Powerfeed

Features + Benefits

  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision Class 7 spindle bearings
  • Chrome plated motor shaft with lower bearing support
  • Spindle head is internally cooled
  • Heavy-duty splined motor drive
  • One-piece quill pinion and shaft
  • 3-stage power downfeed with automatic stop
  • 9in. x 49in. table size
  • Constructed using the certified Meehanite® casting process for strength, durability and reliability
  • Heavy-duty spindle brake
  • Locks on all movable surfaces
  • Precision hardened and ground ways and table
  • Adjustable gibs throughout Internal coolant tank built into casting base for use with coolant system (coolant pump not included)
  • Tolerance test sheet included
  • One shot lubrication system
  • Way covers
  • Draw bar
  • Tool box with tools

Key Specs

AttributeSpecification

item#

70609

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

2230.0 LB

Horsepower

3 HP

Volts

230/460

Max. Speed

4,200 rpm

360 Degree Head Swivel

No

Product Type

Milling Machine
AttributeSpecification

Vertical Stroke

5 in

Light Included

No

Stand Included

Yes

Variable Speed

Yes

Max. Spindle Distance

17.5 in

Draw Bar

Yes

Product Weight

lb

Dimensions L x W x H (in.)

66.0 x 56.0 x 72.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

24 months parts/24months labor
