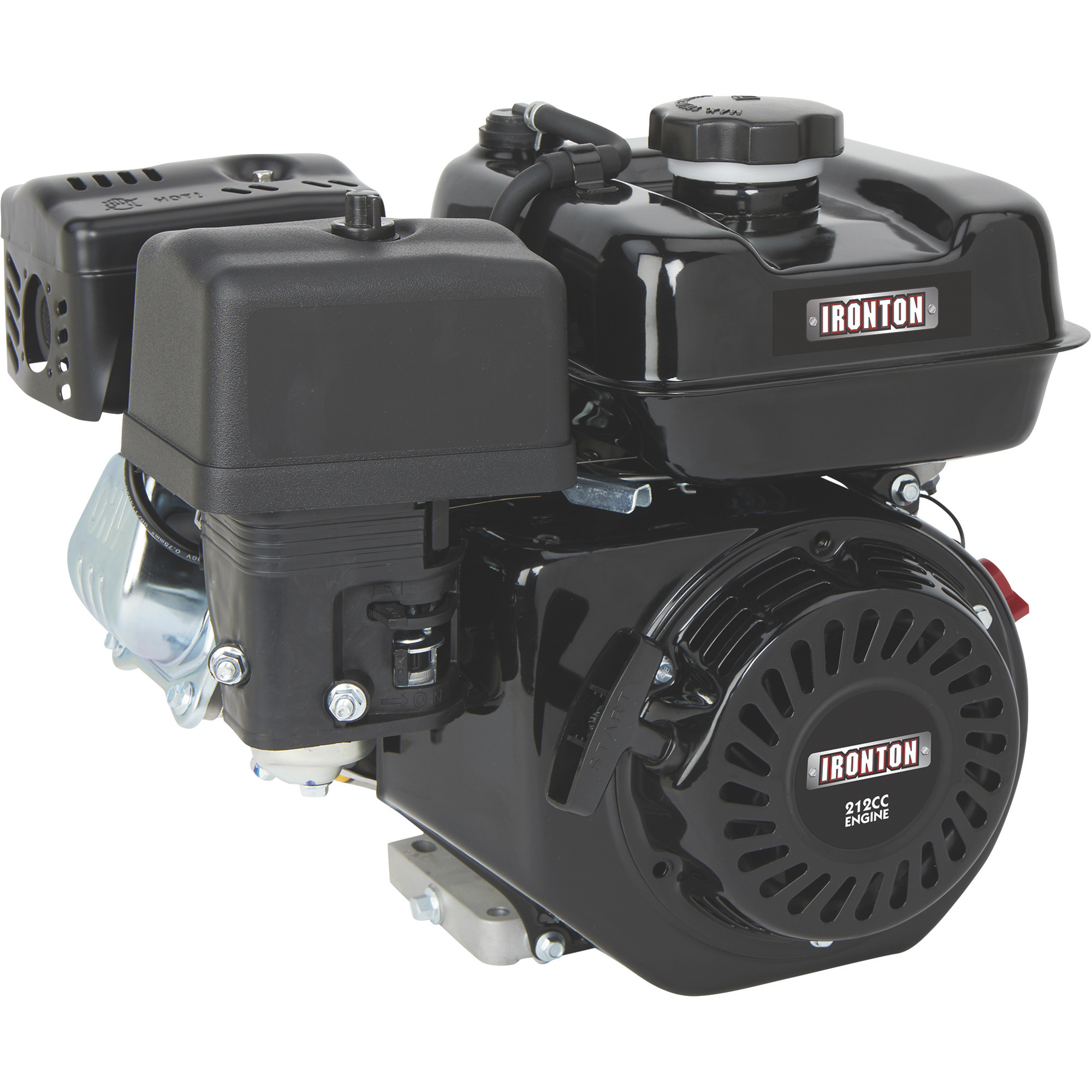

Ironton 212cc OHV Horizontal Engine with 3/4in. x 2-19/64in. Shaft

Item# 107750
Ironton 212cc OHV Horizontal Engine with 3/4in. x 2-19/64in. Shaft

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ironton 212cc OHV Horizontal Engine with 3/4in. x 2-19/64in. Shaft

Click or Tap image to Zoom

  • Cast iron cylinder sleeve reduces bore wear to extend engine life and reduces emissions and oil consumption
  • Dual ball bearings reduce friction for prolonged life
  • Cast iron crankshaft for strength in high PTO torque situations
  • Recoil start with compression release helps you start on the first pull
  • Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Ironton OHV Horizontal Engine is an easy-to-install solution for small engine needs. With 212cc this engine provides enough power to run a wide range of equipment, including log splitters and pressure washers. Its design incorporates a cast iron cylinder sleeve and dual ball bearing crankshafts. Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure. The recoil start has a compression release that helps you get running on the first pull. Not for sale in CA.

What's Included

    (1) Engine

Features + Benefits

  • Cast iron cylinder sleeve reduces bore wear to extend engine life and reduces emissions and oil consumption
  • Dual ball bearings reduce friction for prolonged life
  • Cast iron crankshaft for strength in high PTO torque situations
  • Recoil start with compression release helps you start on the first pull
  • Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure
  • Sound pressure balanced muffler
  • Pleated paper filter and foam pre-cleaner protect engine from harmful debris

Key Specs

AttributeSpecification

item#

107750

Brand

Ironton

Manufacturer's Warranty

3 months parts/3 months labor

Ship Weight

36.0 LB

Engine Displacement

212 cc

Engine Type

OHV

Shaft Diameter

3/4 in

Shaft Diameter Metric

19.05 mm

Shaft Length

2.29 in

Shaft Length Metric

58.5 mm

Fuel Type

Gasoline

Start Type

Recoil

Cylinders (qty.)

1

Cylinder Bore

Cast Iron
AttributeSpecification

Fuel Tank Capacity

3.38 qt

Oil Capacity

0.5 qt

Low Oil Shutdown

Yes

Low Oil Alert

Yes

CARB Approved

No

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

Mechanical

Ignition System

Electronic

Carburetor

Float/choke

Lubrication System

Splash

Cooling System

Air

Air Cleaner Type

Dual Element

Muffler Included

Yes

Reviews

Questions & Answers

24 Reviews This action will navigate to reviews.

Questions

1–10 of 13 Questions
Sort by:

  1. what are the base mounting holes distances

    1 answer

    1. The mounting pattern of this engine is 6.378in. long x 3.1496in. wide.

      Helpful?

  2. what is trhe spark plug # and the socet size

    1 answer

    1. This engine is equipped with an F7RTC spark plug. An NGK BPR7ES or Champion QN7YCC can also be used. This would need a 13/16" socket.

      Helpful?

  3. can u give me the shaft ,size and length ? and the height of the center of the shaft from the base of the engine

    1 answer

    1. The shaft is 2.29" long with a 3/4" diameter. The center height of the shaft is 4-1/8".

      Helpful?

  4. Is this engine electric start?

    1 answer

    1. This engine has a recoil (pull) start. It does not have an electric start option.

      Helpful?

  5. Is this motor electric start

    1 answer

    1. This engine does not have an electric start option, it has a recoil (pull) start only.

      Helpful?

  6. Can the recoil cover be rotated, so that the pull cord is at a different direction/ angle?

    1 answer

    1. Yes, recoil cover could be rotated 60 ° to adjust the pull cord is at a different angle/direction.

      Helpful?

  7. Does anyone know what size the oil drain bolts are (10mm, 3/8"; etc)? I want to install an oil drain hose on mine. Thanks!

    1 answer

    1. The oil drain bolt is M10*1.25.

      Helpful?

  8. How to mount pulley to out put shaft?

    1 answer

    1. You would want to have a keyway machined in this, or you could drill a dimple hole for a pulley with a set screw.

      Helpful?

  9. What is the hole pattern for the mounting?

    1 answer

    1. The mounting pattern is 6.378" L (162MM) x 3.1496" W (80MM).

      Helpful?

  10. is this shaft keyed

    1 answer

    1. The engine shaft is not keyed.

      Helpful?

Warranty

Manufacturer's Warranty

3 months parts/3 months labor
