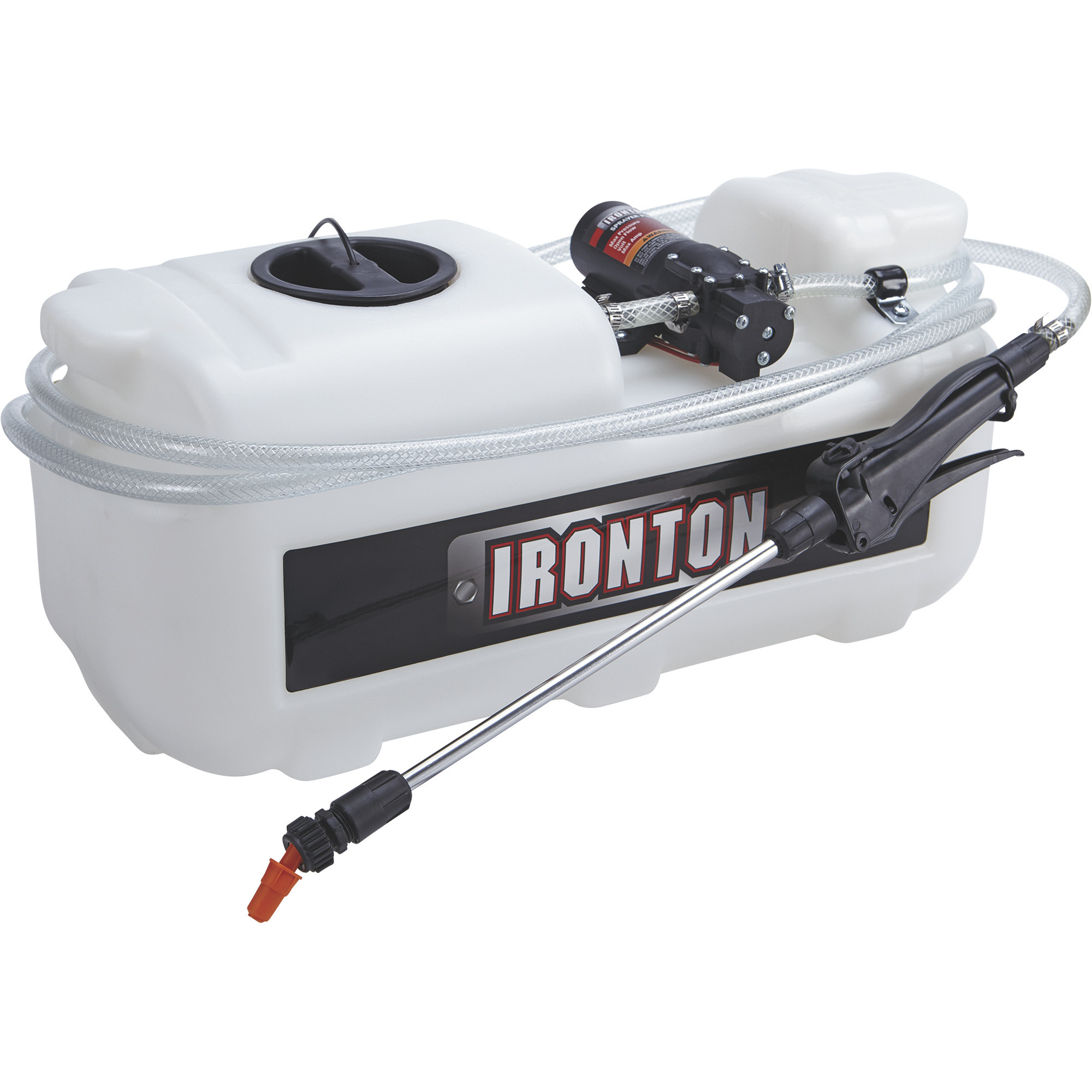

Ironton ATV Spot Sprayer, 5-Gallon Capacity, 1 GPM, 12 Volt

Item# 99914
"Ironton ATV Spot Sprayer, 5-Gallon Capacity, 1 GPM, 12 Volt"
Ironton ATV Spot Sprayer, 5-Gallon Capacity, 1 GPM, 12 Volt

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ironton ATV Spot Sprayer, 5-Gallon Capacity, 1 GPM, 12 Volt

Click or Tap image to Zoom

$99.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not available - online only
  • Spray gun delivers a 12ft. maximum vertical spray height and 20ft. maximum horizontal spray distance
  • All pump and sprayer components are compatible with Roundup® agricultural brand herbicides
  • Specially designed polymer tank is chemical- and UV-resistant, with thick walls for structural integrity

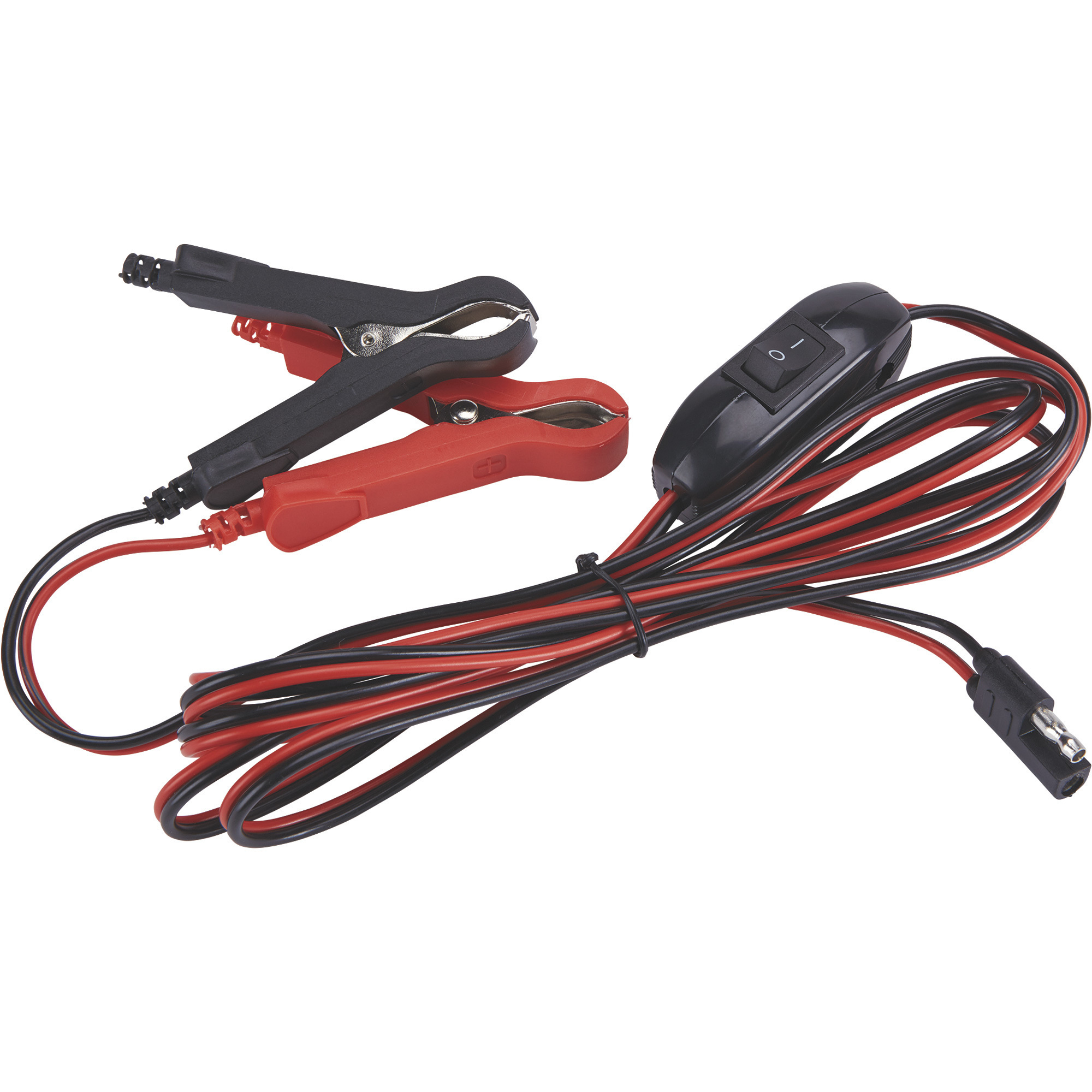

  • 8ft. wire harness with battery clamps easily connects and disconnects from your battery
  • In-line switch allows you to turn the sprayer on and off without leaving the driver's seat

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This 5-gal. Ironton Spot Sprayer treats small areas with precision. The reliable 1 GPM Ironton pump combines with the included spray gun to deliver a maximum vertical spray height of 12ft. and maximum horizontal spray distance of 20ft. Adjustable stream-to-cone nozzle with 10 feet of hose.

What's Included

    (1) Spot sprayer

Downloads

Product Manual

STORAGE SOLUTION

Built-in HOSE WRAP and SPRAY GUN mounting location offer neat storage solutions, keeping the SPRAYER TIDY and compact when not in use


PORTABILITY

Lightweight design with ROBUST FEATURES makes it easily portable and VERSATILE for a VARIETY OF SPOT SPRAYING TASKS across a property


AUTOMATIC PUMP

The Ironton on-demand pump automatically SHUTS OFF AT 40 PSI, enhancing the sprayer’s efficiency and PROLONGING THE PUMP’S LIFESPAN

Features + Benefits

  • Spray gun delivers a 12ft. maximum vertical spray height and 20ft. maximum horizontal spray distance
  • All pump and sprayer components are compatible with Roundup® agricultural brand herbicides
  • Specially designed polymer tank is chemical- and UV-resistant, with thick walls for structural integrity
  • 8ft. wire harness with battery clamps easily connects and disconnects from your battery
  • In-line switch allows you to turn the sprayer on and off without leaving the driver's seat
  • Bottom mount tank drain makes rinsing the tank quick and easy
  • 10ft. x 3/8in. clear reinforced poly vinyl chloride hose makes monitoring chemical flow simple
  • Built-in hose wrap and spray gun mounting location make storage easy
  • Gallon markers are molded into the tank for quick level checks
  • Ironton on-demand pump automatically turns off at 40 PSI
  • Large 4in. diameter tank lid for easy filling

Key Specs

AttributeSpecification

item#

99914

Brand

Ironton

Manufacturer's Warranty

3 month limited warranty

Ship Weight

9.5 LB

Tank Size

5 Gal

Flow

1 GPM

Pressure

40 PSI

Spray Height

12 ft

Horizontal Spray Distance

20 ft
AttributeSpecification

Tank Material

Polymer

Spray Pattern

Cone, Stream

Spray Gun Type

Economy

Tow Behind Cart Included

No

Pump Type

Ironton Quick-connect

Hose Length

120 in

Product Weight

lb

Dimensions L x W x H (in.)

21.5 x 8.75 x 9.25 in

Reviews

Questions & Answers

57 Reviews This action will navigate to reviews.

Questions

1–10 of 17 Questions
Sort by:

  1. Can I use this equipment with a car battery?

    1. Yes, it works with any 12v system. Just be sure to always use the fuse.

      Helpful?

    2. Yes, I use a deep cycle marine battery.

      Helpful?

    3. Yes it can.

      Helpful?

    4. This sprayer can be powered by a car battery. The battery level should be monitored if there is no active charge system to maintain the charge while it is in use.

      Helpful?

  2. Can the spray nozzle be adjusted for different spray patterns?

    1. Yes

      Helpful?

    2. Yes, the spray nozzle twists to adjust the pattern.

      Helpful?

  3. Can the Ironton quick-connect pump be replaced if it fails?

    1. The replacement pump is our part #790659. It can be ordered online through our sister company Jack's Small Engines. Please visit www.jackssmallengines.com for pricing and availability.

      Helpful?

    2. Yes it can be replaced.

      Helpful?

  4. can i use this to stain my deck

    1 answer

    1. This sprayer is not designed to be used for staining.

      Helpful?

  5. where can I get a replacement pump for this item

    1 answer

    1. The sprayer pump, part #790659, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  6. What is the mounting hole space of the pump?

    1 answer

    1. The mounting bolt spacing on the pump is 2.9921" L (76 MM) x 2.2441" W (57MM). The distance diagonally is 3.8189" (97MM).

      Helpful?

  7. Does the pump have a pressure switch built on? I’m wondering if you stop spraying will the pump pressure up and automatically shut off and start pumping again when the trigger is pulled?

    1 answer

    1. This sprayer has an on-demand pump that will automatically turn off when it reaches 40 PSI.

      Helpful?

  8. Can the sprayer be used to spray 30% Vinegar

    1 answer

    1. This sprayer should not be used with vinegar.

      Helpful?

  9. I know nothing about these sprayers except I know I need one. Can you connect this to the riding mower battery that's under the seat, while using the mower to spray from?

    1 answer

    1. You can connect the sprayer to a lawn mower battery.

      Helpful?

  10. How far out will this spray - 10 or 15 ft?

    1 answer

    1. This can spray up to 20 ft. horizontally and 12 ft. vertically.

      Helpful?

Warranty

Manufacturer's Warranty

3 month limited warranty
