Ironton Air-Operated Oil Transfer Pump, 1:1 Ratio, 10.58 GPM. Flow Rate

Item# 83556
Ironton Air-Operated Oil Transfer Pump, 1:1 Ratio, 10.58 GPM. Flow Rate

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ironton Air-Operated Oil Transfer Pump, 1:1 Ratio, 10.58 GPM. Flow Rate

Click or Tap image to Zoom

$279.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not Available
  • 1:1 gear ratio delivers a maximum flow rate up to 10.58 GPM
  • Non-return valve prevents the backflow of oil when the pump is switched off, keeping the pump lubricated all the time
  • No priming is required between uses
  • Features an air consumption rate of 71.5 GPM and working pressure of 30–150 PSI
  • Max. air pressure is 150 PSI

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Ironton Air-Operated Oil Transfer Pump, 1:1 Ratio, 10.58 GPM. Flow Rate
  • Fast Orange Pumice Hand Cleaner, Gallon
Price for all two:

$296.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Ironton Air-Operated Oil Transfer Pump is designed to perform a quick transfer of oils from large drums to smaller containers. The double-acting pump delivers a discharge rate of up to 10.58 GPM that is ideal for use in industry, workshops, farms, construction or as part of a mobile oil system. 1:1 gear ratio. For use with oils featuring a viscosity of up to SAE 80 for transferring over short distances (up to 16ft.). Fits drum sizes up to 55 gallons. Air inlet connection: 1/4in. F-NPT; pump outlet connection: 1/2in. F-NPT; pump inlet connection: 1in. F-NPT.

What's Included

    (1) Oil pump (1) 2-pc. suction tube (1) Filter assembly

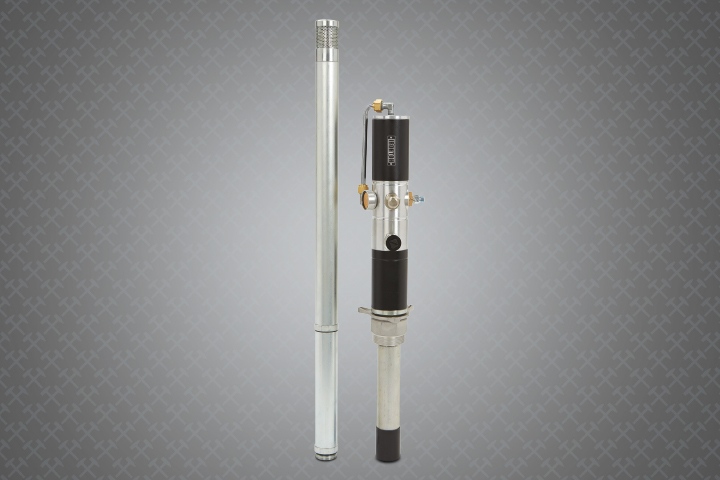

STREAMLINED OIL DISPENSING

The IRONTON® OIL TRANSFER PUMP is engineered to provide fast and effective oil transfer, facilitating seamless operations in INDUSTRIAL and AGRICULTURAL ENVIRONMENTS

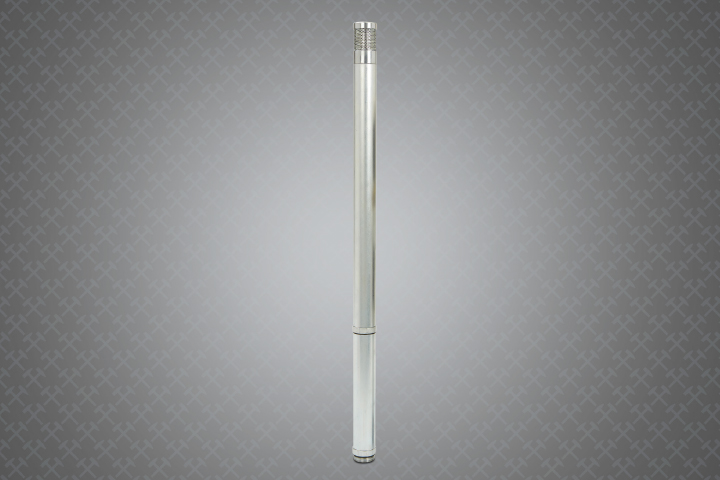

ROBUST CONSTRUCTION

Built to handle the demands of various settings, from farms to CONSTRUCTION SITES, this PUMP’S ROBUST DESIGN ensures reliability and a long service life

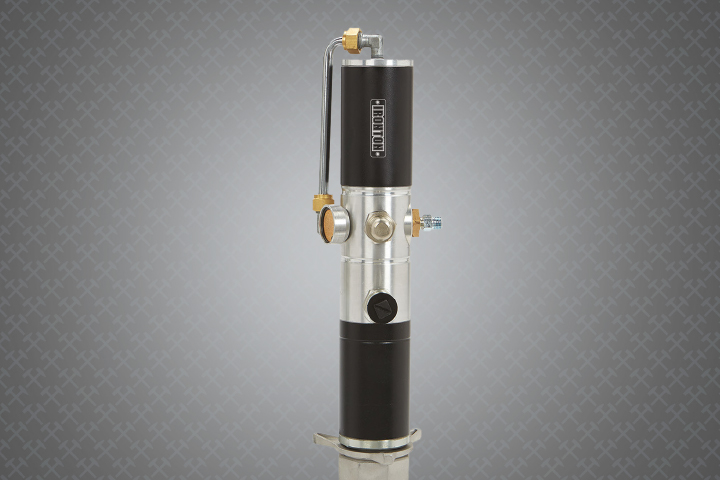

SAFETY AND CONVENIENCE

Equipped with a NON-RETURN VALVE that protects against OIL BACKFLOW and keeps the pump ready for next use without the need for re-priming

Features + Benefits

  • 1:1 gear ratio delivers a maximum flow rate up to 10.58 GPM
  • Non-return valve prevents the backflow of oil when the pump is switched off, keeping the pump lubricated all the time
  • No priming is required between uses
  • Features an air consumption rate of 71.5 GPM and working pressure of 30–150 PSI
  • Max. air pressure is 150 PSI
  • Low noise level of just 81dB during operation
  • Pump has wear-resistant moving parts and can be used with different drum sizes up to 55 gal.

Key Specs

AttributeSpecification

item#

83556

Brand

Ironton

Manufacturer's Warranty

1 year limited warranty

Ship Weight

15.8 LB

Flow Rate

10.58 GPM
AttributeSpecification

Max. PSI

150

Max. Total Head

15 ft

Max. Suction Lift

10 ft

Inlet Port

1 in

Outlet Port

0.5 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–10 of 16 Questions
Sort by:

  1. How much scfm is needed to operate the pump

    1 answer

    1. This pump requires approximately 9.5 SCFM of compressed air under standard conditions.

      Helpful?

  2. can the pressure be controlled for slow pouring? how much back pressure is build up between pours if air stays on?

    1 answer

    1. The pump functions efficiently with an air inlet pressure between 30–150 PSI (2–10 BAR). Lowering the inlet pressure will result in a reduced discharge rate. For precise control and consistent air pressure, we recommend using a filter regulator lubricator like item 48577.

      The back pressure corresponds to the amount of inlet pressure applied. However, the pump is designed to handle such pressure build-up safely, and it will not be damaged even if the air remains on.

      Helpful?

  3. Will it continue to siphon after it is shut off it the inlet is still submerged?

    1 answer

    1. The pump will not continue to siphon once it is shut off.

      Helpful?

  4. Good day Is there a rebuilt kit for the Ironton Air-Operated Oil Transfer Pump — 1:1 Ratio, 10.58 GPM. John

    1 answer

    1. At this time, parts are not available for this transfer pump.

      Helpful?

  5. What does O.I.P.M. stand for?

    1 answer

    1. O.I.P.M. is referring to the product manual.

      Helpful?

  6. Could an oil filter be connected on the outlet of the pump?

    1 answer

    1. Connecting a filter on the outlet of the pump is not recommended as it will affect the performance of the pump.

      Helpful?

  7. Can this pump be used to pump thinner fluids like water?

    1 answer

    1. This pump can be used with thinner liquids, however it cannot be used to transfer water.

      Helpful?

  8. Will this pump, pump automotive coolant?

    1 answer

    1. This pump can be used to transfer lubrication oil, waste oil, and antifreeze liquids.

      Helpful?

  9. Are pump seals and components compatible with solvent-based glue, like duct adhesive?

    1 answer

    1. This pump is not designed for pumping solvent-based glues.

      Helpful?

  10. What is the outlet pressure at around 100 psi? And what is the difference between the gear ratios? (5:1, 3:1, 1:1) Does that affect the outlet pressure? Which would be better for pumping 75-90 gear oil?

    1 answer

    1. The pump ratio determines the multiplication factor between the air-input pressure of the air motor and the fluid-output pressure of the pump. For example, if the air-input pressure is 100 psi, this pump's ratio of 1:1 will yield a fluid-output pressure of 100 psi. This pump can be used to pump oil up to SAE 80.

      Helpful?
