Ironton Air-Operated 5:1 Oil Pump Kit with Cart and Hose Reel, 3.7 GPM, 48–58-Gal. Drum Capacity, 580 Max. PSI

Item# 58283
Top Seller
Ironton Air-Operated 5:1 Oil Pump Kit with Cart and Hose Reel, 3.7 GPM, 48–58-Gal. Drum Capacity, 580 Max. PSI

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ironton Air-Operated 5:1 Oil Pump Kit with Cart and Hose Reel, 3.7 GPM, 48–58-Gal. Drum Capacity, 580 Max. PSI

Click or Tap image to Zoom

$999.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not Available
  • 5:1 Oil Pump: Delivers up to 3.7 GPM for dispensing medium- and high-viscosity oils up to SAE 240
  • 48–58-Gal. Drum Compatibility: Accommodates a range of drum sizes with 580 max. PSI fluid pressure
  • Smart Pump Design: Minimizes wear for longer service life
  • 1/2in. x 50ft. Hose + Reel: Provides extended reach and convenient hose storage
  • Digital Oil Control Valve + Meter: Allows controlled dispensing and measurement of oil

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Ironton Air-Operated 5:1 Oil Pump Kit with Cart and Hose Reel, 3.7 GPM, 48–58-Gal. Drum Capacity, 580 Max. PSI
  • 3M Virtua Protective Safety Glasses, Clear Lens, Model# 11228-00000-100
Price for all two:

$1001.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Ironton Air-Operated 5:1 Oil Pump Kit with Cart and Hose Reel is a mobile oil dispensing system designed for 48–58-gallon drums. Its 5:1 pump delivers up to 3.7 GPM at a maximum fluid pressure of 580 PSI, handling medium- and high-viscosity oils up to SAE 240. The smart pump design minimizes wear for longer service life, while the heavy-duty trolley features 8in. front wheels, 6in. steering casters with brakes and an adjustable handle for convenient maneuverability. A 1/2in. x 50ft. hose with reel, digital oil control valve with meter, 28-3/4in. suction tube and 2in. bung adapter provide a complete dispensing setup. Suitable for mobile installations and long-distance fixed systems, the Ironton Air-Operated 5:1 Oil Pump Kit with Cart and Hose Reel offers versatile oil dispensing performance.

What's Included

    (1) Ironton Air-Operated 5:1 Oil Pump (1) Trolley cart with wheels and casters (1) Hose with reel (1) Digital oil control valve and meter (1) 28-3/4in. suction tube (1) 2in. bung adapter

Downloads

Product Manual
Play Item Video

ADVANCED OIL DISPENSING SOLUTION

This mobile OIL PUMP UNIT IS A HIGH-EFFICIENCY SYSTEM designed for the QUICK and PRECISE DISPENSING of oils, suitable for servicing vehicles, machinery and industrial equipment

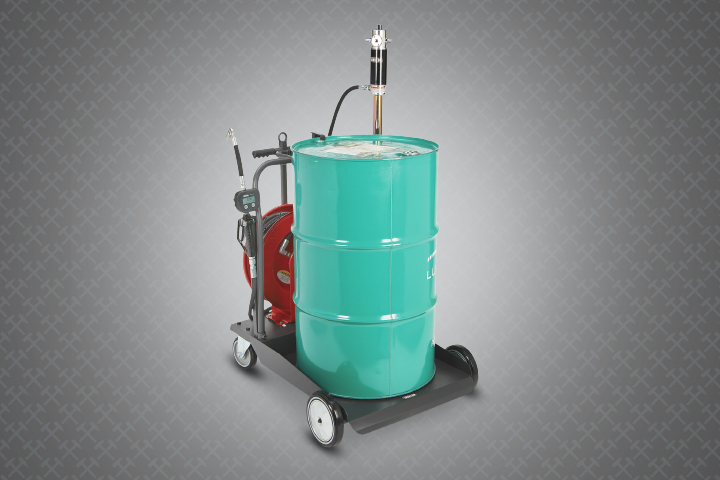

DURABLE AND CONVENIENT DESIGN

The kit’s ROBUST TROLLEY and ADJUSTABLE MOVABLE HANDLE ensure it can be easily transported around workshops and service areas, while the hose reel keeps the workspace tidy and safe

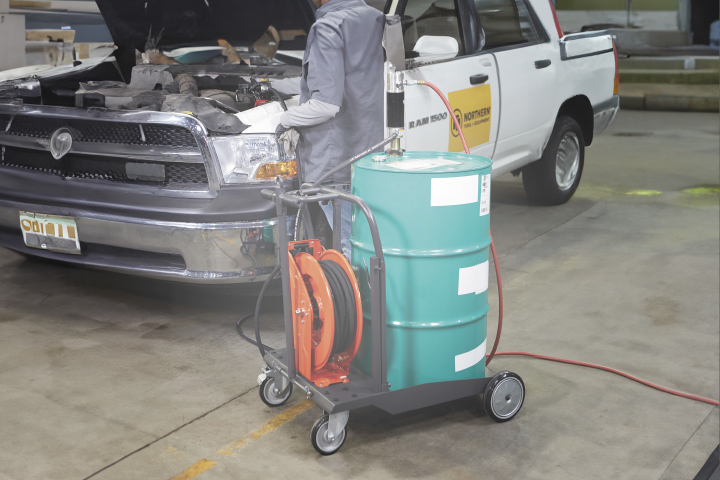

OPERATIONAL VERSATILITY

Capable of handling DIFFERENT TYPES OF OIL VISCOSITIES and suitable for various industrial applications from AUTOMOTIVE WORKSHOPS to HEAVY MACHINERY MAINTENANCE

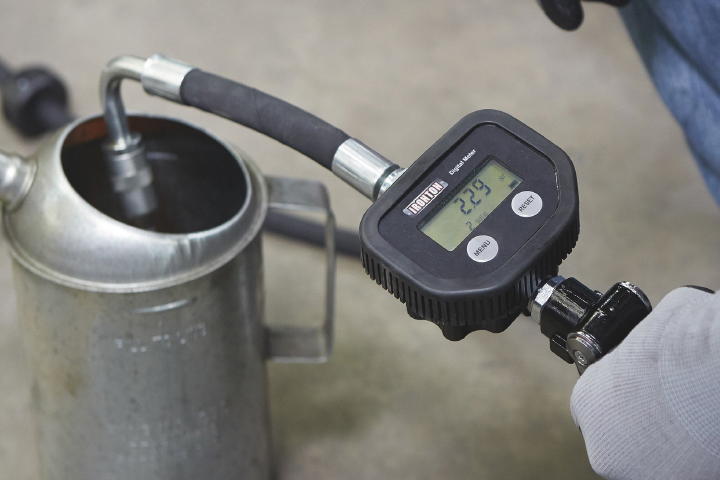

PRECISION FLUID MANAGEMENT

Incorporates a DIGITAL OIL CONTROL VALVE and meter to accurately measure and control oil flow, MINIMIZING WASTE and ensuring EXACT DISPENSATION

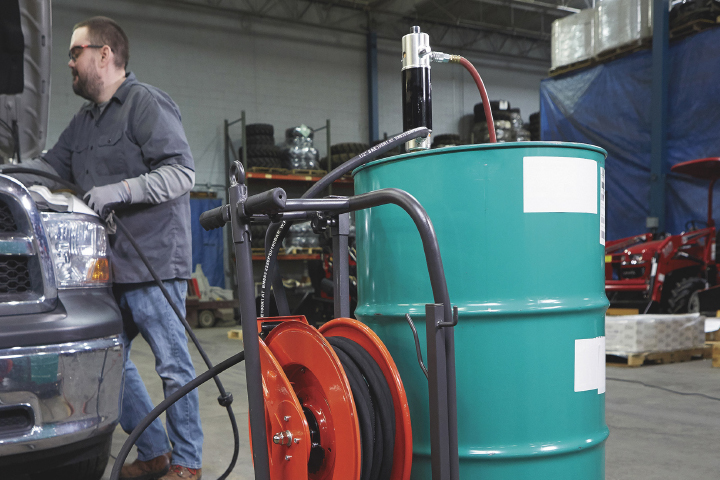

EASY SETUP AND USE

The kit includes all necessary components such as a SUCTION TUBE and BUNG ADAPTER for quick assembly and integration into existing workflows, although a regulator must be obtained separately if needed

Features + Benefits

  • 5:1 Oil Pump: Delivers up to 3.7 GPM for dispensing medium- and high-viscosity oils up to SAE 240
  • 48–58-Gal. Drum Compatibility: Accommodates a range of drum sizes with 580 max. PSI fluid pressure
  • Smart Pump Design: Minimizes wear for longer service life
  • 1/2in. x 50ft. Hose + Reel: Provides extended reach and convenient hose storage
  • Digital Oil Control Valve + Meter: Allows controlled dispensing and measurement of oil
  • Heavy-Duty Trolley: Features 8in. front wheels, 6in. steering casters with brakes and an adjustable handle for convenient mobility
  • Versatile Installation Options: Suitable for mobile installations and long-distance fixed systems; regulator not included
  • 28-3/4in. Suction Tube + 2in. Bung Adapter: Supports oil transfer from compatible drums

Key Specs

AttributeSpecification

item#

58283

Brand

Ironton

Manufacturer's Warranty

3 month limited warranty

Ship Weight

138.0 LB

Flow Rate

3.7 GPM
AttributeSpecification

Max. Total Head

25 ft

Max. Suction Lift

6 ft

Inlet Port

0.75 in

Outlet Port

0.5 in

Reviews

Questions & Answers

95 Reviews This action will navigate to reviews.

Questions

1–10 of 26 Questions
Sort by:

  1. Description says "suitable for dispensing medium and high viscosity oil". I assume it will also handle hydraulic & motor oil. Am I Correct?

    1. I use it for 15W/40 engine oil and it has zero issues

      Helpful?

    2. We use it for hydraulic oil. Works well. The gauge was spot on when we checked it against some calculations

      Helpful?

    3. yes

      Helpful?

    4. yes will pump engine oil and hydraulic oil no problem. Currently using with 10w30 oil and so far so good!

      Helpful?

    5. This Air-Operated 5:1 Oil Pump Kit can handle hydraulic oils and motor oils up to SAE 240.

      Helpful?

  2. What Units does the digital dispenser measure?

    Is it capable of measuring gallons? if so, what is the smallest unit it is capable of measuring? is it capable of measuring .1 gallon?

    1. yes you can set it for Gallons, Quarts or Liters

      Helpful?

    2. It will measure Gal. Quart and Liters

      Helpful?

    3. This kit's valve/meter measures in gallons. The range it will measure in is 0.3 to 9.2 GPM.

      Helpful?

  3. Will this pump diesel fuel additive? Specifically Schaeffers Carbon Treat?

    1 answer

    1. This oil pump kit is compatible with diesel fuel additives like Schaeffer's Carbon Treat.

      Helpful?

  4. Can I get a replacement display for the fluid meter?

    1 answer

    1. The display is not available as a separate part. The oil control valve with meter, part number ITI28804-3, can be purchased through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  5. We have a 150psi air compressor system. Will this work with this unit?

    1 answer

    1. This pump is rated for 70 - 115 PSI. It can be used with a higher pressure compressor as long as the compressor’s output is properly regulated.

      Helpful?

  6. Will this pump work with DEF?

    1 answer

    1. The pump is not suitable for DEF applications. The carbon steel tubing is susceptible to corrosion when exposed to diesel exhaust fluid.

      Helpful?

  7. Does this pump offer a variable flow at rates below the cited 3.7gpm? Can you get lower flow rates (around 1gpm with 50wt oil) if you either run lower air pressure or don't squeeze the control valve handle all the way?

    1 answer

    1. The pump has a maximum flow rate of 3.7 GPM. This kit is equipped with an oil control valve which allows the user to regulate the flow of the oil by squeezing the trigger.

      Helpful?

  8. Is there just a cart with no hose reel and pump?

    1 answer

    1. Currently, the cart for this set up is not available as a separate part.

      Helpful?

  9. WHAT IS JUST THE PUMP P/N

    1 answer

    1. The part number for the replacement pump is IRN58283-RP. We no longer sell parts through Northern Tool. To order, please contact our sister company Jacks Small Engines at the provided link. https://jackssmallengines.com/

      Helpful?

  10. Will this pump gear oil?

    1 answer

    1. The pump will work with motor oil, synthetic oil, hydraulic oil, gear oil and automatic transmission fluid.

      Helpful?
