Ironton Air-Operated Oil Transfer Pump, 5:1 Ratio, 4.76 GPM, 150 Max. PSI., 55-Gal. Drum Capacity

Item# 83743
"Ironton Air-Operated Oil Transfer Pump, 5:1 Ratio, 4.76 GPM, 150 Max. PSI., 55-Gal. Drum Capacity"
Ironton Air-Operated Oil Transfer Pump, 5:1 Ratio, 4.76 GPM, 150 Max. PSI., 55-Gal. Drum Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ironton Air-Operated Oil Transfer Pump, 5:1 Ratio, 4.76 GPM, 150 Max. PSI., 55-Gal. Drum Capacity

Click or Tap image to Zoom

$349.99

  • Shipping:

    Backordered: Order now to reserve yours -
    Estimated to ship 06/29/26

  • Store Pickup:

    Not Available
  • 5:1 gear ratio delivers a maximum flow rate up to 4.76 GPM
  • Non-return valve prevents the backflow of oil when the pump is switched off, keeping the pump lubricated all the time
  • No priming is required between uses
  • Features an air consumption rate of 66 GPM and working pressure of 30–150 PSI
  • Max. air pressure is 150 PSI

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Ironton Air-Operated Oil Transfer Pump, 5:1 Ratio, 4.76 GPM, 150 Max. PSI., 55-Gal. Drum Capacity
  • Fast Orange Pumice Hand Cleaner, Gallon
Price for all two:

$366.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Ironton Air-Operated Oil Transfer Pump is designed to perform a quick transfer of oils from large drums to smaller containers. The double-acting pump delivers a discharge rate of up to 4.76 GPM that is ideal for use in industry, workshops, farms or construction or as part of a mobile oil system. This unit is designed for use with oils featuring a viscosity of up to SAE 240 for transferring over short and long distances (up to 160ft.) This transfer pump fits drum sizes up to 55 gallons and features a 1/4in. NPT-F air inlet connection, a 1/2in. NPT-F outlet connection and a 1in. NPT-F pump inlet connection.

What's Included

    (1) Oil pump (1) 2-pc. suction tube (1) Filter assembly

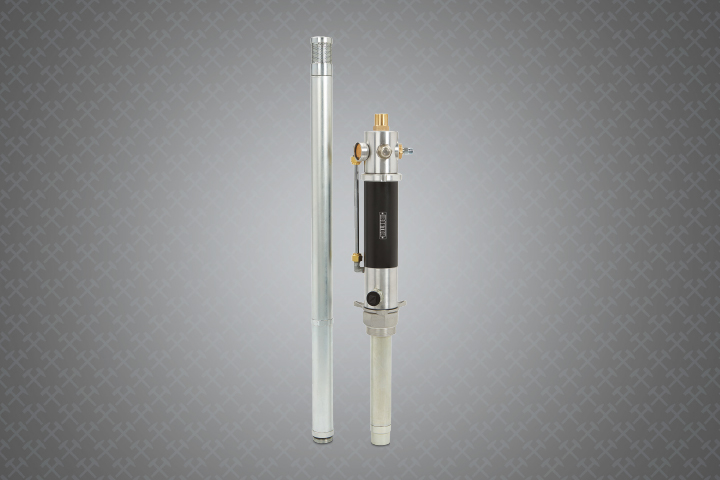

STREAMLINED OIL DISPENSING

The IRONTON® 5:1 OIL TRANSFER PUMP is engineered for fast and effective oil transfer, facilitating seamless operations in various commercial and industrial environments

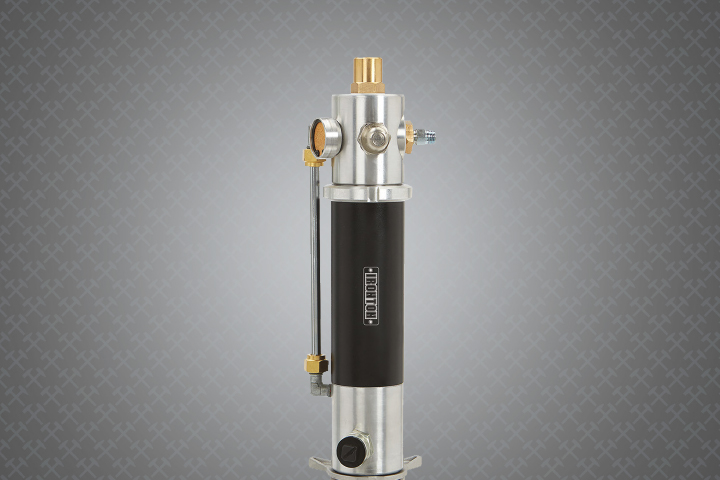

SAFETY AND CONVENIENCE

Incorporates a NON-RETURN VALVE to protect against OIL BACKFLOW and keeps the SYSTEM PRIMED, enhancing operational efficiency and safety

Features + Benefits

  • 5:1 gear ratio delivers a maximum flow rate up to 4.76 GPM
  • Non-return valve prevents the backflow of oil when the pump is switched off, keeping the pump lubricated all the time
  • No priming is required between uses
  • Features an air consumption rate of 66 GPM and working pressure of 30–150 PSI
  • Max. air pressure is 150 PSI
  • Low noise level of just 81dB during operation
  • Pump has wear-resistant moving parts and can be used with different drum sizes up to 55 gal.

Key Specs

AttributeSpecification

item#

83743

Brand

Ironton

Manufacturer's Warranty

1 year limited warranty

Ship Weight

14.4 LB

Flow Rate

4.76 GPM
AttributeSpecification

Max. PSI

750

Max. Total Head

30 ft

Max. Suction Lift

10 ft

Inlet Port

1 in

Outlet Port

0.5 in

Reviews

Questions & Answers

14 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. Can I order extra pipe for this pump?

    1 answer

    1. At this time, parts are not available for this pump.

      Helpful?

  2. is the suction tub adjustable for a 2' container

    1 answer

    1. This pump includes two suction tubes. One is 8-5/16in. long and the other is 17-1/2in. long, allowing the user to select the appropriate length based on his/her equipment. It would not reach the bottom of a 24in. container.

      Helpful?

  3. Will this pump Epoxy Resin?

    1 answer

    1. It is not recommended to use the oil transfer pump for pumping epoxy resin.

      Helpful?

  4. The instruction manual references a repair kit. Where can we purchase this kit?

    1 answer

    1. I apologize, a repair kit is not available for this transfer pump. We do not have replacement parts for this.

      Helpful?

  5. How much fluid pressure can this produce

    1 answer

    1. The output fluid pressure will be up to five times the inlet air pressure. The maximum inlet air pressure can be 150 PSI which will result in a maximum fluid output pressure up to 750 PSI.

      Helpful?

  6. will this pump work on a 55 gallon drum?

    1 answer

    1. The pump will work on a 55 gallon drum.

      Helpful?

  7. Does this system pressurize the drum itself?

    1 answer

    1. This oil pump will not pressurize the drum.

      Helpful?

  8. Will this work with a 5 gallon pail?

    1 answer

    1. This will work with a 5 gallon pail.

      Helpful?
