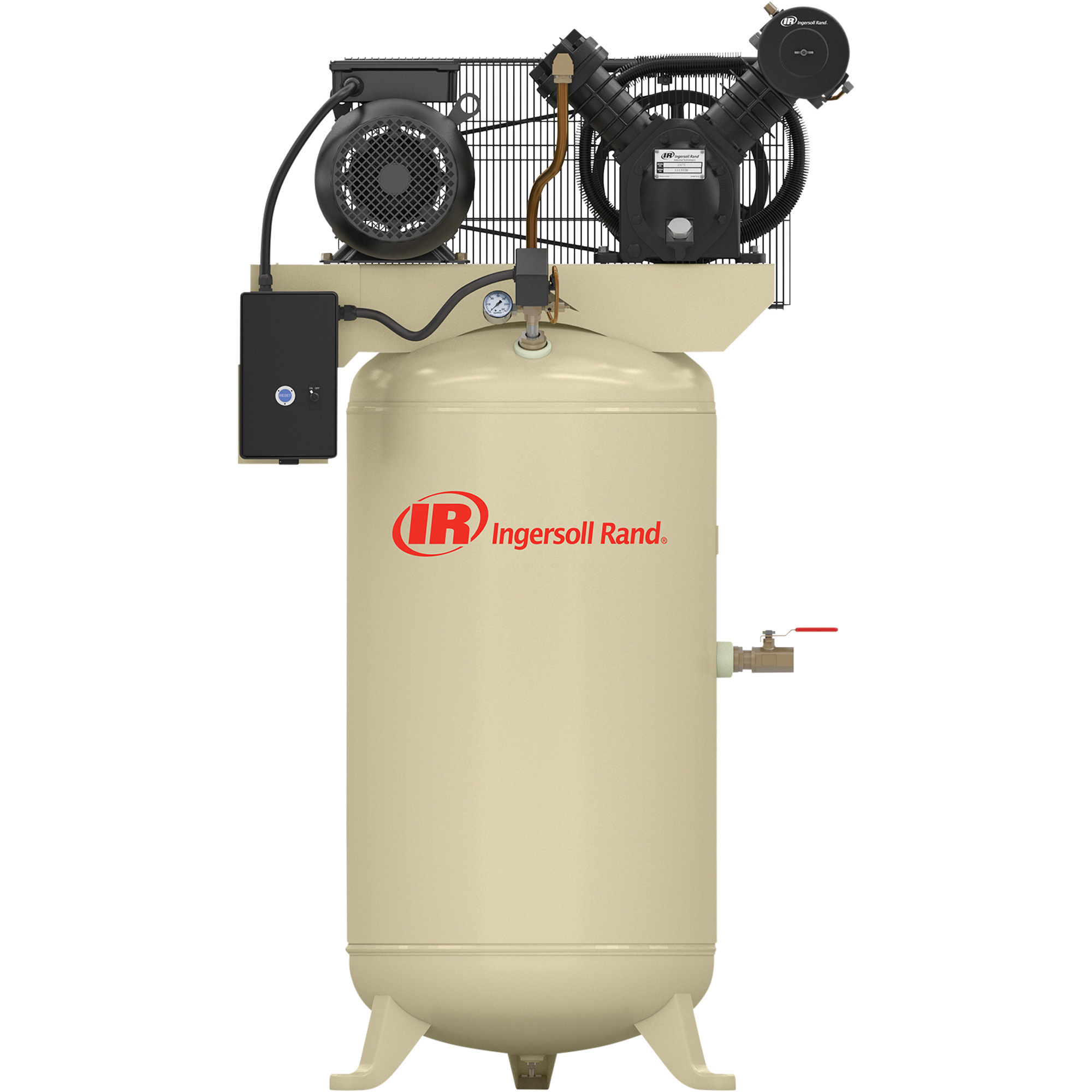

Ingersoll Rand Type-30 Reciprocating Air Compressor, 7.5 HP, 460 Volt, 3 Phase, 80 Gallon Vertical, Model# 2475N7.5-V

Item# 1592003D
Ingersoll Rand Type-30 Reciprocating Air Compressor, 7.5 HP, 460 Volt, 3 Phase, 80 Gallon Vertical, Model# 2475N7.5-V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Type-30 Reciprocating Air Compressor, 7.5 HP, 460 Volt, 3 Phase, 80 Gallon Vertical, Model# 2475N7.5-V

Click or Tap image to Zoom

$3499.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Long Life: Durable cast iron construction, long-lasting extended pump life designed for over 15,000 hours of trouble-free use
  • Maximum Power and Flexibility: 100% continuous duty, 7.5 HP two-stage air compressor, 175 PSIG maximum operating pressure and an 80-gallon ASME receiver tank provide plenty of punch for the most demanding applications

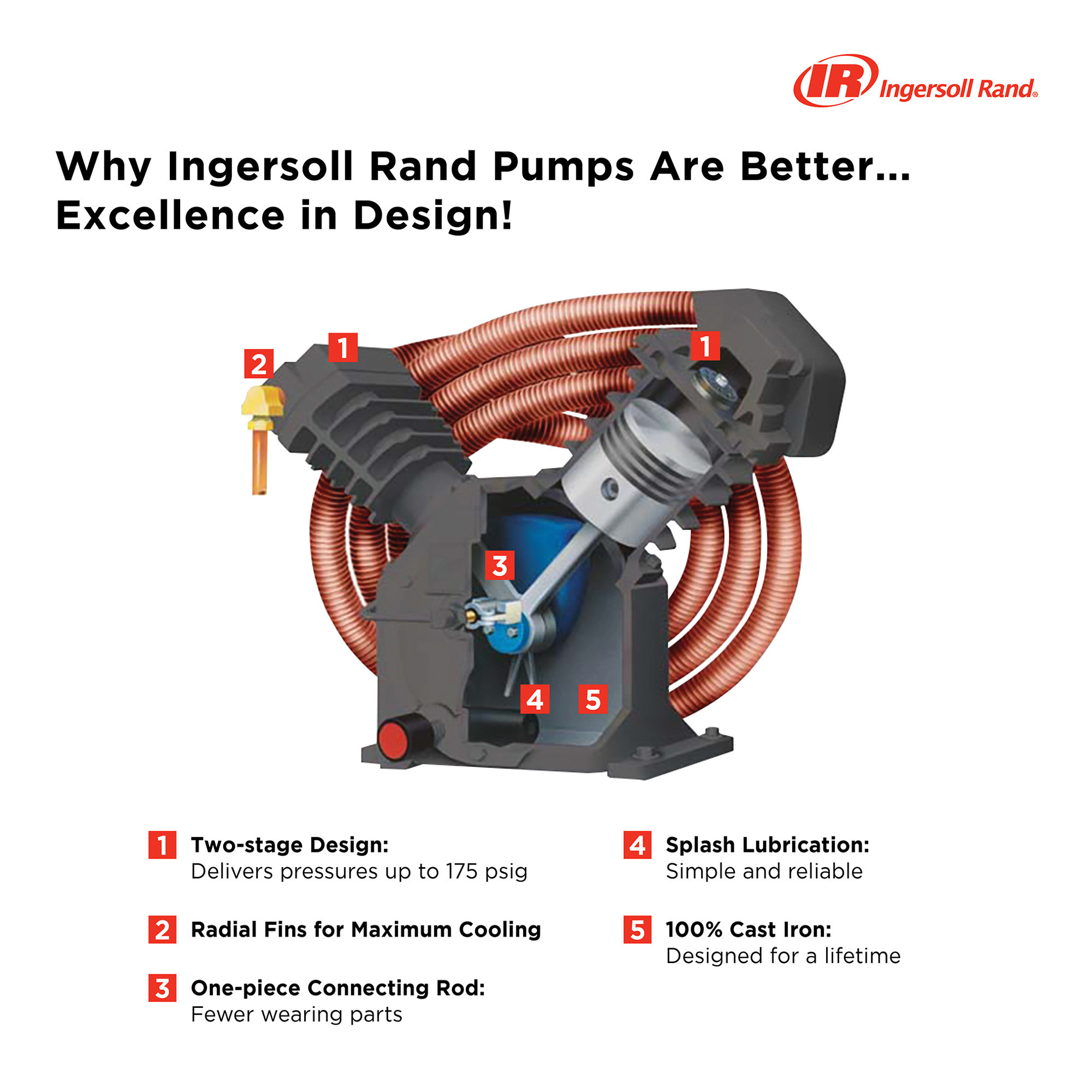

  • Easy to Service: Individually cast cylinders, overhung crankshaft and one piece connecting rod simplifies maintenance and service
  • Reliable Operation: All Season Select synthetic lubricant increases efficiency; with 2000 hours of service between change outs, it performs four times longer than petroleum-based lubricants
  • Purchase an All-Season Select lubricant start-up kit, and receive all the parts you need for start-up and the first year of maintenance, along with an extended pump warranty

See full description

Complete Your Solution

  • Ingersoll Rand Type-30 Reciprocating Air Compressor, 7.5 HP, 460 Volt, 3 Phase, 80 Gallon Vertical, Model# 2475N7.5-V
  • Ingersoll Rand, 2 Year Warranty Startup Kit - 2200/2340/2475/TS4 Model# 47853635004-R

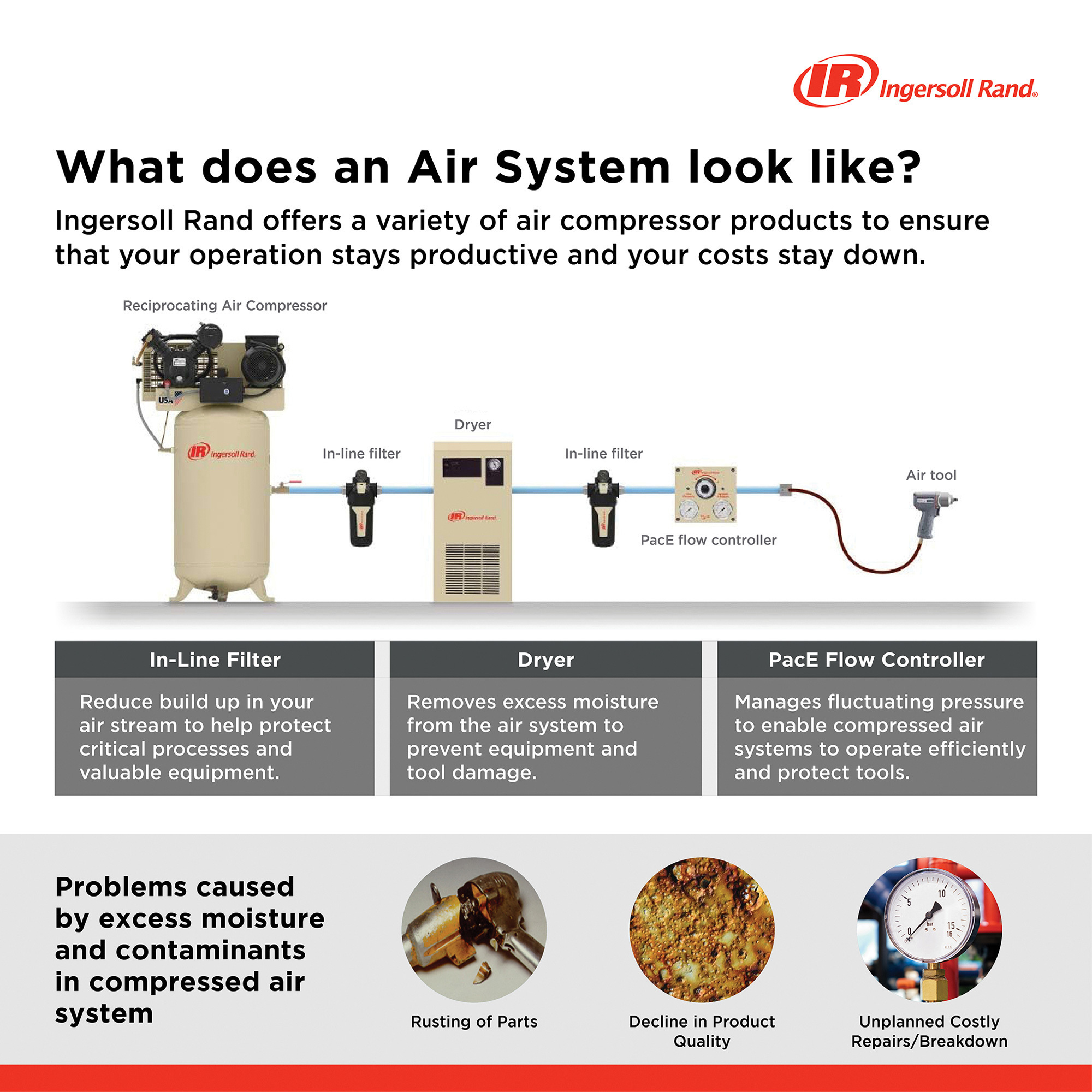

  • Ingersoll Rand Non-Cycling Refrigerated Air Dryer — 25 CFM, Aluminum Heat Exchanger, Model# DA42INA100
  • Ingersoll Rand F-Series General 1 Micron Filter, 3/8in., 17 CFM, Model# FA30IG
Price for all four:

$6248.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Ingersoll Rand's legendary Type-30 air compressors have been providing unsurpassed performance in the most demanding applications for over 75 years. The Type-30 compressors are recognized as the industry's benchmark for quality, power and reliability -- that's why they remain the world's best-selling reciprocating compressor. Designed for heavy shop or industrial use, Ingersoll Rand electric-driven, two-stage air compressors provide the reliability and performance that are ideal for most applications including automotive service and body shops, fleet maintenance, machine shops, production and manufacturing lines, wood working shops, dry cleaners, car washes, general maintenance/repair shops and farms. Whether you're a small shop owner, auto body or repair business owner, or work in a demanding industrial environment, there is a Type-30 air compressor that will meet your needs. Warranty on the reciprocating pump extends from 1 year to 2 years with the purchase use of the 2yr Warranty Start Up Kit (Item# 6131984 - sold seperately).

What's Included

    (1) Compressor with 80-gallon tank

Downloads

Product Manual

Features + Benefits

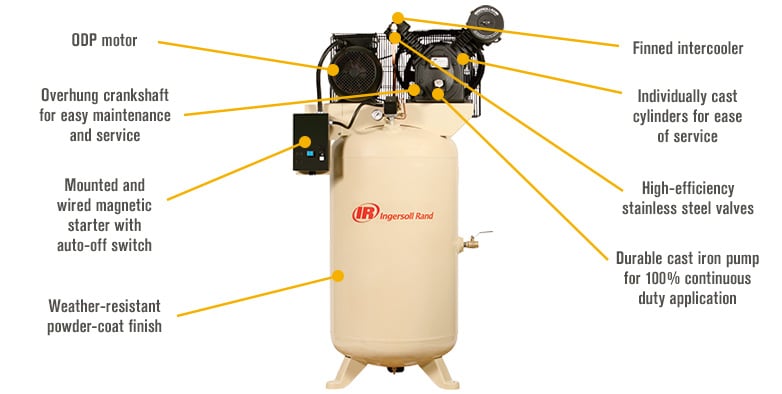

  • Long Life: Durable cast iron construction, long-lasting extended pump life designed for over 15,000 hours of trouble-free use
  • Maximum Power and Flexibility: 100% continuous duty, 7.5 HP two-stage air compressor, 175 PSIG maximum operating pressure and an 80-gallon ASME receiver tank provide plenty of punch for the most demanding applications
  • Easy to Service: Individually cast cylinders, overhung crankshaft and one piece connecting rod simplifies maintenance and service
  • Reliable Operation: All Season Select synthetic lubricant increases efficiency; with 2000 hours of service between change outs, it performs four times longer than petroleum-based lubricants
  • Purchase an All-Season Select lubricant start-up kit, and receive all the parts you need for start-up and the first year of maintenance, along with an extended pump warranty
  • Finned copper intercooler
  • Extended 2-year warranty on the pump when you use maintenance kit #1592008

Key Specs

AttributeSpecification

item#

1592003D

Brand

Ingersoll Rand

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

620.0 LB

Air Tank Size

80 Gal

Volts

460

Motor Phase

3

Stage

2

Horsepower

7.5 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

11

Duty Cycle

1 %

Motor RPM

3,450

Working Pressure

175 PSI
AttributeSpecification

Engine Start Type

Electric

Pump Life

10,000 hr

Pump Material

Cast Iron

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

24

Noise Level

85 dB

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Drain Type

Manual

Product Weight

620.0000 lb

Dimensions L x W x H (in.)

26.0 x 38.0 x 70.0 in

Reviews

Questions & Answers

45 Reviews This action will navigate to reviews.

Questions

1–10 of 22 Questions
Sort by:

  1. Does this product come with oil?

    Is it ready to go or do I need to purchase anything else to get it started?

    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 7.5 HP, 230 Volt, 1 Phase, 80 Gallon Vertical, Model# 2475N7.5-V"

    1. The Ingersoll Rand type 30 reciprocating air compressor does not come with oil

      Helpful?

    2. No it does not come with oil. It takes 2 quarts of SAE 30 non detergent oil.

      Helpful?

    3. It has no oil in it and does not come with oil. The oil can be purchased at northern tools. I used SAE 30 non detergent oil.

      Helpful?

  2. Is this unit considered a "full package" type, ie., does it have the automatic low oil shut-off, the automatic drain valve and the intercooler?

    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 7.5 HP, 230 Volt, 3 Phase, 80 Gallon Vertical, Model# 2475N7.5-V"

    1. This Ingersoll Rand compressor does not include the premium package. Please see item #15920030 for a fully packaged IR compressor which includes a low oil level switch, after cooler and automatic tank drain.

      Helpful?

    2. No it does not

      Helpful?

  3. Air outlet service valve thread type and size?

    What is the air outlet service valve thread type and size on this unit?

    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 7.5 HP, 230 Volt, 1 Phase, 80 Gallon Vertical, Model# 2475N7.5-V"

    1. 3/4" national pipe thread

      Helpful?

    2. The air outlet size on this compressor is 3/4 inch, the thread type is NPT (national pipe thread).

      Helpful?

  4. How much oil does this take

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 7.5 HP, 230 Volt, 1 Phase, 80 Gallon Vertical, Model# 2475N7.5-V"

    1. The Ingersoll Rand 2475N7.5-V Type-30 Air Compressor takes about 41.6 oz (1.3 quarts / 1.23 liters) of compressor oil.

      Helpful?

  5. What is the weight of the compressor and motor? I know overall weight is 620 but what is the weight of compressor, motor and tank if disassembled and moved separately?

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 7.5 HP, 200 Volt, 3 Phase, 80 Gallon Vertical, Model# 2475N7.5-V"

    1. The total weight of the compressor is 620 pounds. The bare pump model 2475 weighs 150 pounds. The electric motor model 2301-60 weighs 85 pounds and tank only weighs 300 pounds.

      Helpful?

  6. How many cfm can handle at 90 psi???

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 7.5 HP, 230 Volt, 1 Phase, 80 Gallon Vertical, Model# 2475N7.5-V"

    1. The CFM rating at 90 PSI is 24.3 CFM.

      Helpful?

  7. who do we contact for warranty service?

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 7.5 HP, 230 Volt, 1 Phase, 80 Gallon Vertical, Model# 2475N7.5-V"

    1. Ingersoll Rand would cover the warranty on this compressor.

      Helpful?

  8. Is this machine 50hz or 60hz

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 7.5 HP, 230 Volt, 1 Phase, 80 Gallon Vertical, Model# 2475N7.5-V"

    1. This compressor will operate on 60 hertz.

      Helpful?

  9. How many stages

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 7.5 HP, 200 Volt, 3 Phase, 80 Gallon Vertical, Model# 2475N7.5-V"

    1. This compressor features a 2-stage pump.

      Helpful?

  10. Hello. i am trying to find out for my electrician the minimum voltage to operate this press. usually they will say 208-230 on the metal plate, this one just says 230?  And is it true these compressors can tolerate 10% electricity level

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 7.5 HP, 230 Volt, 1 Phase, 80 Gallon Vertical, Model# 2475N7.5-V"

    1. The voltage drop allowed is 10%. The lower the percentage of voltage drop the longer the electric motor will last.

      Helpful?
