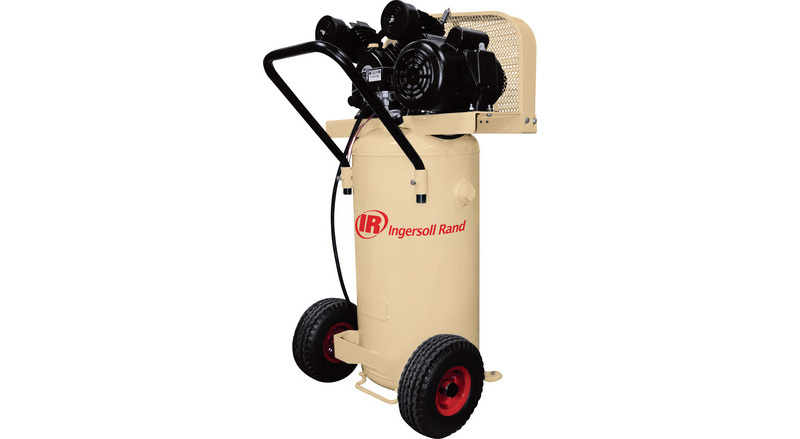

Ingersoll Rand Garage Mate Single-Stage Portable Electric Air Compressor, 2 HP, 20 Gal., 5.5 CFM, Model# P1.5IU-A9

Item# 1592073
"Ingersoll Rand Single-Stage Portable Electric Air Compressor, 2 HP, 20-Gallon, 5.5 CFM, Garage Mate Model# P1.5IU-A9"
Top Seller
Ingersoll Rand Garage Mate Single-Stage Portable Electric Air Compressor, 2 HP, 20 Gal., 5.5 CFM, Model# P1.5IU-A9

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Garage Mate Single-Stage Portable Electric Air Compressor, 2 HP, 20 Gal., 5.5 CFM, Model# P1.5IU-A9

Click or Tap image to Zoom

$849.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    3 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Features a cast iron, oil-lubricated pump for solid, reliable performance
  • Quiet operation @ 75-80dB
  • Equipped with a pressure switch, pressure gauge, regulator, safety valve and six-foot power cord
  • Engineered cast iron construction for long life
  • 1pc connecting rods

See full description

Complete Your Solution

  • Ingersoll Rand Garage Mate Single-Stage Portable Electric Air Compressor, 2 HP, 20 Gal., 5.5 CFM, Model# P1.5IU-A9
  • Ingersoll Rand, 2 Year Warranty Startup Kit - P1.5IU-A9 Garage Mate, Model# 47853635003-R
  • Ingersoll Rand Air Impact Wrench, 1/2in. Drive, 6 CFM, 1350 Ft./Lbs. Max Torque, Model# 2235TiMax
Price for all three:

$1239.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Designed for professionals and serious do-it-yourselfers, the versatile Garage Mate is ideal for the home, shop or jobsite. Delivering maximum air, the Garage Mate can power impact guns, ratchets, grinders, drills, nailers, paint sprayers, sanders and more. Extend your pump warranty to 2yrs with the purchase use of the 2yr Warranty Start Up Kit (Item# 6132338 - sold seperately).

What's Included

    (1) Garage mate air compressor

Downloads

Product Manual
Additional Product Info
Play Item Video

Features + Benefits

  • Features a cast iron, oil-lubricated pump for solid, reliable performance
  • Quiet operation @ 75-80dB
  • Equipped with a pressure switch, pressure gauge, regulator, safety valve and six-foot power cord
  • Engineered cast iron construction for long life
  • 1pc connecting rods
  • Splash lubrication
  • Balaced fly wheel & protective cage
  • OSHA compliant
  • Extend your pump warranty to 2yrs by purchasing & using the 2yr Warranty Start Up Kit (Item# 6132338 - sold seperately)

Key Specs

AttributeSpecification

item#

1592073

Brand

Ingersoll Rand

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

196.0 LB

Horsepower

2 HP

Air Tank Size

20 Gal

Volts

120

CFM at 90 PSI

5.5

Max. PSI

135

Amps

16

Duty Cycle

100 %
AttributeSpecification

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

1/4 in. NPT

CFM at Max. PSI

4.6

Noise Level

80 dB

Oil Required

Yes

Drain Type

Manual

Tank Orientation

Vertical

Product Weight

lb

Dimensions L x W x H (in.)

22.0 x 23.0 x 43.0 in

Reviews

Questions & Answers

225 Reviews This action will navigate to reviews.

Questions

1–10 of 52 Questions
Sort by:

  1. What is the air hose fitting size?

    1. 1/4 inch

      Helpful?

    2. The air hose fitting size is 1/4"

      Helpful?

    3. The quick coupler coming off the tank is standard 1/4".

      Helpful?

    4. 1/4 pipe.

      Helpful?

    5. 1/4 inch pipe thread

      Helpful?

    6. 1/4" NPT

      Helpful?

    7. The fitting size is 1/4".

      Helpful?

    8. 1/4 NPT.All auto parts stores will have the right air fittings you may need to make this work for you.

      Helpful?

    9. it's 1/4 size

      Helpful?

    10. It came with the coupler on the compressor. The fittings we are using to connect to it are 1/4" NPT, 1/4" Body.

      Helpful?

  2. I just unpackaged this compressor and set it up in my garage. Its quiet. How long should it take to build working pressure the first time.?

    It is not building pressure according to the main guage.

    1. Make sure the drain valve at the bottom of the tank is closed. Otherwise it should start building pressure immediately.

      Helpful?

    2. Mine starting building pressure immediately. I assembled the wheels and handles, put the oil in, plugged it in and pushed the switch to the on position. It started compressing air immediately. It took a couple of minutes to shut off.

      Helpful?

    3. it should build pressure right away. Mine only took a minute or so to fill up.

      Helpful?

    4. First check the pump head to see if there is a plug in the air intake. This would need to be removed if you haven't already. Second thing to do is to hit the reset button on the motor. Third if you have it connected to an extension cord, remove it and plug directly into the wall.

      Helpful?

  3. new compressor

    is there a " break in " time to change the oil? my book says 2000 hours or 12 mo.

    1. Follow the book instructions you will be fine.

      Helpful?

    2. They dont specifie but I changed the oil after 1 hour to clean out production film/particles....

      Helpful?

    3. Being synthetic oil is used in the Ingersoll Rand Garage Mate Air Compressor, a "break in" oil change is not needed.

      Helpful?

  4. How easily can I hook an expansion tank to this compressor?

    none

    1. Very easy as there is a plug on the side of the tank just for this very purpose.

      Helpful?

    2. Adding an expansion tank would be as easy as any other unit. You would come off the output fitting of this compressor with a line to your secondary tank. Then all of your tools would come off of the secondary tank. Presumably, you would put an additional regulator with water drain after your secondary tank.

      Helpful?

    3. You can hook up an expansion tank to this compressor. The auxiliary tank would have to be piped in with a hose or hard piping. Removal of the service connection may be required.

      Helpful?

  5. can this unit be rewired to run on 230 volts?

    I purchased this unit from you last year and would like to now run it on 230 volts rather than 115. Can this unit be rewired to operate on 230 volts?

    Ed

    1. Rewiring this Ingersoll Rand Garage Mate Air Compressor would void your warranty and is not recommended.

      Helpful?

    2. I had same question. According to name plate/spec. plate on my unit the motor is 120 volt only.

      Helpful?

    3. No it can not. The motor was not designed to run both. Units that are designed to run both are actualy 230 volts motors that are not heavy so 115 will turn it. If you run it off a 230 you will burn it out because the wiring inside the motor is not designed to handle than much power.

      Helpful?

  6. orbital sander

    Hi, I'm gonna paint my car, I bought an orbital sander. Could You tell me if this air compressor has enough air flow to run it.
    Thank you

    1. You need to determine what volume of air is required by your sander. If the sanders requirement is less than the compressor spec, then you should be good. If the sander requires more air than this compressor can deliver, you'll need a compressor that delivers the required volume of air at its rated duty cycle. Some compressors are rated of 100% run time and other are as low as 30%. This is the compressors duty cycle.

      Helpful?

    2. Depends on how much the air the sander uses. Some use LOTS of air some you can run it on this compresoor so depends on what the cfm is on your specific sander but chances are it will.

      Helpful?

    3. This air compressor will give you 5.2 CFM at 90 PSI or 4.6 CFM at 135 PSI. You would need to check the CFM and PSI requirement of the orbital sander you purchased to see if this compressor would cover the tools requirements.

      Helpful?

  7. What is the duty cycle of this compressor?

    1. 100% duty cycle.

      Helpful?

    2. If by "duty cycle" you mean can it run continuously, the answer is yes. It will run 100% of the time without issues.

      Helpful?

    3. This air compressor is 100 percent continuous duty.

      Helpful?

  8. volt

    this run on 120v ?

    1. any household outlet. 120v works fine

      Helpful?

    2. Yes - 120v

      Helpful?

    3. The compressor operates on 120 volt, with a maximum draw of 16 amps.

      Helpful?

  9. How much oil is needed for this compressor?

    1. 1 quart

      Helpful?

    2. One bottle of the IR all season air compressor oil is required for an oil change.

      Helpful?

    3. The compressor is shipped complete with a container of oil along with two filters. You will add about a quart of oil.

      Helpful?

  10. do you sell oil for my garage mate compressor

    ingersoll rand synthetic compressor lubricant

    1. YES THEY DO.

      Helpful?

    2. YES.

      Helpful?

    3. We have a T30-Select synthetic compressor lubricant, it is our item 1592005.

      Helpful?
