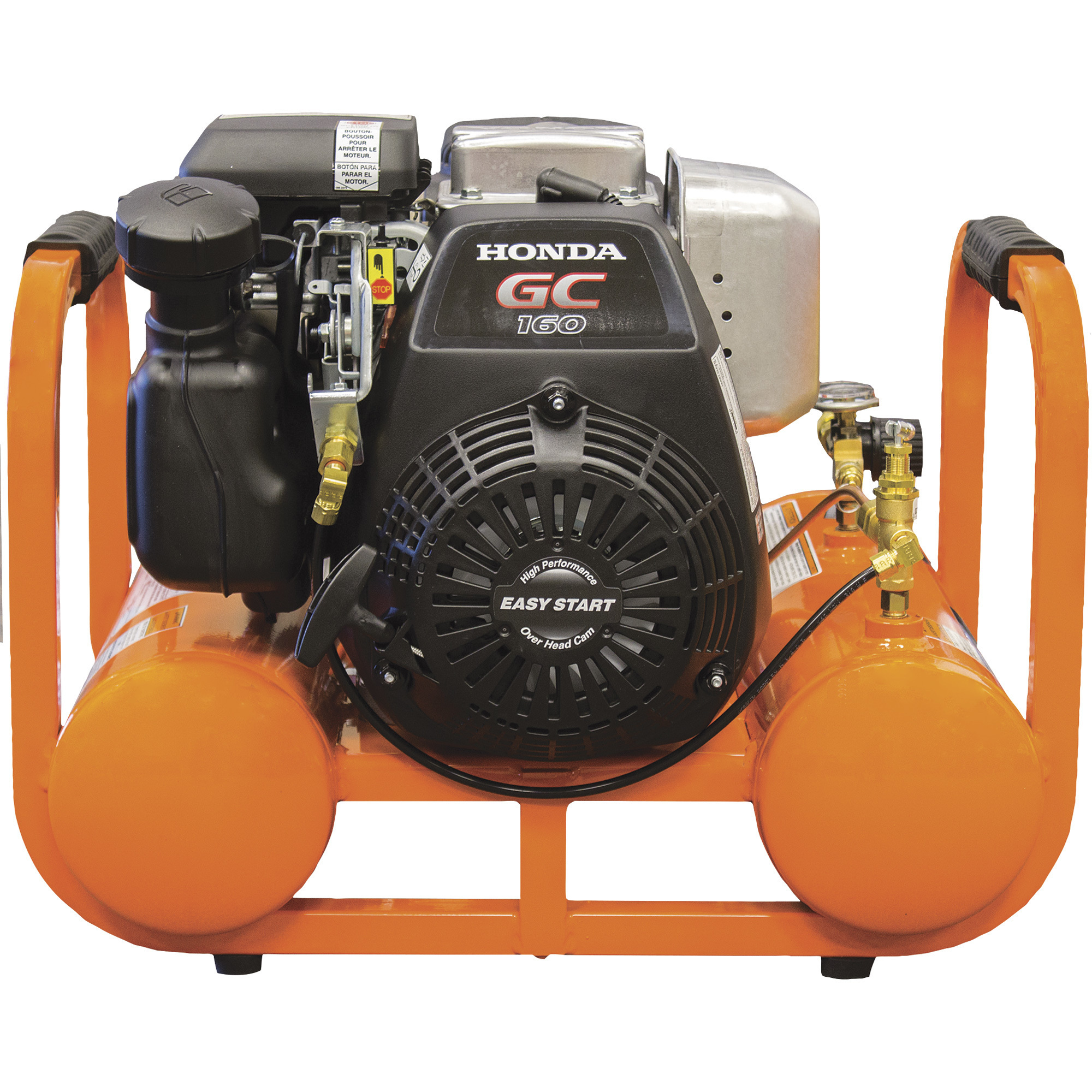

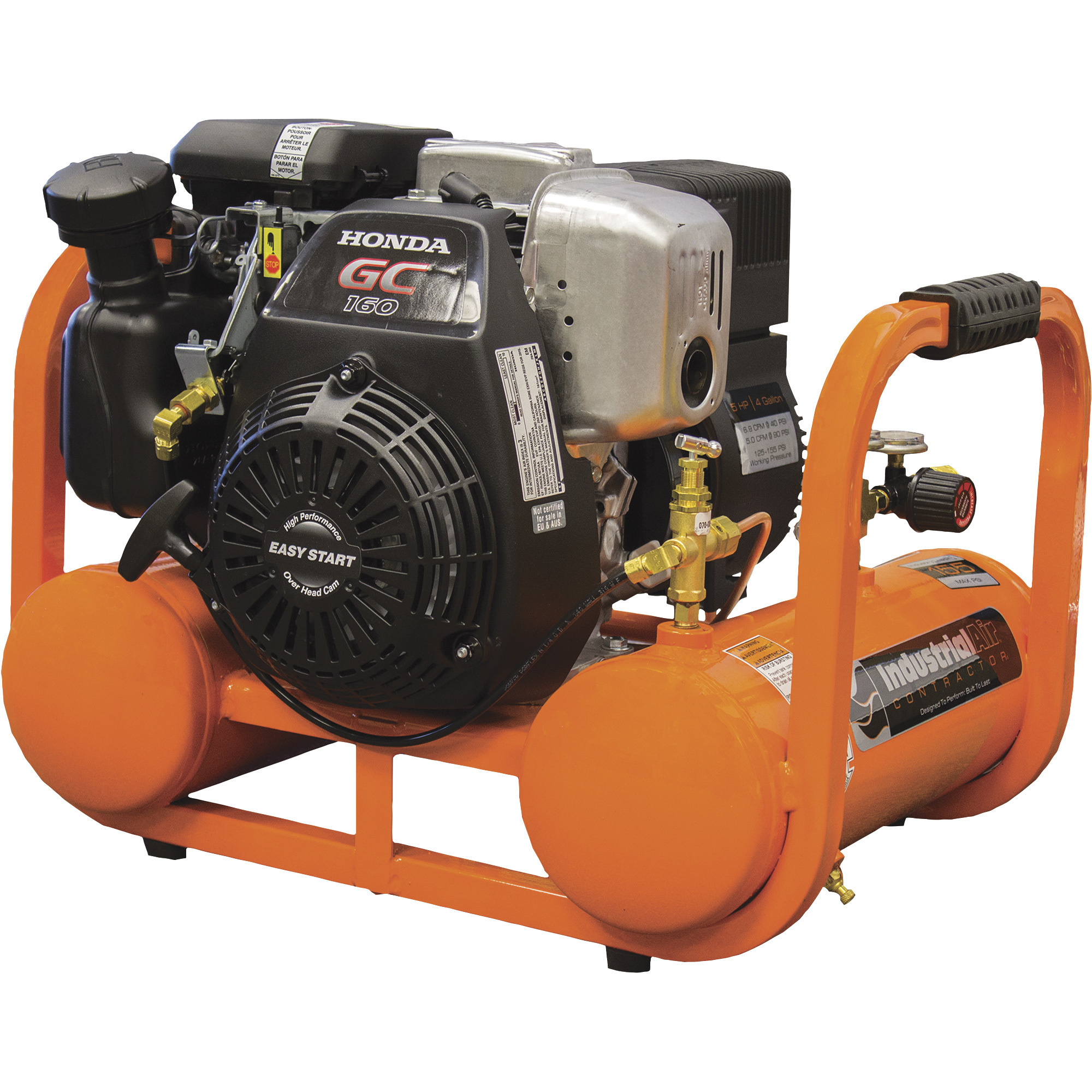

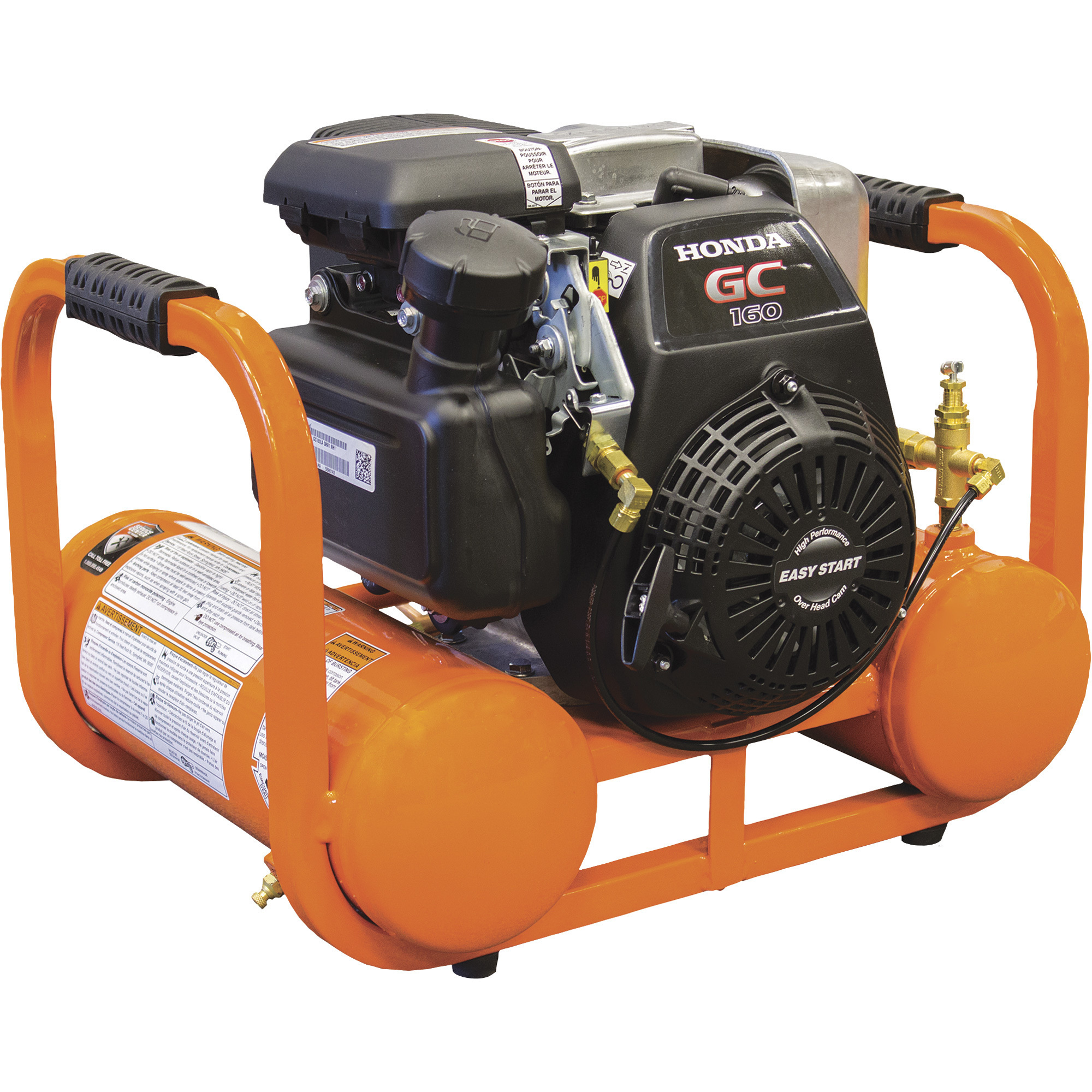

Industrial Air Contractor Gas-Powered Pontoon Air Compressor, 4.6 HP Honda OHC Engine, 4 Gallon, 155 PSI, Model# CTA5090412

Item# 211114
"Industrial Air Contractor Gas-Powered Pontoon Air Compressor — 4.6 HP Honda OHC Engine, 4 Gallon, 155 PSI, Model# CTA5090412"
Industrial Air Contractor Gas-Powered Pontoon Air Compressor, 4.6 HP Honda OHC Engine, 4 Gallon, 155 PSI, Model# CTA5090412

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Industrial Air Contractor Gas-Powered Pontoon Air Compressor, 4.6 HP Honda OHC Engine, 4 Gallon, 155 PSI, Model# CTA5090412

Click or Tap image to Zoom

  • 4.6 HP, 160cc Honda OHC gas-powered engine
  • Delivers 6.9 CFM @ 40 PSI; 5.0 CFM @ 90 PSI
  • 155 PSI max. pressure for optimum tool performance
  • Oil-free, direct drive operation
  • Air throttle cylinder

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This hardworking air compressor is specifically designed for demanding jobsite performance that contractors require. Premium Honda OHC Honda gas engine provides easy starting, smoother engine performance, lower fuel consumption and lower emissions. Low maintenance oil-free direct drive pump has patented two-piece cooling system that extends the life of the pump.

What's Included

    (1) Air compressor

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • 4.6 HP, 160cc Honda OHC gas-powered engine
  • Delivers 6.9 CFM @ 40 PSI; 5.0 CFM @ 90 PSI
  • 155 PSI max. pressure for optimum tool performance
  • Oil-free, direct drive operation
  • Air throttle cylinder
  • Separate pilot and check valves
  • Patented pump design has 2-pc. cooling system
  • Pontoon-style, twin 2-gallon tank design for jobsite portability

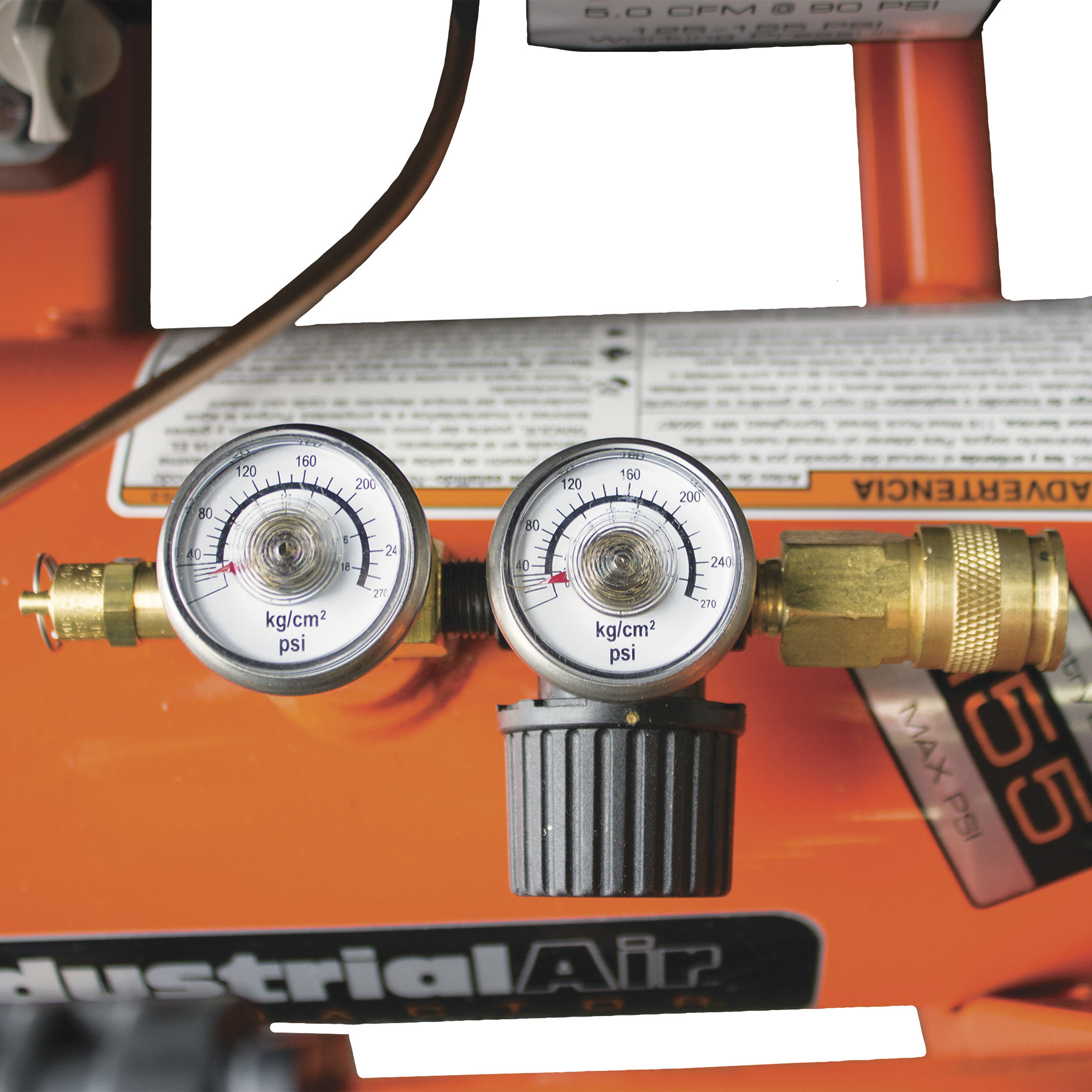

  • Equipped with regulator, gauges, quick connect, and cushioned handle grips

Key Specs

AttributeSpecification

item#

211114

Brand

Industrial Air Contractor

Manufacturer's Warranty

2 year limited warranty

Ship Weight

75.0 LB

Horsepower

4.6 HP

Air Tank Size

4 Gal

Engine Brand

Honda

CFM at 90 PSI

5

Max. PSI

155

Stage

1

Duty Cycle

80 %
AttributeSpecification

Fuel Capacity

0.475 Gal

Engine Displacement

160 cc

Engine Start Type

Recoil

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

6.9

After Cooler Included

No

Drain Type

Manual

Tank Orientation

Horizontal

Product Weight

lb

Dimensions L x W x H (in.)

24.5 x 21.5 x 20.0 in

Reviews

Questions & Answers

58 Reviews This action will navigate to reviews.

Questions

1–10 of 16 Questions
Sort by:

  1. Will this air up trailer tires to 120-125psi easily?

    1. Yes it will

      Helpful?

    2. This unit will be able to fill up those trailer tires.

      Helpful?

  2. Oil less or not?

    The specs say it is an oil less pump. The sticker on the pump in the image says it is oil type. I would rather have an oil lubricated pump on this unit.

    1. Compressor is oil less direct drive. Only the gas engine takes oil.

      Helpful?

    2. The "oil lubricated" sticker on this compressor is on the engine. The pump is oil free.

      Helpful?

  3. Duty rating

    I do not see the duty rating listed. 20% 50% 100% ? Any help greatly appreciated.
    Thx

    1. Duty Cycle as noted in the spec section is 80%

      Helpful?

    2. This Industrial Air Contractor Pontoon Air Compressor with Honda OHC Engine has an 80% duty cycle rating.

      Helpful?

  4. Can this run two framing guns

    1 answer

    1. This compressor can provide up to 6.9 CFM at 40 PSI and 5.0 CFM at 90 PSI. You will need to check the framing gun's CFM requirements to determine if this compressor can operate one or both of the framing guns.

      Helpful?

  5. Does this compressor idle down when the pressure is built up?

    1 answer

    1. The compressor will idle down when the pressure reaches the preset level.

      Helpful?

  6. i want to use this to use a spray gun for painting. is this compressor able to do this

    1 answer

    1. This compressor will put out a maximum 155 PSI. It will do 5.0 CFM at 90 PSI and 6.9 CFM at 40 PSI. You would need to check the CFM and PSI requirement of the paint spray gun you are going to use to see if this compressor would handle it.

      Helpful?

  7. Where can I find a replacement air filter?

    1 answer

    1. MAT019-0186 is the part number for a replacement filter. At this time parts can only be ordered on the phone. Our parts team can be reached at the 1-800-657-0516 phone number.

      Helpful?

  8. Can you install an electric starter on this?

    1 answer

    1. Electric start is unavailable for this model.

      Helpful?

  9. Hello, What is the dba level of this compressor while running? Thank you

    1 answer

    1. This air compressor has an outdoor rating of 89 dBA.

      Helpful?

  10. Is this compressor big enough to run air tools on ?

    1 answer

    1. This compressor is able to run smaller air tools.

      Helpful?
