Ideal UTV Frame Lift, Model# U-2200IEH-XR-BLK

Item# 115170
Ideal UTV Frame Lift, Model# U-2200IEH-XR-BLK

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ideal UTV Frame Lift, Model# U-2200IEH-XR-BLK

Click or Tap image to Zoom

$4920.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Retractable ramp system
  • Pivot approach ramps
  • Drop-down side access panels
  • Huge 65in. x 88.6in. table
  • 110V integrated electric/hydraulic power Unit

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

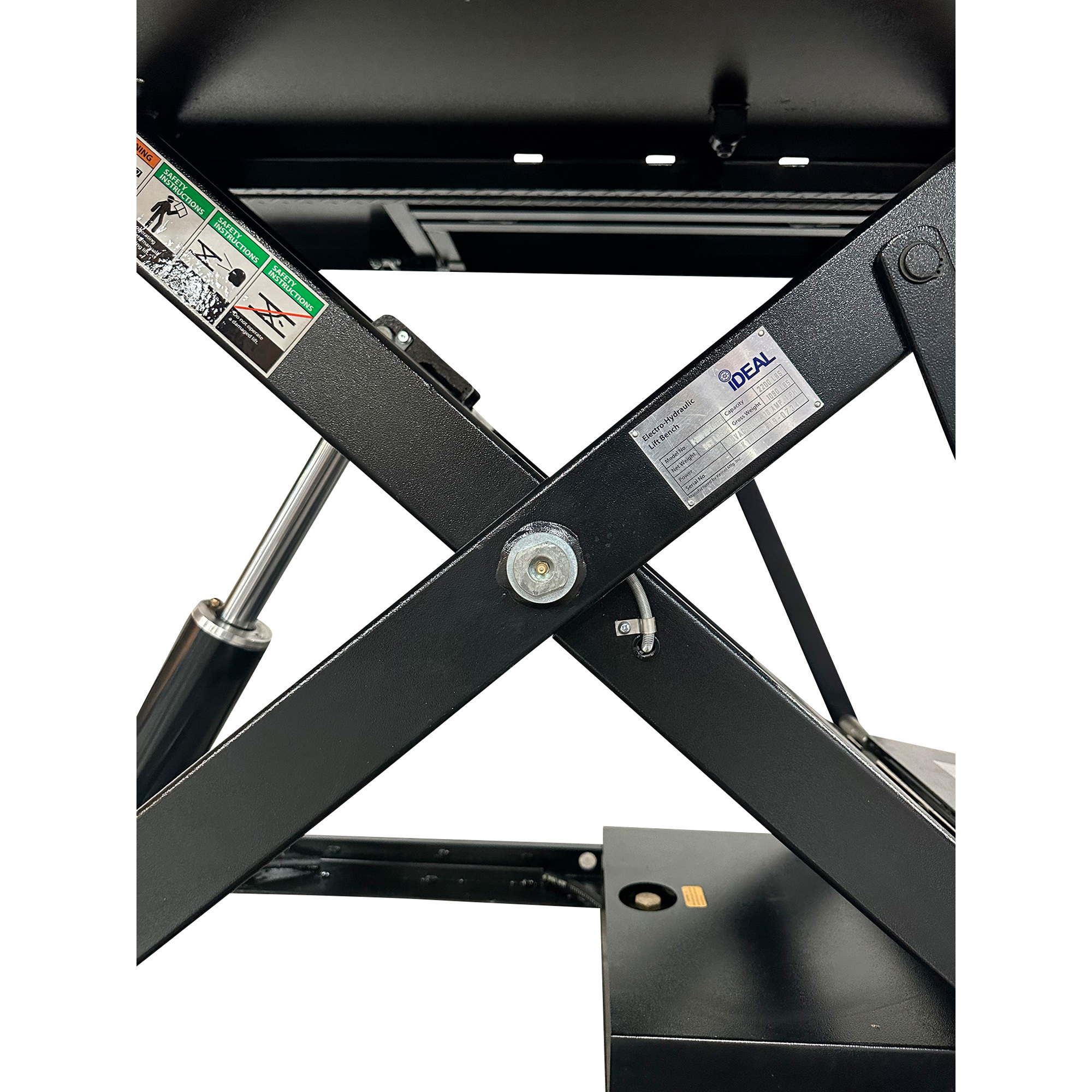

The Ideal UTV Frame Lift features a 2200-lb. capacity and a 65in. x 88.6in. table to handle the largest UTVs. Drive-on pivot ramps fold down and out of the way becoming wheel stops. The innovative retractable center ramp slides out of the way making for a safe and clean work space. Side extensions feature center drop panels to provide unmatched service access, including servicing motorcycles without removing side extensions.

What's Included

    (1) UTV frame lift

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Retractable ramp system
  • Pivot approach ramps

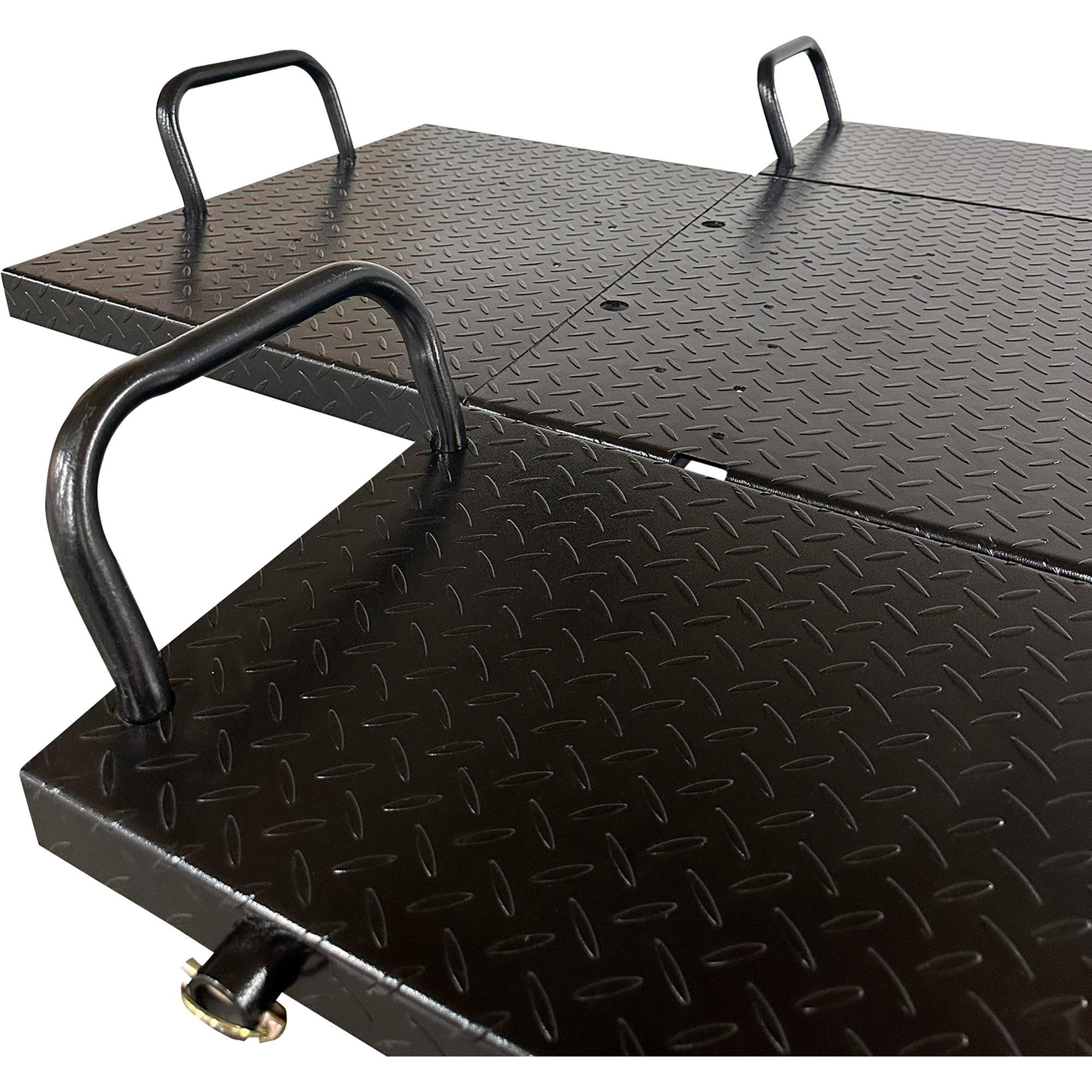

  • Drop-down side access panels
  • Huge 65in. x 88.6in. table
  • 110V integrated electric/hydraulic power Unit
  • Handheld control pendant
  • Six locking positions
  • Extended 27.5in. long full width approach ramp

Key Specs

AttributeSpecification

item#

115170

Brand

IDEAL

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1119.0 LB

Capacity

2,200 lb

Max. Lift Height

47.2 in
AttributeSpecification

Collapsed Height

7 in

Lift Type

Hydraulic/ Electric

Motor Phase

Single-phase

Volts

110

Product Weight

1,119 lb

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
