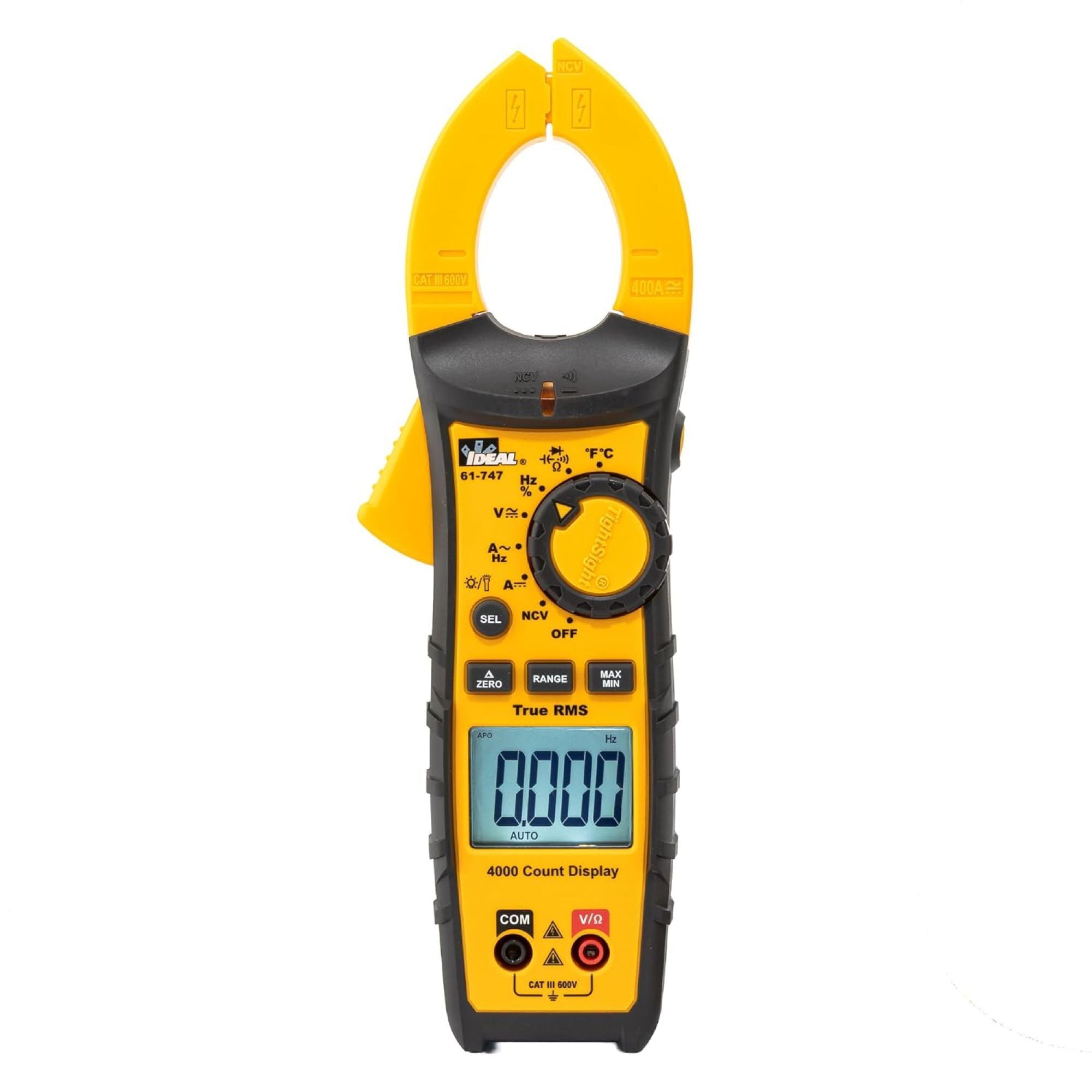

IDEAL, TightSight™ Clamp Meter 400A AC/DC, UL Certified CAT III 600V, measures 0-600 Amps AC/DC and 0-1000 Volts AC/DC, Auto Power Off, Backlit Display, Dual LCD Display, Data Hold, Diode Test, Auto Ranging, Audible Continuity, 61-747

Item# 7421772
New
IDEAL, TightSight™ Clamp Meter 400A AC/DC, UL Certified CAT III 600V, measures 0-600 Amps AC/DC and 0-1000 Volts AC/DC, Auto Power Off, Backlit Display, Dual LCD Display, Data Hold, Diode Test, Auto Ranging, Audible Continuity, 61-747

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

IDEAL, TightSight™ Clamp Meter 400A AC/DC, UL Certified CAT III 600V, measures 0-600 Amps AC/DC and 0-1000 Volts AC/DC, Auto Power Off, Backlit Display, Dual LCD Display, Data Hold, Diode Test, Auto Ranging, Audible Continuity, 61-747

Click or Tap image to Zoom

$105.60

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • UL Certified CAT III 600V, measures 0-600 Amps AC/DC and 0-1000 Volts AC/DC

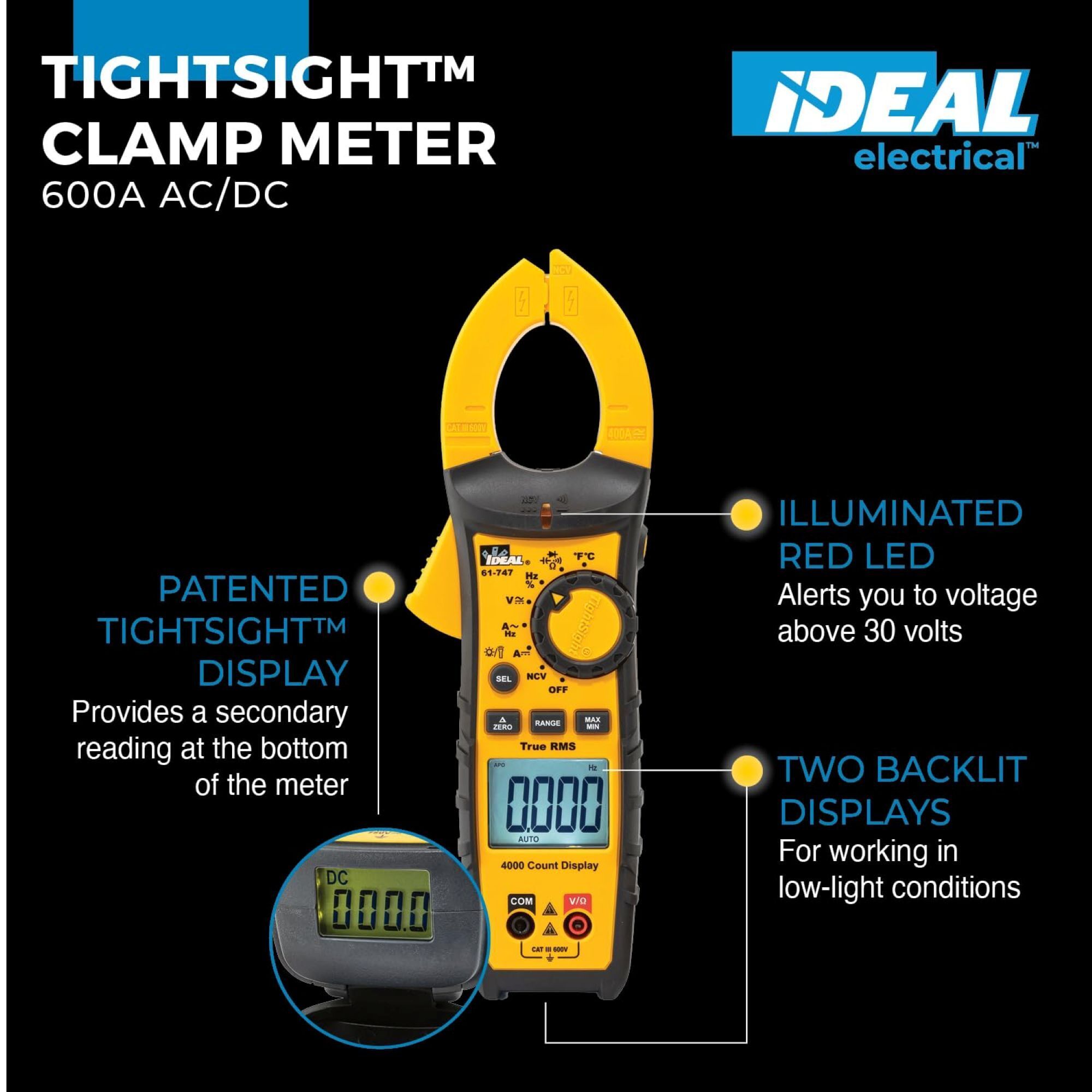

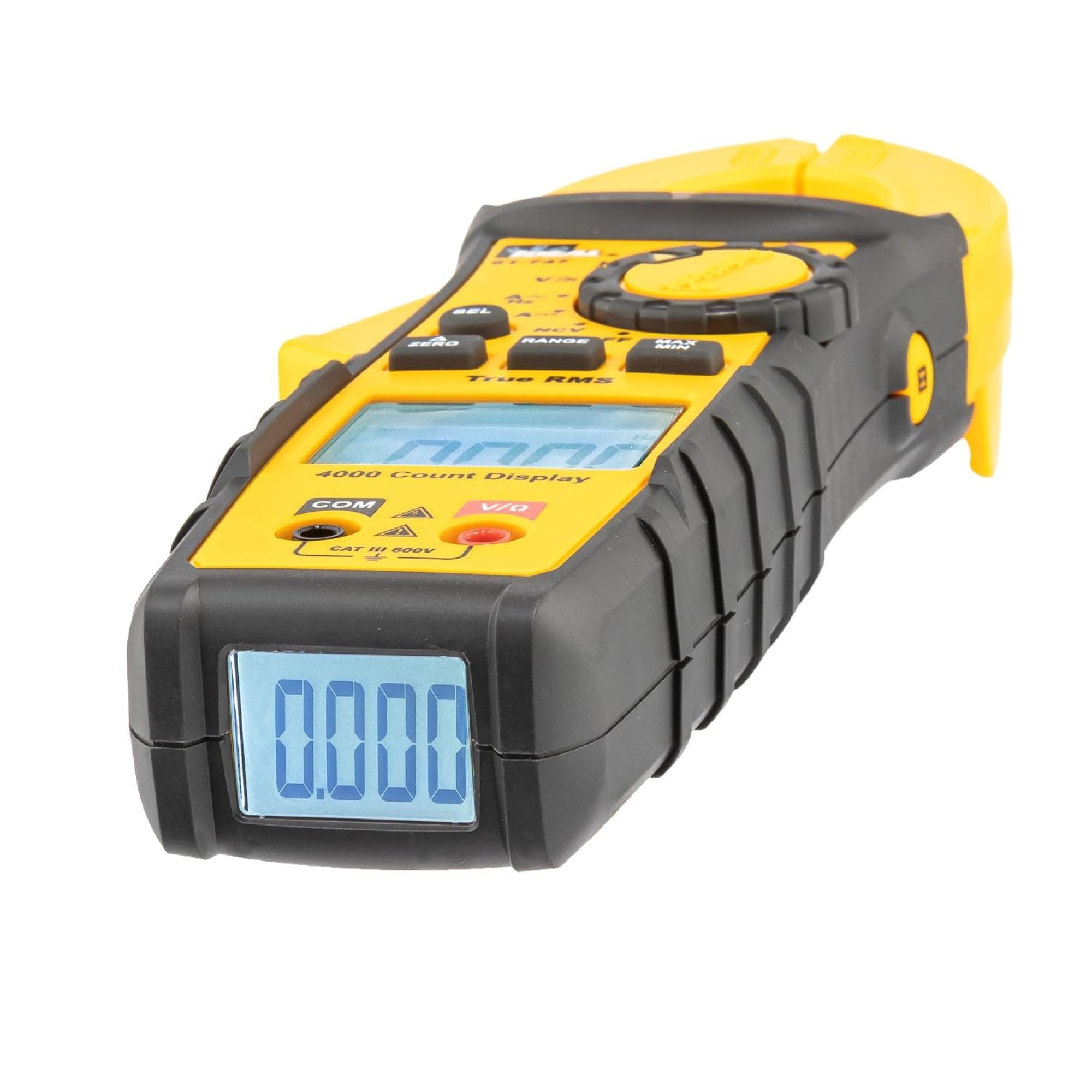

  • Patented Tightsight™ Display eliminates the need to bend or twist conductors or place your head near or in the panel and allows you to easily read the bottom display when taking measurements
  • Provides True RMS AC voltage and current for accurate measurements on non-linear signals
  • Measures AC/DC Current, AC/DC Voltage, frequency, resistance, continuity, capacitance, diodes, temperature, Low Impedance AC Voltage (Lo Z) (to reduce the possibility of false readings due to ghost voltages), and senses AC voltage
  • Built-in probe tip holder and hanging strap clip allows safer, easier measurement

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

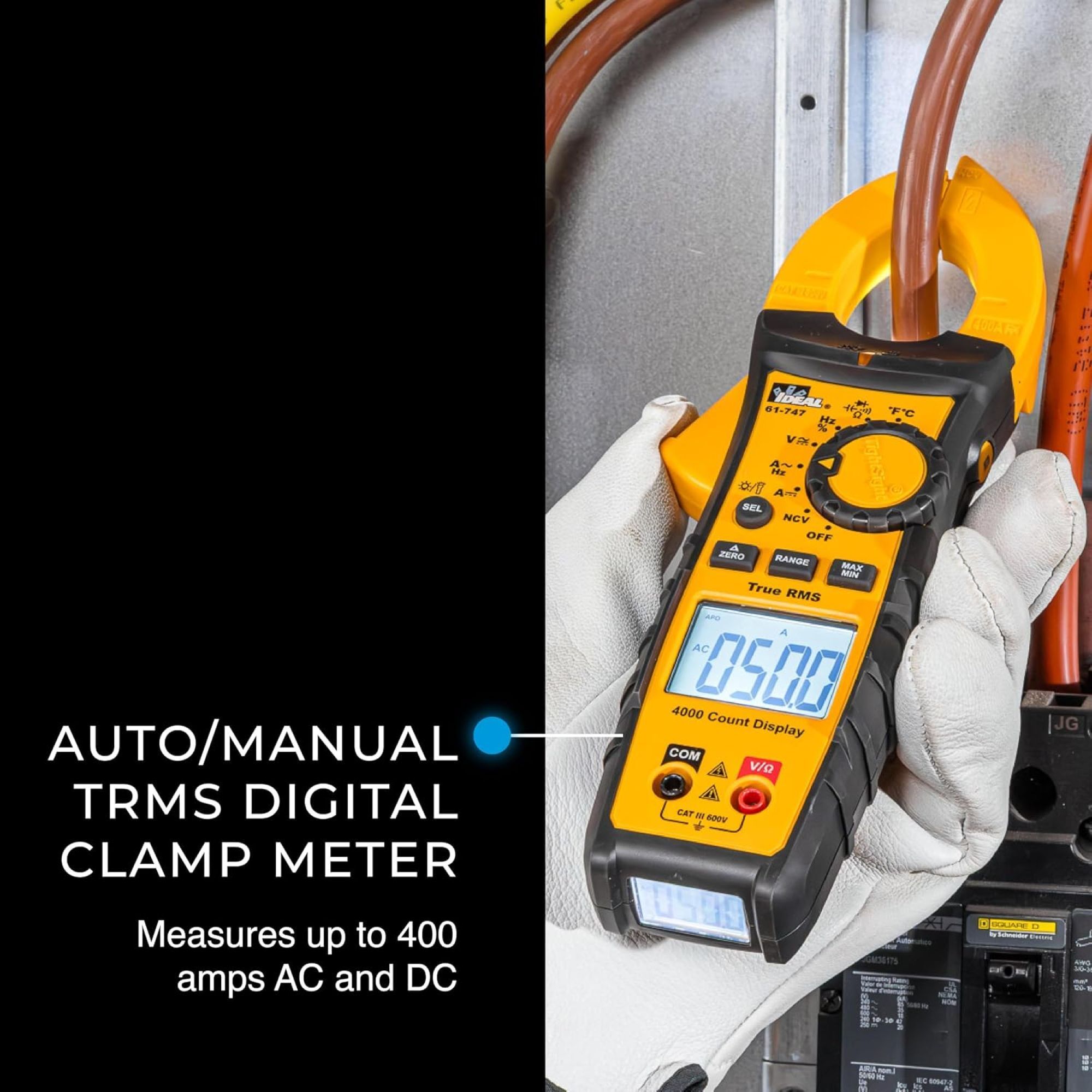

The IDEAL® TightSight™ Clamp Meter (model 61-747) is designed to make electrical measurements safer and more efficient. This CAT III 600 V rated, auto-ranging TRMS digital clamp meter can measure up to 400 Amps AC and DC current through its clamp head. It also handles up to 600V AC and DC, frequency, resistance, continuity, capacitance, and diodes via the included test leads, and even measures temperature (0F/0C) with the included K-Type thermocouple. One of its standout features is the patented TightSight® display, strategically located at the bottom of the unit. This innovative display enhances safety and productivity by providing a secondary reading at the end of the meter, so you don’t have to bend or twist conductors or place your head near the panel to see the main display. Both displays are backlit, and there’s a built-in flashlight for working in low-light conditions. The meter also boasts a non-contact voltage sensor in the tip of the clamp, capable of detecting voltage between 40V and 600V. An illuminated red LED and audible tones alert you to voltage above 30 volts, when continuity is detected, and when the NCV senses voltage within its range. For added convenience, the clamp head includes a built-in probe tip holder, allowing you to take measurements with one hand. The meter can be suspended from a nail, screw, or magnetic surface using the compatible hanging strap mount (Universal Magnetic Hanging Strap model UMHS-757 sold separately). Its industrial-grade over-molding ensures a secure grip and offers 2 m drop protection. Additional features include HOLD, MIN/MAX, Relative, Zero, Range, and selectable Auto Power Off functions. The meter has an easy-open storage pouch with a belt loop for storing the meter, probes, and thermocouple. With an IDEAL® TightSight™ Clamp Meter, you’re equipped with a versatile, reliable tool that makes electrical measurements easier and safer.

What's Included

    (1) Tester (1) soft case (1) test leads (1) K-Type Thermocouple

Features + Benefits

  • UL Certified CAT III 600V, measures 0-600 Amps AC/DC and 0-1000 Volts AC/DC
  • Patented Tightsight™ Display eliminates the need to bend or twist conductors or place your head near or in the panel and allows you to easily read the bottom display when taking measurements
  • Provides True RMS AC voltage and current for accurate measurements on non-linear signals
  • Measures AC/DC Current, AC/DC Voltage, frequency, resistance, continuity, capacitance, diodes, temperature, Low Impedance AC Voltage (Lo Z) (to reduce the possibility of false readings due to ghost voltages), and senses AC voltage
  • Built-in probe tip holder and hanging strap clip allows safer, easier measurement
  • Built-in flashlight and dual backlit displays, allow for safer/faster work in poorly lit environments
  • Over-molded Industrial design enhances gripping and allows the meter to withstand a 6.6-foot (2 m) drop
  • Compatible with IDEAL® Universal Magnetic Hanging Strap (model UMHS-757)
  • CAT Safety Rating-CAT IV 600 V / CAT III 1000 V
  • Temperature Measurement – Maximum 1832F, Temperature Measurement – Minimum (-40F)

Key Specs

AttributeSpecification

item#

7421772

Brand

IDEAL

Manufacturer's Warranty

2 year limited warranty
AttributeSpecification

Ship Weight

1.68 LB

Product Weight

0.7900 lb

Dimensions L x W x H (in.)

9.9 x 2.8 x 1.8 in
