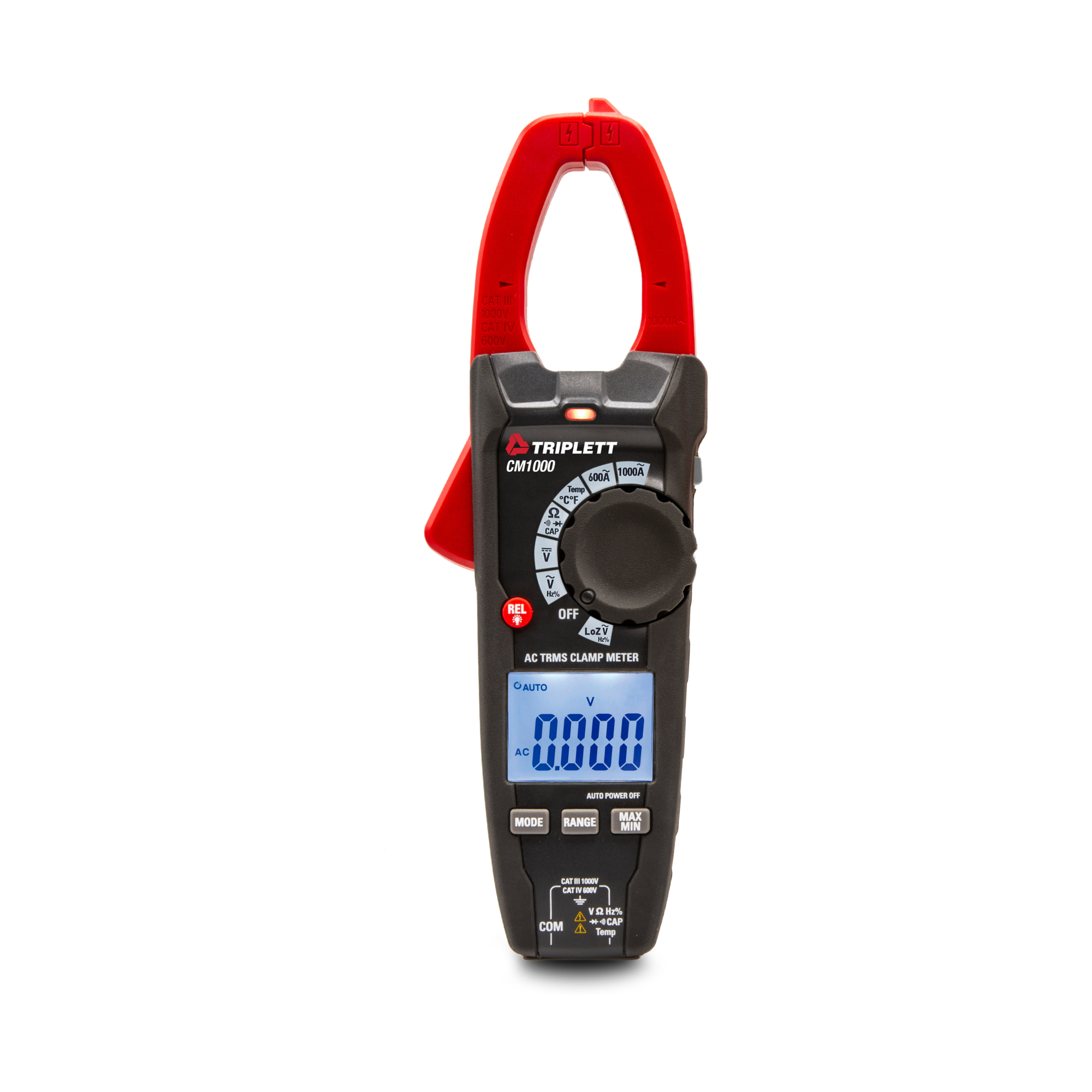

Triplett True RMS Clamp Meter — 1000A AC, 6000 Count LCD, Model# CM1000

Item# 5852190
Triplett True RMS Clamp Meter — 1000A AC, 6000 Count LCD, Model# CM1000

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Triplett True RMS Clamp Meter — 1000A AC, 6000 Count LCD, Model# CM1000

Click or Tap image to Zoom

$119.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
  • Captures the instantaneous surge (inrush) current when power equipment is turned on
  • 1.4" (36mm) clamp jaw opening
  • Built-in Non-Contact Voltage Detector with LED
  • Low Pass Filter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Triplett Model CM1000 True RMS Clampmeter can measure AC current up to 1000A without breaking the circuit by clamping around a single conductor. This saves time and the circuit will not be damaged. True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms. Additional measurements include Resistance, Capacitance, Frequency, Temperature, Diode Test, and Continuity. Measurements can read on the 6000 count backlit LCD. It has an Inrush current function that captures the instantaneous surge (inrush) current when power equipment is turned on. Features include: Lo Z (impedance) mode for identifying ghost voltages, Low Pass FIlter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives, Peak voltage capture with min/max, NCV Detector with LED, Relative/DC zero function, Auto power off, and a built-in flashlight. Data Hold freezes the display for easy viewing. CAT IV-600V safety category. cETLus listed. Includes 3 AAA batteries, test leads, Type K thermocouple probe, and carrying case. 1-year warranty.

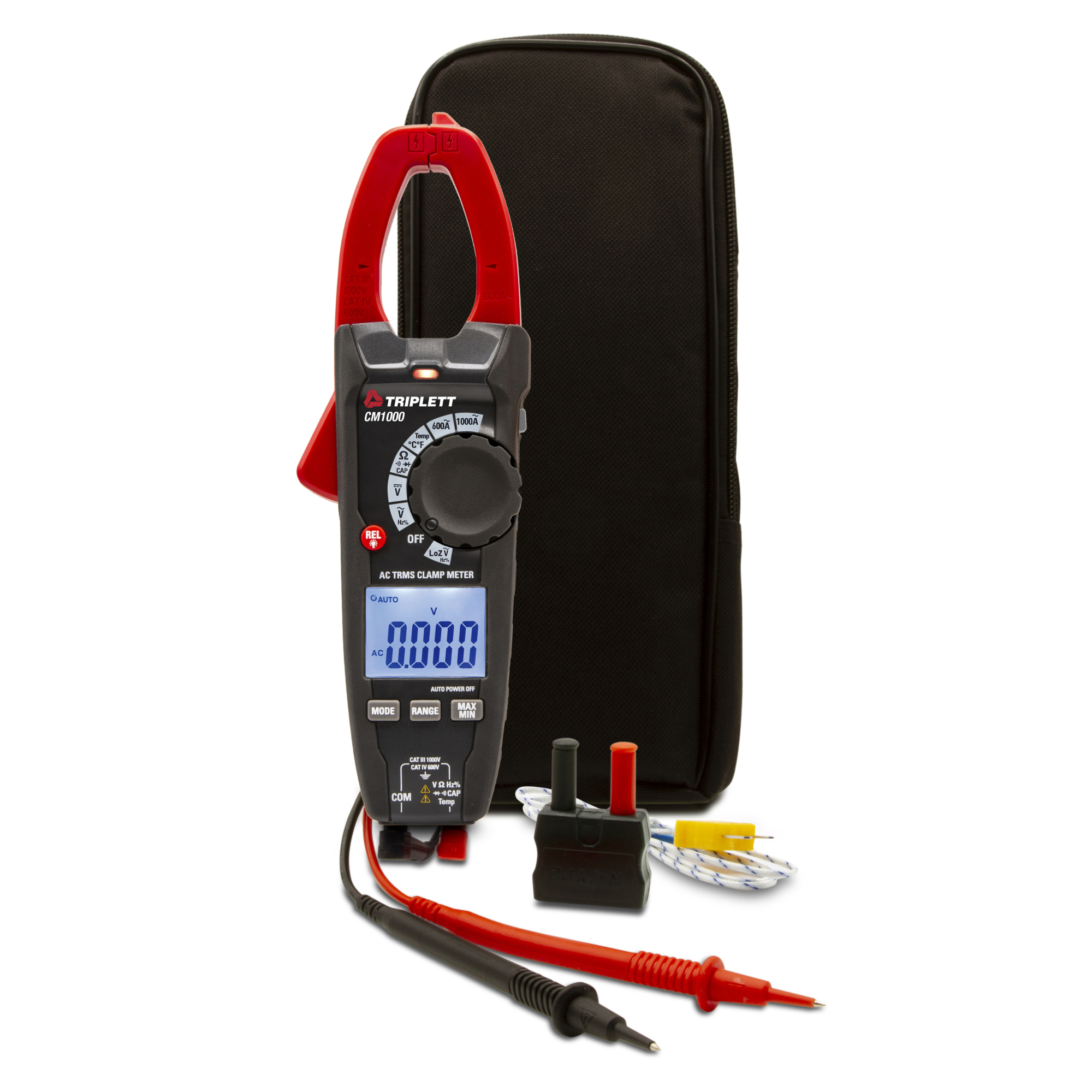

What's Included

    (1) 1000A AC True RMS Clamp Meter

Features + Benefits

  • True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
  • Captures the instantaneous surge (inrush) current when power equipment is turned on
  • 1.4" (36mm) clamp jaw opening
  • Built-in Non-Contact Voltage Detector with LED
  • Low Pass Filter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives
  • Lo Z (impedance) mode for identifying ghost voltages
  • Peak voltage measurement with Min/Max
  • Data Hold freezes the display and Relative Mode for making comparisons to a stored reference value
  • Auto power off with disable and Built-in Flashlight
  • cETLus listed
  • Includes test leads, Type K thermocouple bead probe, 3 AAA batteries, and carrying case

Key Specs

AttributeSpecification

item#

5852190

Brand

Triplett

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1.25 LB

Functions (qty.)

10

Jaw Capacity

1.4 in

Display Type

LCD

Circuit or Voltage Tester

Voltage Tester

Max. DC Volts

1000

Max. AC Volts

1000

Max. AC Amps

1,000

Max. Resistance

60

Battery Size

Other

Low Battery Indicator

Yes

Battery Type

AAA

Battery Included

Yes

Capacitance Range

100mF

Frequency

100kHz

Accuracy

0.028
AttributeSpecification

Measures

Measures AC/DC Voltage and AC Current

Max. Temperature

1,832 °F

Case Included

Yes

Senses

AC Voltage

Common Usage

Measures AC/DC Voltage and AC Current

Auto On/Off

Yes

Water Resistant

No

Power Source

Battery

Live Circuit Detection

Yes

Alert Priority

Visual

UL Listed

Yes

Calibration Certificate Included

No

Max. Ohms

60

Material

Plastic

Application

Measure AC current to up 1000A without breaking the circuit by clamping around a single conductor

Includes

Includes test leads, Type K thermocouple bead probe, 3 AAA batteries, and carrying case

Product Weight

1.2500 lb

Dimensions L x W x H (in.)

11.0 x 5.0 x 3.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
