Triplett True RMS Clamp Meter — 1000A AC/DC, 6000 Count LCD, Model# CM1050

Name: Triplett True RMS Clamp Meter — 1000A AC/DC, 6000 Count LCD, Model# CM1050
Brand: Triplett
SKU: 5852106

Item# 5852106

Triplett CM1050 1000A AC/DC True RMS Clamp Meter

Triplett True RMS Clamp Meter — 1000A AC/DC, 6000 Count LCD, Model# CM1050

Click or Tap image to Zoom

$144.99

Quantity

Save to List

Shipping:
Factory shipped
Store Pickup:
Not available - online only

True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
Captures the instantaneous surge (inrush) current when power equipment is turned on
1.4" (36mm) clamp jaw opening
Built-in Non-Contact Voltage Detector with LED
Low Pass Filter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives

See full description

Product Summary

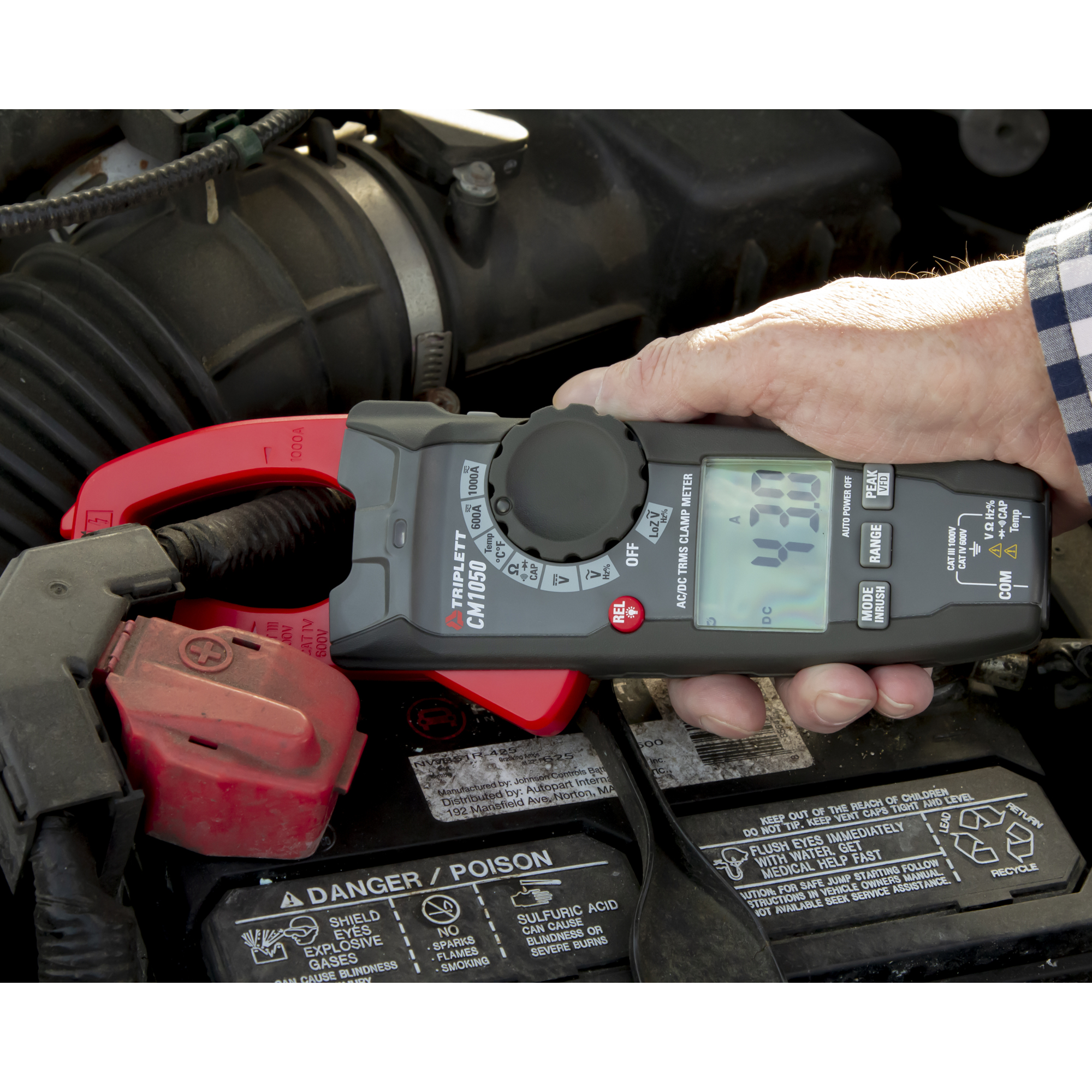

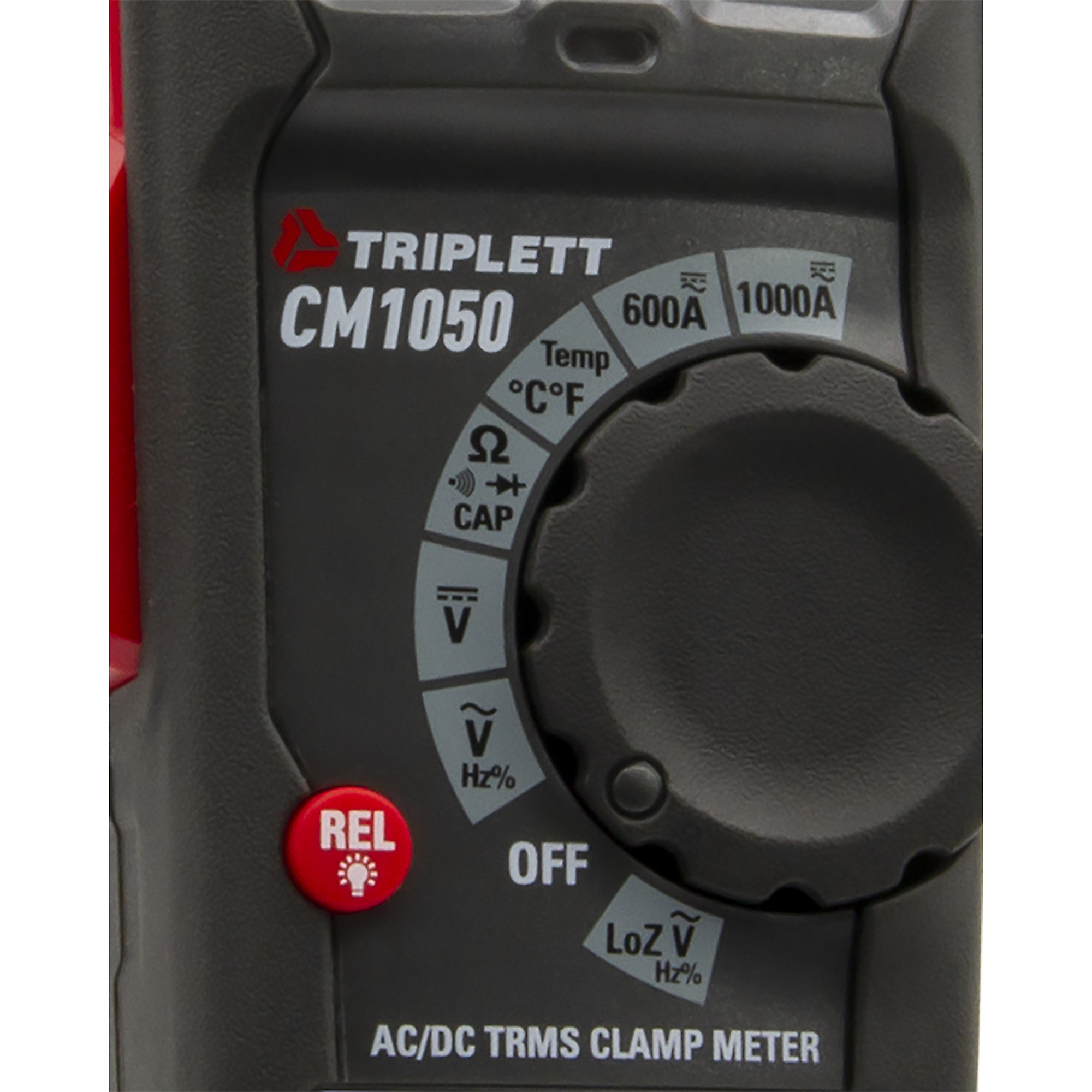

The Triplett Model CM1050 True RMS Clampmeter can measure AC and DC current up to 1000A without breaking the circuit by clamping around a single conductor. This saves time and the circuit will not be damaged. True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms. Additional measurements include Resistance, Capacitance, Frequency, Temperature, Diode Test, and Continuity. Measurements can read on the 6000 count backlit LCD. It has an Inrush current function that captures the instantaneous surge (inrush) current when power equipment is turned on. Features include: Lo Z (impedance) mode for identifying ghost voltages, Low Pass FIlter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives, Peak voltage capture with min/max, NCV Detector with LED, Relative/DC zero function, Auto power off, and a built-in flashlight. Data Hold freezes the display for easy viewing. CAT IV-600V safety category. cETLus listed. Includes 3 AAA batteries, test leads, Type K thermocouple probe, and carrying case. 1-year warranty.

What's Included

(1) 1000A AC/DC True RMS Clamp Meter

Features + Benefits

True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
Captures the instantaneous surge (inrush) current when power equipment is turned on
1.4" (36mm) clamp jaw opening
Built-in Non-Contact Voltage Detector with LED
Low Pass Filter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives
Lo Z (impedance) mode for identifying ghost voltages
Peak voltage measurement with Min/Max
Data Hold freezes the display and Relative Mode for making comparisons to a stored reference value and DC Zero
Auto power off with disable and Built-in Flashlight
cETLus listed

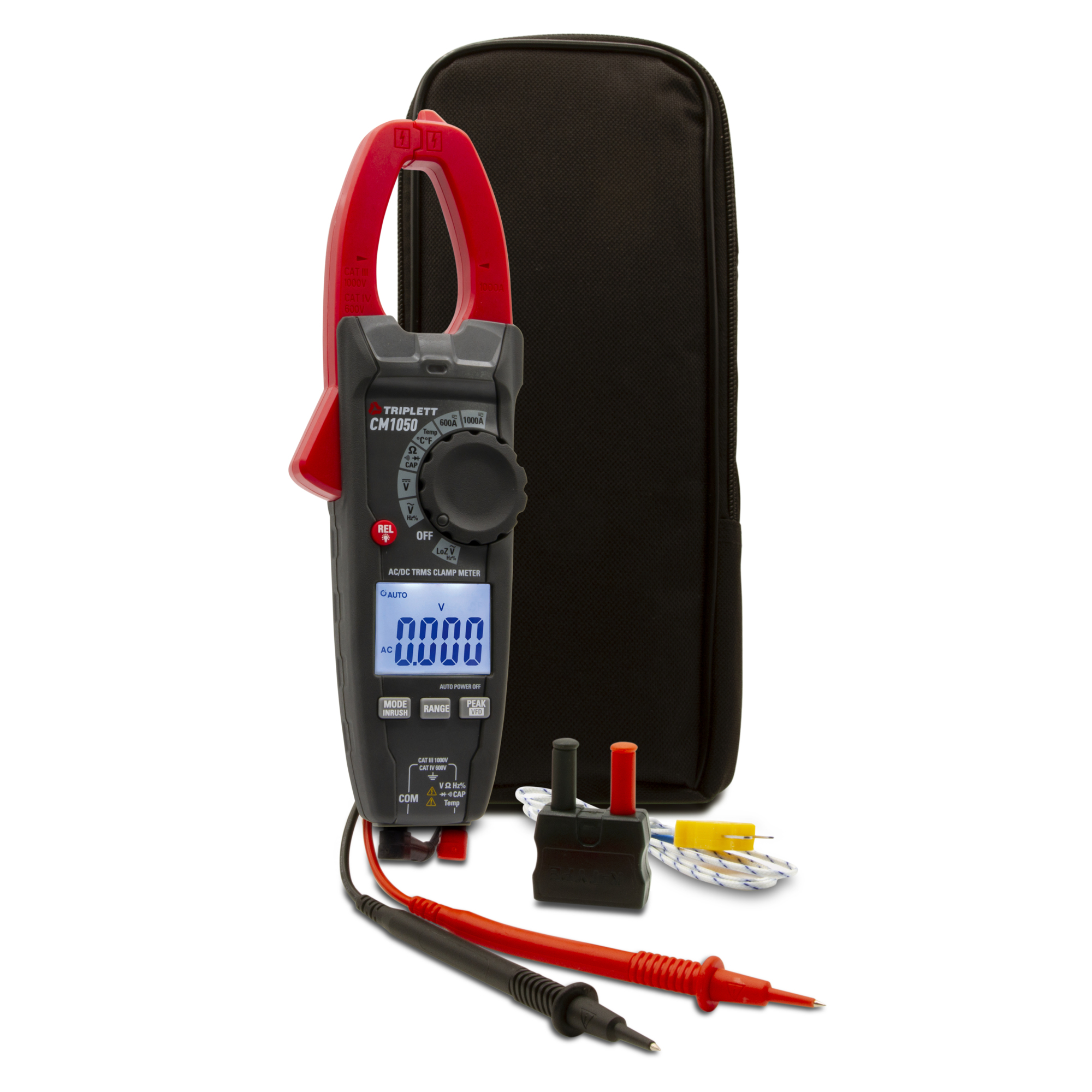

Includes test leads, Type K thermocouple bead probe, 3 AAA batteries, and carrying case

Key Specs

Attribute	Specification
item#	5852106
Brand	Triplett
Manufacturer's Warranty	1 year limited warranty
Ship Weight	1.4 LB
Functions (qty.)	11
Jaw Capacity	1.4 in
Display Type	LCD
Circuit or Voltage Tester	Voltage Tester
Max. DC Volts	1000
Max. AC Volts	1000
Max. AC Amps	1,000
Max. DC Amps	1,000
Max. Resistance	60
Battery Size	Other
Low Battery Indicator	Yes
Battery Type	AAA
Battery Included	Yes
Capacitance Range	100mF
Frequency	100kHz

Attribute	Specification
Accuracy	0.028
Measures	Measures AC/DC Voltage and Current
Max. Temperature	1,832 °F
Case Included	Yes
Senses	AC Voltage
Common Usage	Measures AC/DC Voltage and Current
Auto On/Off	Yes
Water Resistant	No
Power Source	Battery
Live Circuit Detection	Yes
Alert Priority	Visual
UL Listed	Yes
Calibration Certificate Included	No
Max. Ohms	60
Material	Plastic
Application	Measure AC and DC current to up 1000A without breaking the circuit by clamping around a single conductor
Includes	Includes test leads, Type K thermocouple bead probe, 3 AAA batteries, and carrying case
Product Weight	1.4000 lb
Dimensions L x W x H (in.)	4.75 x 2.4 x 12.4 in

Reviews

Questions & Answers

Questions

4 months ago

Does it measure total harmonic distortion?

1 answer
1. ProductExpert11

  4 months ago

  The CM1050 features include: Lo Z (impedance) mode for identifying ghost voltages, low pass filter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives, peak voltage capture with min/max, NCV detector with LED, relative/DC zero function, auto power off, and a built-in flashlight. Data Hold freezes the display for easy viewing. CAT IV-600V safety category. CETLUS listed. Includes 3 AAA batteries, test leads, Type K thermocouple probe and a carrying case.

  Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
