IDEAL, Multimeter 1000V Auto Range w/LoZ, UL Certified CAT IV 600V CAT III 1000V AC/DC 10A AC/DC TRMS Auto Ranging Digital Multimeter with Analog Bar graph on Display, Auto Power Off, Backlit Display, Audible Continuity, Data Hold, 61-357

Item# 7421799
New
IDEAL, Multimeter 1000V Auto Range w/LoZ, UL Certified CAT IV 600V CAT III 1000V AC/DC 10A AC/DC TRMS Auto Ranging Digital Multimeter with Analog Bar graph on Display, Auto Power Off, Backlit Display, Audible Continuity, Data Hold, 61-357

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

IDEAL, Multimeter 1000V Auto Range w/LoZ, UL Certified CAT IV 600V CAT III 1000V AC/DC 10A AC/DC TRMS Auto Ranging Digital Multimeter with Analog Bar graph on Display, Auto Power Off, Backlit Display, Audible Continuity, Data Hold, 61-357

Click or Tap image to Zoom

$150.01

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • UL Certified CAT IV 600V CAT III 1000V AC/DC 10A AC/DC TRMS Auto Ranging Digital Multimeter with Analog Bar graph on Display
  • Provides True RMS AC voltage and current for accurate measurements on non-linear signals
  • Measures AC/DC current, AC/DC voltage, Lo Z, frequency, resistance, continuity, capacitance, diodes, temperature and senses AC voltage
  • Combined LCD digital readout and analogue bar graph display
  • LEAD position warning and open FUSE indication

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

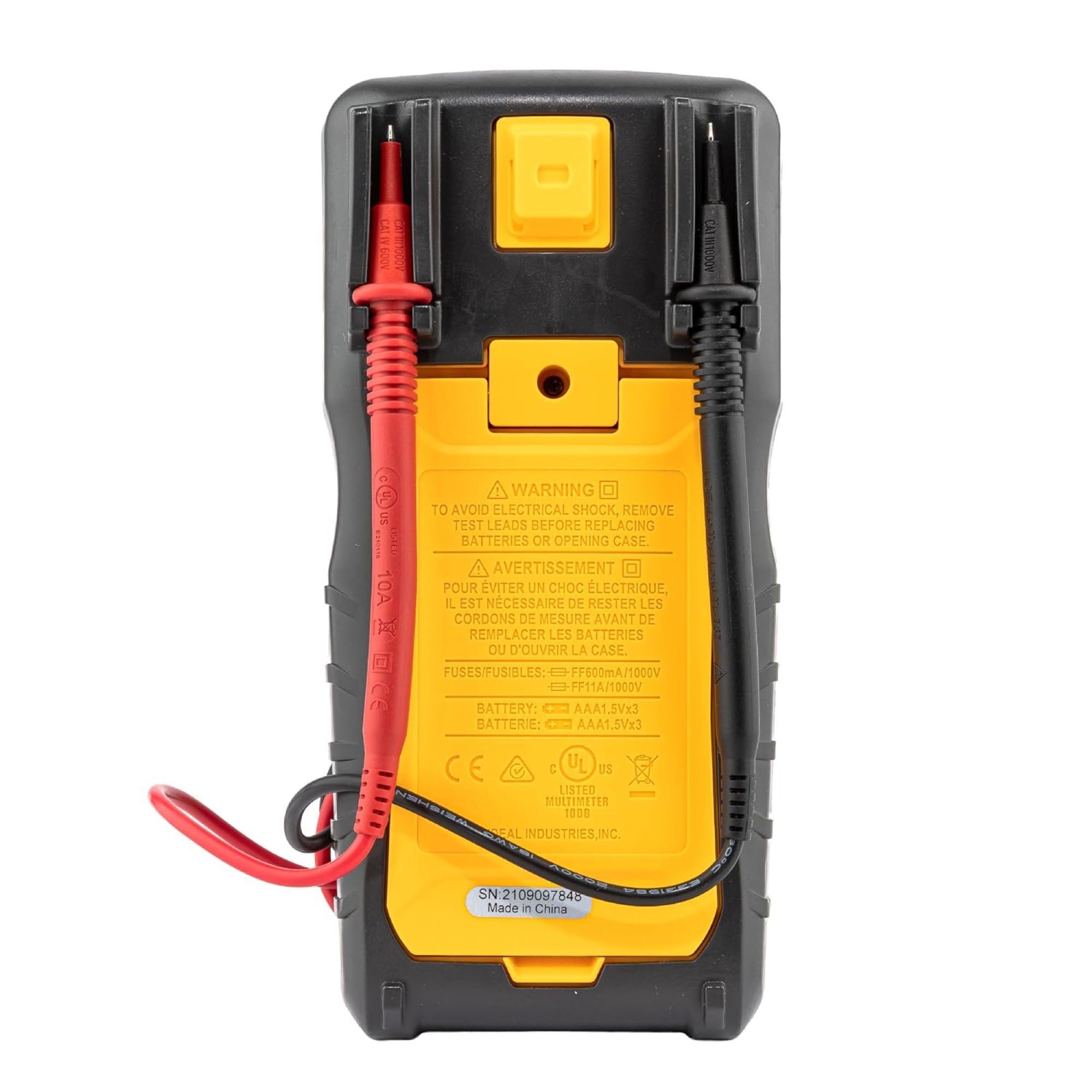

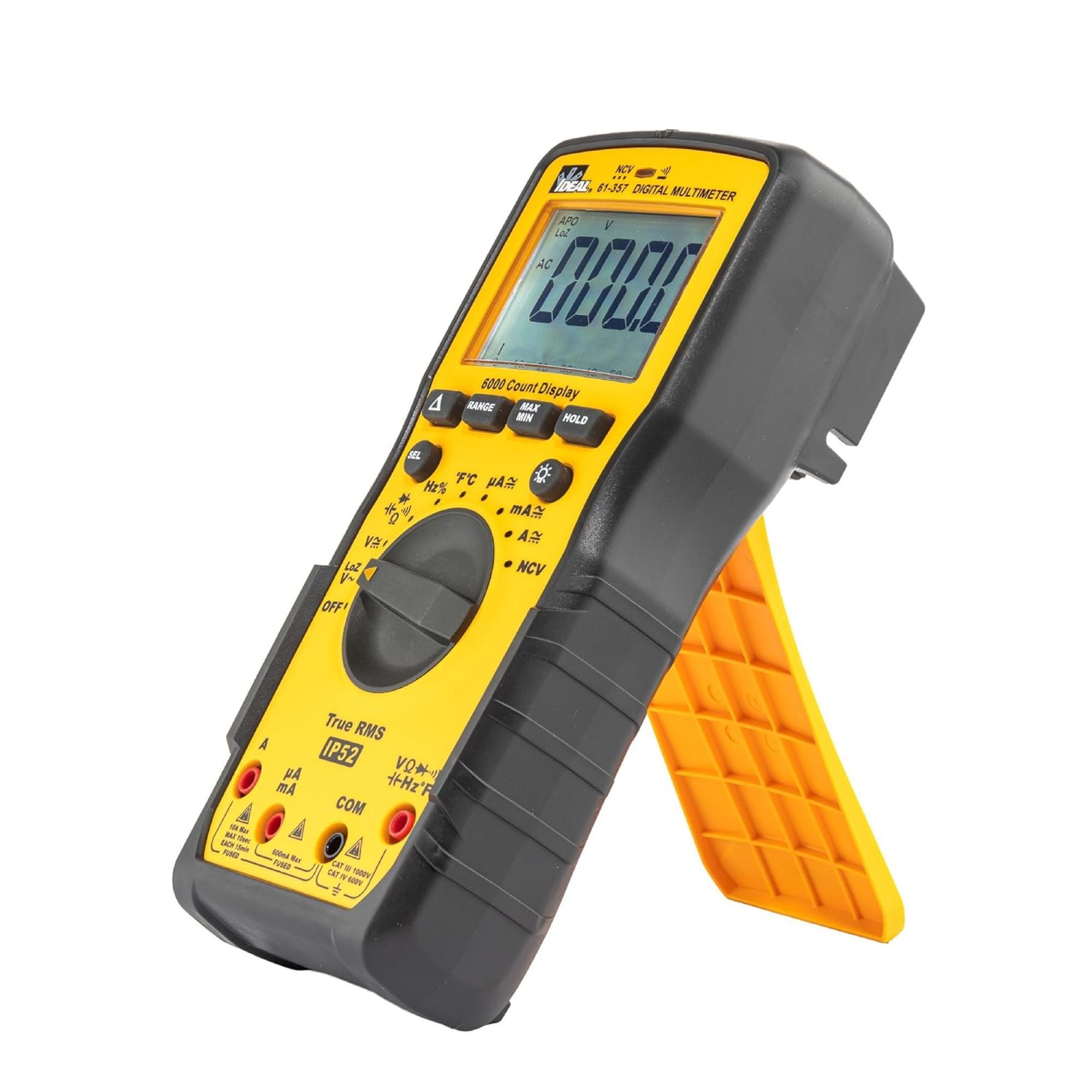

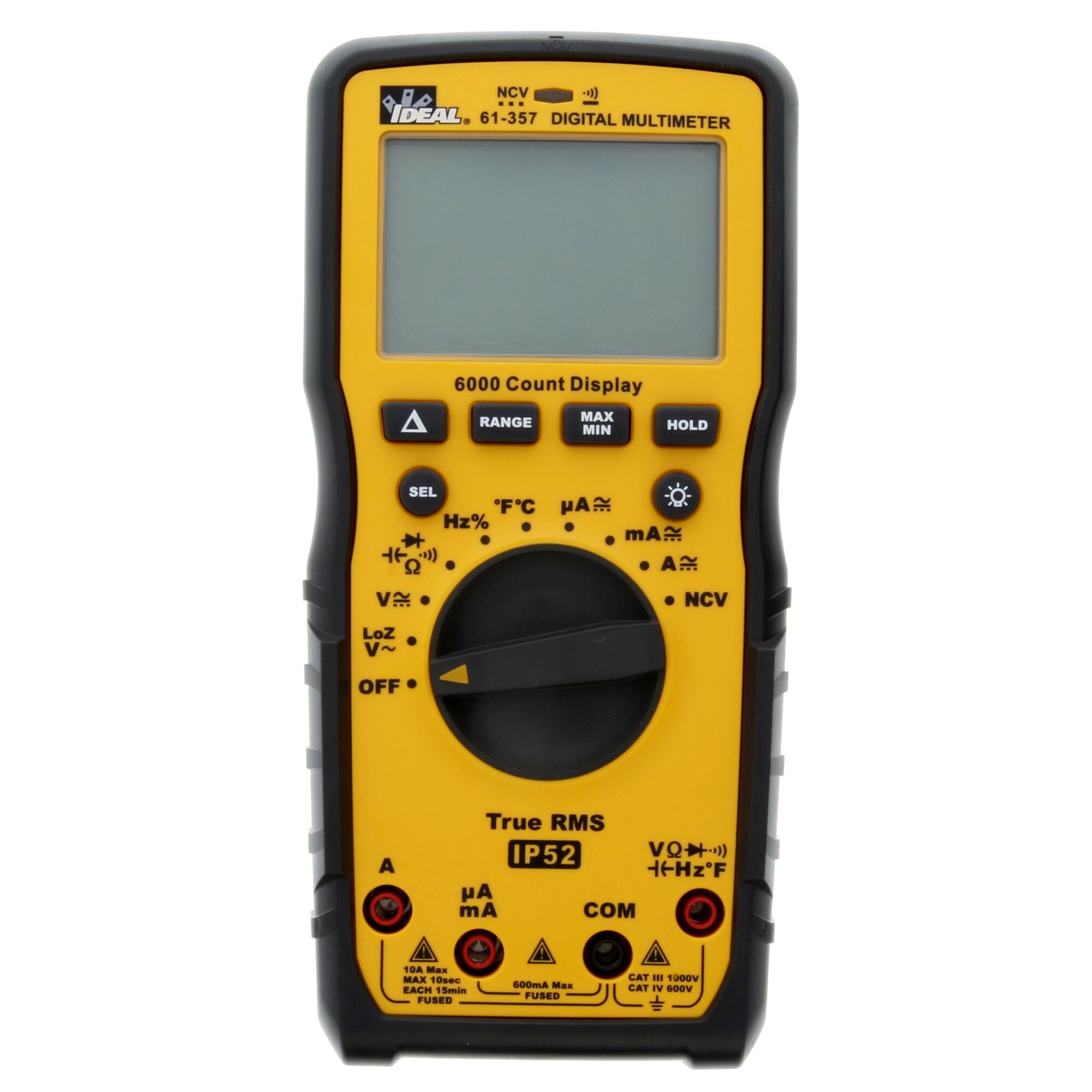

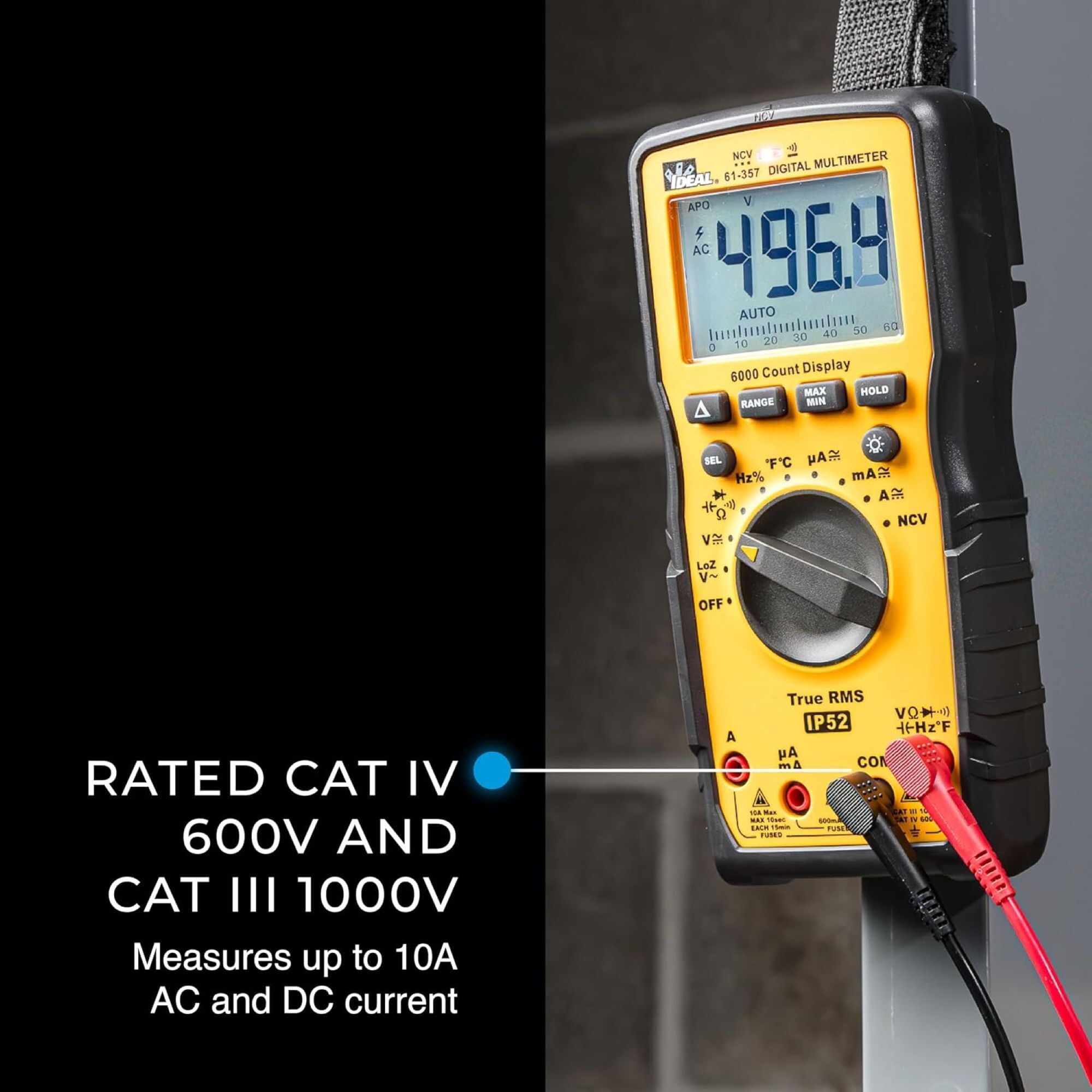

The IDEAL® Digital Multimeter (model 61-357) is designed for professionals who demand precision and reliability. Rated CAT IV 600V and CAT III 1000V, this auto-ranging, TRMS digital multimeter handles up to 10 Amps AC and DC current via the test leads in series with the load. It measures up to 1000V AC/DC, Lo Z (Low Impedance AC Voltage) to reduce the possibility of false readings due to ghost voltages, AC V, frequency, resistance up to 60M?, continuity, capacitance, and diodes, and even includes a K-Type thermocouple for temperature readings in both Fahrenheit and Celsius. Equipped with a non-contact voltage sensor, it detects voltage between 40V and 600V, ensuring safety and efficiency. The display offers both digital readouts and an analog bar graph, with a backlight for visibility in any environment. Audible tones and a red LED alert you to voltage above 30 volts, continuity, and NCV detection. For added convenience, the meter features two probe storage points and built-in holders, allowing for easy, one-handed operation. The hang strap mount lets you suspend the meter from various surfaces (Universal Magnetic Hanging Strap model UMHS-757 sold separately), while industrial-grade over-molding provides enhanced grip and 2 m drop protection. Additional features include HOLD, MIN/MAX, Relative, Range, and selectable Auto Power Off functions. Fully accessible storage pouch with a belt loop, perfect for storing the meter, probes, and thermocouple. This is the ultimate tool for professionals who need a reliable, versatile, and easy-to-use multimeter.

What's Included

    (1) Tester (1) soft case (1) test leads (1) K-Type Thermocouple

Features + Benefits

  • UL Certified CAT IV 600V CAT III 1000V AC/DC 10A AC/DC TRMS Auto Ranging Digital Multimeter with Analog Bar graph on Display
  • Provides True RMS AC voltage and current for accurate measurements on non-linear signals
  • Measures AC/DC current, AC/DC voltage, Lo Z, frequency, resistance, continuity, capacitance, diodes, temperature and senses AC voltage

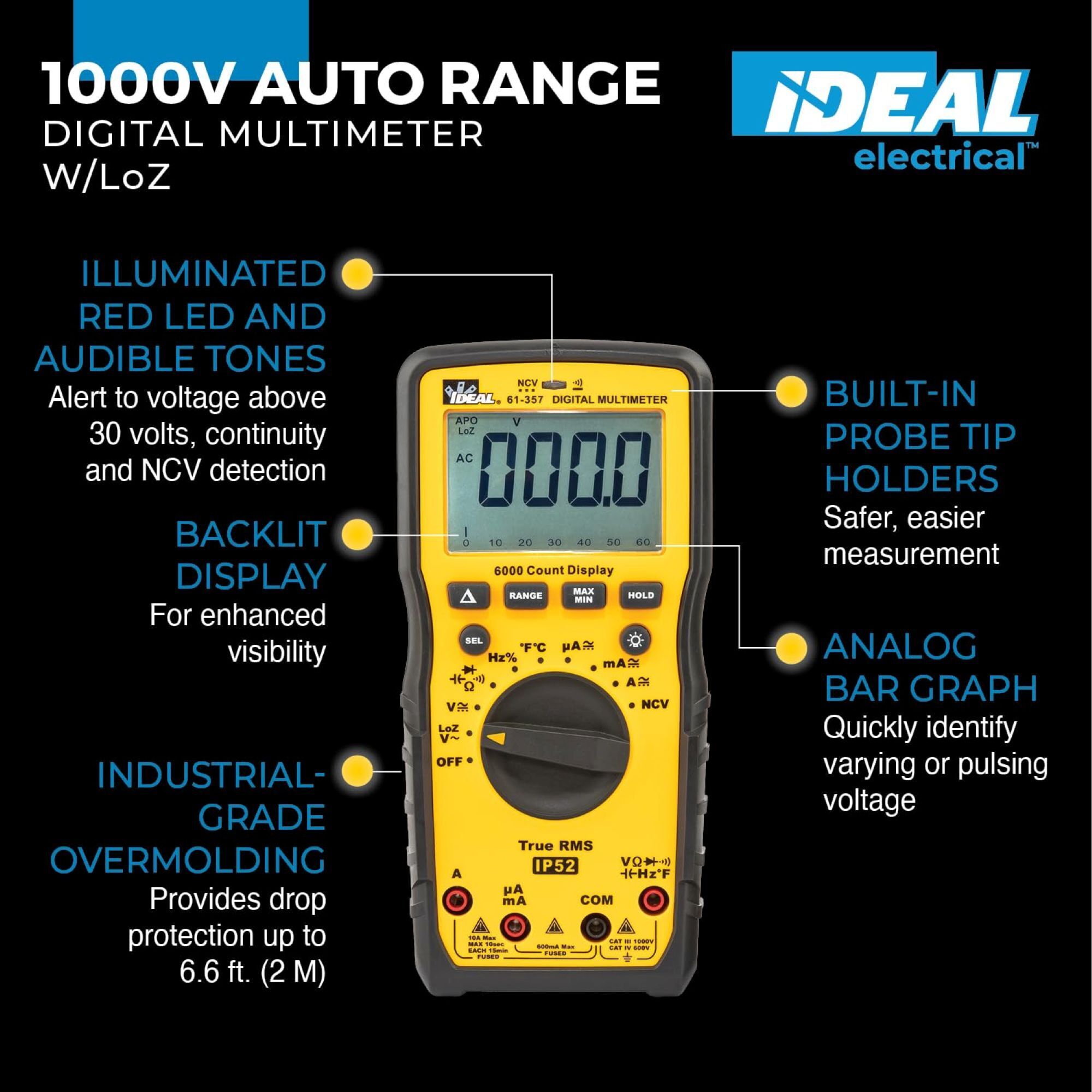

  • Combined LCD digital readout and analogue bar graph display
  • LEAD position warning and open FUSE indication
  • Built-in probe tip holder and hanging strap clip allows safer, easier measurement (Universal Magnetic Hanging Strap model UMHS-757 sold separately)
  • Large easy to read l backlit display, allows for safer/faster work in poorly lit environments
  • Industrial design of removeable rubber boot enhances gripping and allows the meter to withstand a 6.6-foot (2 m) drop

Key Specs

AttributeSpecification

item#

7421799

Brand

IDEAL

Manufacturer's Warranty

2 year limited warranty
AttributeSpecification

Ship Weight

1.4 LB

Product Weight

1.1470 lb

Dimensions L x W x H (in.)

7.83 x 3.74 x 2.24 in
