iDEAL Cross Flow Paint Booth, 22 1/2ft.L x 13ft.W x 8 1/2ft.H, Model# PSB-AFCF23B-3PH-230V-AK

Item# 71520
Top Seller
iDEAL Cross Flow Paint Booth, 22 1/2ft.L x 13ft.W x 8 1/2ft.H, Model# PSB-AFCF23B-3PH-230V-AK

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

iDEAL Cross Flow Paint Booth, 22 1/2ft.L x 13ft.W x 8 1/2ft.H, Model# PSB-AFCF23B-3PH-230V-AK

Click or Tap image to Zoom

$17,180.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • White 18-gauge panels offer excellent visibility during painting
  • 5/16in. hardware for assembly of precision punched panels
  • Double entry doors provide easy vehicle positioning
  • 6 separate T-8 light fixtures help limit shadows during painting
  • Heavy-duty hinges on all doors add durability

See full description

Complete Your Solution

  • iDEAL Cross Flow Paint Booth, 22 1/2ft.L x 13ft.W x 8 1/2ft.H, Model# PSB-AFCF23B-3PH-230V-AK
  • 3M Paint and Pesticide Respirator - N95, NIOSH Approved, Model# 65021HA1A
Price for all two:

$17,224.99

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This iDEAL Cross Flow Draft Paint Booth is very economical and easy to install. The Cross Flow design pulls filtered air through the front of the booth and exhausts filtered air out through the rear of the booth, creating great ventilation while painting. Roomy 22 1/2ft.L x 13ft.W x 8 1/2ft.H inside dimensions. Item too large for lift gate. Requires forklift on site for unloading. This item is delivered by LTL enclosed van carriers Monday--Friday. A forklift is required to offload the lift from a dock-height trailer.

What's Included

    (1) Cross flow paint booth

Features + Benefits

  • White 18-gauge panels offer excellent visibility during painting
  • 5/16in. hardware for assembly of precision punched panels
  • Double entry doors provide easy vehicle positioning

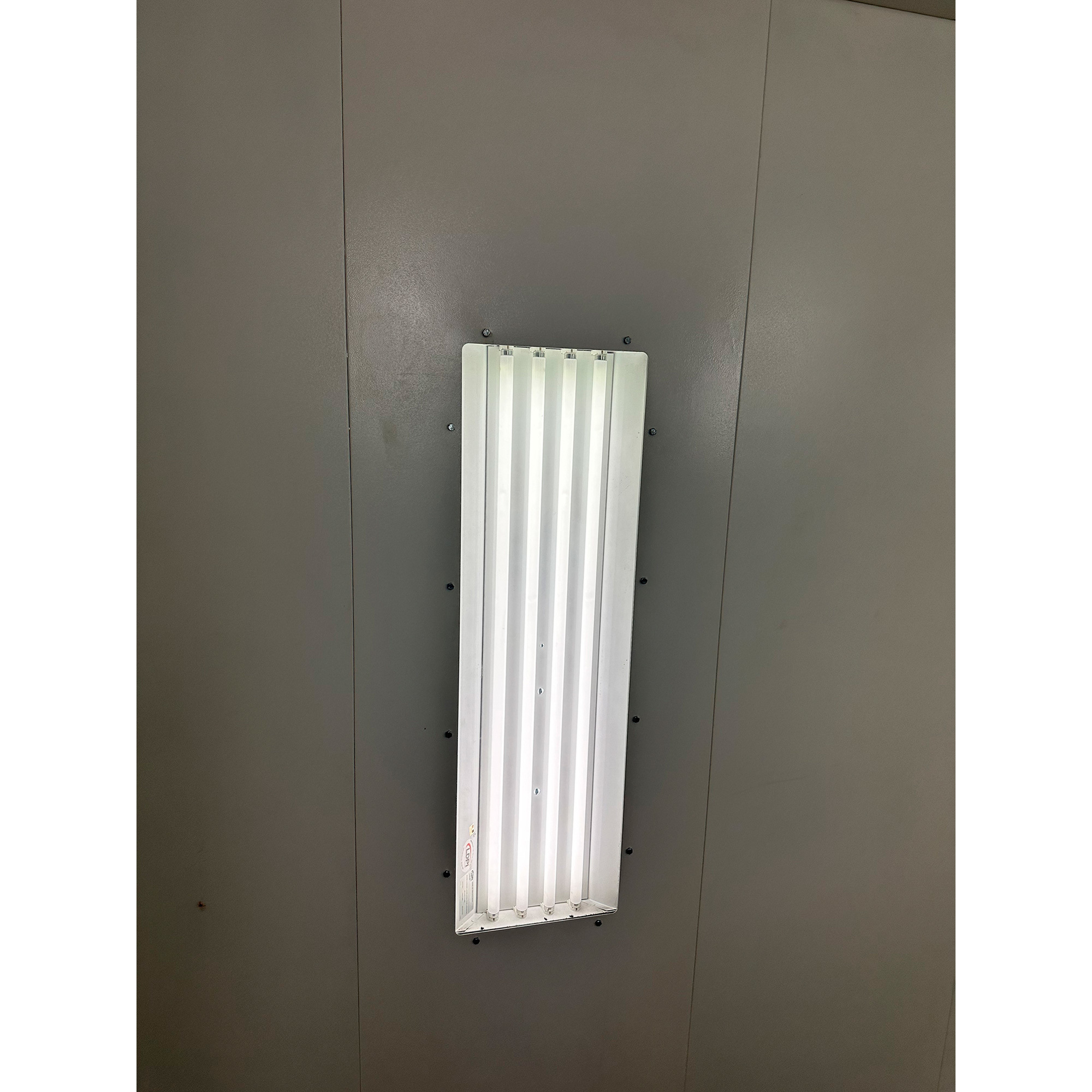

  • 6 separate T-8 light fixtures help limit shadows during painting
  • Heavy-duty hinges on all doors add durability
  • Durable, corrosion-resistant powder-coat finish ensures long service life
  • Heavy-duty personnel door with viewing window
  • Premium intake filters provide a clean painting environment
  • Long lasting Dayton 24in., 3 HP fan motor ensures proper air flow
  • Premium UL listed control panel for safe booth operation
  • Length Extension Kits, Extra Personnel Door and Duct Kit Package available (sold separately)
  • Item too large for lift gate; Requires forklift on site for unloading

Key Specs

AttributeSpecification

item#

71520

Brand

Tuxedo

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3550.0 LB

Length

304 in

Width

160 in
AttributeSpecification

Height

106 in

Product Type

Paint Spray Booth

Flowrate

9,500 cfm

Volts

230V/3-phase

UL Listed

Yes

Dimensions L x W x H (in.)

304 x 160 x 106 in

Reviews

Questions & Answers

Questions

1–3 of 3 Questions
Sort by:

  1. Can you add a heating element to this unit to bake?

    1 answer

    1. You can add a heater to the booth for it to bake, but it is sold separately through the manufacturer.

      Helpful?

  2. Can this booth be set up outdoors?

    1 answer

    1. The booth cannot be set up outdoors, it is for indoor use only.

      Helpful?

  3. Exhaust

    Can the exhaust be elbowed to a wall?

    1 answer

    1. The exhaust pipe can be elbowed to a wall with a 45 degree elbow only.

      Helpful?
