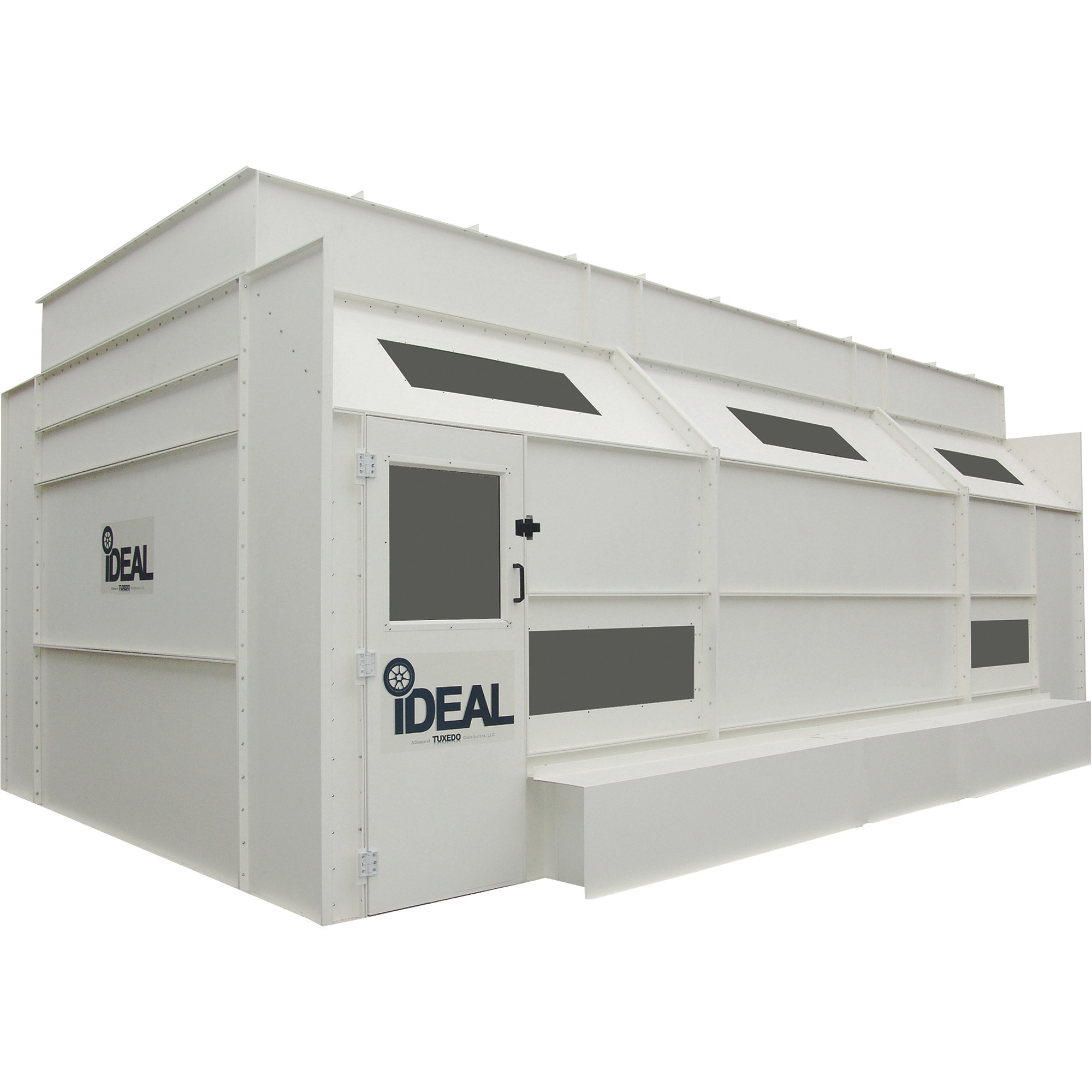

iDEAL Side Down Draft Pressurized Paint Booth, 230/460 Volt, 26.4ft. x 17.8ft. x 9.5ft., Model# PSB-SDD26B-3PH-230V-AK

Item# 88283
iDEAL Side Down Draft Pressurized Paint Booth, 230/460 Volt, 26.4ft. x 17.8ft. x 9.5ft., Model# PSB-SDD26B-3PH-230V-AK

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

iDEAL Side Down Draft Pressurized Paint Booth, 230/460 Volt, 26.4ft. x 17.8ft. x 9.5ft., Model# PSB-SDD26B-3PH-230V-AK

Click or Tap image to Zoom

$27,460.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Pulls filtered air through ceiling of the booth and exhausts filtered air through bottom of the side walls of the booth
  • Hip roof design utilizes vertical and horizontal lighting for effective, shadow free lighting
  • Deluxe Control Panel is included
  • Two 24in., 2 HP, 3-phase 230/460V AC 60Hz Dayton fan motors with U.S. manufactured, UL listed spark-resistant fans
  • 10 separate T-8 LDPI horizontal mount industrial lighting fixtures with 4 bulbs each are included

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This iDEAL Side Down Draft Pressurized Paint Booth is an exceptionally high quality booth that pulls filtered air through the ceiling and exhausts filtered air through the bottom of the side walls. The high-quality 18-ga. flanged panels are very durable and form a complete booth that lets you paint with no hidden costs. A hip roof design utilizing vertical and horizontal lighting provides effective, shadow-free lighting, allowing the painter to move around the booth with no light interference. Great for automotive refinishing, industrial finishing and furniture finishing. 26ft.L x 14ft.W x 9ft.3in.H inside dimensions. Meets NFPA 33. Item too large for lift gate. Requires forklift on site for unloading. This item is delivered by LTL enclosed van carriers Monday--Friday. A forklift is required to offload the lift from a dock-height trailer.

What's Included

    (1) Spray paint booth (1) Control panel (2) Fan motors with fans (10) Lighting fixtures (2) Chimney stacks (1) Manometer (1) Solenoid valve

Downloads

Product Manual

Features + Benefits

  • Pulls filtered air through ceiling of the booth and exhausts filtered air through bottom of the side walls of the booth
  • Hip roof design utilizes vertical and horizontal lighting for effective, shadow free lighting
  • Deluxe Control Panel is included
  • Two 24in., 2 HP, 3-phase 230/460V AC 60Hz Dayton fan motors with U.S. manufactured, UL listed spark-resistant fans
  • 10 separate T-8 LDPI horizontal mount industrial lighting fixtures with 4 bulbs each are included
  • 2 powder-coated 8ft. exhaust chimney stacks
  • Precision punched heavy-duty 18 gauge panel construction
  • Bright white powder-coat finish on all booth surfaces adds durablity
  • Tri-fold entry doors with viewing windows and shutoff switches
  • Personnel door with a viewing window and shutoff switches
  • Includes Manometer, Solenoid Valve, Hardware and Sealant
  • Spacious Inside Dimensions: 26ft.L x 14ft.W x 9ft.3in. H provide plenty of room for auto, industrial or furniture finishing/refinishing
  • Assembled using high quality 5/16in. hardware for a exceptional performance and durability
  • Heavy-duty hinges are used for all entry doors and have horizontal and vertical adjustment integrated into the design for easy installation
  • Optional single phase electric is available (sold separately)
  • Item too large for lift gate; Requires forklift on site for unloading

Key Specs

AttributeSpecification

item#

88283

Brand

iDEAL by Tuxedo

Manufacturer's Warranty

1 year limited warranty

Ship Weight

5100.0 LB

Length

26.43 in

Width

17.81 in
AttributeSpecification

Height

9.5 in

Product Type

Paint Spray Booth

Flowrate

14,000 cfm

Volts

230V/460V

UL Listed

Yes

Dimensions L x W x H (in.)

26.43 x 17.81 x 9.5 in

Reviews

Questions & Answers

Questions

1–3 of 3 Questions
Sort by:

  1. does wiring come with the unit

    1 answer

    1. The wiring does not come with the paint booth. Wiring instructions are included. It is recommended that a licensed electrician perform the electrical installation per local and national standards.

      Helpful?

  2. Is this rated for outdoor use?

    1 answer

    1. This paint booth is not rated for outdoor use.

      Helpful?

  3. We have a MUA unit that will mount on the floor behind the paint booth. Where does the MUA duct duct into at?

    1 answer

    1. The MUA would need to duct on the top of the paint booth to the canopy plenum, which is sold separately for this paint booth. The model number is PSB-SDD-26B Plenum Kit. This kit is currently not available on our website.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
