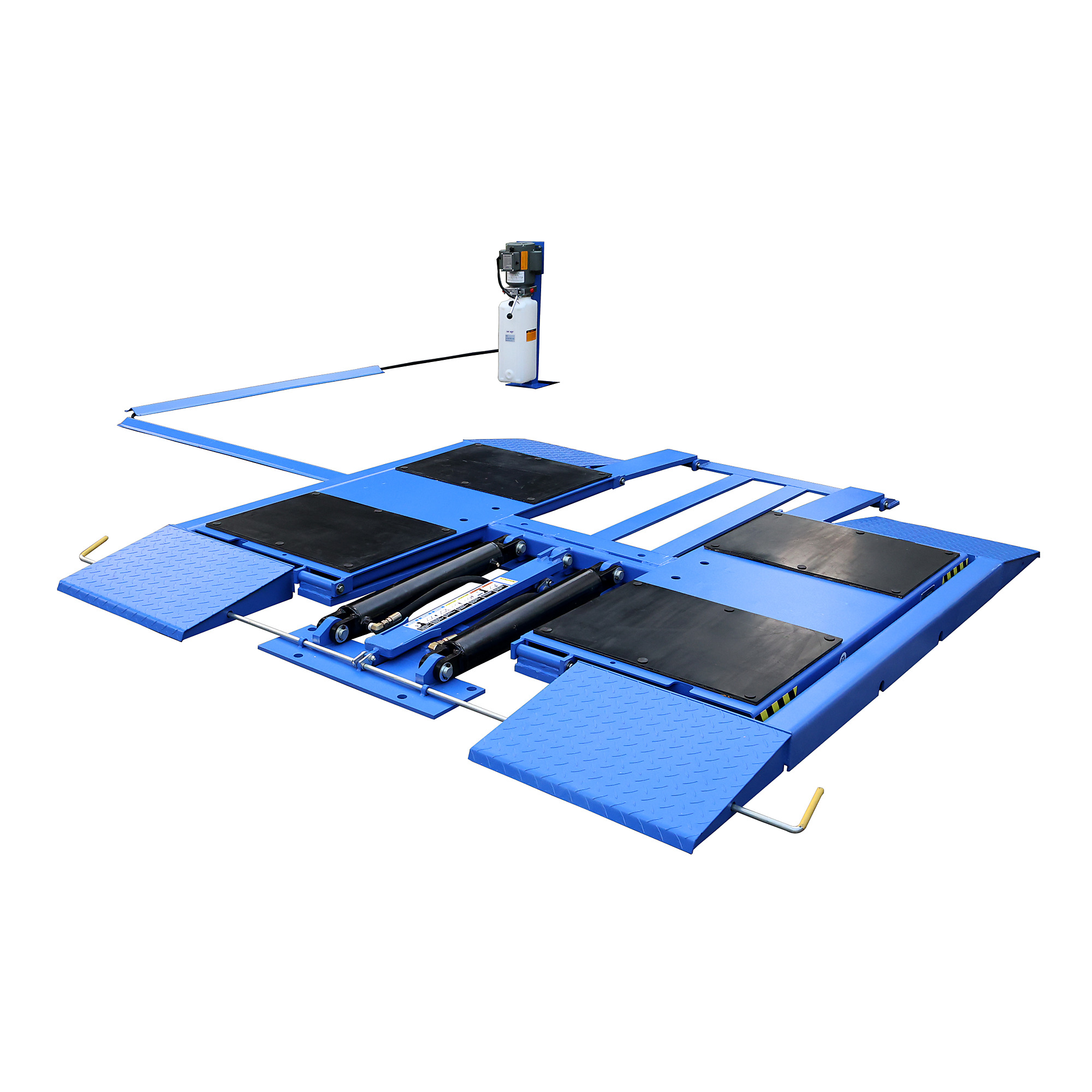

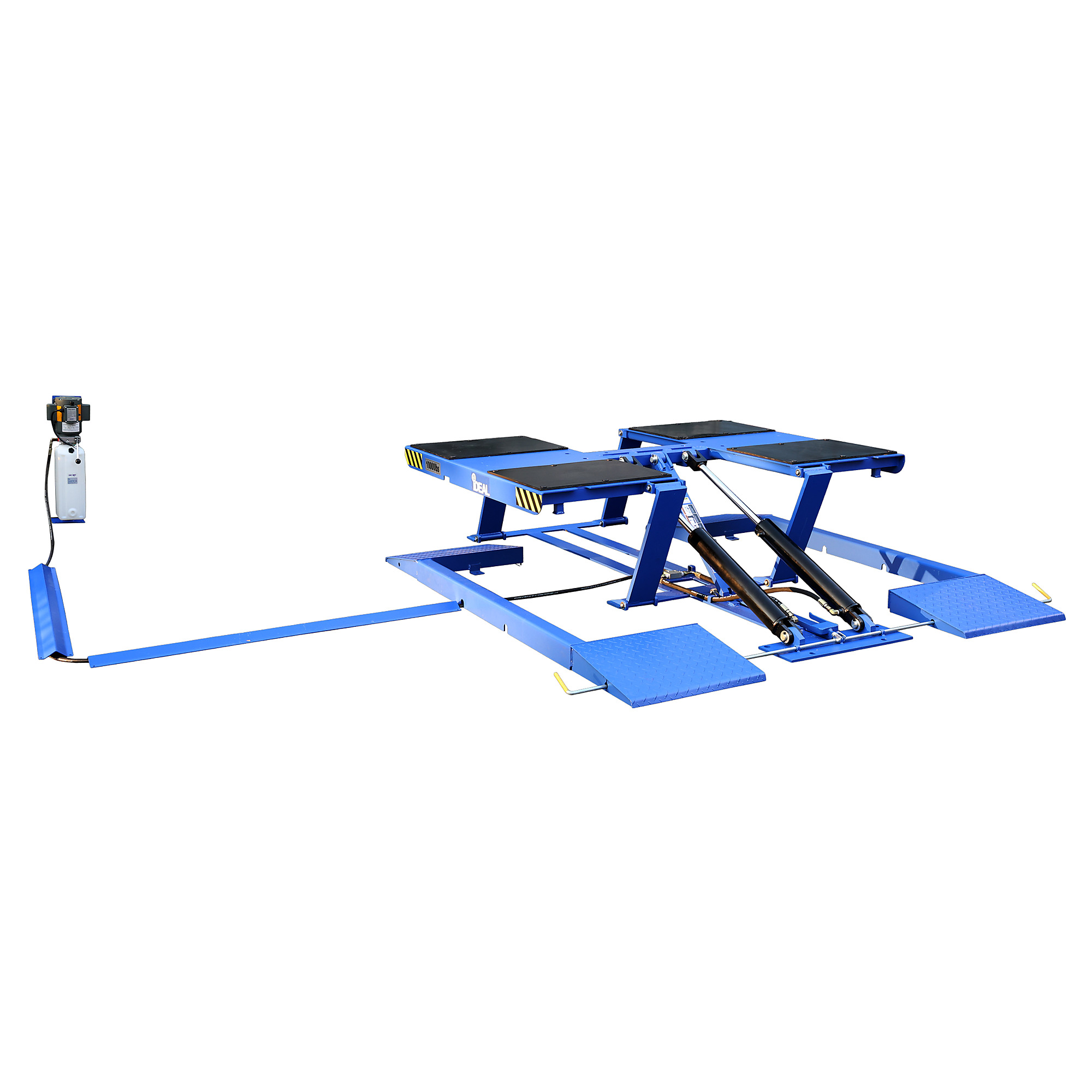

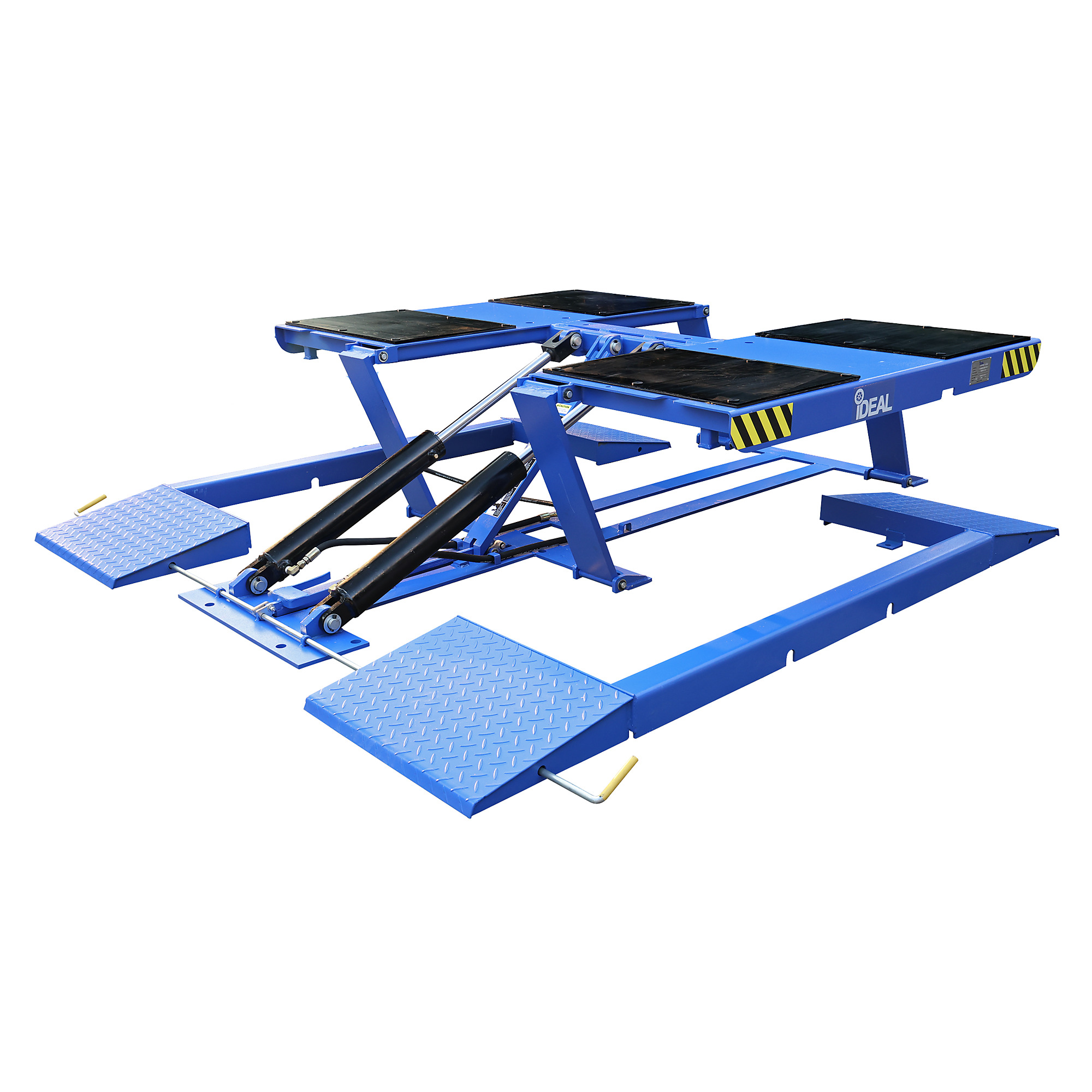

iDEAL by Tuxedo, HIGH PERFORMANCE, COMMERCIAL LOW-RISE PAD LIFT, Capacity 10000 lb, Max. Lift Height 22.5 in, Collapsed Height 4.25 in, Model# LR-10K-TLPAD

Item# 6150270
iDEAL by Tuxedo, HIGH PERFORMANCE, COMMERCIAL LOW-RISE PAD LIFT, Capacity 10000 lb, Max. Lift Height 22.5 in, Collapsed Height 4.25 in, Model# LR-10K-TLPAD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

iDEAL by Tuxedo, HIGH PERFORMANCE, COMMERCIAL LOW-RISE PAD LIFT, Capacity 10000 lb, Max. Lift Height 22.5 in, Collapsed Height 4.25 in, Model# LR-10K-TLPAD

Click or Tap image to Zoom

$4590.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 10,000 LBS CAPACITY
  • LOW RISE, COMMERCIAL GRADE PAD LIFT
  • IDEAL FOR EXPRESS TIRE & WHEEL SERVICE
  • SURFACE MOUNT INSTALL CONFIGURATION
  • DUAL HYDRAULIC LIFT CYLINDERS

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The iDEAL LR-10K-TLPAD is a 10,000 lb. low rise, high-performance commercial, vehicle frame contact lift designed for Cars, SUVs, Vans Trucks. The LR-10K-TLPAD Pad Lift includes the latest in design safety features including, twin hydraulic cylinders, three locking height positions with dual latch releases, durable rubber contact pads, protective hose covers and outer drive-over fixed platform frame allowing for wheel service repairs for a wider range of vehicles, including uni-body vehicles using the included multi-height adapters and rubber pads. The versatility of the pad lift design allows vehicles to be driven-on the pad lift in either direction, while also having the ability to position the hose power unit to either side of the pad lift, allowing for the best fit in a shop or garage. Easy lift operation is provided with high quality electric / hydraulic 115V DURO power unit, mounted to a pedestal post combined with dual point manual lock release. Optional 220V DURO power unit is also available for faster speed of rise.

What's Included

    (1) 1 Scissor Lift

Features + Benefits

  • 10,000 LBS CAPACITY
  • LOW RISE, COMMERCIAL GRADE PAD LIFT
  • IDEAL FOR EXPRESS TIRE & WHEEL SERVICE
  • SURFACE MOUNT INSTALL CONFIGURATION
  • DUAL HYDRAULIC LIFT CYLINDERS
  • DIAMOND PLATE RAMPS
  • 3 LOCKING HEIGHTS

Key Specs

AttributeSpecification

item#

6150270

Brand

iDEAL by Tuxedo

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1230.0 LB

Capacity

10,000 lb

Max. Lift Height

22.5 in

Collapsed Height

4.25 in
AttributeSpecification

Lift Type

Hydraulic/ Electric

Horsepower

1 HP

Motor Phase

Single-phase

Volts

115

Material

Steel

Product Weight

1230.0000 lb

Dimensions L x W x H (in.)

91.0 x 88.625 x 22.6 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
