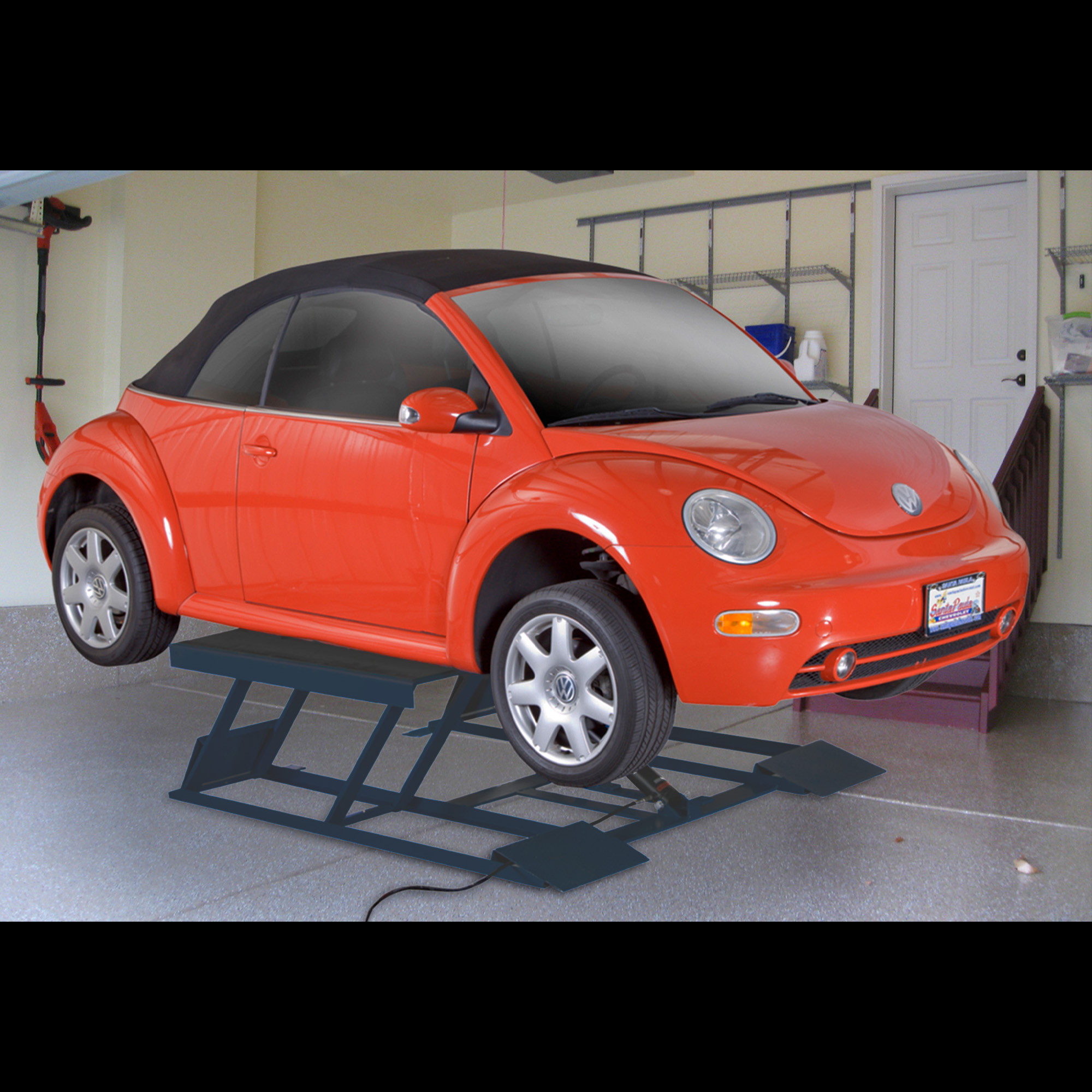

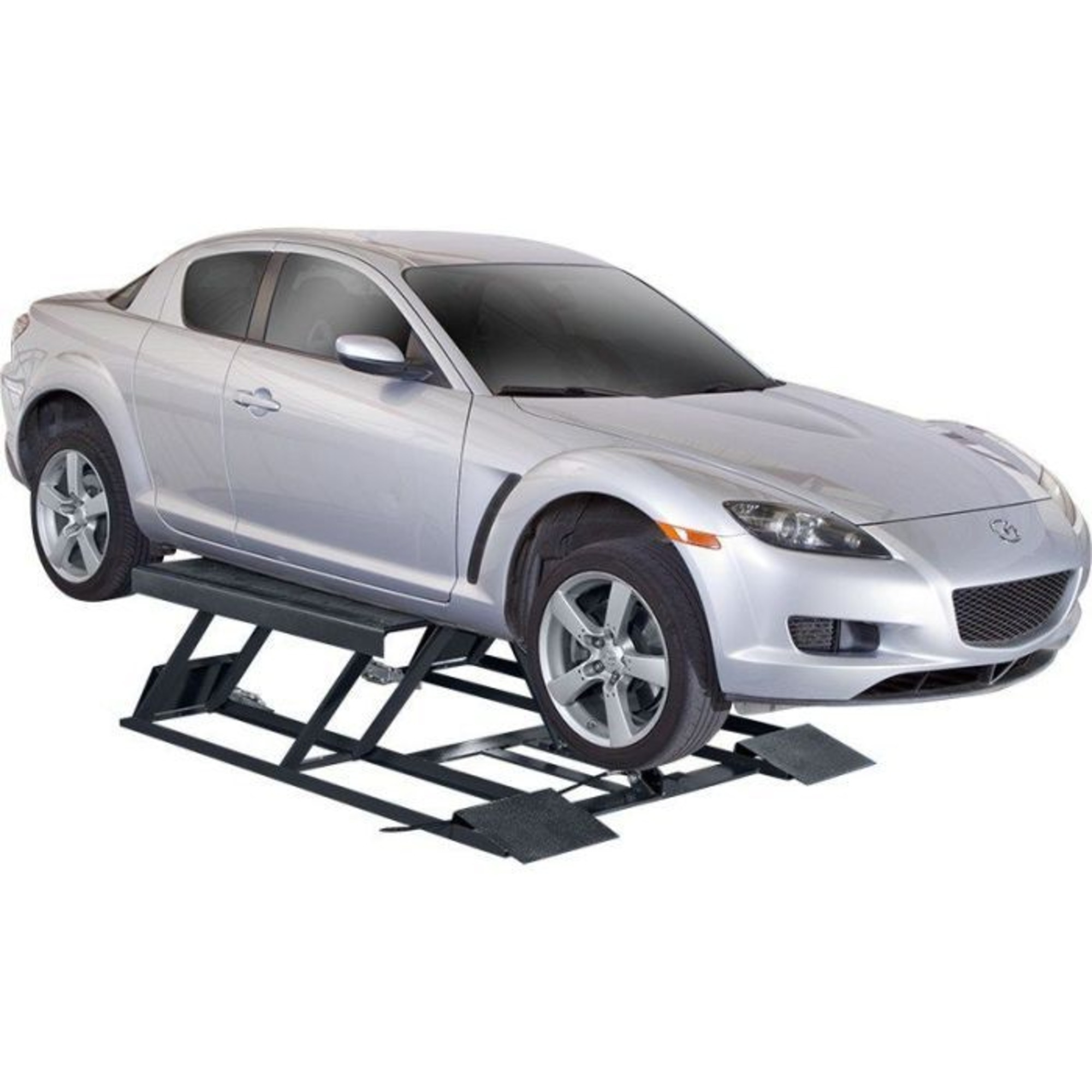

BendPak Low-Rise Car Lift, 6000-Lb. Capacity, Model# LR-60

Item# 14466
"BendPak Low-Rise Car Lift, 6000-Lb. Capacity, Model# LR-60"
BendPak Low-Rise Car Lift, 6000-Lb. Capacity, Model# LR-60

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak Low-Rise Car Lift, 6000-Lb. Capacity, Model# LR-60

Click or Tap image to Zoom

$3495.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Electric/hydraulic power system
  • Hands-free safety system
  • Forklift Required
  • Heavy-duty steel channel frame
  • Model LR-60

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The BendPak Low-Rise Car Lift turns a parking space into a service bay! Dropped crossbar for extra drive-over clearance. Hands-free automatic safety system locks the lift at three different heights. 1 HP electric/hydraulic power unit requires 110/220V, 50/60 Hz. Convenient rubber lift blocks are included for added versatility and to minimize damage to vehicle undercarriage. Four durable rubber lift blocks included with each set. Item too large for lift gate; requires forklift on site for unloading. This item is delivered by flatbed truck Monday-Friday with 24 hours advance notice. A forklift is required to offload the lift from a dock-height flatbed trailer.

What's Included

    (1) Low-rise car lift

Downloads

Product Manual

Features + Benefits

  • Electric/hydraulic power system
  • Hands-free safety system
  • Forklift Required
  • Heavy-duty steel channel frame
  • Model LR-60
  • Style: Standard
  • Item too large for lift gate; requires forklift on site for unloading
  • Dropped cross bar for added clearance

Key Specs

AttributeSpecification

item#

14466

Brand

BendPak

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

745.0 LB

Capacity

6,000 lb

Max. Lift Height

23.5 in
AttributeSpecification

Collapsed Height

4 in

Lift Type

Low-Rise

Horsepower

1 HP

Motor Phase

Single-phase

Volts

110

Material

Steel

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. Clearance for low vehicles?

    Is there adequate drive on clearance for Porsche 911 or Corvette?

    1. I have a 1977 Vette and a a 1981 Vette both are stock as long as you are careful when your front wheels drop off the Lift and over the Hydraulic Ram you will have no problems ... I have had mine on both my 2 Post and my Low Rise Lifts many times & the only issue I have had is the Ram hit my Fly Wheel cover once when I went off the lift a little to fast. Hand's Down this is one of the best investment's I have ever made at the shop.

      Helpful?

    2. This vehicle lift has a collapsed height of 4". It's necessary to measure your vehicles' clearances to ensure 4" isn't too high.

      Helpful?

  2. How many amps does the motor need?

    1. 20 AMPS will work bigger is better. I have blown the breaker twice when the motor was new. You will need to make sure nothing else is on that circuit when you run the motor. It needs all most all of the 20 amps on start up.

      Helpful?

    2. For a 110-120 volt, single phase, use a 20 amp fuse and for a 208-230 volt, single phase, use a 25 amp fuse.

      Helpful?

  3. What is the forward travel of lift for the car (bumper) when the lift is raised from bottom to max height?

    1 answer

    1. This vehicle lift has a reverse travel of approximately 3" to 4".

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
