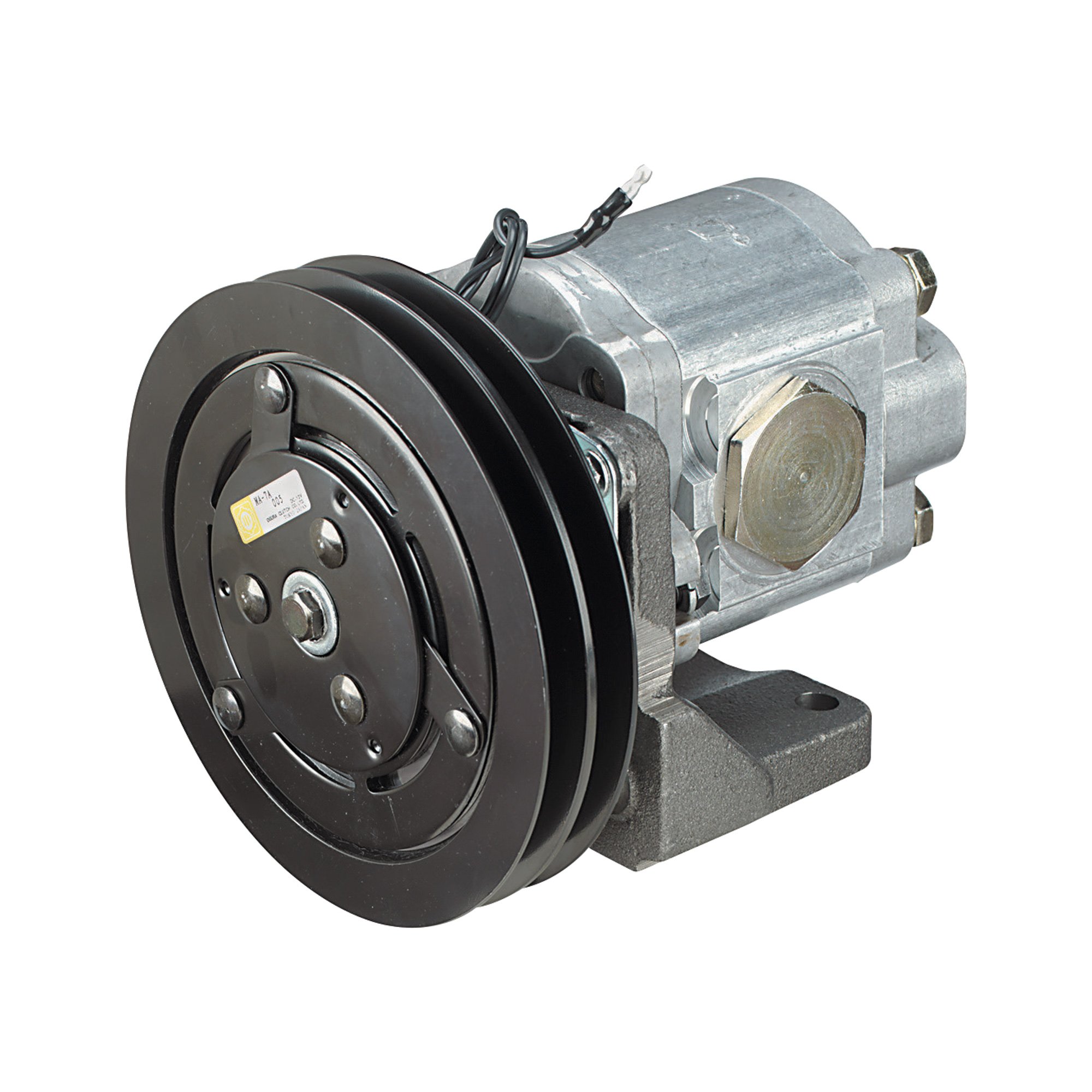

Hydraulic Clutch Pump — 4.6 GPM @ 1,200 RPM

Item# 1080
Hydraulic Clutch Pump — 4.6 GPM @ 1,200 RPM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Hydraulic Clutch Pump — 4.6 GPM @ 1,200 RPM

Click or Tap image to Zoom

  • GPM @ RPM:
  • 4.6 @ 1,200
  • 7.6 @ 2,000
  • 11.4 @ 3,000

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Each pump operates off truck or equipment engines. Mounted in line with engine belt 2 groove pulley. 7in. pulley diameter. Takes two type A 1/2in. belts. Clockwise rotation. Foot mounts with two 1/2in. holes. Maximum pressure 3,000. #16 O-ring SAE inlet, #12 O-ring SAE outlet.

Features + Benefits

  • GPM @ RPM:
  • 4.6 @ 1,200
  • 7.6 @ 2,000
  • 11.4 @ 3,000

Key Specs

AttributeSpecification

item#

1080

Manufacturer's Warranty

18 months parts / 18 months labor

Ship Weight

30.35 LB
AttributeSpecification

Max. PSI

3,000

Max. Flow Rate

11.4 GPM

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. The product is described as a "clutch" pump. Can it be assumed that the pump isn't active until the clutch is engaged? What type of clutch is it?

    1. Pump only runs when clutch is activated by a 12 volt source

      Helpful?

    2. This hydraulic pump utilizes a 12 Volt electric clutch to engage the pump when needed. The pump isn't active until the clutch is engaged.

      Helpful?

  2. What is the service life or recommended TBO (time between overhaul) for this unit?

    1 answer

    1. The service life for this pump will be directly related to the application, usage and maintenance. The manufacturer does not have a recommended time between overhaul.

      Helpful?

  3. What is the displacement of the pump unit?

    1 answer

    1. This pump has a 0.97 cubic inch displacement.

      Helpful?

  4. Bearing or bushing pump construction?

    Does the shaft of this pump run in bearing or on bushings? And what is the recommended loading force for belt assemblies? Thank you.

    1 answer

    1. The shaft runs on bushings. The recommended loading force is 90 foot pounds of static torque..

      Helpful?

  5. What size are the in/out ports? Is it a ceramic piston pump? What psi does it put out @ 1200 rpm?

    1 answer

    1. The suction port on this pump is a #16 O-ring SAE and the pressure side is a #12 O-ring SAE. The pump is an aluminum body gear pump. This pump is rated for a maximum pressure (PSI) of 3,000. The rpm’s will not have an effect on the PSI.

      Helpful?

  6. This is a clockwise pump. Turns out that I need a counterclockwise pump.. Can I change the rotation? If so how? Thanks.

    1 answer

    1. This Clutch pump is clockwise rotation only and would not be able to change the rotation.

      Helpful?

Warranty

Manufacturer's Warranty

18 months parts / 18 months labor
