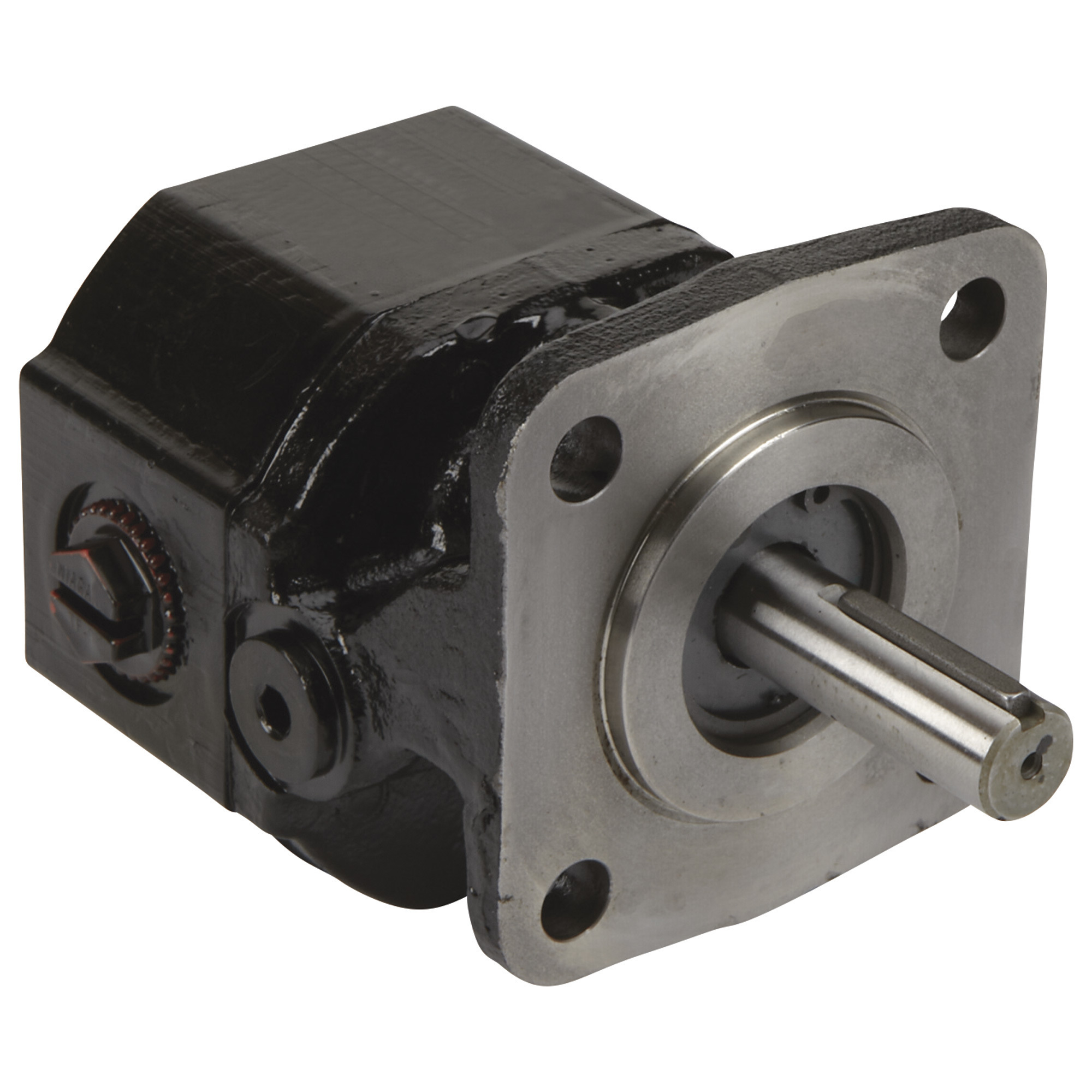

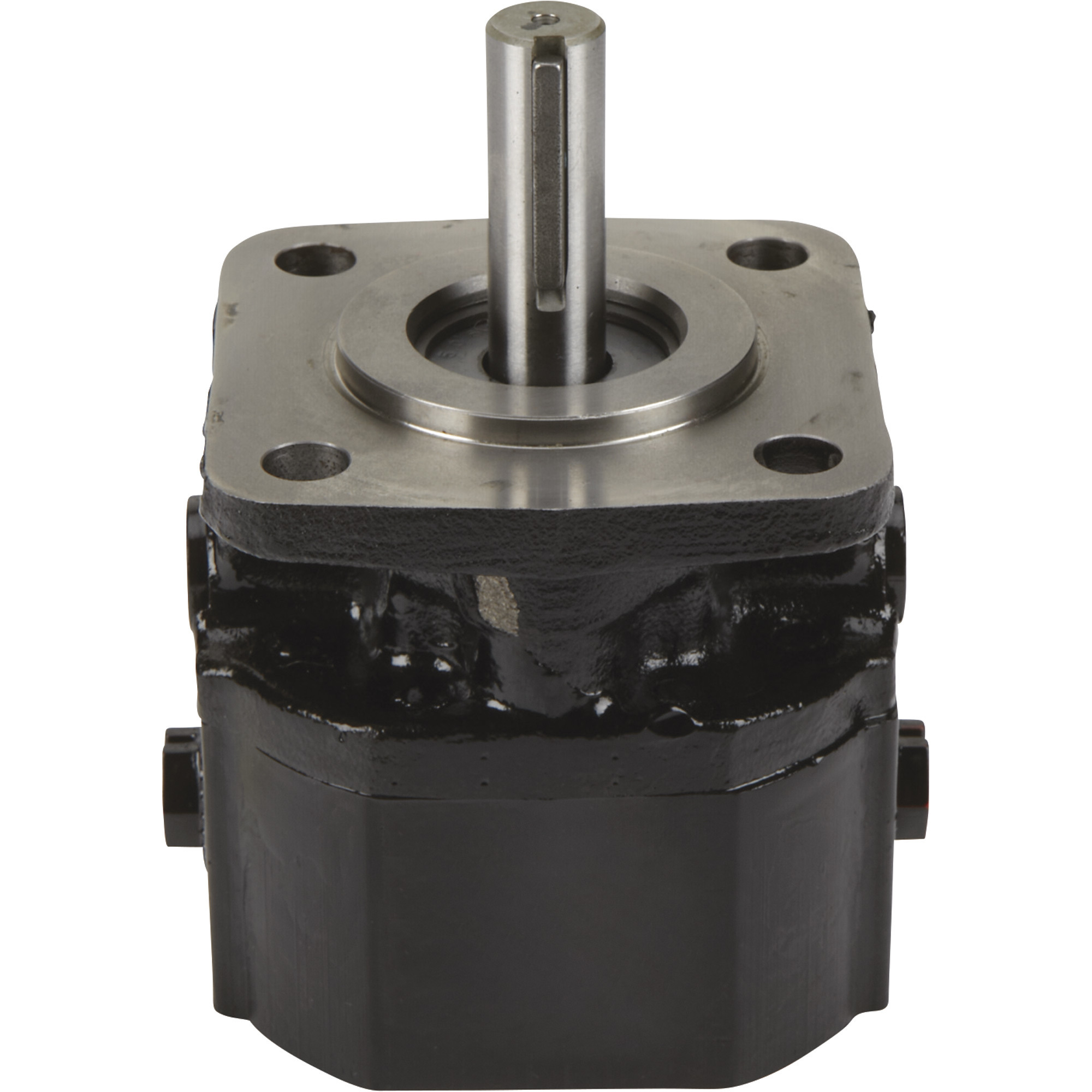

Concentric High Pressure Hydraulic Gear Pump, 0.097 Cu. In., Model# G1206C5A300N00

Item# 10562
15 of 26 reviewers received a sample product or took part in a promotion
Concentric High Pressure Hydraulic Gear Pump, 0.097 Cu. In., Model# G1206C5A300N00

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Concentric High Pressure Hydraulic Gear Pump, 0.097 Cu. In., Model# G1206C5A300N00

Click or Tap image to Zoom

$219.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not available - online only
  • Cubic Inch Size: 0.097
  • Flow at 1,800 RPM: .75 GPM
  • Flow at 3,600 RPM: 1.5 GPM
  • Maximum PSI Cont.: 3,000
  • Maximum PSI Intmt.: 4,000

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Use this Concentric High Pressure Hydraulic Gear Pump on mobile equipment, construction and agricultural equipment, machine tools, material handling and mining equipment, PTO pumps, refuse haulers, compaction and baling equipment. Standard 4-bolt mount. 1.78in. diameter pilot with 1/2in. x 1 1/2in. shaft, 1/8in. square key. Heavy duty cast iron pump turns at 4,000 RPM max. in CW or CCW direction. Use as a fluid pump or fluid motor. Similar to Parker D Series, Webster YB Series, Rexroth S12, MTED Series. Flexible coupling or belt (pulley) drive. 90% efficient.

What's Included

    (1) Hydraulic gear pump

Downloads

Product Manual

Features + Benefits

  • Cubic Inch Size: 0.097
  • Flow at 1,800 RPM: .75 GPM
  • Flow at 3,600 RPM: 1.5 GPM
  • Maximum PSI Cont.: 3,000
  • Maximum PSI Intmt.: 4,000
  • O-Ring Port Size, SAE: 9/16in.-18

Key Specs

AttributeSpecification

item#

10562

Brand

Haldex

Manufacturer's Warranty

1 year limited warranty

Ship Weight

5.0 LB

Max. PSI

3,000
AttributeSpecification

Max. Flow Rate

1.5 GPM

Shaft Diameter

0.5 in

Pump Type

Gear

Material

Cast Iron

Thread Type

Other

Reviews

Questions & Answers

26 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. What size bore diameter pully should I purchase to work with this?

    1. 1/2".

      Helpful?

    2. This pump can be used with a 1/2" bore size pulley.

      Helpful?

  2. What size is the high and low ports?

    1 answer

    1. The port sizes on this pump are 9/16-18 SAE #6

      Helpful?

  3. How many gum does this pump push

    1 answer

    1. The flow rate for this pump is .75 GPM at 1800 RPM and 1.5 GPM at 3600 RPM.

      Helpful?

  4. how much 3450rpm electric hp required

    1 answer

    1. This pump works with any motor with less than 4000 RPM.

      Helpful?

  5. Do you carry replacement shaft seals for this item? Thank You!

    1 answer

    1. For parts for this item please contact Northern Tools Parts Department 1-800-222-5381.

      Helpful?

  6. relief valve

    Hi, does this pump have a relief valve built in?

    what if a hydraulic machine didn`t have a relief valve in any of the components what would happen?

    thank you

    1 answer

    1. This pump must be used in a system which does have a relief valve. If used in a system without a relief valve, a fatal exception could occur possibly damaging this pump as well as other components in the hydraulic system.

      Helpful?

  7. will this pump work on a 5 hp honda motor

    1 answer

    1. This pump will work coupled to any motor that has less than 4000 RPM.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
