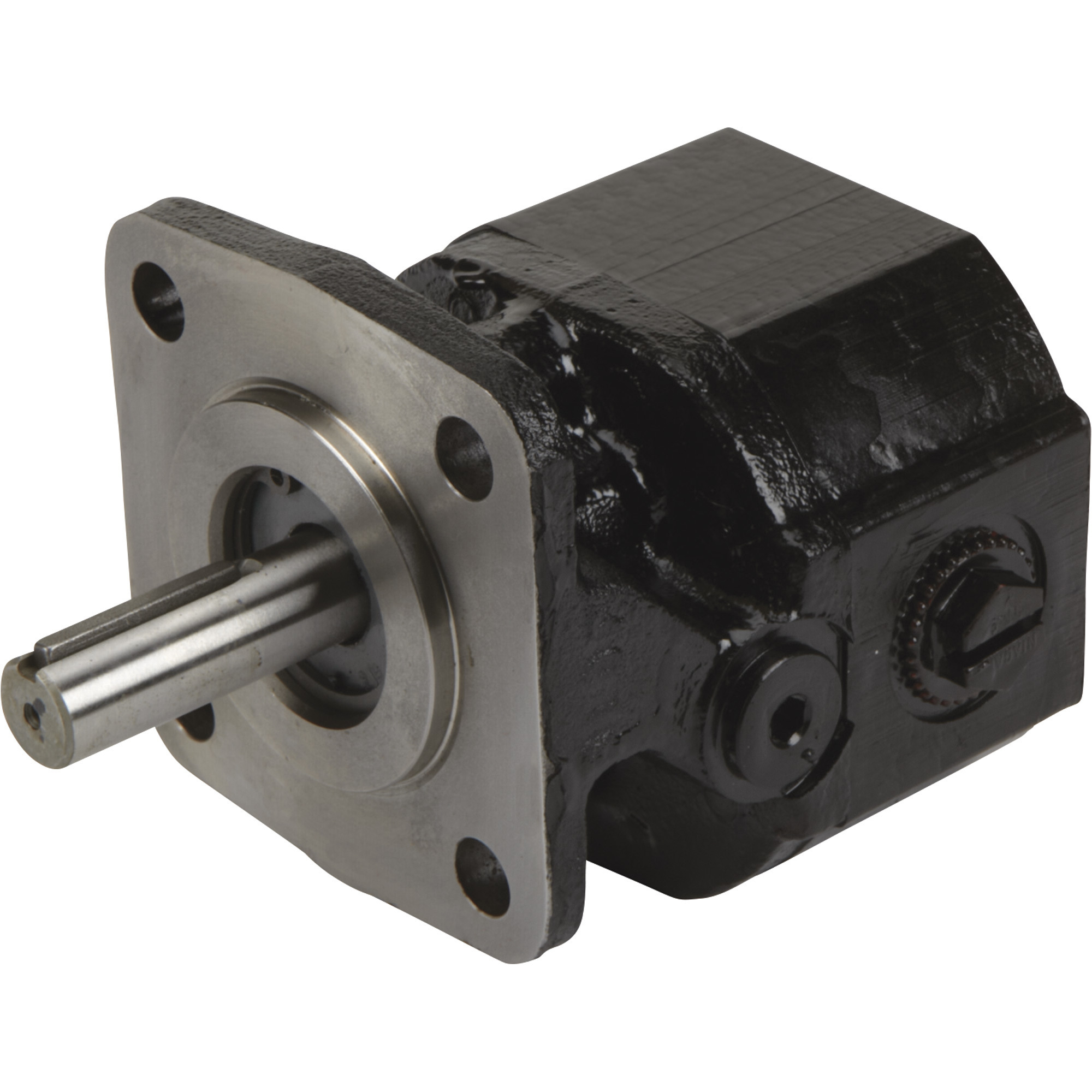

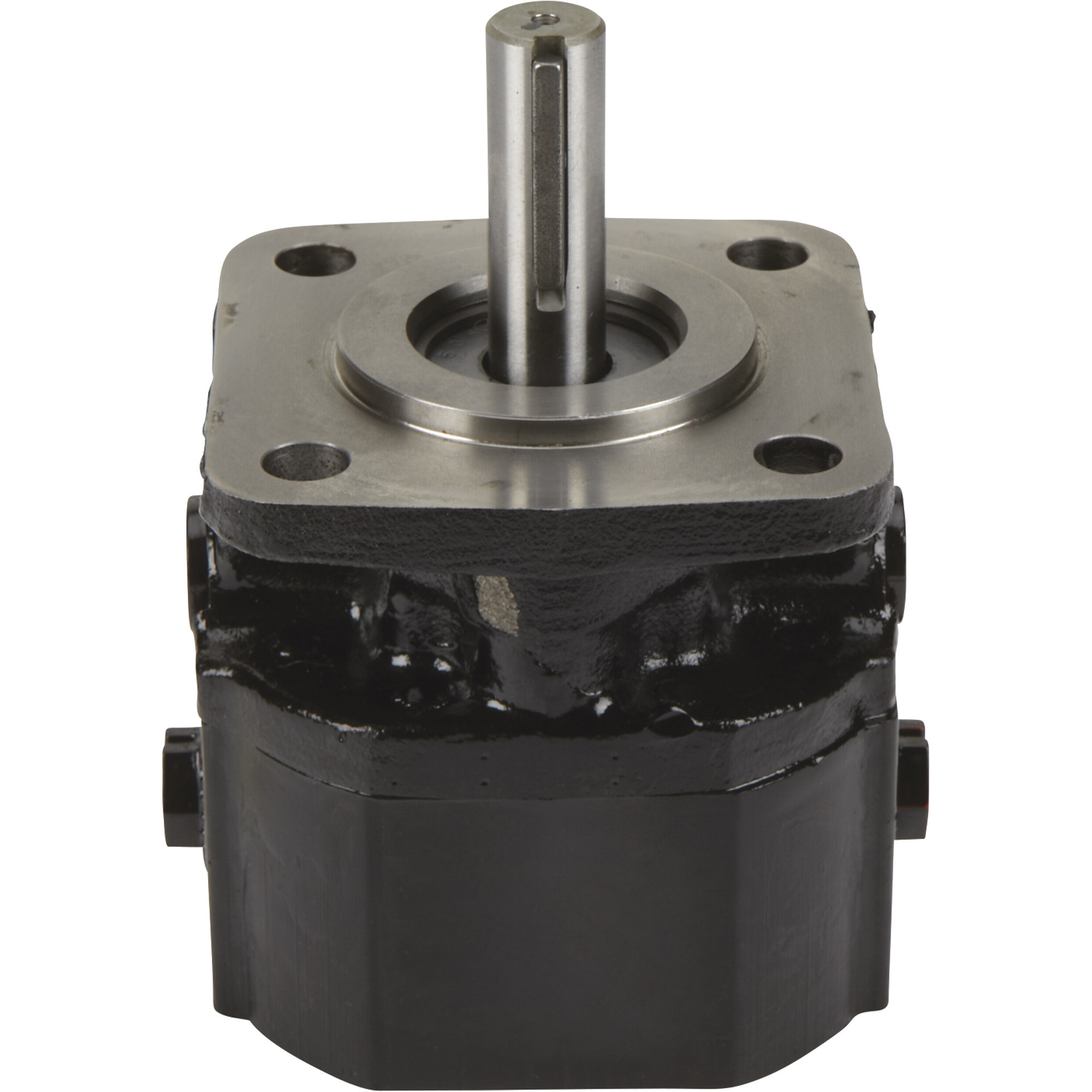

Concentric High Pressure Hydraulic Gear Pump, 0.388 Cu. In., Model# G1224C5A300N00

Item# 10566
"Concentric High Pressure Hydraulic Gear Pump, 0.388 Cu. In., Model# G1224C5A300N00"
Concentric High Pressure Hydraulic Gear Pump, 0.388 Cu. In., Model# G1224C5A300N00

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Concentric High Pressure Hydraulic Gear Pump, 0.388 Cu. In., Model# G1224C5A300N00

Click or Tap image to Zoom

$249.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not available - online only
  • Cubic Inch Size: 0.388
  • Flow at 1,800 RPM: 3.0 GPM
  • Flow at 3,600 RPM: 6.0 GPM
  • Maximum PSI Cont.: 1,600
  • Maximum PSI Intmt.: 2,500

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Use this Concentric High Pressure Hydraulic Gear Pump on mobile equipment, construction and agricultural equipment, machine tools, material handling and mining equipment, PTO pumps, refuse haulers, compaction and baling equipment. Standard 4-bolt mount. 1.78in. diameter pilot with 1/2in. x 1 1/2in. shaft, 1/8in. square key. Heavy-duty cast iron pump turns at 4,000 RPM max. in CW or CCW direction. Use as a fluid pump or fluid motor. Similar to Parker D Series, Webster YB Series, Rexroth S12, MTED Series. Flexible coupling or belt (pulley) drive. 95% efficient.

What's Included

    (1) Hydraulic gear pump

Downloads

Product Manual

Features + Benefits

  • Cubic Inch Size: 0.388
  • Flow at 1,800 RPM: 3.0 GPM
  • Flow at 3,600 RPM: 6.0 GPM
  • Maximum PSI Cont.: 1,600
  • Maximum PSI Intmt.: 2,500
  • O-Ring Port Size, SAE: 7/8in.-14

Key Specs

AttributeSpecification

item#

10566

Brand

Haldex

Manufacturer's Warranty

1 year limited warranty

Ship Weight

5.0 LB

Max. PSI

1,600
AttributeSpecification

Max. Flow Rate

6 GPM

Shaft Diameter

0.5 in

Pump Type

Gear

Material

Cast Iron

Thread Type

Other

Reviews

Questions & Answers

11 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. What would be the GPM of this pump @ 800 psi running @ 1800 RPM and also @ 3600 RPM. I noticed the flow ratings of the pump are at zero psi and was curious if that info was available to make a better informed decision for application. Thanks

    1 answer

    1. At 800 PSI running at 1800 RPM the flow is 2.4 GPM and at 3600 RPM the flow is 4.8 GPM.

      Helpful?

  2. CAN THIS PUMP BE POWERED BY A WINCH MOTOR?

    Can I power this pump with a 12 volt electric winch motor to run a trash compaction body?

    1 answer

    1. This pump can be powered by a 12 volt winch motor. You can determine the horsepower requirement of a hydraulic pump by measuring flow and pressure. Use the formula: hydraulic hp = gpm x psi/1714, where gpm represents flow rate, in gallons per minute, and psi represents pressure, in pounds per square inch. If you're unsure if this pump is compatible with your trash compaction setup, Northern recommends consulting with a hydraulics expert or your local hydraulics shop. Northern Tool cannot make recommendations regarding hydraulic systems.

      Helpful?

  3. What are the exact dimensions of this pump?

    I'm putting a pump in a very tight area under the hood of a garden tractor to achieve on board hydraulics and I'm thinking this just might be small enough to fit. I need to know the exact width, height and depth of this as well as shaft length. Thank you

    1 answer

    1. This gear pump measures 5.16" long(including the shaft). It measures 3.66" long(excluding the shaft). It's 3.25" wide and 3.28" high. The shaft length is 1-1/2".

      Helpful?

  4. Where can I get a seal kit for this pump?

    1 answer

    1. For pricing and availability on replacement seals please contact our parts department at 1-800-222-5381, option #3.

      Helpful?

  5. will a 7 hp gas engine run this pump

    1 answer

    1. You can determine the horsepower requirement of a hydraulic pump by measuring flow and pressure. Use the formula hydraulic hp = gpm x psi/1714, where gpm represents flow rate, in gallons per minute, and psi represents pressure, in pounds per square inch.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
