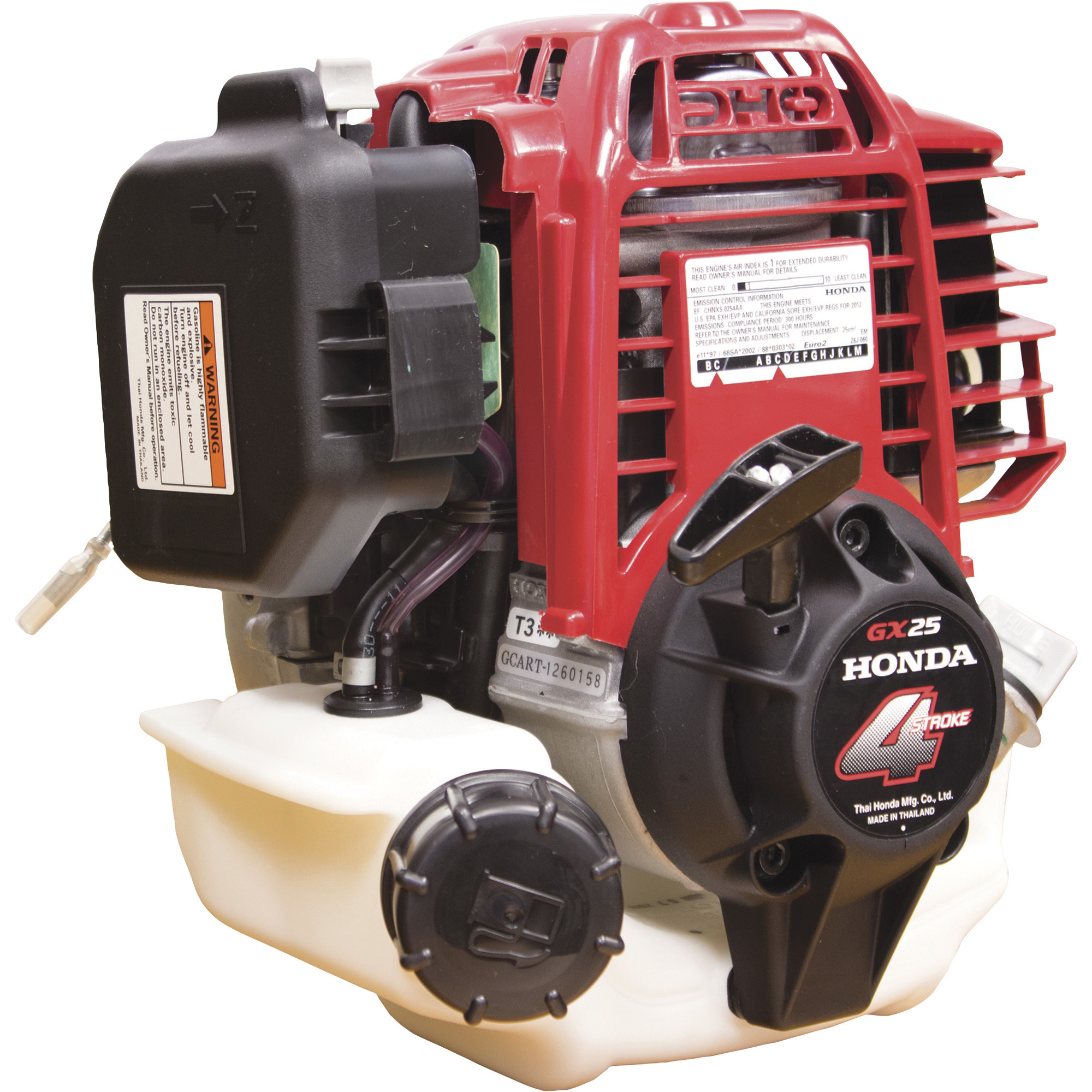

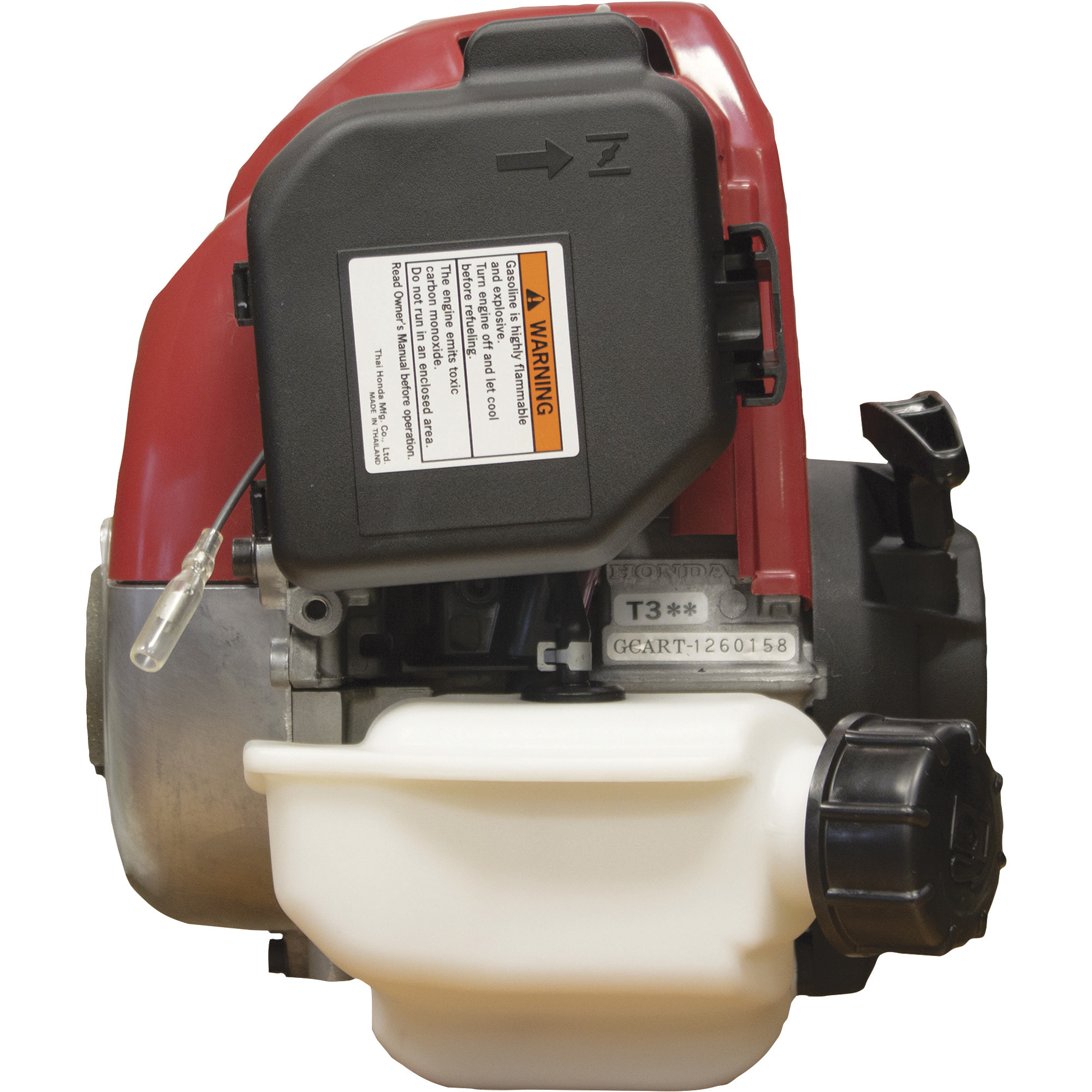

Honda Engines, HONDA GX25NTT ENGINE, Engine Displacement 25 cc, Engine Type GX Series OHC, Model# GX25NTT3

Item# 44259
Honda Engines, HONDA GX25NTT ENGINE, Engine Displacement 25 cc, Engine Type GX Series OHC, Model# GX25NTT3

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Honda Engines, HONDA GX25NTT ENGINE, Engine Displacement 25 cc, Engine Type GX Series OHC, Model# GX25NTT3

Click or Tap image to Zoom

$289.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Model# GX25NTT3; 25cc, 1 HP air-cooled, 4-stroke, vertical engine
  • Reliable and durable with an overhead cam design that offers cooler, fuel-efficient operation
  • Automatic decompression for easy, reliable starting and quiet operation
  • 2.6in. bolt circle
  • Cast iron cylinder sleeve that provides longer service life

See full description

Complete Your Solution

  • Honda Engines, HONDA GX25NTT ENGINE, Engine Displacement 25 cc, Engine Type GX Series OHC, Model# GX25NTT3
  • Honda Power Equipment 10W-30 Motor Oil, 1-Qt. Bottle
  • Honda Engines, METER, HONDA, 08174-ZL8-003HE, Model# 08174-ZL8-023HE
  • Drainzit, DRAINZIT OIL CHANGE AID, Model# HON1420-C.DRA
Price for all four:

$415.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Honda 25cc GX Series OHC mini commercial-grade engine is designed for the most demanding commercial applications. Expect this engine to be reliable and durable, with an overhead cam design that offers cooler, fuel-efficient operation and cast iron cylinder sleeve that provides longer service life. This engine is reliable, easy starting and quiet running. Great for use with construction equipment. Designed for high-RPM applications such as trimmers, mini-tillers and more.

What's Included

    (1) Engine

Downloads

Product Manual

Features + Benefits

  • Model# GX25NTT3; 25cc, 1 HP air-cooled, 4-stroke, vertical engine
  • Reliable and durable with an overhead cam design that offers cooler, fuel-efficient operation
  • Automatic decompression for easy, reliable starting and quiet operation
  • 2.6in. bolt circle
  • Cast iron cylinder sleeve that provides longer service life
  • Great for use with construction equipment and other applications including String Trimmers, Earth Augers and other high-RPM applications
  • Full 260° any-side-up operation
  • Not for sale in CA

Key Specs

AttributeSpecification

item#

44259

Brand

Honda Engines

Manufacturer's Warranty

2 year limited warranty

Ship Weight

15.0 LB

Engine Displacement

25 cc

Engine Type

GX Series OHC

Fuel Type

Gasoline

Start Type

Recoil

Net Torque

0.74 ft-lbs.

PTO Height

3.4 in

Cylinders (qty.)

1

Cylinder Bore

Cast Iron

Net Power Output

1 HP

Compression Ratio

8:1

Fuel Tank

Yes

Fuel Tank Capacity

0.61 qt

Oil Capacity

0.08 qt

Max. RPM

7,000

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise
AttributeSpecification

Ignition System

Transistorized Magneto

Carburetor

Diaphragm (overflow Return)

Lubrication System

Pressure

Bearing Type

Ball

Auto Compression Release

Yes

Cooling System

Air

Bore

1.37 in

Stroke

1 in

Air Cleaner Type

Semi-dry

Choke Control

Manual

Throttle Control

Manual

Fuel Filter

Yes

Muffler Included

Yes

Bolt Circle

2.6 in

Mounting Base Length

2.3 in

Mounting Base Width

2.3 in

Product Weight

lb

Dimensions L x W x H (in.)

7.6 x 8.7 x 9.1 in

Reviews

Questions & Answers

12 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. What is clutch diameter

    1 answer

    1. The Honda GX25NTT3 engine, does not have a clutch. Instead, it uses a vertical gas tank design with a recoil start.

      Helpful?

  2. Is this model original????Can it be turned 360 degrees???

    1 answer

    1. It would be the original model number GX25NTT3. The engine is designed for 360 degree operation and can be used in any position without compromising performance.

      Helpful?

  3. Type spark plug. Type of gas.

    1 answer

    1. The engine would have a type NGK CMR5H spark plug. It would use regular unleaded gas.

      Helpful?

  4. How does it look to the trimmer in the front? I am looking for a three hole hookup to my weed eater.

    1 answer

    1. This engine has a 4 bolt mounting plate with a 2.6 inch bolt circle.

      Helpful?

  5. Does this motor come complete with clutch and clutch housing.

    1 answer

    1. This engine comes with the clutch and clutch housing.

      Helpful?

  6. What's the difference between horizontal and vertical versions of the engine?

    1 answer

    1. The difference between the two engines, items 44259 and 44258, is the shaft output and the vertical engine has a 3.4" PTO height and the horizontal engine has a 3.5" PTO height.

      Helpful?

  7. Engine Uses

    I would like to attached this engine to an existing Bolens BL410 Tiller/Cultivator.

    1 answer

    1. This Honda engine is 4-stroke/cycle. The Bolens BL410 Tiller/Cultivator has a 2-stroke/cycle engine, so this Honda model is not compatible. Northern Tool doesn't carry any 2-stroke engines.

      Helpful?
