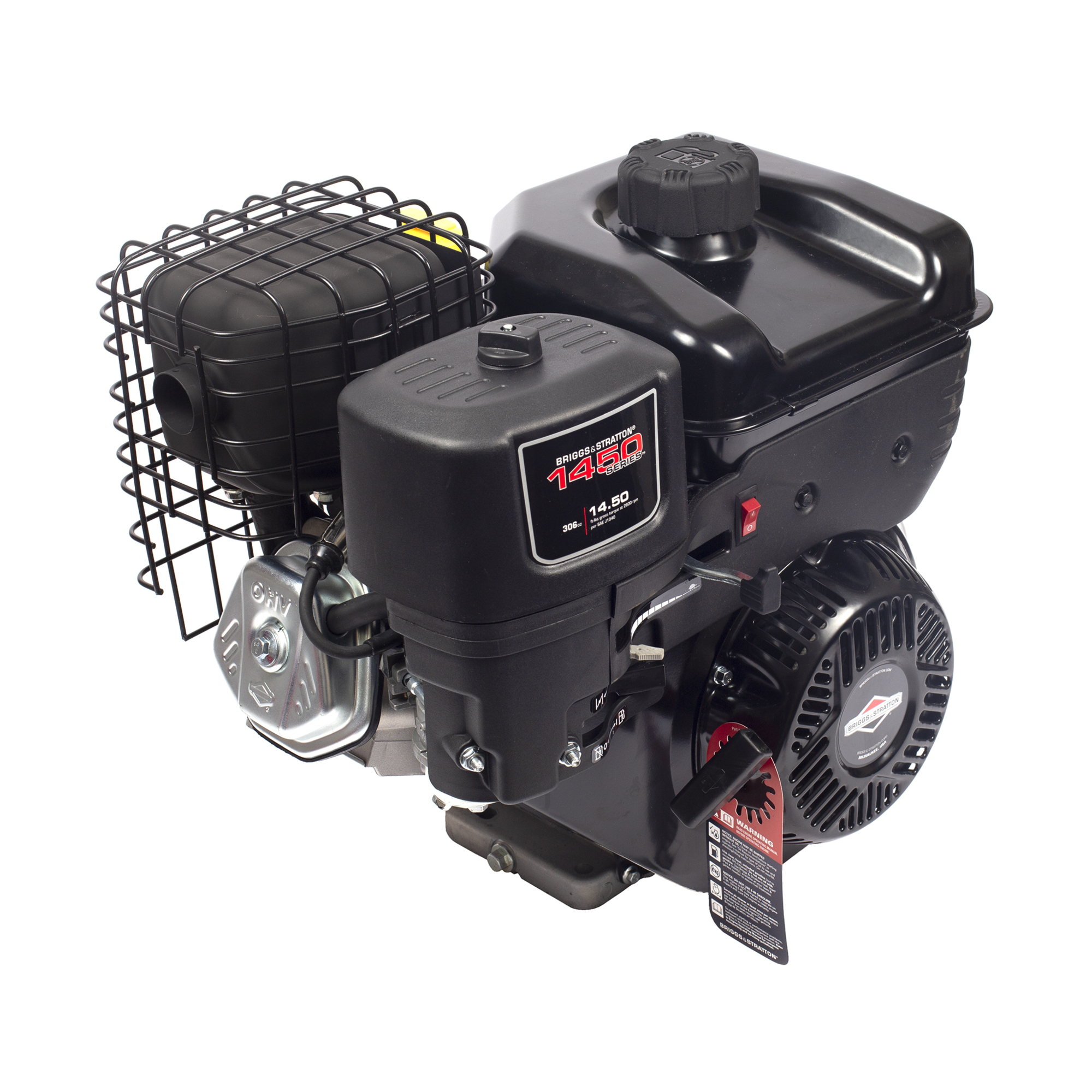

Briggs & Stratton 1450 Series Horizontal OHV Engine, 306cc, 1in. x 2 3/4in. Shaft, Model# 19N132-0055-F1

Item# 44616
"Briggs & Stratton 1450 Series Horizontal OHV Engine, 306cc, 1in. x 2 3/4in. Shaft, Model# 19N132-0055-F1"
Briggs & Stratton 1450 Series Horizontal OHV Engine, 306cc, 1in. x 2 3/4in. Shaft, Model# 19N132-0055-F1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Briggs & Stratton 1450 Series Horizontal OHV Engine, 306cc, 1in. x 2 3/4in. Shaft, Model# 19N132-0055-F1

Click or Tap image to Zoom

$904.71

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Model# 19N132-0055-F1; 306cc engine with 1in. x 2 3/4in. horizontal shaft delivers 14.5 ft.-lbs. Gross Torque
  • OHV design for cooler operation, longer valve life
  • Maintenance-free Magnetron® electronic ignition plus recoil start with auto compression release for quick, dependable starts
  • Approx. mounting base dim. 8in x 4in.
  • Flange mount bolt circles: 5in., 6 1/2in.

See full description

Complete Your Solution

  • Briggs & Stratton 1450 Series Horizontal OHV Engine, 306cc, 1in. x 2 3/4in. Shaft, Model# 19N132-0055-F1
  • Honda Power Equipment 10W-30 Motor Oil, 1-Qt. Bottle
  • GDI, HOUR METER W/TACHOMETER, Model# N111-0100-1005
Price for all three:

$955.69

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Briggs Stratton 1450 Series Horizontal OHV Engine produces 14.5ft.-lbs. Gross Torque to get the job done. This versatile engine with standard 1in. diameter crankshaft is designed for a wide range of applications including tillers, log splitters, compressors, pressure washers, blowers and more. The compact overhead valve design runs cooler and cleaner, delivering more power, longer engine life and improved fuel economy. The crankshaft supported by ball bearings, dual element air cleaner, and lo-tone muffler make this engine a workhorse. This engine has fast fuel delivery for one-pull starts and smooth operation.

What's Included

    (1) Engine

Downloads

Product Manual

Features + Benefits

  • Model# 19N132-0055-F1; 306cc engine with 1in. x 2 3/4in. horizontal shaft delivers 14.5 ft.-lbs. Gross Torque
  • OHV design for cooler operation, longer valve life
  • Maintenance-free Magnetron® electronic ignition plus recoil start with auto compression release for quick, dependable starts
  • Approx. mounting base dim. 8in x 4in.
  • Flange mount bolt circles: 5in., 6 1/2in.
  • Dura-Bore™ cast iron cylinder sleeve withstands wear and abuse while providing improved oil control
  • Ideal for tillers, log splitters, compressors, pressure washers, blowers and a wide range of other applications
  • PTO ball bearing
  • Mechanical governor controls throttle to deliver more power for tough chores
  • Float feed carburetor for consistent one-pull starts
  • Dual-Clean™ premium air filter
  • Metal 3.2-qt. fuel tank for long run times and added durability
  • Lo-Tone muffler reduces noise levels and improves tonal quality
  • DuraLube™ gear-driven splash lubrication system continuously supplies oil to all internal parts
  • Oil sensor automatically shuts down the engine in low oil situations to safeguard investment
  • Not for sale in CA

Key Specs

AttributeSpecification

item#

44616

Brand

Briggs & Stratton

Manufacturer's Warranty

2 year limited warranty

Ship Weight

151.0 LB

Engine Displacement

306 cc

Engine Type

1450 Series OHV

Shaft Diameter

1 in

Shaft Length

2.76 in

Start Type

Recoil

Shaft Keyway

0.25 in

PTO Height

5.26 in

Cylinders (qty.)

1

Cylinder Bore

Cast Iron

Fuel Tank

Yes

Fuel Tank Capacity

3.2 qt

Oil Capacity

1.16 qt

Low Oil Shutdown

No
AttributeSpecification

Low Oil Alert

Yes

CARB Approved

No

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

Mechanical

Ignition System

Electronic

Carburetor

Float

Lubrication System

Splash

Bearing Type

Ball

Auto Compression Release

Yes

Cooling System

Air

Bore

3.22 in

Stroke

2.28 in

Air Cleaner Type

Dual Element

Choke Control

Manual

Throttle Control

Manual

Fuel Filter

Yes

Muffler Included

Yes

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. dose this engine have a charging system.

    will it also take electric start

    1 answer

    1. This engine is a recoil start only with no option to add electric start. This engine does not have a charging system.

      Helpful?

  2. Can I turn the recoil rope unit from right to left

    Can I remove the recoil rope screws and turn the unit clock wise like the 1150 series is bolted up.If not I would have to stand on the wood splitter cylinder to crank it. It has a 7 hp B&S engine on it now and works perfect

    1 answer

    1. The recoil rope on this engine can be rotated.

      Helpful?

  3. how much hp does the 1450 series motor have

    1 answer

    1. The horsepower on this engine would be 10.5.

      Helpful?

  4. Does the exhaust or muffler extend past the mounting plate?

    I need to attach this to a large leaf blower/collector and many engine manufacturers have their muffler extend past the mounting plate which prevents me from attaching the blower housing to the engine.

    1 answer

    1. This engine would not be compatible with a leaf blower/collector as the exhaust/muffler extends past the mounting plate. Please view engine item 34546 as a suitable replacement.

      Helpful?
