The engine does not have a tapered shaft.

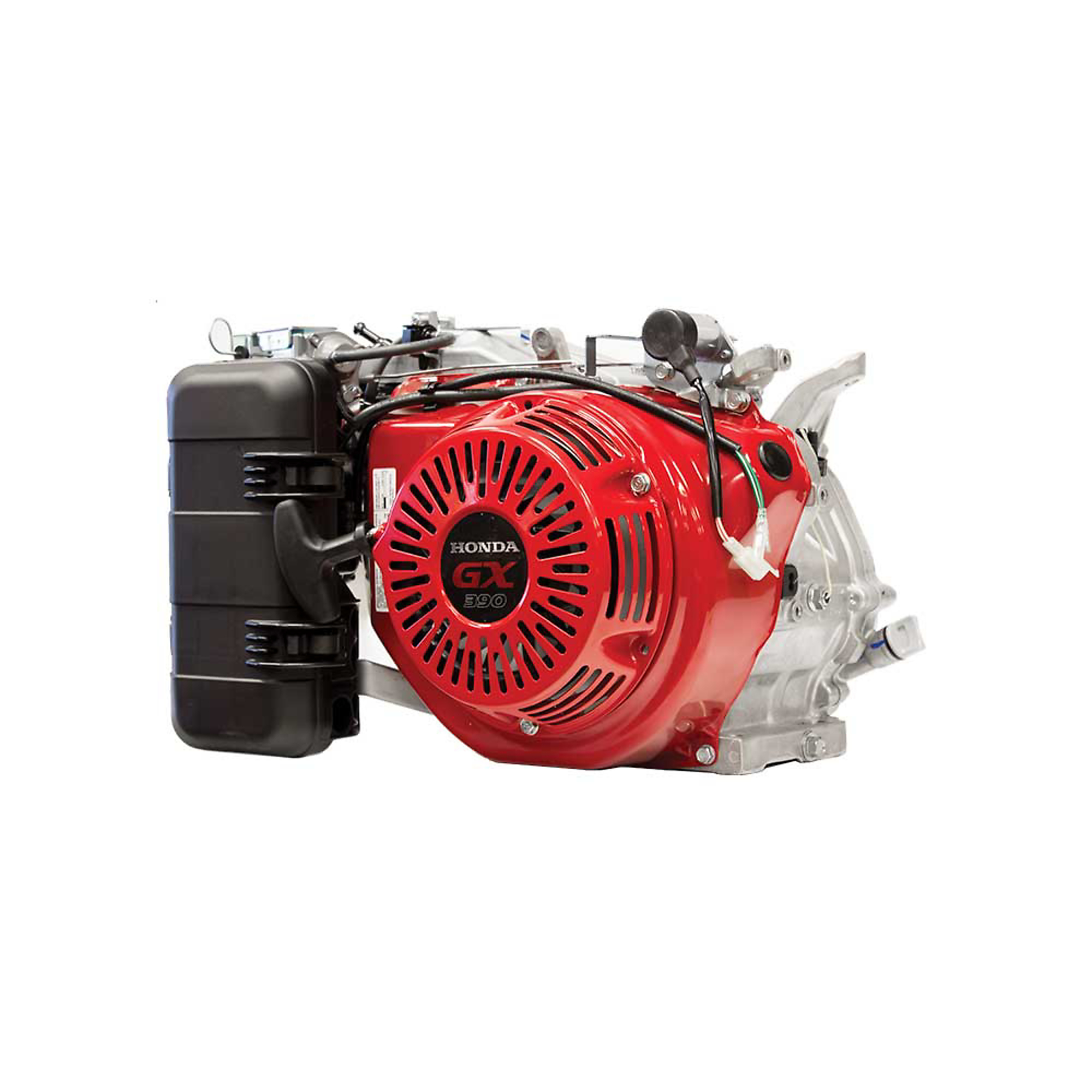

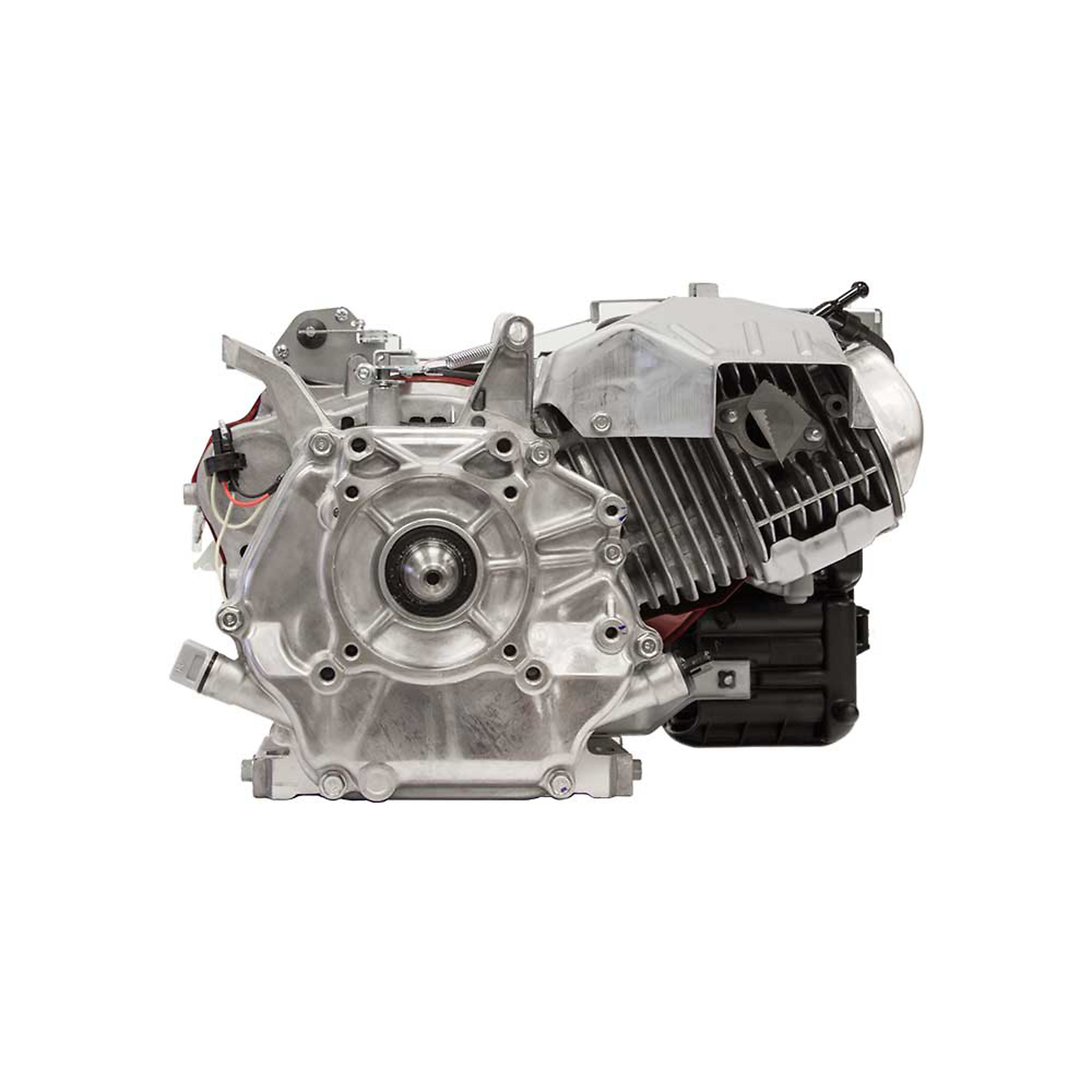

Honda Engines, HONDA ENGINE HORZ 390CC 2VWC, Engine Displacement 389 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 7/8 in, Model# GX390RT2VWC
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$819.99
- Extremely reliable and durable, with an overhead valve design that offers cooler, fuel-efficient operation
- Cast iron cylinder sleeve provides longer service life
- Automatic decompression for easy starting
- Heavy-duty ball bearing supported crankshaft
- Low profile design
See full description
Price for all four:
$908.96
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Horizontal Engines
See All Honda Engines Horizontal Engines
Currently Viewing This Product
Specifications
Specifications
Honda Engines, HONDA ENGINE HORZ 390CC 2VWC, Engine Displacement 389 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 7/8 in, Model# GX390RT2VWC
Honda 118cc GX Series OHV Commercial-Grade Engine, 3/4in. Shaft, Model# GX120T3XQX2
Honda Engines, HONDA 120CC OHV 6:1 ENGINE, Engine Displacement 118 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 3/4 in, Model# GX120T3XHX2
NorthStar c180 Horizontal OHV Engine with Recoil Start, 179cc, 3/4in. x 2-7/16in. Shaft
Engine Displacement
Same
389 cc
118 cc
118 cc
179 cc
Engine Type
Same
GX Series OHV Commercial-duty
GX Series OHV Commercial-duty
GX Series OHV Commercial-duty
OHV
Shaft Diameter
Same
7/8 in
3/4 in
3/4 in
3/4 in
Shaft Length
Same
5.06 in
2.43 in
2.09 in
2.43 in
Start Type
Same
Recoil
Recoil
Recoil
Recoil
Shaft Keyway
Same
N/a; in
0.18 in
0.25 in
1-51/64 in
Net Torque
Same
19.5 ft-lbs.
5.4 ft-lbs.
5.4 ft-lbs.
9.5 ft-lbs.
Crankshaft
Same
V-type
Q-type
H-type
SAE J609EXT3 Straight Key W/shaft Dia.: 19.050mm (0.750in.) - Nominal
PTO Height
Same
5.25 in
4.17 in
4.17 in
4.17 in
Cylinders (qty.)
Same
1
1
1
1
Cylinder Bore
Same
Cast Iron
Cast Iron
Cast Iron
2.56
Net Power Output
Same
11.7 HP
3.5 HP
3.5 HP
3.7 HP
Compression Ratio
Same
8.2:1
8.5:1
8.5:1
8.5:1
Fuel Tank
Same
No
-
-
Yes
Oil Capacity
Same
1.16 qt
0.59 qt
0.59 qt
0.58 qt
Low Oil Shutdown
Same
Yes
Yes
Yes
Yes
Low Oil Alert
Same
Yes
Yes
Yes
Yes
Shaft Rotation (From PTO Shaft Side)
Same
Counter Clockwise
Counter Clockwise
Counter Clockwise
Counter Clockwise
Governor System
Same
Centrifugal Mass Governor
Centrifugal Mechanical
Centrifugal Mechanical
Yes
Ignition System
Same
Digital CDI W/variable Timing
Electronic
Electronic
Transitorical Configuration
Carburetor
Same
Butterfly Float
Float
Float
Carburated
Lubrication System
Same
Splash
Splash
Splash
Splash
Bearing Type
Same
Ball
-
-
Ball
Auto Compression Release
Same
Yes
Yes
Yes
Yes
Cooling System
Same
Air
Air
Air
Air
Bore
Same
3.46 in
2.4 in
2.4 in
2.55 in
Stroke
Same
2.5 in
1.7 in
1.7 in
2.125 in
Air Cleaner Type
Same
Dual Element
Dual Element
Dual Element
Foam+paper
Choke Control
Same
Remote
Manual
Manual
Manual
Throttle Control
Same
Automatic
Remote
Remote
Adjustable
Fuel Filter
Same
Yes
-
-
-
Muffler Included
Same
No
Yes
Yes
Yes
Fuel Tank Capacity
Same
-
2.1 qt
2.1 qt
3.49 qt
Shaft Diameter Metric
Same
-
-
-
19.05 mm
Shaft Length Metric
Same
-
-
-
61.7 mm
Charging System Amps
Same
-
-
-
No
Bolt Circle
Same
-
-
-
3.625 in
Mounting Base Length
Same
-
-
-
6.378 in
Mounting Base Width
Same
-
-
-
3.15 in
