Honda Engines, HONDA 50CC OHV ENGINE, Engine Displacement 50 cc, Engine Type GXH Series OHV Commercial-duty, Shaft Diameter 5/8 in, Model# GXH50UTXQXA

Item# 60025
Honda Engines, HONDA 50CC OHV ENGINE, Engine Displacement 50 cc, Engine Type GXH Series OHV Commercial-duty, Shaft Diameter 5/8 in, Model# GXH50UTXQXA

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Honda Engines, HONDA 50CC OHV ENGINE, Engine Displacement 50 cc, Engine Type GXH Series OHV Commercial-duty, Shaft Diameter 5/8 in, Model# GXH50UTXQXA

Click or Tap image to Zoom

$559.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Honda 49.4cc GXH OHV air-cooled, 4-stroke, horizontal engine
  • Applications: high-RPM
  • Automatic decompression for easy starting
  • Not for sale in CA

See full description

Complete Your Solution

  • Honda Engines, HONDA 50CC OHV ENGINE, Engine Displacement 50 cc, Engine Type GXH Series OHV Commercial-duty, Shaft Diameter 5/8 in, Model# GXH50UTXQXA
  • Honda Power Equipment 10W-30 Motor Oil, 1-Qt. Bottle
  • GDI, HOUR METER W/TACHOMETER, Model# N111-0100-1005
Price for all three:

$622.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

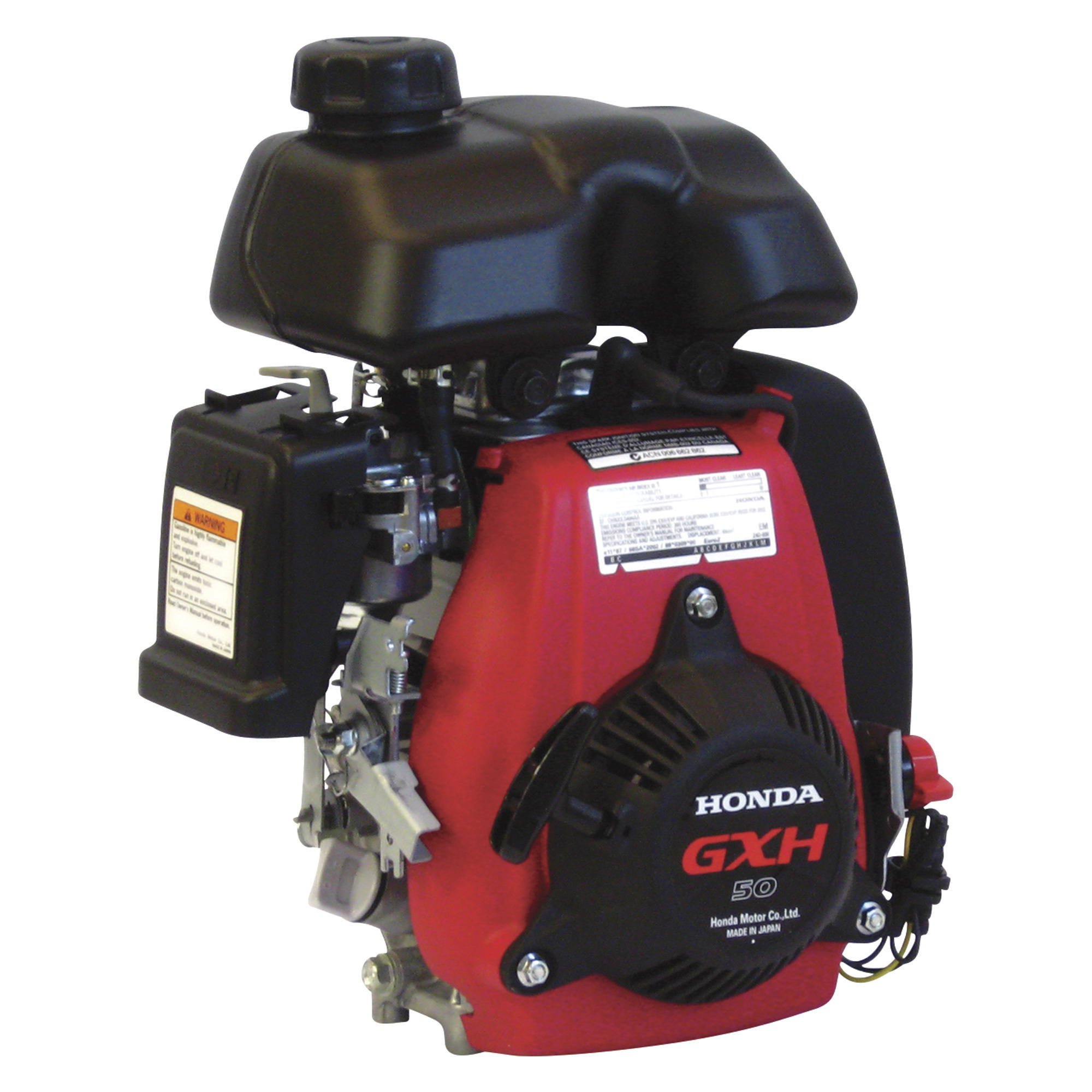

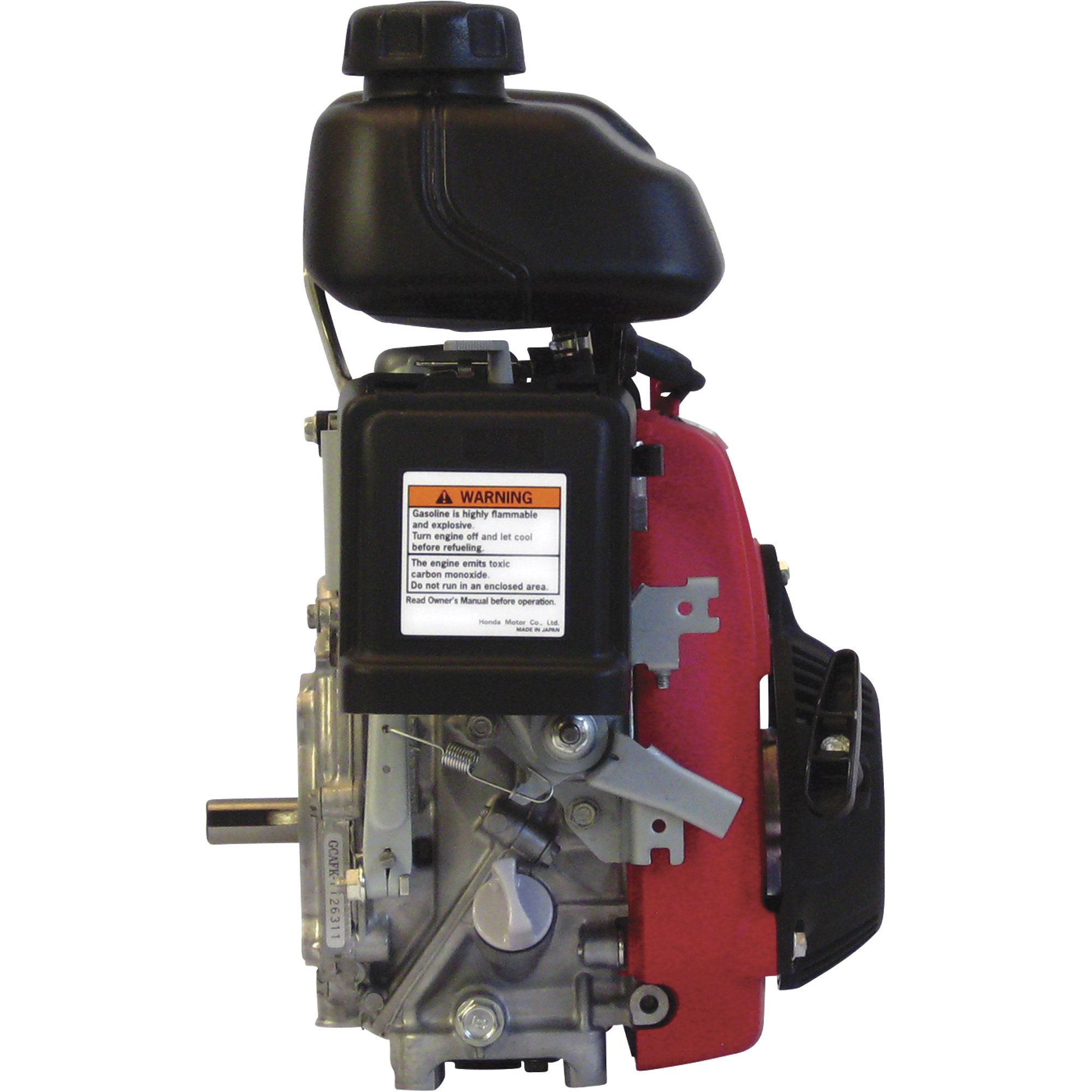

The Honda 49.4cc GXH Series OHV mini commercial-grade engine is designed for the most demanding commercial applications. It has set an industry standard for reliability and durability. Overhead Valve design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life. The GXH is reliable, easy starting and quiet running. Meets EPA and CARB emission levels standards. This legendary engine has earned the reputation as the preferred engine for construction equipment. Designed for high-RPM applications.

What's Included

    (1) Engine, Model# GXH50UTQXA

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Honda 49.4cc GXH OHV air-cooled, 4-stroke, horizontal engine
  • Applications: high-RPM
  • Automatic decompression for easy starting
  • Not for sale in CA

Key Specs

AttributeSpecification

item#

60025

Brand

Honda Engines

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

14.0 LB

Engine Displacement

50 cc

Engine Type

GXH Series OHV Commercial-duty

Shaft Diameter

5/8 in

Shaft Length

1.25 in

Start Type

Recoil

Net Torque

2 ft-lbs.

PTO Height

3.34 in

Cylinders (qty.)

1

Cylinder Bore

Cast Iron

Net Power Output

2.1 HP

Compression Ratio

8.0:1

Fuel Tank Capacity

0.81 qt
AttributeSpecification

Oil Capacity

0.26 qt

Low Oil Alert

No

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

Centrifugal Mechanical

Ignition System

Electronic

Carburetor

Float

Lubrication System

Splash

Auto Compression Release

Yes

Cooling System

Air

Bore

1.65 in

Stroke

1.42 in

Air Cleaner Type

Semidry

Choke Control

Manual

Throttle Control

Manual

Muffler Included

Yes

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. would i be able to get the idle speed down to 1750 RPM

    1. Maybe have a look at the Honda GX100 or GX120? Either of those engines will idle down to 1,750, and are not much larger than the GXH50. The GX100 is Northern Item # 44250 and the GX120 is Item Number 605912 -Robert@Honda

      Helpful?

    2. This engine's idle speed runs between 2300 and 2700 RPM's. It cannot be lowered down to 1750 RPM's.

      Helpful?

  2. Sealed or Unsealed GX50U

    I am looking for a Honda GX50U sealed engine for kids go kart racing. Can you tell me if this is a sealed engine, meaning I believe it has some sort of seal on the crankcase that means it is certified. Thanks

    1. Honda does not offer any type of sealed engine program.

      Helpful?

    2. Honda does not offer any type of sealed engine program. All our engines are manufactured to certain specifications, then delivered (often in bulk) to either a Honda Engine Distributor or another company (OEM, Original Equipment Manufacturer) who then takes the engines and installs them on their equipment (log splitters, pressure washers, go-karts ,etc.). There are no seals, marks, stickers, etc. installed at the factory to seal or otherwise mark an engine to prevent tampering or changes.

      You may wish to ask with the official racing organizations about how an engine may be qualified as "sealed" but I'll guess some third-party usually provides this kind of certification and enforcement of the rules on keeping an engine stock for certain racing classes.

      Best of luck, -Robert@Honda

      Helpful?

  3. What spark plug does it take

    1 answer

    1. The Honda part number for the spark plug is 98056-55757 or the Denso number would be U16FSR-UB for it.

      Helpful?

  4. does this have a reduction gear

    1 answer

    1. This 50 cc engine does not have gear reduction. Northern does not offer a 50 cc engine with a gear reduction. We do offer a 120 cc engine that has a 6:1 gear reduction, item #60326.

      Helpful?

  5. What type of clutch comes with the engine/what clutches are availabe?

    I'm mostly interested in getting a manual, friction clutch for this engine, is that possible?

    1 answer

    1. The Honda engine does not include a clutch. We are unable to provide a friction clutch for the engine.

      Helpful?

  6. Is it a 2 stroke or 4 stroke

    1 answer

    1. This is a 4 stroke engine.

      Helpful?

  7. Does it come with a centrifical clutch?

    1 answer

    1. The engines do not include a centrifugal clutch.

      Helpful?

  8. What is the idle rpm of the GXH 50 engine?

    1 answer

    1. This Honda 50cc engine idles at 2500 RPM.

      Helpful?
