8.5 horsepower @ 3,600 rpm -Robert@Honda

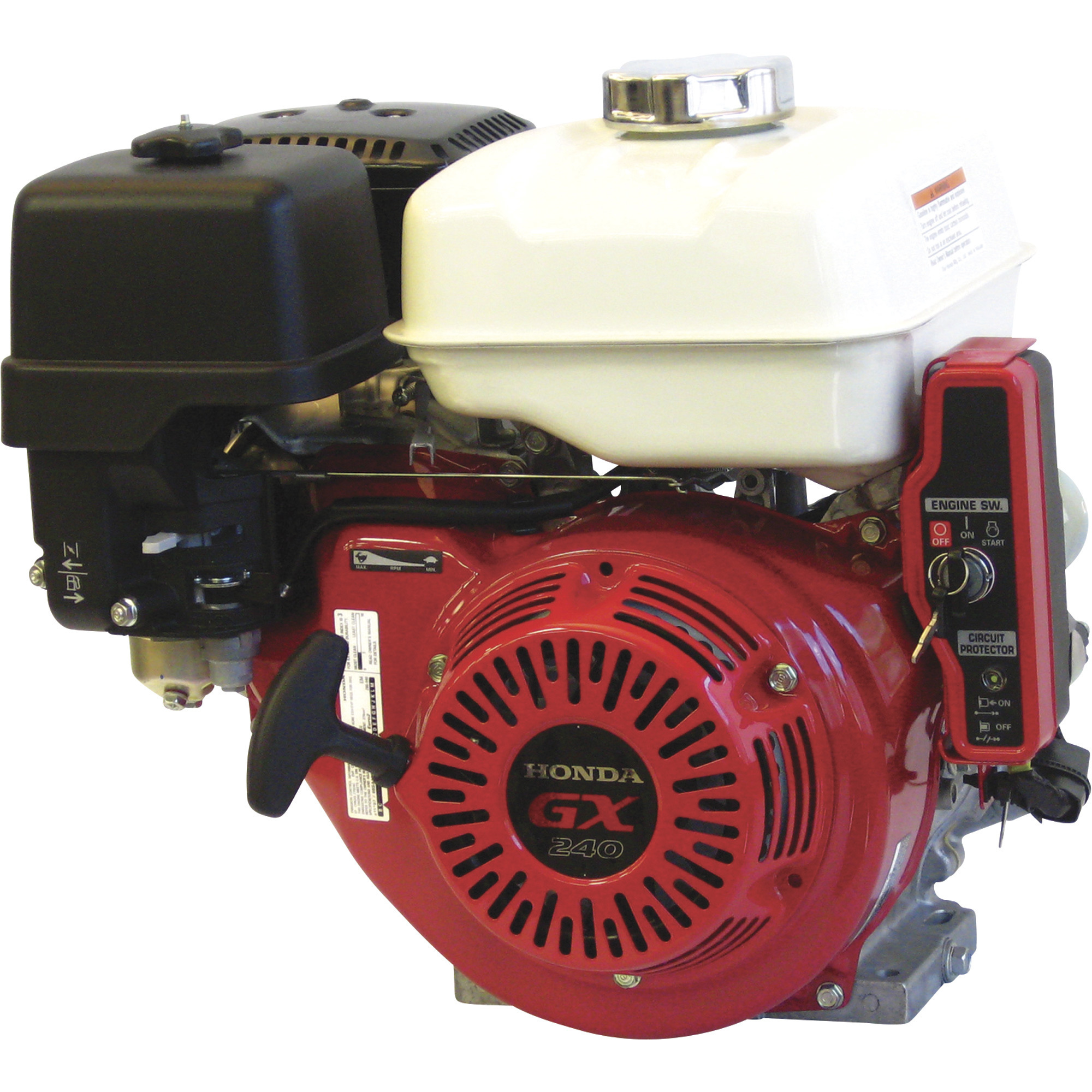

Honda Engines, HONDA HORZ ELECT START 240CC, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX240UT2XQAR2
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$1079.99
- Overhead valve design for cool, fuel-efficient operation
- Cast iron cylinder sleeve to provide longer service life
- Meets EPA and CARB emission levels standards
- Great for construction equipment
- Other common applications include pressure washers, compressors, go-karts, log splitters and chipper/shredders
See full description
Price for all four:
$1168.96
What's Included
- (1) Engine, Model# GX240UT2XQAR2
Downloads
Features + Benefits
- Overhead valve design for cool, fuel-efficient operation
- Cast iron cylinder sleeve to provide longer service life
- Meets EPA and CARB emission levels standards
- Great for construction equipment
- Other common applications include pressure washers, compressors, go-karts, log splitters and chipper/shredders
- Automatic decompression for easy starting
- Heavy-duty ball bearing supported crankshaft
- Double-walled heavy-duty tank with in-tank fuel strainer
- Does not include battery cables
-
how many h.p. is the 270 cc engine
-
Helpful?
-
This engine has an approximate HP rating of 8.
Helpful?
-
-
Available for California?
1 answer-
This engine does not meet the California emissions laws.
Helpful?
-
-
Is there a battery included?
1 answer-
The battery is not included. The recommended battery will be a 12 volt battery with an amp hour rating of at least 18 Ah.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Horizontal Engines
See All Honda Engines Horizontal Engines
Currently Viewing This Product
Specifications
Specifications
Honda Engines, HONDA HORZ ELECT START 240CC, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX240UT2XQAR2
Briggs & Stratton Vanguard Small Block V-Twin Horizontal Engine with Electric Start, 479cc, 1in. x 3in. Shaft, Model# 305447-0615-F1
Kohler Command Pro Horizontal Engine - 208cc, 3/4in. x 2 7/16in. Shaft, Model# PA-CH270-3152
Briggs & Stratton Vanguard V-Twin Horizontal Engine with Electric Start, 16 HP, 479cc, 1in. x 3in. Shaft, Model# 305447-0610-G1
Engine Displacement
Same
270 cc
479 cc
208 cc
479 cc
Engine Type
Same
GX Series OHV Commercial-duty
Vanguard V-twin
Command Pro OHV
Vanguard V-twin
Shaft Diameter
Same
1 in
1 in
3/4 in
1 in
Shaft Length
Same
3.48 in
3 in
2.43 in
3 in
Start Type
Same
Electric and Recoil
Electric and Recoil
Recoil
Electric
Shaft Keyway
Same
0.25 in
0.25 in
5/16-24 28 UNF in
0.25 in
Net Torque
Same
13.5 ft-lbs.
-
10.5 ft-lbs.
-
Crankshaft
Same
Q-type
Horizontal
-
Horizontal
PTO Height
Same
5.25 in
5.25 in
4.173 in
5.25 in
Cylinders (qty.)
Same
1
2
1
2
Cylinder Bore
Same
Cast Iron
Cast Iron
Cast Iron
Cast Iron
Net Power Output
Same
7.9 HP
16 HP
7 HP
16 HP
Compression Ratio
Same
8.5:1
-
8.5:1
-
Fuel Tank
Same
Yes
Yes
Yes
No
Fuel Tank Capacity
Same
5.6 qt
9 qt
4 qt
-
Oil Capacity
Same
1.16 qt
1.5 qt
0.63 qt
1.5 qt
Low Oil Shutdown
Same
Yes
No
Yes
No
Low Oil Alert
Same
Yes
No
Yes
No
Shaft Rotation (From PTO Shaft Side)
Same
Counter Clockwise
Counter Clockwise
Counter Clockwise
Counter Clockwise
Governor System
Same
Centrifugal Mechanical
Mechanical
Mechanical
Mechanical
Ignition System
Same
Electronic
Electronic
Electronic
Electronic
Carburetor
Same
Butterfly Float
Float
Float
Float
Lubrication System
Same
Splash
Full Pressure
Splash
Full Pressure
Bearing Type
Same
Ball
Ball
Ball
Ball
Auto Compression Release
Same
Yes
Yes
Yes
Yes
Cooling System
Same
Air
Air
Air
Air
Bore
Same
2.87 in
2.68 in
2.8 in
2.68 in
Stroke
Same
2.28 in
2.6 in
2.1 in
2.6 in
Air Cleaner Type
Same
Dual Element
Single Element
Single Element
Dual Element
Choke Control
Same
Manual
Yes
-
Manual
Throttle Control
Same
Remote
Remote
-
Manual
Fuel Filter
Same
Yes
Yes
Yes
Yes
Charging System Amps
Same
18
16
-
16
Muffler Included
Same
Yes
Yes
Yes
No
CARB Approved
Same
-
No
Yes
No
Shaft Diameter Metric
Same
-
-
61.722 mm
-
Shaft Length Metric
Same
-
-
61.722 mm
-
Fuel Type
Same
-
-
Gasoline
-
Max. RPM
Same
-
-
3,000
-
Grade
Same
-
-
87
-
Product Weight
Same
-
-
38.5 lb
-
