This engine can be used to replace the GVC160 OHC engine in some applications, but it is best to consider the weight, the dimensions, the shaft size, the mounting pattern and the required cable connections of the original engine to determine if this is the best fit.

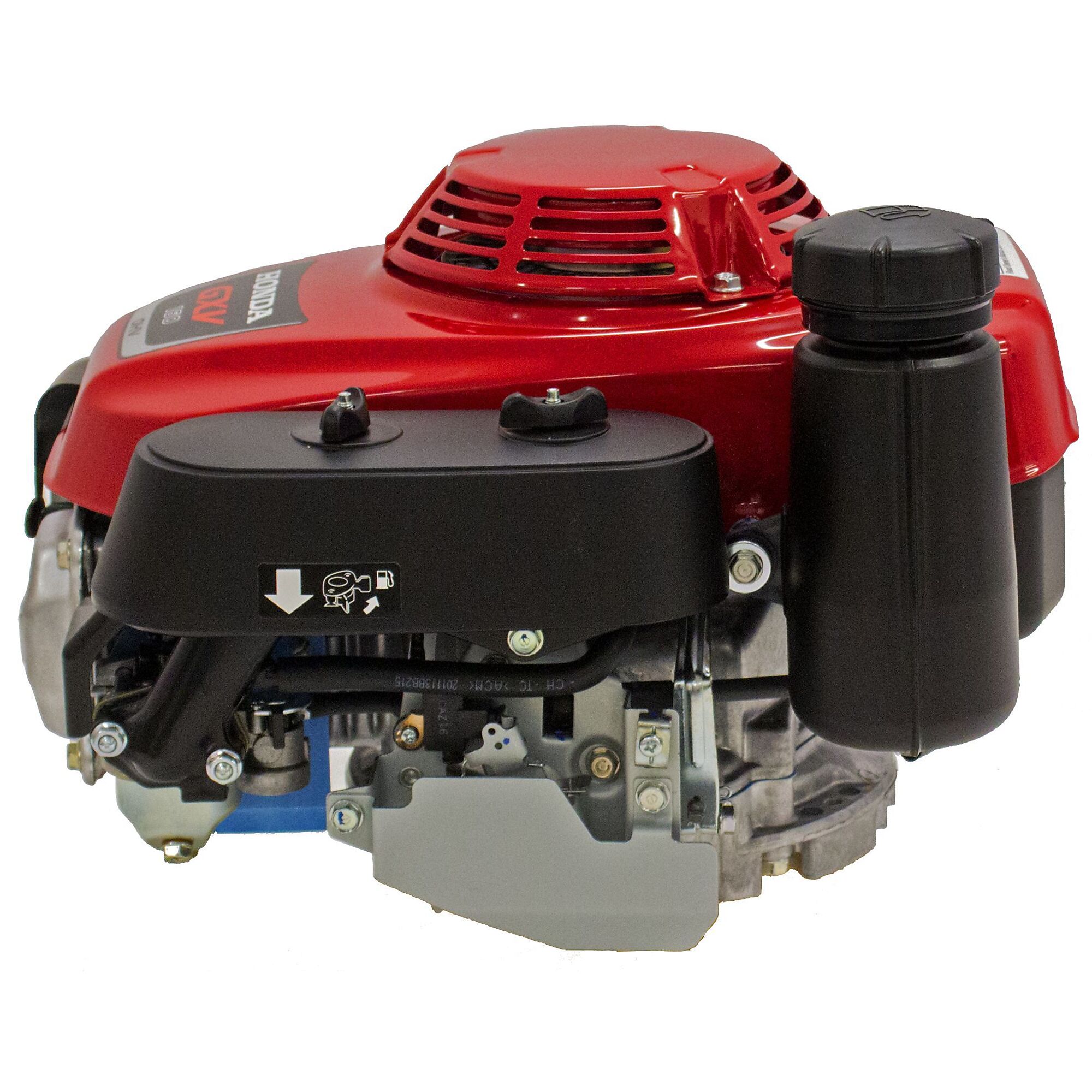

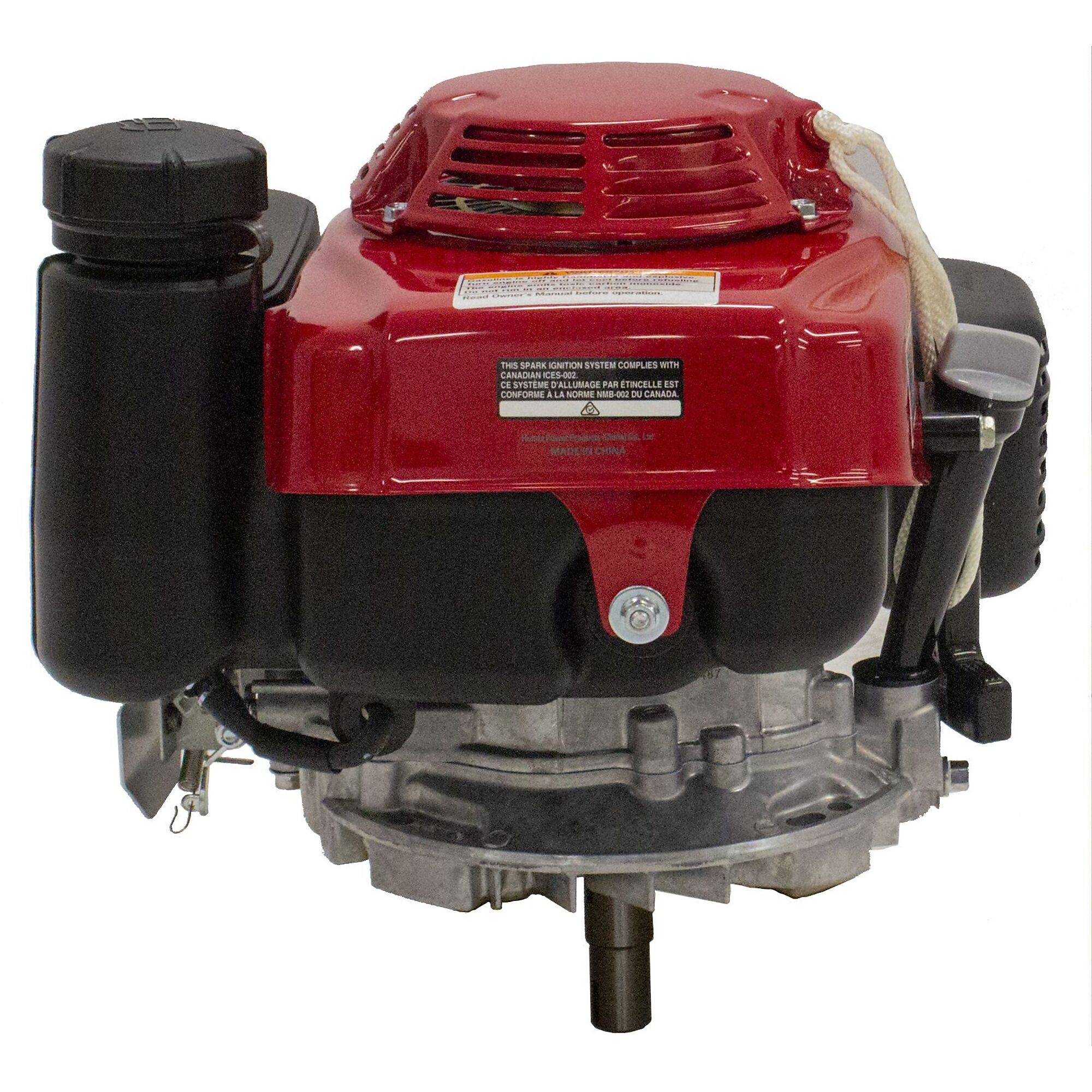

Honda GXV160 163cc OHV Vertical Shaft Engine with Recoil Start, Heavy Flywheel
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$599.99
- Fuel Efficient, High Output Operation: Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficency
- Smooth Performance: Precision engineered components result in lower vibration
- Exceptionally Quiet: Large capacity, multi-chamber exhaust system
- Proven Reliability: High quality materials, fit, and finish
- Not for sale in California
See full description
See All Vertical Engines
See All Honda Engines Vertical Engines
Currently Viewing This Product
Specifications
Specifications
Honda GXV160 163cc OHV Vertical Shaft Engine with Recoil Start, Heavy Flywheel
Honda Engines, HONDA 13HP ES, Engine Displacement 389 cc, Engine Type GXV Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GXV390UT1DEX3
Briggs & Stratton V-Twin Small Block Vertical Engine, 627cc, 1 1/8in. Dia. Shaft, Model# 386777-0144-G1
Briggs & Stratton Vertical OHV V-Twin Engine, 25HP, 724cc, 1in. x 3 5/32in. Shaft, Model# 44T977-0009-G1
Engine Displacement
Same
160 cc
389 cc
627 cc
724 cc
Engine Type
Same
Vertical
GXV Series OHV Commercial-duty
Vanguard V-twin
V-twin OHV
Shaft Diameter
Same
7/8 in
1 in
1-1/8 in
1 in
Shaft Diameter Metric
Same
22.225 mm
-
-
-
Shaft Length
Same
3.15 in
3.11 in
-
3.15 in
Shaft Length Metric
Same
80.01 mm
-
-
-
Fuel Type
Same
Gasoline
Gasoline
Gasoline
Gasoline
Start Type
Same
Recoil
Electric and Recoil
Electric
Electric
Net Torque
Same
7.1 ft-lbs.
17.8 ft-lbs.
-
-
Crankshaft
Same
Vertical
-
Vertical
Vertical
Cylinders (qty.)
Same
1
1
2
2
Cylinder Bore
Same
Cast Iron
Cast Iron
Cast Iron
Cast Iron
Net Power Output
Same
4.3 HP
10.2 HP
23 HP
25 HP
Compression Ratio
Same
8.0:1
7.7:1
-
-
Fuel Tank
Same
Yes
Yes
No
No
Fuel Tank Capacity
Same
1.9 qt
2.2 qt
-
-
Oil Capacity
Same
0.69 qt
1.2 qt
1.5 qt
2 qt
Max. RPM
Same
3,600
3,600
3,600
3,300
CARB Approved
Same
No
-
No
No
Shaft Rotation (From PTO Shaft Side)
Same
Counter Clockwise
Counter Clockwise
Counter Clockwise
Counter Clockwise
Governor System
Same
Centrifugal Mechanical
Centrifugal Mechanical
Mechanical
Mechanical
Ignition System
Same
Transistorized Magneto
Electronic
Electronic
Electronic
Carburetor
Same
Float
Float
Float
Yes
Lubrication System
Same
Splash
Pressure/splash
Full Pressure
Full Pressure
Bearing Type
Same
Ball
-
Ball
Ball
Cooling System
Same
Air
Air
Air
Air
Bore
Same
2.7 in
3.2 in
2.97 in
3.12 in
Stroke
Same
1.8 in
2.5 in
2.76 in
2.89 in
Air Cleaner Type
Same
Dual Element
Dual Element
Single Element
Single Element
Choke Control
Same
Remote
Remote
-
Automatic
Throttle Control
Same
Remote
Remote
Remote
Remote
Fuel Filter
Same
Yes
Yes
Yes
Yes
Muffler Included
Same
Yes
Yes
No
No
Bolt Circle
Same
8 in
10 in
-
-
Product Weight
Same
44.0000 lb
lb
93 lb
91.0000 lb
Dimensions L x W x H (in.)
Same
16.31 x 14.12 x 13.87 in
17.0 x 15.0 x 15.87 in
-
19.12 x 18.0 x 15.5 in
Shaft Keyway
Same
-
0.25 in
0.25 in
0.25 in
Low Oil Alert
Same
-
No
No
No
Charging System Amps
Same
-
3
16
16
Low Oil Shutdown
Same
-
-
No
No
Auto Compression Release
Same
-
-
Yes
Yes
