Yes it comes with a muffler

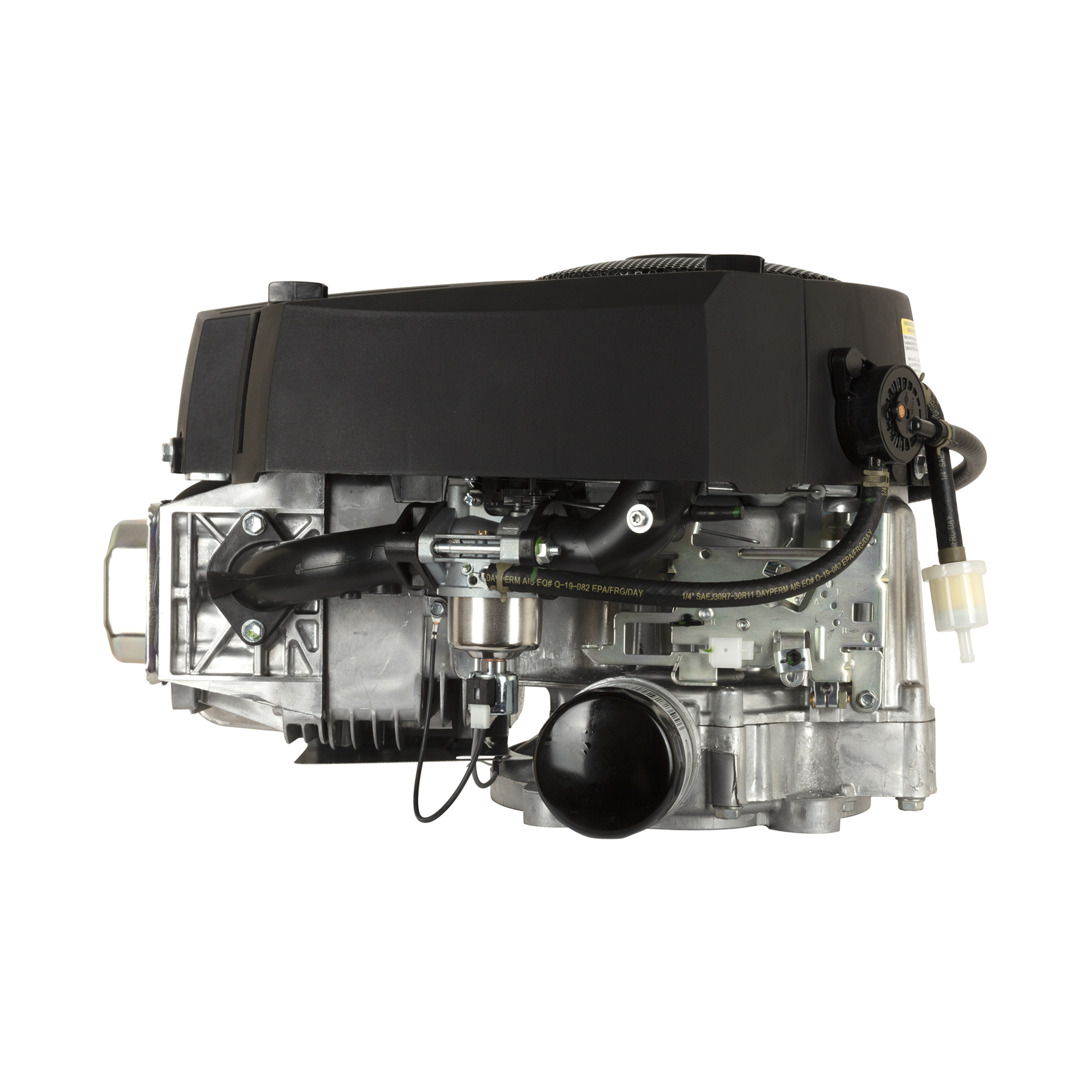

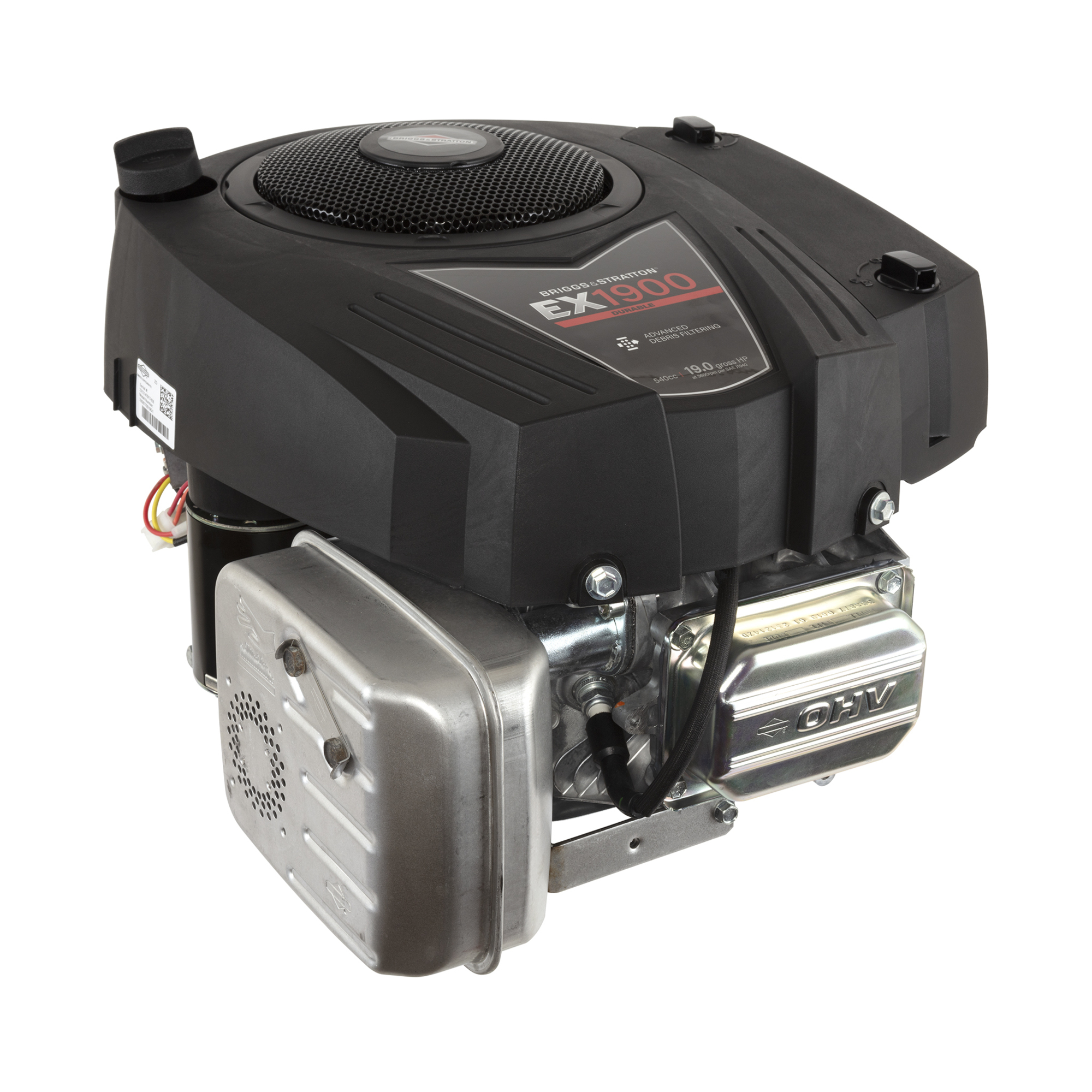

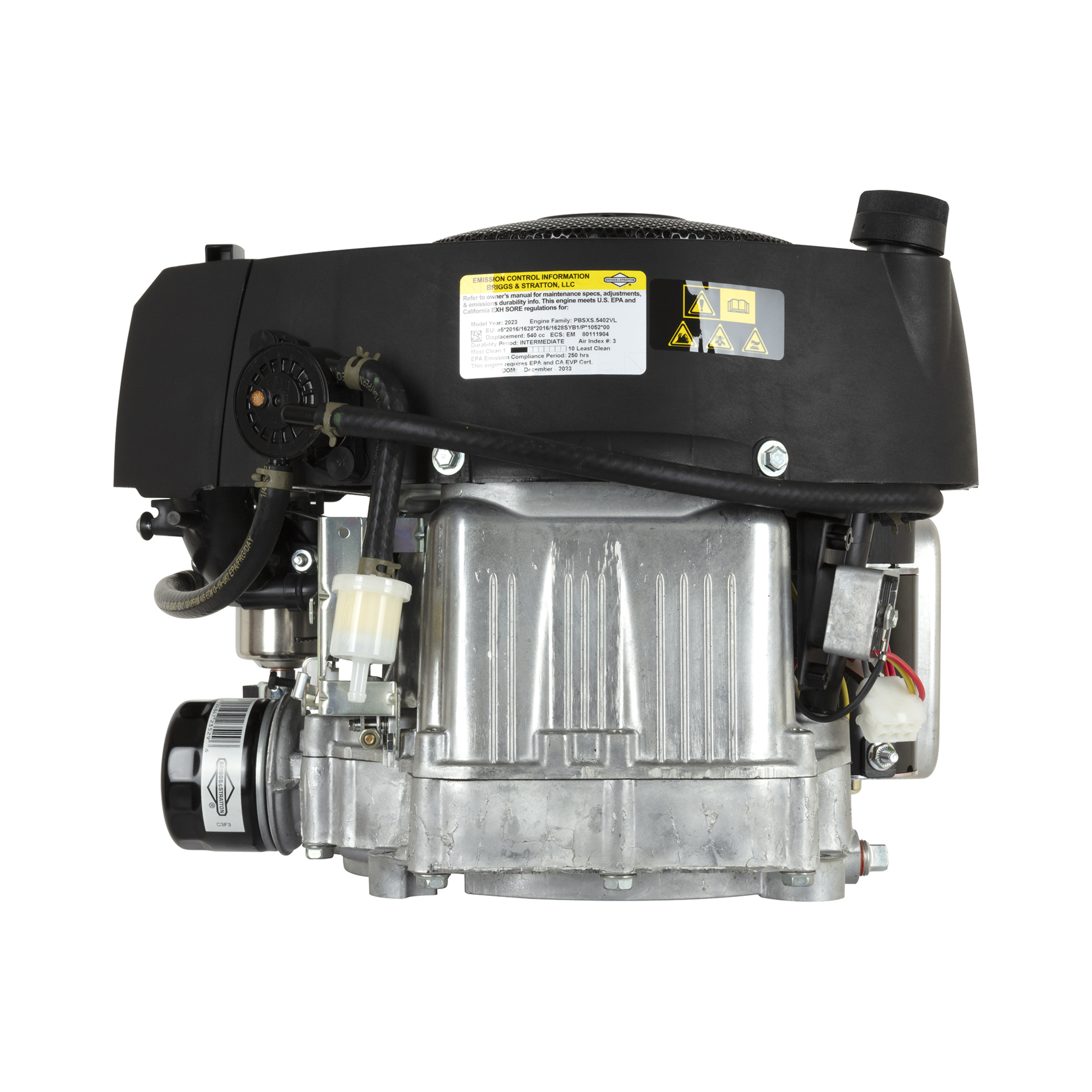

Briggs & Stratton Intek Vertical OHV Engine with Electric Start, 540cc, 1in. x 3 5/32in. Shaft, Model# 33S877-0019-G1
Top Seller
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$999.99
- Model# 33S877-0019-G1 540cc Briggs & Stratton Intek engine with 1in. x 3 5/32in. shaft
- OHV design for high fuel efficiency, cooler engine operation and long valve life
- Magnetron® electronic ignition for quick, dependable starts
- Electric start with 9 Amp DC alternator
- 10in. bolt circle mounting pattern
See full description
Price for all three:
$1050.97
-
does it come with a muffler?the specs say no ,but the picture shows the motor with a muffler on it.
-
Helpful?
-
The engine I purchased came with a muffler.
Helpful?
-
Yes it does have a muffler on it.
Helpful?
-
This motor does come with a muffler.
Helpful?
-
Yes, mine did, but I had to remove and use the one on the mower.
Helpful?
-
Mine did. just as shown in the picture. I had to remove it so that I could use the old one on my riding mower. They tell you to do that in the manual.
Helpful?
-
yes it does come with the muffler
Helpful?
-
yes ,it will come with the muffler
Helpful?
-
Yes it comes with a muffler. I didnt use it. The factory John Deere Muffler on my motor was mounted differently but fit the new engine. So I reused the JD muffler
Helpful?
-
It Does. I just bought one and it came with the muffler. It sounds good too.
Helpful?
-
-
Does it come complete with carburator? Just install and run?
-
Yes it does. Bolt it on, make your connections, add OIL and fuel and start it up.
Helpful?
-
Yes motor is complete with carburator,fuel pump,and muffler ! Just connect fuel lines and electrical plug in and add oil and gas,starts right up!
Helpful?
-
Yes Carburetor with fuel shutoff solenoid. connect to battery and starter solenoid, attach fuel line and throttle cable and start.
Helpful?
-
Yes the engine is complete
Helpful?
-
Yes, just install electrical, gas line and oil.
Helpful?
-
Yes it does.
Helpful?
-
Yes, carb included. Worked great in my Troy-Bilt
Helpful?
-
yes it even has the starter on it & oil in it just bolt it to the frame add gas and start cutting grass
Helpful?
-
Engines come complete with a carburetor. Some adjustments may be needed. Please work with your retailer/dealer for the best replacement.
Helpful?
-
This Briggs and Stratton Intek vertical OHV engine comes with a float carburetor, so as long as you chose the correct engine, it is basically an install and run. It may be necessary to replace the seals or gaskets.
Helpful?
-
-
Does it come with threaded mounting holes on the motor?
-
No, But I installed M8-1.25 Helicoils to the engine in order to use my original JD LT 160 mounting bolts.
Helpful?
-
NO. Mounts with bolt and nut.
Helpful?
-
No. I had to use bolts with nuts for attachment.
Helpful?
-
The engine would have 4 mounting holes that are 0.35" in diameter. The holes are not threaded.
Helpful?
-
-
I need at least 16 amps from the alternator (I have an electric clutch, etc). Can this 9 amp alternator be modified to provide 16 amps?
-
This engine's alternator cannot be modified to improve its amp output. Modifications to the engine or its alternator/charging system will void the manufacturer's warranty.
Helpful?
-
Briggs & Stratton does not recommend any modifications to parts.
Helpful?
-
-
Does this motor come with engine oil?
1 answer-
The engine is shipped with out oil. Before starting the engine, make sure you add oil according the the instruction manual. Never start the engine with out oil, this will damage the engine and will not be covered under the manufacture's warranty.
Helpful?
-
-
How .much hp?
1 answer-
This engine has an 18 HP rating.
Helpful?
-
-
Battery voltage
1 answer-
This would use a 12 Volt battery for the electric start feature.
Helpful?
-
-
what size are the mounting bolts
1 answer-
The engine would come with self tapping holes for different applications. The size mounting bolt is not given.
Helpful?
-
-
HOW MUCH OIL DOES IT TALK AFTER DRAINING?
1 answer-
The engine would have an oil capacity of 1.5 quarts.
Helpful?
-
-
will this run with propane
1 answer-
This engine is designed to operate on gasoline only.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Vertical Engines
See All Briggs & Stratton Vertical Engines
Currently Viewing This Product
Specifications
Specifications
Briggs & Stratton Intek Vertical OHV Engine with Electric Start, 540cc, 1in. x 3 5/32in. Shaft, Model# 33S877-0019-G1
Honda Engines, HONDA 13HP ES, Engine Displacement 389 cc, Engine Type GXV Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GXV390UT1DEX3
Briggs & Stratton Vertical OHV V-Twin Engine, 25HP, 724cc, 1in. x 3 5/32in. Shaft, Model# 44T977-0009-G1
Briggs & Stratton Vertical OHV Engine, 724cc, 1 1/8in. x 4 19/64in. Shaft, Model# 44S977-0033-G1
Engine Displacement
Same
540 cc
389 cc
724 cc
724 cc
Engine Type
Same
Intek OHV
GXV Series OHV Commercial-duty
V-twin OHV
Professional Series OHV
Shaft Diameter
Same
1 in
1 in
1 in
1-1/8 in
Shaft Length
Same
3.15 in
3.11 in
3.15 in
4.29 in
Fuel Type
Same
Gasoline
Gasoline
Gasoline
Gasoline
Start Type
Same
Electric
Electric and Recoil
Electric
Electric
Shaft Keyway
Same
0.25 in
0.25 in
0.25 in
0.25 in
Crankshaft
Same
1 x 3.15 In
-
Vertical
Vertical
Cylinders (qty.)
Same
1
1
2
2
Cylinder Bore
Same
Cast Iron
Cast Iron
Cast Iron
Cast Iron
Compression Ratio
Same
8.5:1
7.7:1
-
-
Fuel Tank
Same
No
Yes
No
No
Oil Capacity
Same
1.5 qt
1.2 qt
2 qt
2 qt
Low Oil Shutdown
Same
No
-
No
No
Low Oil Alert
Same
No
No
No
No
Max. RPM
Same
3,600
3,600
3,300
3,400
CARB Approved
Same
No
-
No
No
Shaft Rotation (From PTO Shaft Side)
Same
Counter Clockwise
Counter Clockwise
Counter Clockwise
Counter Clockwise
Governor System
Same
Mechanical
Centrifugal Mechanical
Mechanical
Mechanical
Ignition System
Same
Electronic
Electronic
Electronic
Electronic
Carburetor
Same
Float
Float
Yes
Yes
Lubrication System
Same
Full Pressure
Pressure/splash
Full Pressure
Full Pressure
Bearing Type
Same
Plain
-
Ball
Ball
Auto Compression Release
Same
Yes
-
Yes
Yes
Cooling System
Same
Air
Air
Air
Air
Bore
Same
3.7 in
3.2 in
3.12 in
3.12 in
Stroke
Same
3.06 in
2.5 in
2.89 in
2.89 in
Air Cleaner Type
Same
Dual Element
Dual Element
Single Element
Single Element
Choke Control
Same
Manual
Remote
Automatic
Automatic
Throttle Control
Same
Remote
Remote
Remote
Remote
Fuel Filter
Same
Yes
Yes
Yes
Yes
Charging System Amps
Same
9
3
16
16
Muffler Included
Same
No
Yes
No
No
Bolt Circle
Same
10 in
10 in
-
-
Product Weight
Same
lb
lb
91.0000 lb
87.0000 lb
Dimensions L x W x H (in.)
Same
19.0 x 16.5 x 16.5 in
17.0 x 15.0 x 15.87 in
19.12 x 18.0 x 15.5 in
16.0 x 19.0 x 18.0 in
Net Torque
Same
-
17.8 ft-lbs.
-
-
Net Power Output
Same
-
10.2 HP
25 HP
25 HP
Fuel Tank Capacity
Same
-
2.2 qt
-
-
