The Honda engine will come with a 7/16"-20 UNF 2B tapped end.

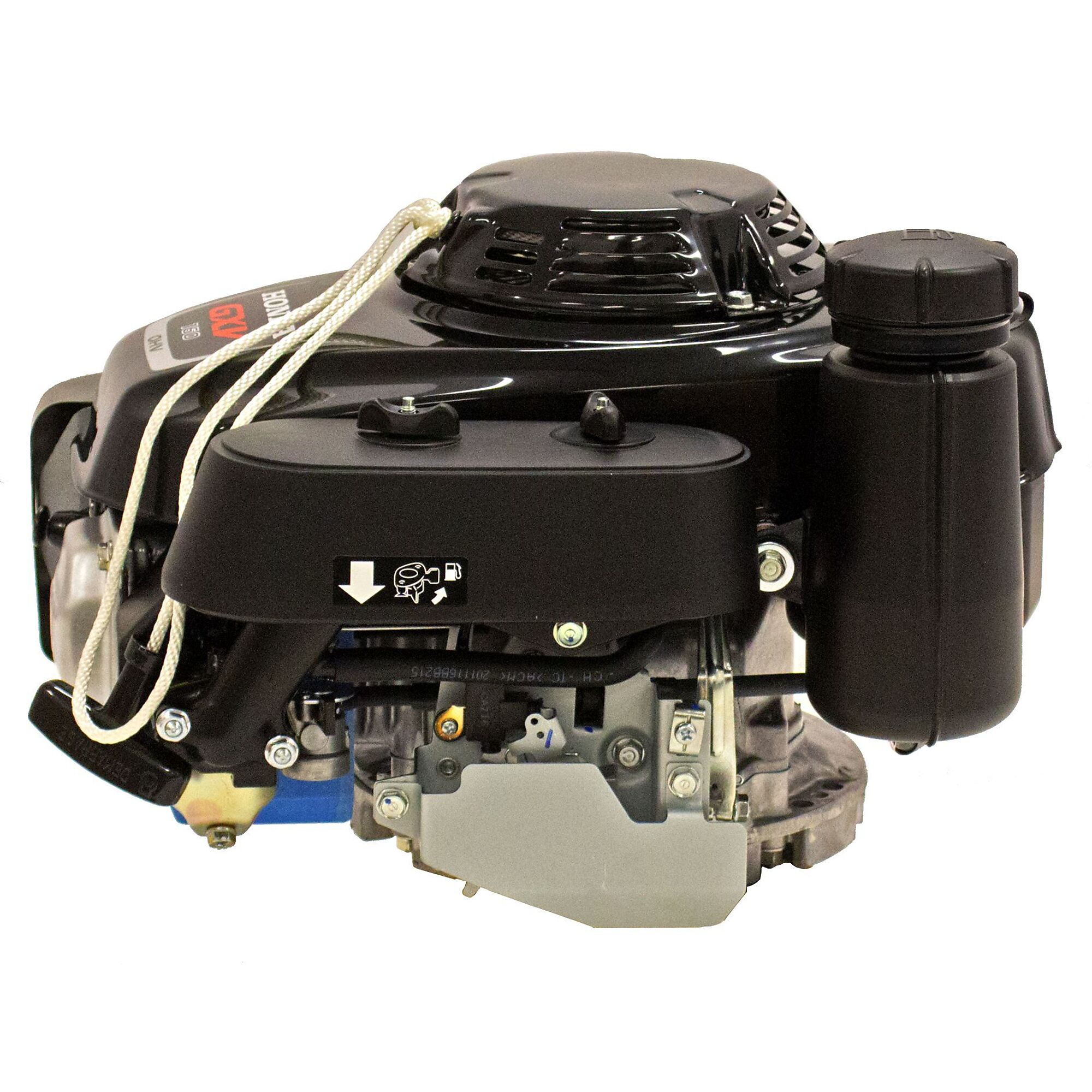

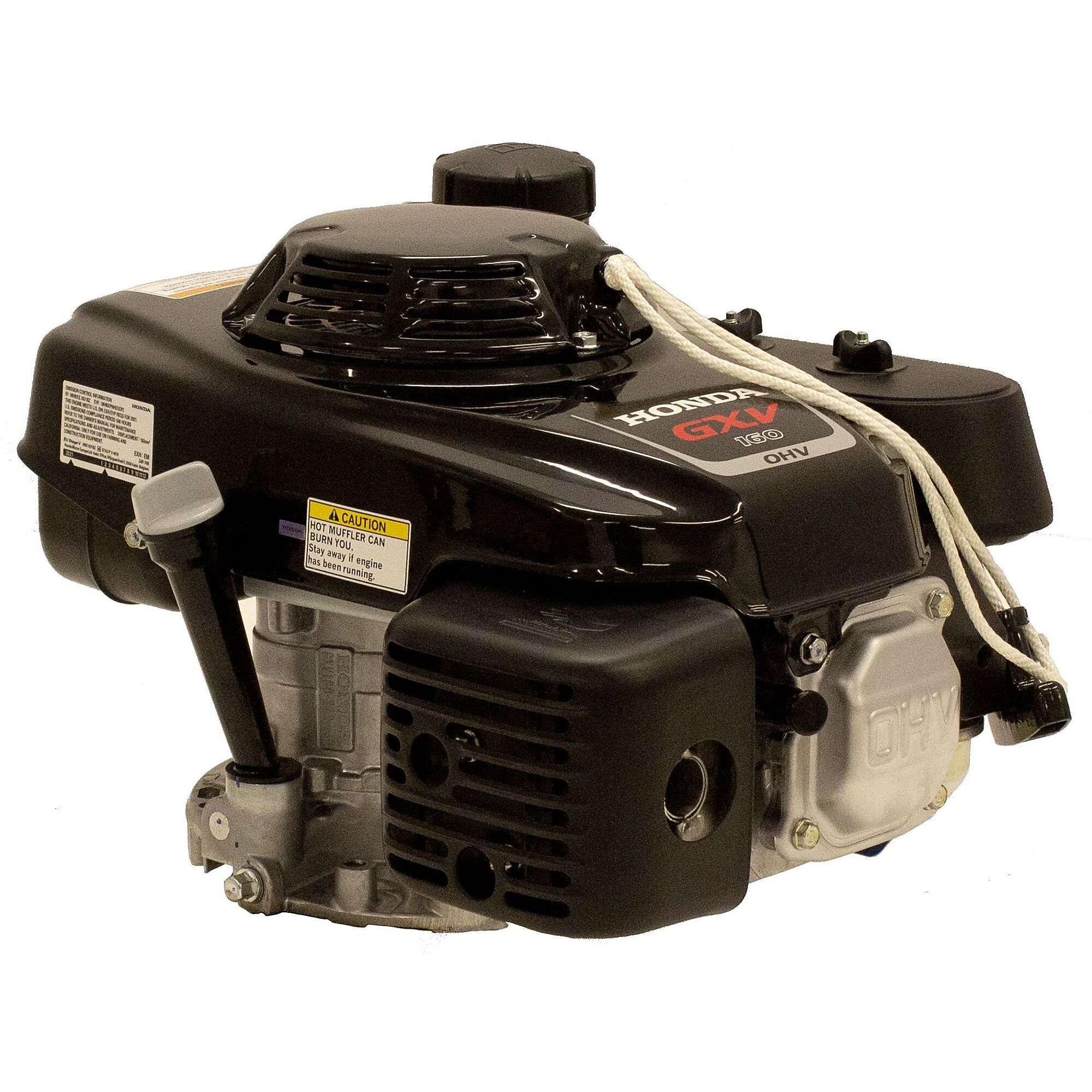

Honda Engines GXV Series OHV Engine — 163cc, Model# GXV160UH2N5XA-BLK
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$699.99
- Fuel Efficient, High Output Operation: Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficency
- Smooth Performance: Precision engineered components result in lower vibration
- Exceptionally Quiet: Large capacity, multi-chamber exhaust system
- Proven Reliability: High quality materials, fit, and finish
- Not for sale in CA
See full description
See All Vertical Engines
See All Honda Engines Vertical Engines
Currently Viewing This Product
Specifications
Specifications
Honda Engines GXV Series OHV Engine — 163cc, Model# GXV160UH2N5XA-BLK
Honda Engines, HONDA 160CC VRT OHV ENGINE, Engine Displacement 163 cc, Engine Type GXV Series OHV Commercial-duty, Shaft Diameter 7/8 in, Model# GXV160UH2A1X2
Briggs & Stratton OHV Lawn Mower Engine, 163cc, 7/8in. x 3-5/32in. Shaft, Model# 104M02-0197-F1
Honda Engines, HONDA 13HP ES, Engine Displacement 389 cc, Engine Type GXV Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GXV390UT1DEX3
Engine Displacement
Same
160 cc
163 cc
163 cc
389 cc
Engine Type
Same
Vertical
GXV Series OHV Commercial-duty
OHV
GXV Series OHV Commercial-duty
Shaft Diameter
Same
1 in
7/8 in
7/8 in
1 in
Shaft Diameter Metric
Same
22.225 mm
-
-
-
Shaft Length
Same
1.8 in
3.18 in
3.15 in
3.11 in
Shaft Length Metric
Same
45.72 mm
-
-
-
Fuel Type
Same
Gasoline
Gasoline
Gasoline
Gasoline
Start Type
Same
Recoil
Recoil
Recoil
Electric and Recoil
Net Torque
Same
7.1 ft-lbs.
7.1 ft-lbs.
-
17.8 ft-lbs.
Crankshaft
Same
Vertical
-
Vertical
-
Cylinders (qty.)
Same
1
1
1
1
Cylinder Bore
Same
Cast Iron
Cast Iron
Aluminum
Cast Iron
Net Power Output
Same
4.3 HP
4.3 HP
-
10.2 HP
Compression Ratio
Same
8.0:1
8.0:1
-
7.7:1
Fuel Tank
Same
Yes
Yes
Yes
Yes
Fuel Tank Capacity
Same
1.9 qt
1.9 qt
1.09 qt
2.2 qt
Oil Capacity
Same
0.69 qt
0.69 qt
0.5 qt
1.2 qt
Max. RPM
Same
3,600
3,600
3,100
3,600
CARB Approved
Same
No
-
No
-
Shaft Rotation (From PTO Shaft Side)
Same
Counter Clockwise
Counter Clockwise
Counter Clockwise
Counter Clockwise
Governor System
Same
Centrifugal Mechanical
Centrifugal Mechanical
Mechanical
Centrifugal Mechanical
Ignition System
Same
Transistorized Magneto
Electronic
Magnetron
Electronic
Carburetor
Same
Float
Float
Bowl Type
Float
Lubrication System
Same
Splash
Splash
Splash
Pressure/splash
Bearing Type
Same
Ball
-
Plain
-
Cooling System
Same
Air
Air
Air
Air
Bore
Same
2.7 in
2.7 in
2.69 in
3.2 in
Stroke
Same
1.8 in
1.8 in
1.75 in
2.5 in
Air Cleaner Type
Same
Dual Element
Dual Element
Single Element
Dual Element
Choke Control
Same
Manual
Remote
-
Remote
Throttle Control
Same
Remote
Manual
-
Remote
Fuel Filter
Same
Yes
-
No
Yes
Muffler Included
Same
Yes
Yes
Yes
Yes
Bolt Circle
Same
8 in
8 in
-
10 in
Product Weight
Same
44.0000 lb
lb
23.0000 lb
lb
Dimensions L x W x H (in.)
Same
16.31 x 14.12 x 13.87 in
16.31 x 14.12 x 13.87 in
13.4 x 10.25 x 9.95 in
17.0 x 15.0 x 15.87 in
Auto Compression Release
Same
-
Yes
No
-
Shaft Keyway
Same
-
-
0.18 in
0.25 in
Low Oil Shutdown
Same
-
-
No
-
Low Oil Alert
Same
-
-
No
No
Charging System Amps
Same
-
-
-
3
