Estimated net output is 5.8 HP.

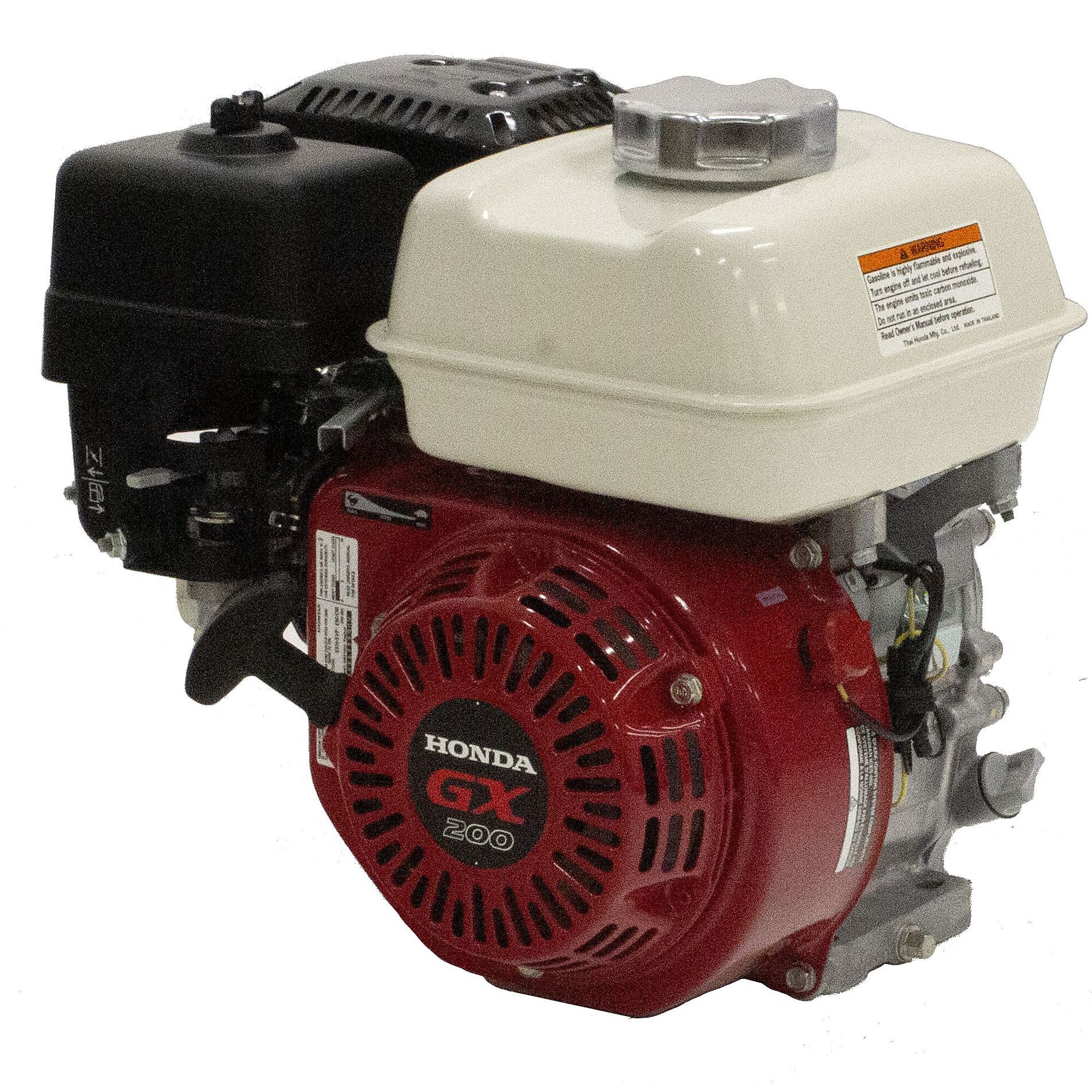

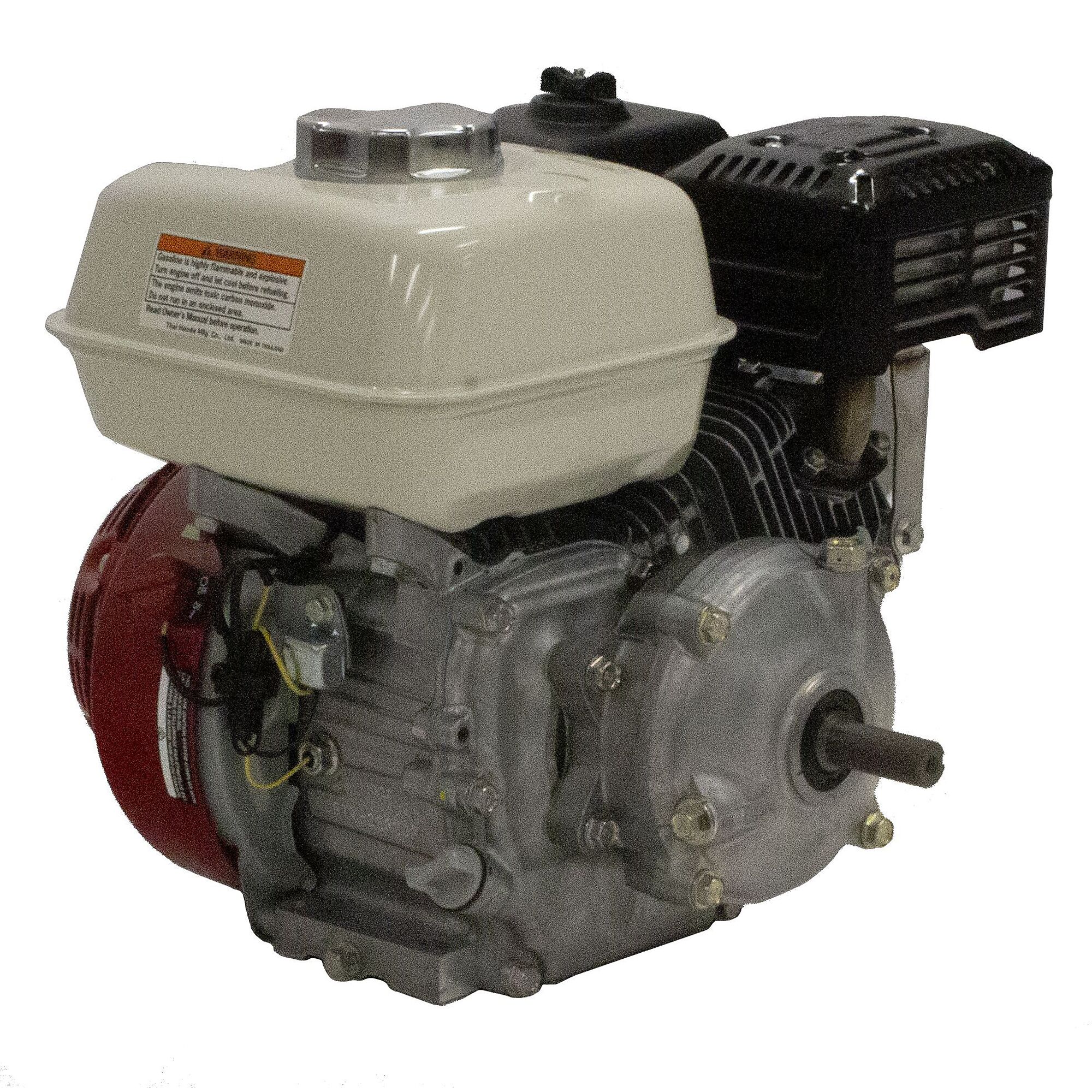

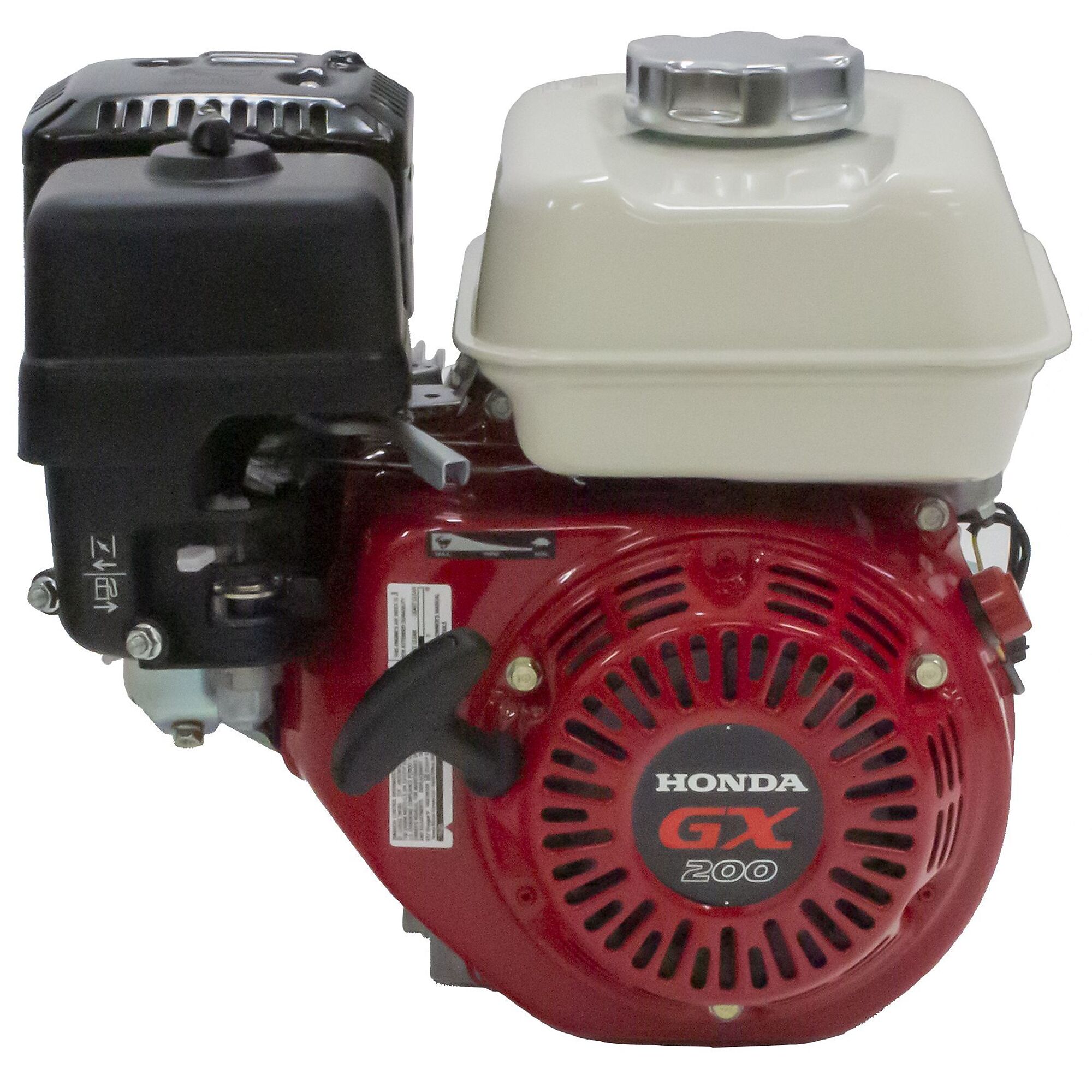

Honda GX Series | OHV | 196cc | 3/4 In. x 2.00 In. | Recoil | Horizontal | 6:1 Gear Reduction| Model: GX200UT2XHX2
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$849.99
- Fuel Efficient, High Output Operation: Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficency
- OHV design for increased efficiency and optimal power transfer
- Smooth Performance: Precision engineered components result in lower vibration
- Exceptionally Quiet: Muffler and breather valve enhancements reduce noise and improve sound quality
- Proven Reliability: High quality materials, fit, and finish
See full description
See All Horizontal Engines
See All Honda Engines Horizontal Engines
Currently Viewing This Product
Specifications
Specifications
Honda GX Series | OHV | 196cc | 3/4 In. x 2.00 In. | Recoil | Horizontal | 6:1 Gear Reduction| Model: GX200UT2XHX2
Briggs & Stratton Vanguard Small Block V-Twin Horizontal Engine with Electric Start, 479cc, 1in. x 3in. Shaft, Model# 305447-0615-F1
Honda Engines, HONDA GC160 ENGINE - BLACK, Engine Displacement 160 cc, Engine Type GC Series OHC Residential-duty, Shaft Diameter 3/4 in, Model# GC160LAMHAB-BLK
Honda Engines, HONDA GX270 6:1 ELECTRIC START, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX270UT2HEA2
Engine Displacement
Same
196 cc
479 cc
160 cc
270 cc
Engine Type
Same
Horizontal
Vanguard V-twin
GC Series OHC Residential-duty
GX Series OHV Commercial-duty
Shaft Diameter
Same
3/4 in
1 in
3/4 in
1 in
Shaft Diameter Metric
Same
19.05 mm
-
-
-
Shaft Length
Same
2 in
3 in
1.89 in
3.23 in
Shaft Length Metric
Same
50.8 mm
-
-
-
Fuel Type
Same
Gasoline
-
-
-
Start Type
Same
Recoil
Electric and Recoil
Recoil
Electric and Recoil
Net Torque
Same
9.1 ft-lbs.
-
6.9 ft-lbs.
14.1 ft-lbs.
Crankshaft
Same
Horizontal
Horizontal
M-type
H-type
Cylinders (qty.)
Same
1
2
1
1
Cylinder Bore
Same
Cast Iron
Cast Iron
Aluminum
Cast Iron
Net Power Output
Same
5.8 HP
16 HP
4.6 HP
8.5 HP
Compression Ratio
Same
8.5:1
-
8.5:1
8.5:1
Fuel Tank
Same
Yes
Yes
Yes
-
Fuel Tank Capacity
Same
3.3 qt
9 qt
1.9 qt
5.6 qt
Oil Capacity
Same
0.63 qt
1.5 qt
0.61 qt
1.16 qt
Low Oil Shutdown
Same
Yes
No
No
-
Low Oil Alert
Same
Yes
No
No
-
Max. RPM
Same
3,600
-
-
-
CARB Approved
Same
Yes
No
-
-
Governor System
Same
Centrifugal Mechanical
Mechanical
Centrifugal Mechanical
Centrifugal Mechanical
Ignition System
Same
Transistorized Magneto
Electronic
Electronic
Electronic
Carburetor
Same
Butterfly Float
Float
Float
Float, External Vent
Lubrication System
Same
Splash
Full Pressure
Splash
Splash
Bearing Type
Same
Ball
Ball
Standard
-
Cooling System
Same
Air
Air
Air
Air
Bore
Same
2.7 in
2.68 in
2.5 in
3 in
Stroke
Same
2.1 in
2.6 in
2 in
2.3 in
Air Cleaner Type
Same
Dual Element
Single Element
Single Element
Dual Element
Choke Control
Same
Manual
Yes
Manual
Manual
Throttle Control
Same
Manual
Remote
Manual
Remote
Fuel Filter
Same
Yes
Yes
Yes
Yes
Muffler Included
Same
Yes
Yes
Yes
-
Bolt Circle
Same
3.625 in
-
-
-
Mounting Base Length
Same
6.375 in
-
-
-
Mounting Base Width
Same
3.15 to 3.34 in
-
-
-
Product Weight
Same
58.0000 lb
-
-
-
Dimensions L x W x H (in.)
Same
12.64 x 14.8 x 13.62 in
-
-
-
Shaft Keyway
Same
-
0.25 in
0.18 in
0.25 in
PTO Height
Same
-
5.25 in
4.17 in
5.25 in
Shaft Rotation (From PTO Shaft Side)
Same
-
Counter Clockwise
Counter Clockwise
Counter Clockwise
Auto Compression Release
Same
-
Yes
Yes
-
Charging System Amps
Same
-
16
-
-
