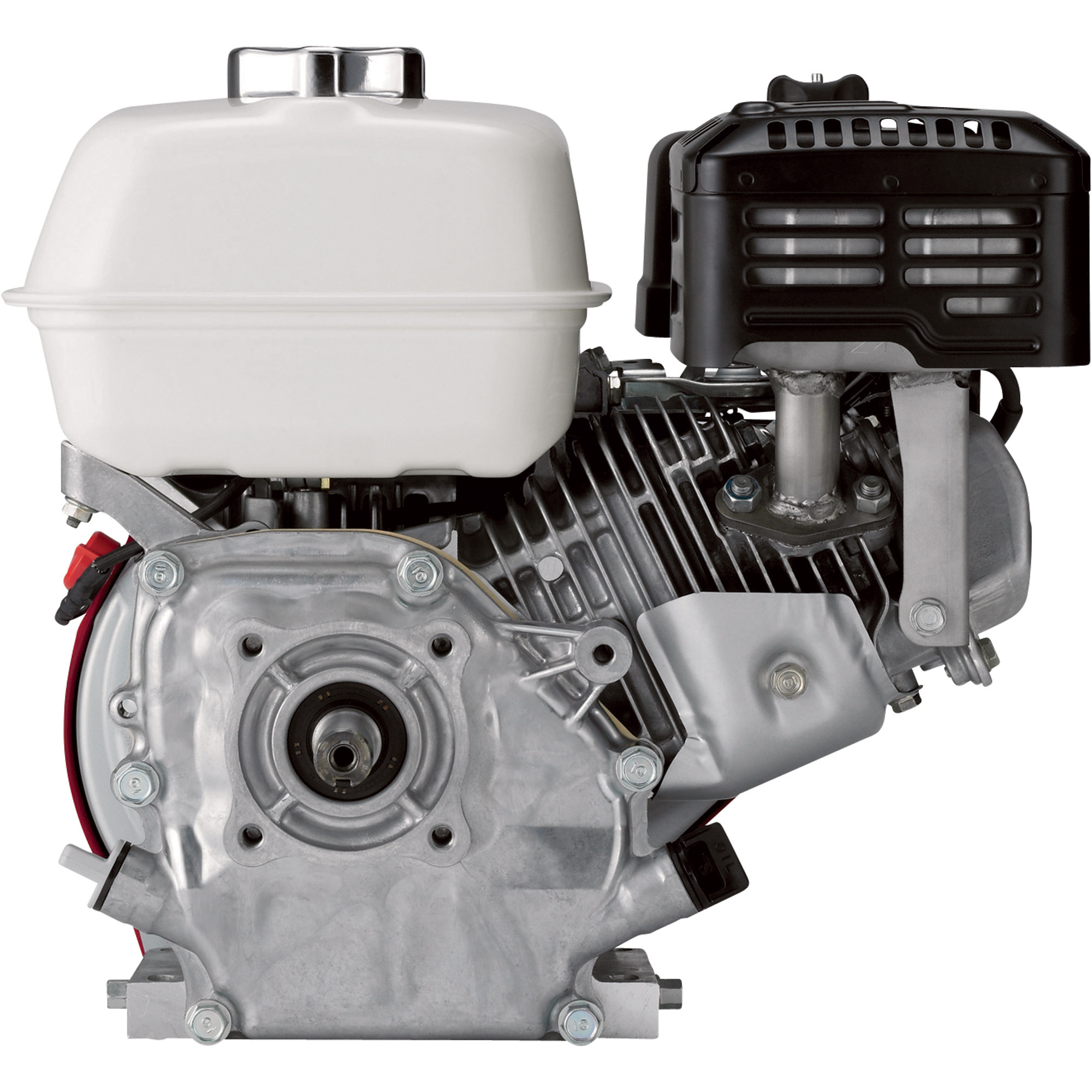

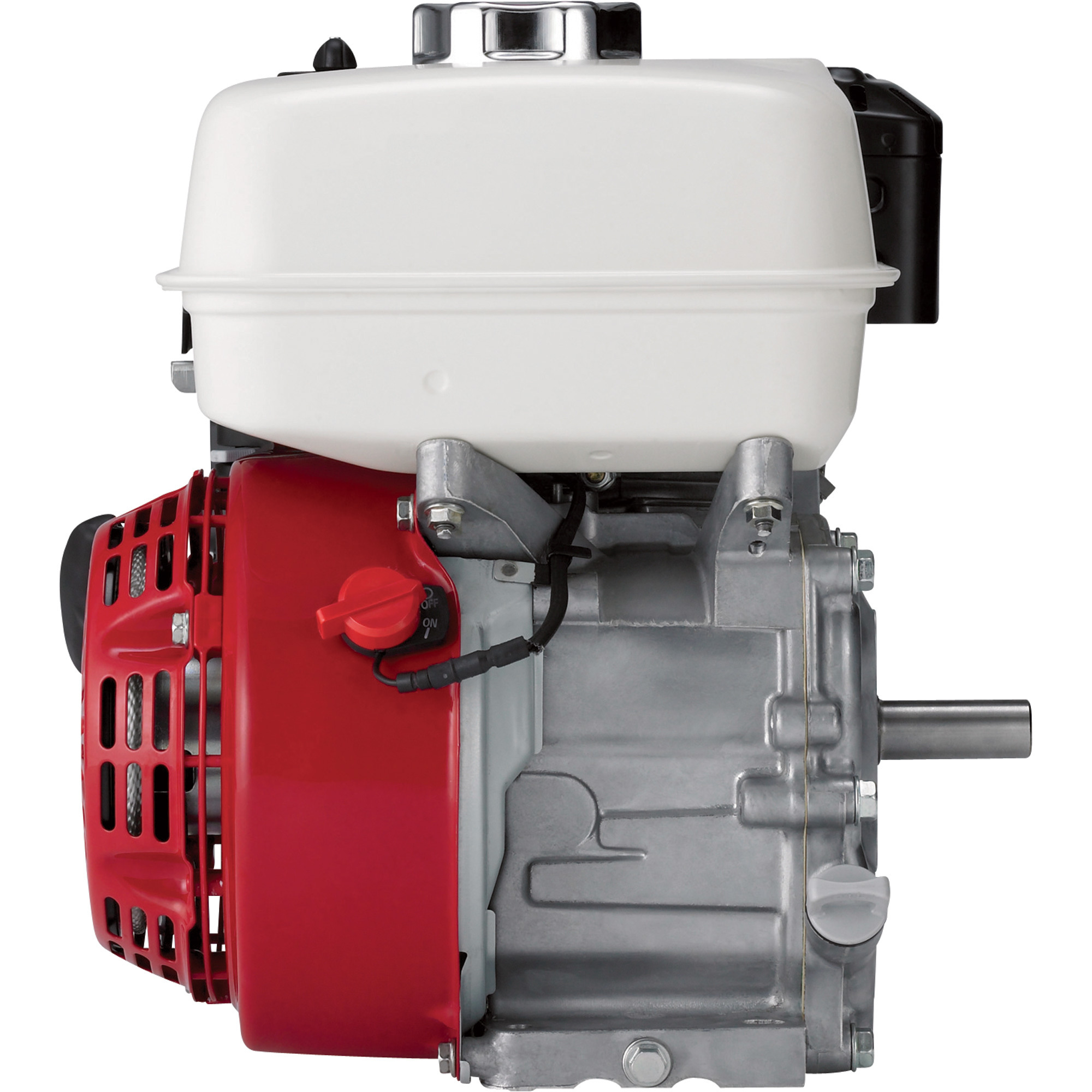

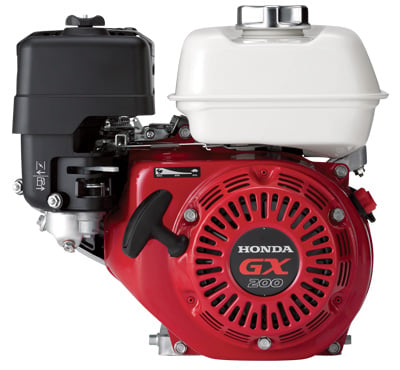

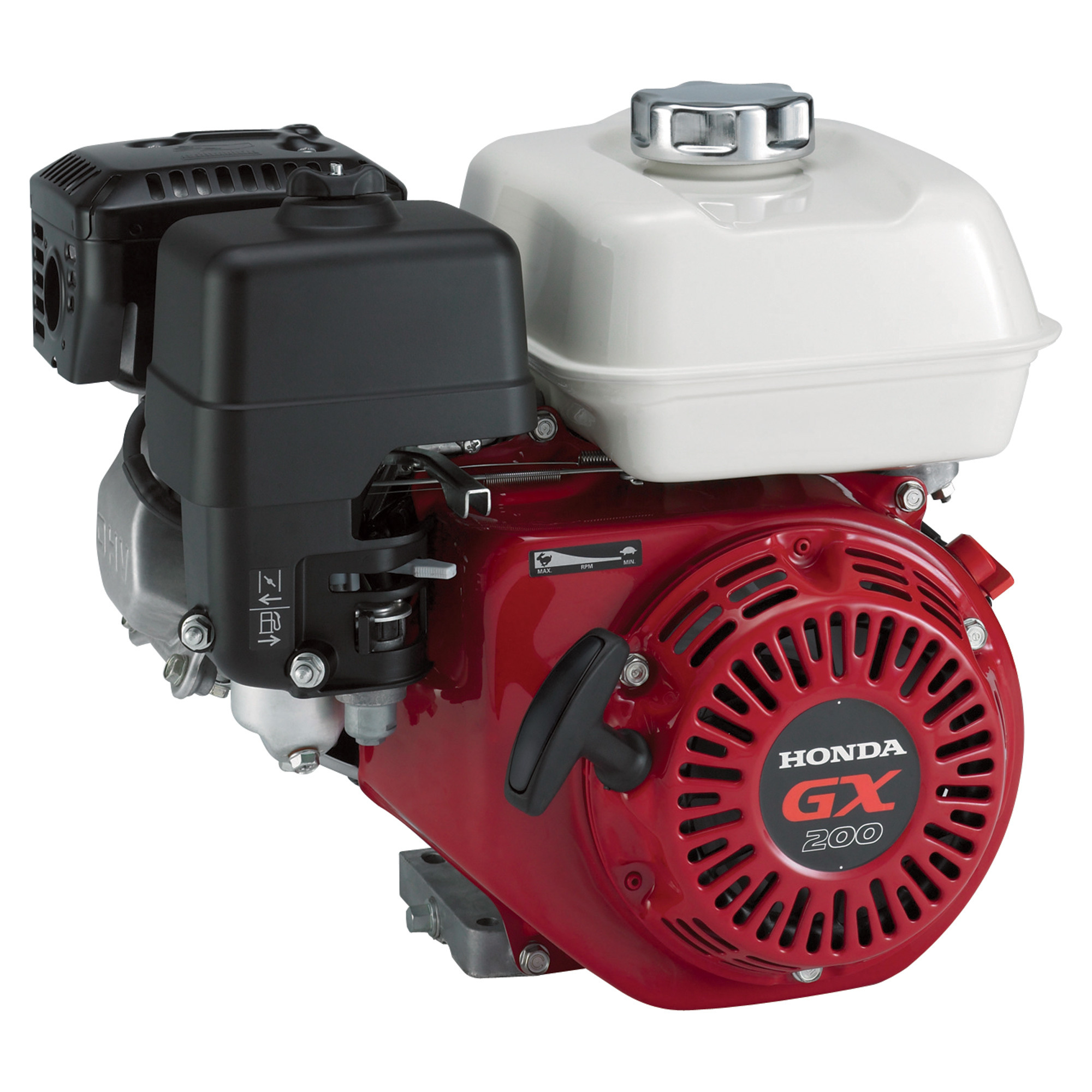

Honda Engines, HONDA 200CC OHV ENGINE, Engine Displacement 196 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 3/4 in, Model# GX200UT2XQX2
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Precision camshaft design for precise valve timing, optimal valve overlap and better fuel economy
- OHV design for increased efficiency and optimal power transfer
- High compression ratio for better fuel efficiency
- Low vibration from precision-engineered components
- Ball bearing-supported crankshaft for greater stability
See full description
$530.96
What's Included
- (1) Honda GX Series Horizontal OHV Engine, Model# GX200UT2XQX2
Genuine Honda Performance
Honda's Experience Counts
There are many reasons to insist on genuine Honda engines — reasons like less down time, lower costs of ownership and better performance. As the world's largest engine manufacturer, Honda offers more engine experience than anyone, experience born on racetracks and roadways around the globe. Honda has a well-earned reputation for engine quality and performance. When you choose a Honda engine, or a product powered by Honda, you know what you're getting: an engine you can count on, now and in the future.
Commercial-Grade Honda GX Series
The Honda GX Series OHV commercial-grade engine is designed to perform in the most demanding commercial applications and has set the industry standard for reliability and durability. It's the preferred engine for construction equipment, pressure washers, compressors, go-karts, log splitters and more.
Insist on the Best
Superior Performance
Better fuel efficiency. Higher power output. Quieter performance. Easier use. No matter how you define superior engine performance, Honda engines set the standard, with best-in-class engineering and technology.
Legendary Easy Starting
Honda engines are renowned for being consistently easy to start. With a unique automatic mechanical decompression system, heavy-duty recoil ropes and advanced variable ignition timing, Honda engines are designed with quick, easy starts in mind.
Environmental Focus
Honda is committed to producing one engine for use in all 50 states. Honda engines meet the new, more stringent CARB emission requirements, and will be ready for the future lower EPA and CARB standards as they are introduced. Additionally, Honda engines meet CARB exhaust emission requirements without the use of a catalytic converter.
A Brand You Can Trust
Superior Reliability and Quality
Honda sets the standard for reliable, hard-working engines, built with high-quality components designed for optimum performance in the harshest environments. Honda stands behind its engines with an industry-leading 3-year limited commercial warranty on all GX engines 100cc and larger.
Nationwide Parts and Service Support
Honda understands the importance of getting you back to work quickly. Honda has a vast nationwide support network of over 14,000 dealers. From parts to service, Honda engine dealers are there to assist you whenever and wherever you need it.
Features + Benefits
- Precision camshaft design for precise valve timing, optimal valve overlap and better fuel economy
- OHV design for increased efficiency and optimal power transfer
- High compression ratio for better fuel efficiency
- Low vibration from precision-engineered components
- Ball bearing-supported crankshaft for greater stability
- Large capacity, multi-chamber exhaust system for a low noise level
- Sophisticated air intake system
- Oil Alert for extra engine protection
- Carburetor filter and chamber coating help protect against fuel impurities
- Cast iron cylinder sleeve
- Dual element air filter
- Simple throttle control
- Double walled heavy-duty 3.3-qt. tank with in-tank fuel strainer
- Large automotive-style fuel cap for easy filling
- Dual oil fills and drains for quick oil changes
- Easily accessible spark plug
- Ergonomic recoil design for easy starts
- Automatic decompression for easy starting
- 49-state compliant engine
- CARB and EPA certified
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Horizontal Engines
See All Honda Engines Horizontal Engines
Currently Viewing This Product
Specifications
196 cc
688 cc
688 cc
688 cc
GX Series OHV Commercial-duty
GX Series OHV V-twin Commercial-duty
GX Series OHV V-twin Commercial-duty
GX Series OHV V-twin Commercial-duty
3/4 in
1 in
1 in
1 in
2.43 in
2.9 in
2.9 in
2.9 in
Recoil
Electric
Electric
Electric
0.18 in
0.25 in
0.25 in
0.25 in
9.1 ft-lbs.
35.6 ft-lbs.
35.6 ft-lbs.
35.6 ft-lbs.
Q-type
Q-type
Q-type
Q-type
4.17 in
5.25 in
5.25 in
5.25 in
1
2
2
2
Cast Iron
Integrated
Integrated
Integrated
5.5 HP
20.8 HP
20.8 HP
20.8 HP
8.5:1
9.3:1
9.3:1
9.3:1
Yes
No
No
No
3.3 qt
-
-
-
0.63 qt
2 qt
2 qt
2 qt
Yes
-
-
-
Yes
Yes
No
Yes
Counter Clockwise
Counter Clockwise
Counter Clockwise
Counter Clockwise
Centrifugal Mechanical
Mechanical
Mechanical
Mechanical
Electronic
Electonic, Digital CDI W/variable Ignition Timing
Electonic, Digital CDI W/variable Ignition Timing
Electonic, Digital CDI W/variable Ignition Timing
Float
2-barrel, Fuel Cut Solenoid, Inner Vent
2-barrel, Fuel Cut Solenoid, Inner Vent
2-barrel, Fuel Cut Solenoid, Inner Vent
Splash
Full Pressure
Full Pressure
Full Pressure
Yes
-
-
-
Air
Air
Air
Air
2.7 in
3.1 in
3.1 in
3.1 in
2.1 in
2.8 in
2.8 in
2.8 in
Dual Element
Dual Element
Dual Element
Dual Element
Manual
Remote
Manual
Remote
Remote
Remote
Manual
Remote
Yes
No
No
No
-
20
17
3
