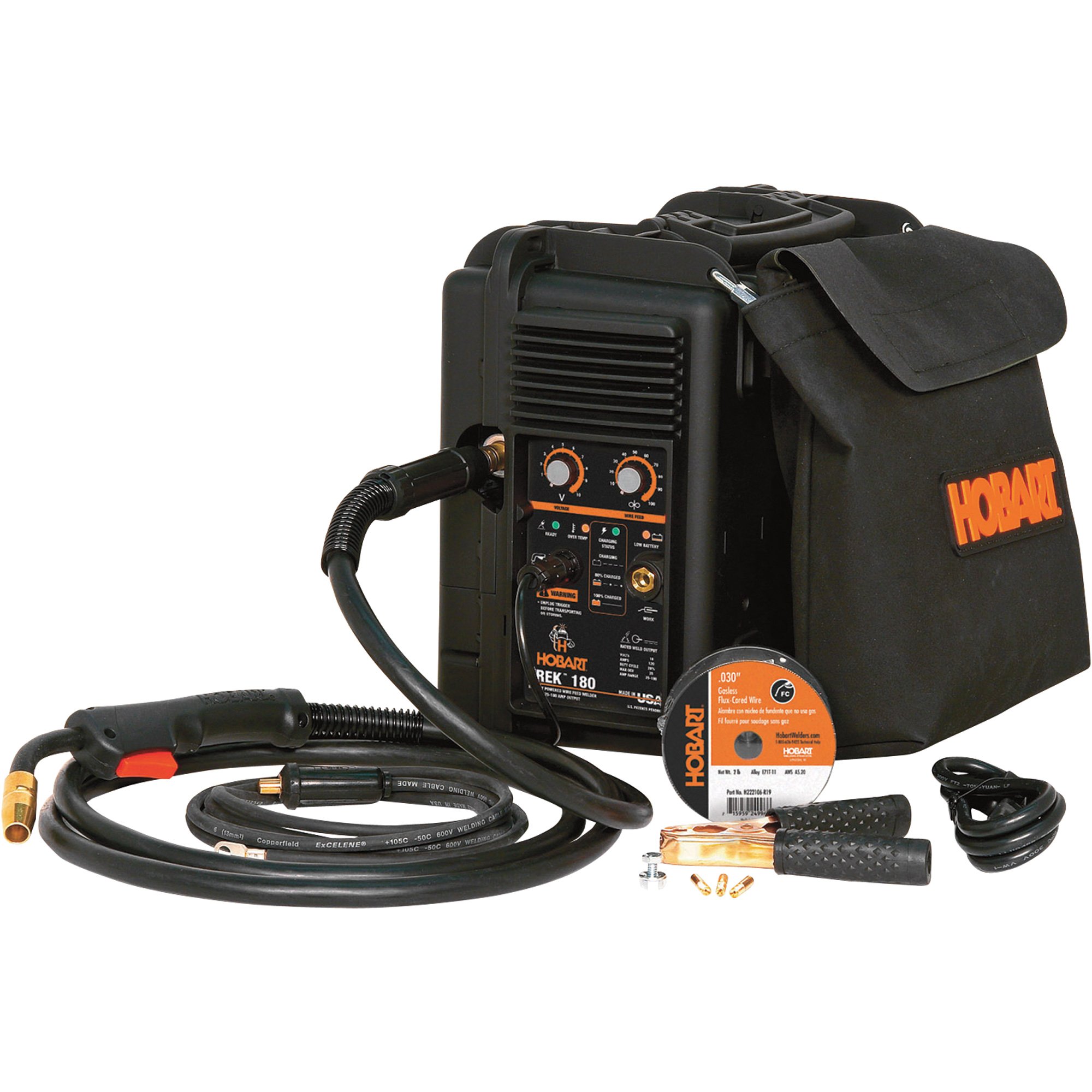

Hobart Trek 180 Battery-Powered/115V Flux Cored/MIG Welder — 180 Amp Output, Model# 500539

Item# 628570
Hobart Trek 180 Battery-Powered/115V Flux Cored/MIG Welder — 180 Amp Output, Model# 500539

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Hobart Trek 180 Battery-Powered/115V Flux Cored/MIG Welder — 180 Amp Output, Model# 500539

Click or Tap image to Zoom

  • Excellent arc performance with inverter arc control technology for a smooth and stable arc
  • Delivers approximately 100 inches of weld bead when fully charged (using 0.030in. dia. flux core wire on 1/8in. mild steel), delivering 120 Amps @ 20% duty cycle
  • Proven built-in wire feeder with quick-release tension lever provides positive feed with adjustable tension and easy access for threading wire
  • Low battery shutdown disables welder when battery runs low to protect the life of the battery
  • Unit can be charged using automotive power inverter (400 continuous watts minimum)

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Hobart Trek® 180 is the first self-contained MIG welding system for applications off the power grid. Includes two internal sealed lead acid batteries and integrated charger that allow welder to be charged completely in 90 minutes and recharged to 80% in 20 minutes, using a 115V outlet. U.S.A.

What's Included

  • (1) Welder
  • (2) Internal Sealed Lead Acid Batteries
  • 10ft. Gun Assembly
  • 10ft. Work Lead
  • Sample Spool of Wire
  • Cable Management Pouch

Downloads

Product Manual

Features + Benefits

  • Excellent arc performance with inverter arc control technology for a smooth and stable arc
  • Delivers approximately 100 inches of weld bead when fully charged (using 0.030in. dia. flux core wire on 1/8in. mild steel), delivering 120 Amps @ 20% duty cycle
  • Proven built-in wire feeder with quick-release tension lever provides positive feed with adjustable tension and easy access for threading wire
  • Low battery shutdown disables welder when battery runs low to protect the life of the battery
  • Unit can be charged using automotive power inverter (400 continuous watts minimum)
  • AutoPower™ technology scans the available input charging power to compensate line draw for low capacity devices such as small automotive inverters
  • Infinite voltage and wire control provides a broader operating window for each wire with quick and easy adjustment for different materials and thicknesses
  • Convenient polarity changeover for quick and easy polarity change access for solid or tubular wire
  • Quick-change, dual-groove drive roll makes it easy to change from one wire size to another .023/.025 in. (0.6 mm) or .030 '.035 in. (0.8 ' 0.9 mm)
  • LED indicator diagnostic lights for quick information on the temperature, charging and battery status
  • Includes high-performance sealed lead acid batteries
  • Thin-plate pure lead (TPPL) battery technology allows for fast recharge (only 20 minutes)
  • Short circuit protection protects unit against current overload
  • Self-resetting thermal overload protection protects power circuitry against thermal overload to ensure reliability
  • Self-resetting motor protection protects wire feed system from overload, no fuses to change or circuit breaker buttons to press
  • Backed by Hobart's 5/3/1 Industrial Warranty which features five-year warranty on transformers, stabilizers and generators; three years on electronics (drive motors,rectifiers); and one year on guns (MIG and plasma torches)

Key Specs

AttributeSpecification

item#

628570

Brand

Hobart

Manufacturer's Warranty

3 year limited warranty

Ship Weight

65.0 LB

Volts

115

Max. Amps

180

Max. Weld Thickness

0.25 in

Max. Welding Wire Diameter

0.035 in

Duty Cycle

20% at 120A
AttributeSpecification

Weldable Materials

Steel

Min. Amps

25

Wire Feed Speed Control

Yes

Cart Included

No

Mig Ready

Yes

Clamp Cable Length

10 ft

Shielding Gas Required

No

Dimensions L x W x H (in.)

13.31 x 17 x 7.87 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. How are the batteries replaced & how much will it cost?

    1 answer

    1. Please contact the manufacturer direct for prices and availability.

      Helpful?

  2. How long until the batteries need replacing?

    1 answer

    1. On this Hobart Trek 180 Battery-Powered/115V Flux Cored/MIG Welder the batteries should last greater than three years, depending on use and care.

      Helpful?

  3. does this have the pony gas bottle for gas welding?

    1 answer

    1. This Hobart welder comes with an optional gas hose and regulator for gas shielding. This will not come with a gas bottle.

      Helpful?

  4. can this welder be hooked up to additional external batteries for extra weld time

    what is the voltage of the internal batteries? can the unit be charged directly from solar panels?

    1 answer

    1. The 2 12 volt batteries are sealed within the Trek 180. Since they are sealed a solar panel an additional battery could not be used. To recharge to weld another cycle only takes 15 to 20 minutes.

      Helpful?

  5. can i used this to charge on 220 volts ?

    1 answer

    1. The Hobart welder is to be used with 120 volt current only.

      Helpful?
