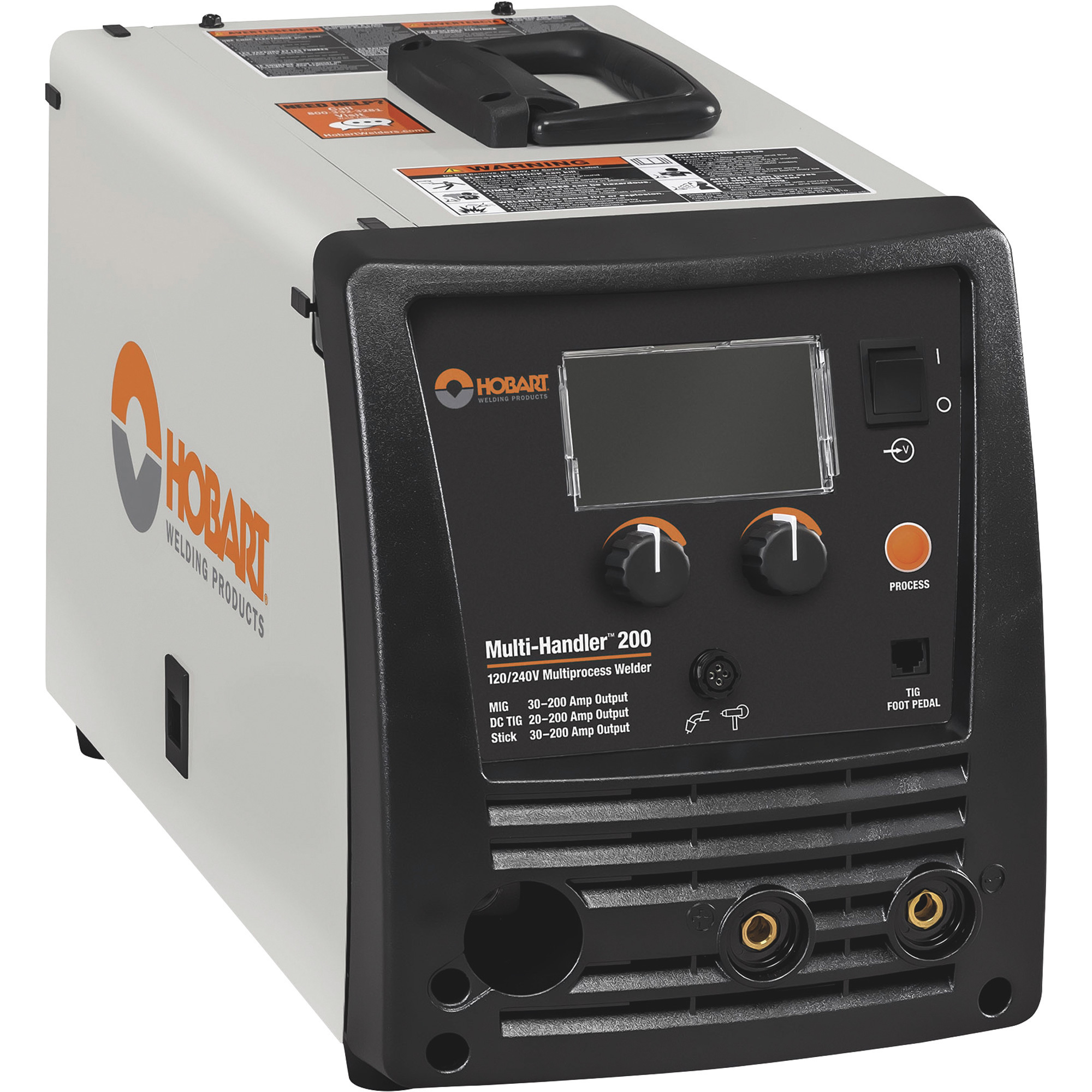

Hobart Multi-Handler 200, Dual-Voltage 120/240V, 200 Amp Inverter, Multiprocess MIG, Flux-Core, Stick and TIG Welder, LCD Display, Model# 500578

Item# 104225
"Hobart Multi-Handler 200, Dual-Voltage 120/240V, 200 Amp Inverter, Multiprocess MIG, Flux-Core, Stick and TIG Welder, LCD Display, Model# 500578"
Hobart Multi-Handler 200, Dual-Voltage 120/240V, 200 Amp Inverter, Multiprocess MIG, Flux-Core, Stick and TIG Welder, LCD Display, Model# 500578

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Hobart Multi-Handler 200, Dual-Voltage 120/240V, 200 Amp Inverter, Multiprocess MIG, Flux-Core, Stick and TIG Welder, LCD Display, Model# 500578

Click or Tap image to Zoom

$1599.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    1 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Easy-to-use interface features 2 knobs and a process button for quick and easy setup or change over
  • Multi-process capabilities provides the versatility of MIG, DC TIG and stick welding capabilities from one machine
  • MIG and stick weld up to 3/8in. material and TIG weld up to 3/16in.
  • Dual-voltage capabilities with MVP plug allows you to connect to common 120 Volt or 240 Volt power receptacles without the use of any tools -- simply choose the plug that fits the receptacle
  • Duty cycle: MIG - 120V: 30% at 110A; 240V: 30% at 165A

See full description

Complete Your Solution

  • Hobart Multi-Handler 200, Dual-Voltage 120/240V, 200 Amp Inverter, Multiprocess MIG, Flux-Core, Stick and TIG Welder, LCD Display, Model# 500578
  • Klutch MonsterView 1400 Auto-Darkening Welding Helmet
  • Klutch Welding Tool Kit, 3 Pcs.
Price for all three:

$1691.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Hobart Multi-Handler® 200 Multi-Process Welder with Multi-Voltage Plug and MIG Gun is a lightweight, versatile machine that's capable of MIG, DC TIG and stick welding, giving you the flexibility to tackle many projects. It can MIG and stick weld up to 3/8in. material and TIG weld up to 3/16in. A color LCD screen makes setup and changeover easy. Just connect the appropriate accessory for the process, change polarity if needed, select the desired process and dial in your parameters. The chart inside the door provides starting parameters to make setup quick and easy. The Multi-Handler 200 has multi-voltage plug (MVP) technology so it can be used on either 120- or 240-Volt input power. Hobart 5/3/1in.dustrial Warranty: Five-year warranty on transformers, stabilizers and main rectifiers; three years on generators, PC boards and drive systems; and one year on guns (MIG, plasma and TIG torches).

What's Included

    (1) MIG gun with cable (1) Electrode holder with cable (1) Quick Select™ drive roll (1) Sample spool of .030 in. (0.8 mm) solid wire (1) Insulator (3) Nozzles (#3, #4, #5 size) (1) Collet (1) Collet body (1) Electrode with 1/16 and 3/32 in. tungsten (1) Material thickness gauge (1) TIG torch with cable (1) Work clamp with cable (1) Power cord with 120V and 240V MVP™ plugs (1) Gas solenoid valve (1) Dual-gauge regulator with gas hose (2) Contact tips (.030 and .035 in.)

Downloads

Product Manual Product Manual2
Play Item Video

Features + Benefits

  • Easy-to-use interface features 2 knobs and a process button for quick and easy setup or change over
  • Multi-process capabilities provides the versatility of MIG, DC TIG and stick welding capabilities from one machine
  • MIG and stick weld up to 3/8in. material and TIG weld up to 3/16in.
  • Dual-voltage capabilities with MVP plug allows you to connect to common 120 Volt or 240 Volt power receptacles without the use of any tools -- simply choose the plug that fits the receptacle
  • Duty cycle: MIG - 120V: 30% at 110A; 240V: 30% at 165A
  • Built-in wire feeder has positive feed with adjustable tension plus easy accessibility to thread new wire
  • Spool hub accommodates 4- or 8-in. wire spools for the flexibility to suit your welding needs
  • Quick Select™ Drive Roll makes setup quicker by offering 3 grooves -- 2 for different size solid wire and a third for flux-core wire
  • Spool Gun Ready design to enhance feedability and reduce "bird- nesting" associated with soft aluminum wires
  • Control box-/adapter-free connection to the SpoolRunner™ 100 spool gun (sold separately)
  • Includes MIG gun with 10ft. (3m) cable, electrode holder with 10ft. (3m) cable, Quick Select drive roll for .024 in. (0.6 mm) or .030/.035 in. (0.8/0.9 mm); solid wire, and .030/.035 in. (0.8/0.9 mm) flux-core wire, sample spool of .030 in. (0.8 mm) solid wire, insulator, #3, #4, and #5 nozzles, collet, collet body, electrode with 1/16 and 3/32 in. tungsten, TIG torch with 12.5 ft. (3.8 m) cable, work clamp with 10 ft. (3 m) cable, power cord with 5-15P (120 V, 15 A) and 6-50P (240 V, 50 A) MVP™ plugs, built-in gas solenoid valve and dual-gauge regulator with gas hose, plus extra .030 and .035 in. (0.8 and 0.9 mm) contact tips
  • Hobart 5/3/1 Industrial Warranty - Five-year warranty on transformers, stabilizers and main rectifiers; three years on generators, PC boards and drive systems; and one year on guns (MIG, plasma and TIG torches)

Key Specs

AttributeSpecification

item#

104225

Brand

Hobart

Manufacturer's Warranty

5 year limited warranty

Ship Weight

60.0 LB

Volts

120/240

Max. Amps

200

Power Type

AC

Multi-process

Yes

Max. Weld Thickness

0.38 in

Duty Cycle

Mig-120v: 30% At 110a; 240v: 30% At 165a
AttributeSpecification

Weldable Materials

Aluminum, Steel, Stainless Steel

Min. Amps

20

Wire Feed Speed Control

Yes

Cart Included

No

Mig Ready

Yes

Clamp Cable Length

10 ft

Regulator and Gas Hose Included

Yes

Product Weight

38.4000 lb

Dimensions L x W x H (in.)

20.8 x 10.6 x 13.4 in

Reviews

Questions & Answers

61 Reviews This action will navigate to reviews.

Questions

1–10 of 30 Questions
Sort by:

  1. Is this MIG inverter or transformer based, and, will it handle flux core?

    1. This is inverter based. It will handle up to .035" flux-cored wire.

      Helpful?

    2. The Hobart spec sheet says it has an inverter.

      Helpful?

  2. Can I hook up a water cooler system to this model?

    1 answer

    1. A water cooler system is not available for this welder.

      Helpful?

  3. What size electric wire and breaker required for a service line

    1 answer

    1. The welder would require a 50 amp breaker and 6 AWG wire at 240 volts. It would require a 30 amp breaker with 10 gauge copper wiring for 120 volts.

      Helpful?

  4. Can you mig weld with mixed gas with this machine?

    1 answer
    Originally posted on "Hobart Multi-Handler 200, Dual Voltage 120V/240V, 200 Amp Inverter MIG Welder, Multiprocess Welder, SpoolRunner 100 Spool Gun, Flux Core Welder, Stick Welder + TIG Welder"

    1. You would be able to use mixed gases to MIG weld with this Hobart welder.

      Helpful?

  5. Can I TIG weld aluminum with this welder?

    1 answer
    Originally posted on "Hobart Multi-Handler 200, Dual Voltage 120V/240V, 200 Amp Inverter MIG Welder, Multiprocess Welder, SpoolRunner 100 Spool Gun, Flux Core Welder, Stick Welder + TIG Welder"

    1. You would not be able to TIG weld aluminum with the Hobart Handler 200. It only has DC TIG capabilities.

      Helpful?

  6. Can it weld dc aluminum rod 4043 1/8”

    1 answer
    Originally posted on "Hobart Multi-Handler 200, Dual Voltage 120V/240V, 200 Amp Inverter MIG Welder, Multiprocess Welder, SpoolRunner 100 Spool Gun, Flux Core Welder, Stick Welder + TIG Welder"

    1. The welder can weld DC aluminum rod 4043 of 1/8".

      Helpful?

  7. Does this welder only mig with flux core wire?

    1 answer
    Originally posted on "Hobart Multi-Handler 200, Dual Voltage 120V/240V, 200 Amp Inverter MIG Welder, Multiprocess Welder, SpoolRunner 100 Spool Gun, Flux Core Welder, Stick Welder + TIG Welder"

    1. The MIG and Flux core are two separate processes. It would be recommended to use solid wire with shielding gas for MIG and Flux Core Wire for Flux core welding.

      Helpful?

  8. Is the aluminum spool gun included

    1 answer
    Originally posted on "Hobart Multi-Handler 200, Dual Voltage 120V/240V, 200 Amp Inverter MIG Welder, Multiprocess Welder, SpoolRunner 100 Spool Gun, Flux Core Welder, Stick Welder + TIG Welder"

    1. The spool gun is included.

      Helpful?

  9. Does the spoolrunner 100 spool gun come with its own carrying case?

    1 answer
    Originally posted on "Hobart Multi-Handler 200, Dual Voltage 120V/240V, 200 Amp Inverter MIG Welder, Multiprocess Welder, SpoolRunner 100 Spool Gun, Flux Core Welder, Stick Welder + TIG Welder"

    1. The SpoolRunner 100 spool gun does come with its own rugged plastic carrying case. This makes it convenient to transport and store the spool gun along with its accessories.

      Helpful?

  10. hello, i would like to know if the hobart 200 flux - core comes with a welding wire roll in the package and what is the size of the wire .

    1 answer

    1. The welder will come with a sample roll of 0.030 in (0.8MM) solid wire.

      Helpful?
