The minimum clearance requirement above this heater is 44". The minimum clearance below it is 104". These are clearances to combustibles. A typical mounting height is 15' and above.

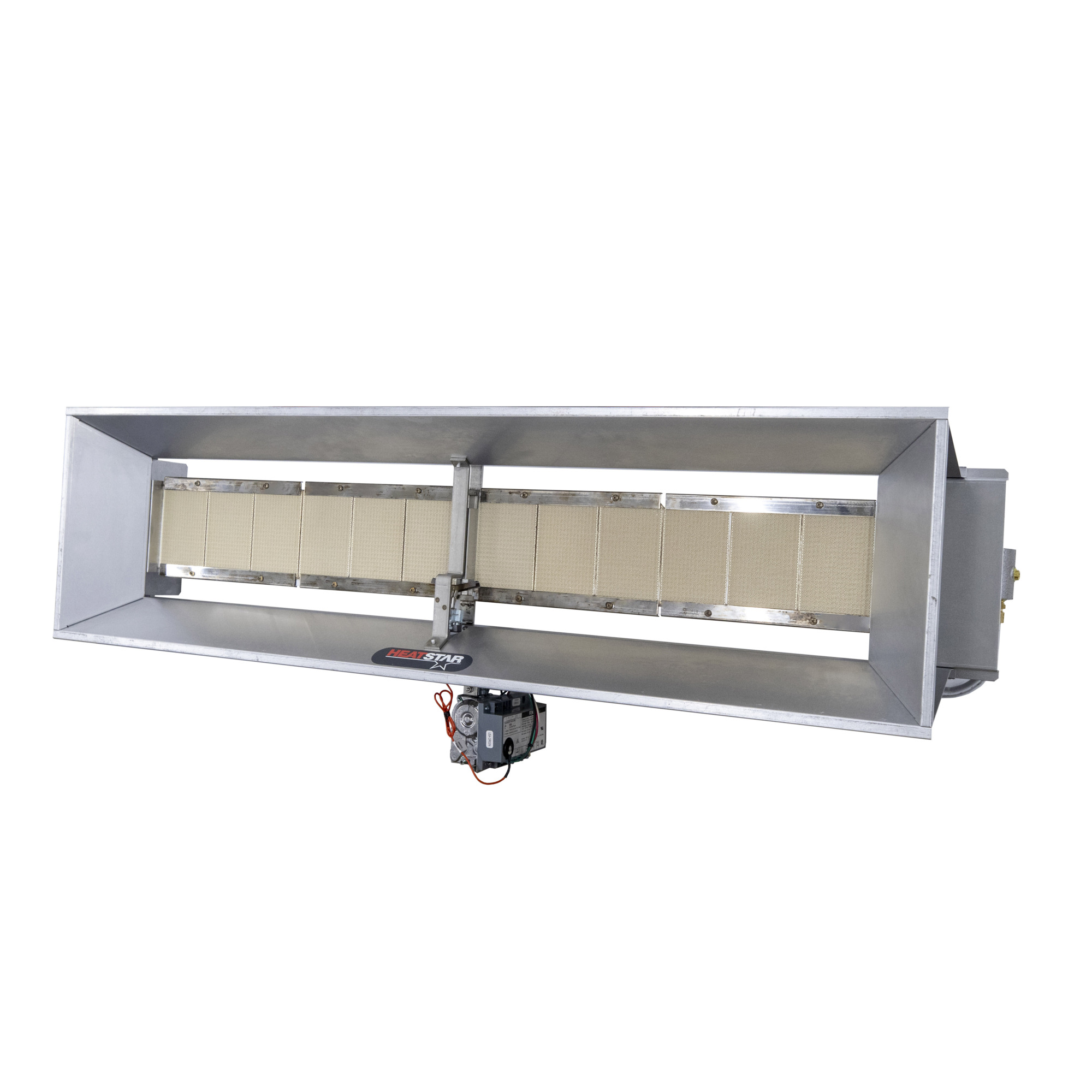

HeatStar High-Intensity Infrared Propane Heater, 100,000 BTU, Model# F191931
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$939.99
- No direct venting required
- Additional burner orfices enables the installer to increase or decrease the heat output
- Spark ignition heaters ship with 40VA transformer
- Noncorrosive materials are used throughout heater construction
See full description
Price for all four:
$1265.96
-
What is ceiling requirements for this heater?
-
Helpful?
-
This heater requires 44" of clearance above it, the typical mounting height is between 15'-28'.
Helpful?
-
-
what is the propane ase per hour
1 answer-
This HeatStar high-intensity infrared propane heater consumes propane at a rate of 5 gallons per hour.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Propane Garage Heaters
See All HeatStar Propane Garage Heaters
Currently Viewing This Product
Specifications
Specifications
HeatStar High-Intensity Infrared Propane Heater, 100,000 BTU, Model# F191931
HeatStar Propane Heater, 40,000 BTU, Model# 4040 LAS
SunStar Tough Guy Straight Positive Pressure Tube Heater - Propane, 175,000 BTU, Infrared, 50ft. Emitter Tube, Model# SPS175-50-TG-L5

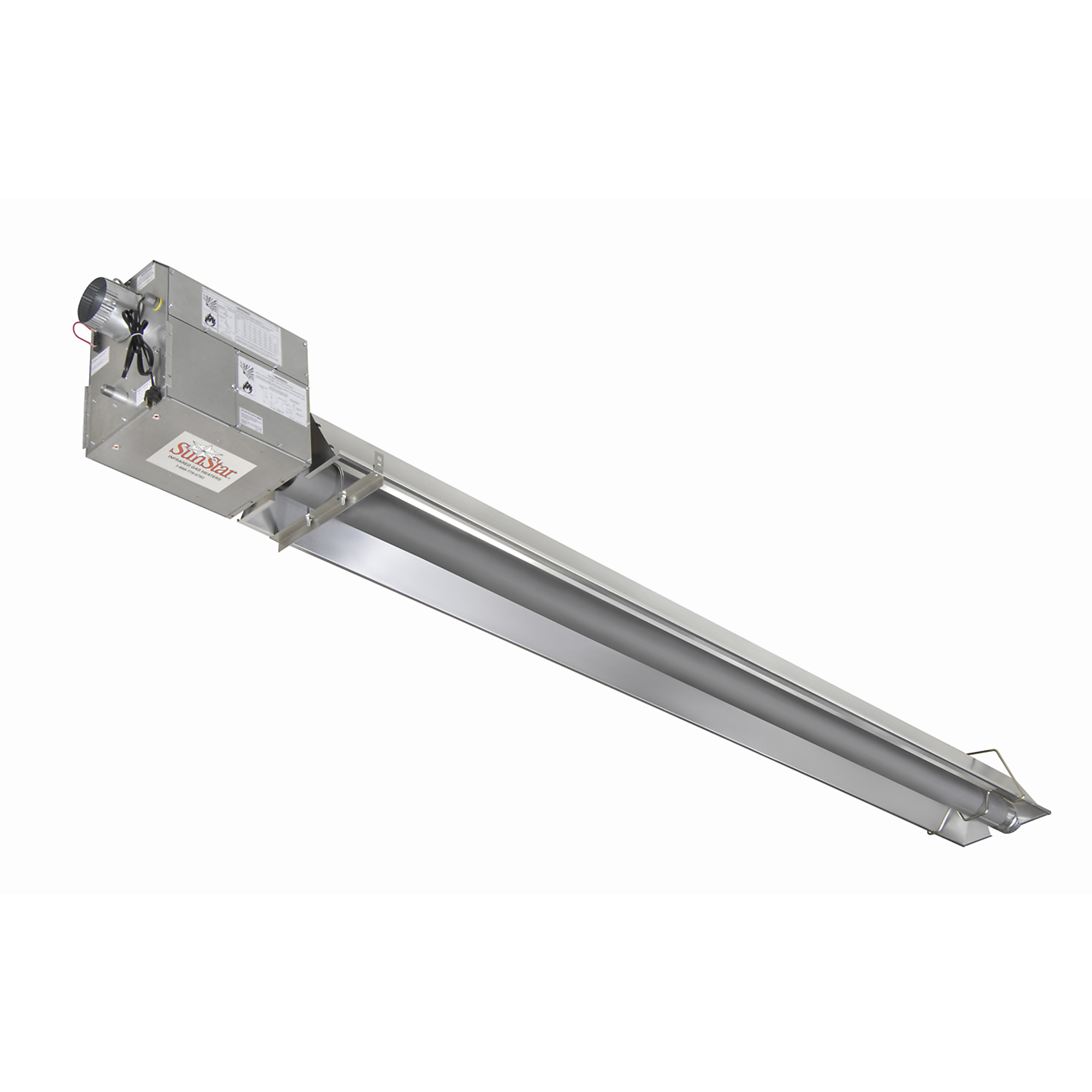

SunStar, Straight Positive Pressure Infrared Tube Heater, Fuel Type Propane, Heat Output 40000 Btu/hour, Heat Type Infrared, Model# SPS40-10-L5
Heat Output
Same
100,000 Btu/hour
40,000 Btu/hour
175,000 Btu/hour
40,000 Btu/hour
Heat Type
Same
Infrared
Radiant
Infrared
Infrared
Heating Capability
Same
1,200 ft²
750 ft²
3,000 ft²
500 ft²
Needs Direct Venting
Same
No
No
-
-
Blower Included
Same
No
No
Yes
Yes
Thermostat Included
Same
No
No
No
No
Oxygen Depletion Sensor
Same
No
No
-
-
Product Weight
Same
lb
lb
190.4000 lb
80.0000 lb
Dimensions L x W x H (in.)
Same
60.5 x 21.5 x 11.0 in
30.25 x 19.25 x 12.0 in
612.0 x 13.0 x 8.0 in
132.0 x 13.0 x 8.0 in
Volts
Same
-
-
120
120
Amps
Same
-
-
-
2
