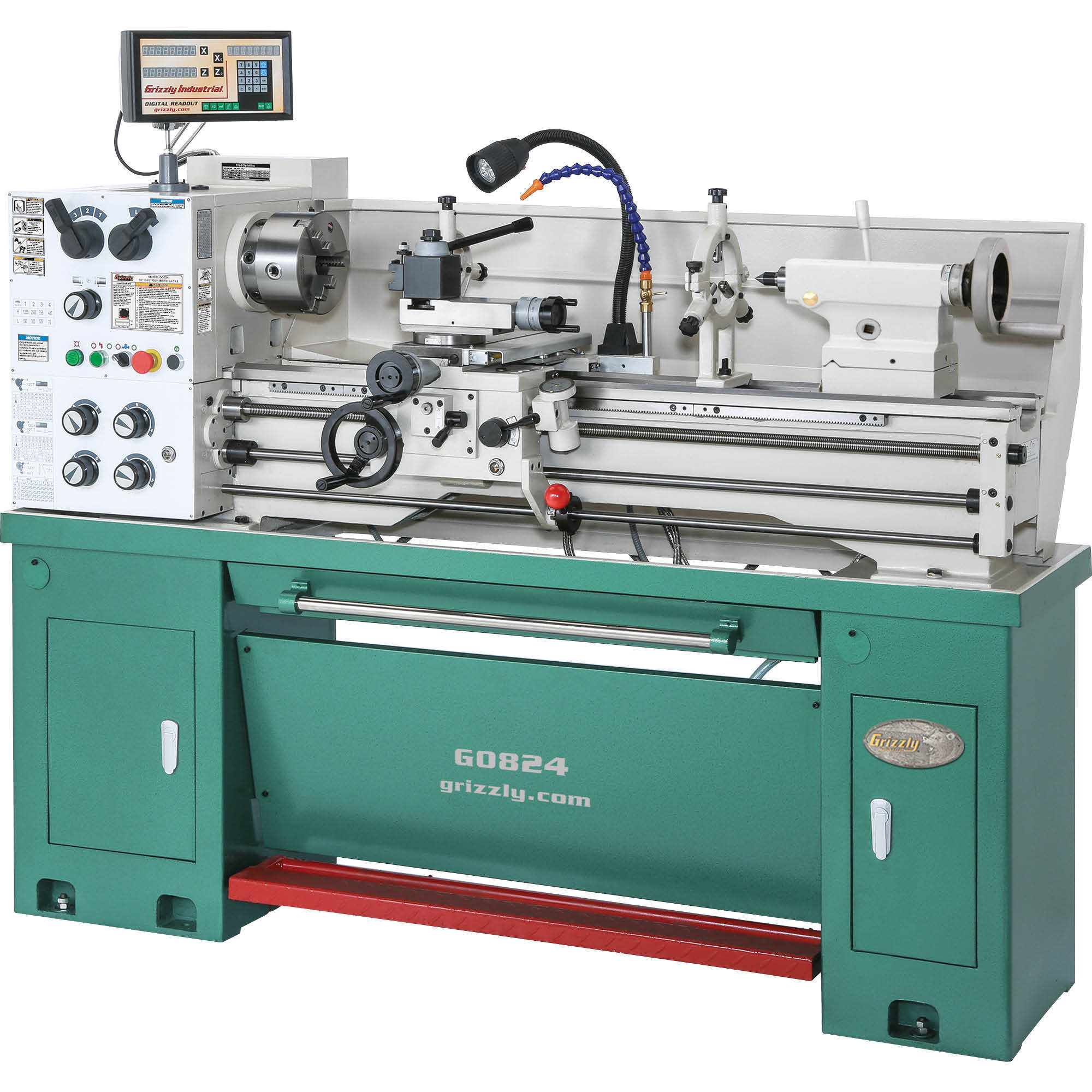

Grizzly G0824 - 14" x 40" 2-1/2 HP Gunsmithing Metal Lathe w/ DRO

Item# 7511604
New
Grizzly G0824 - 14" x 40" 2-1/2 HP Gunsmithing Metal Lathe w/ DRO

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Grizzly G0824 - 14" x 40" 2-1/2 HP Gunsmithing Metal Lathe w/ DRO

Click or Tap image to Zoom

$8079.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

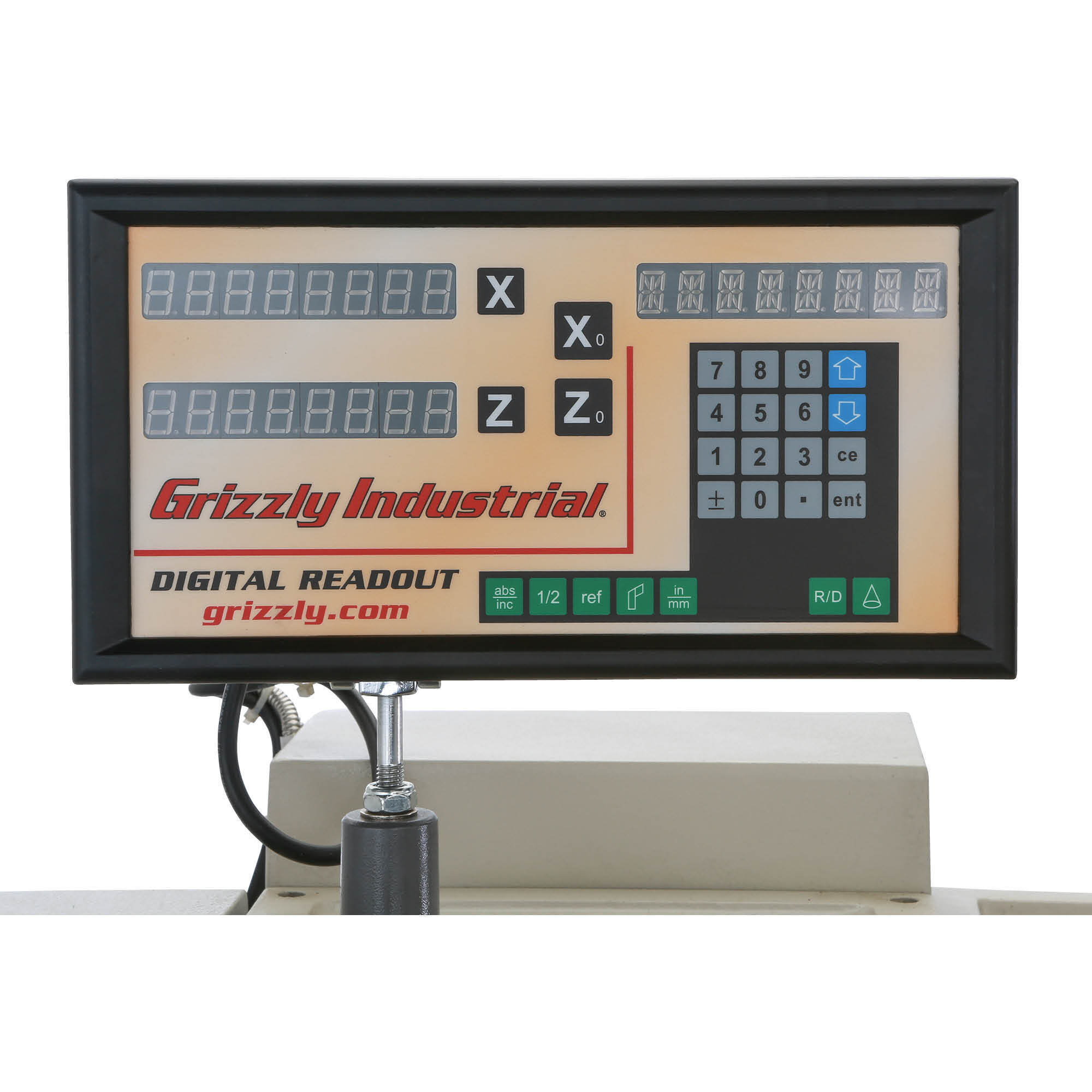

  • X- & Z-Axis DRO

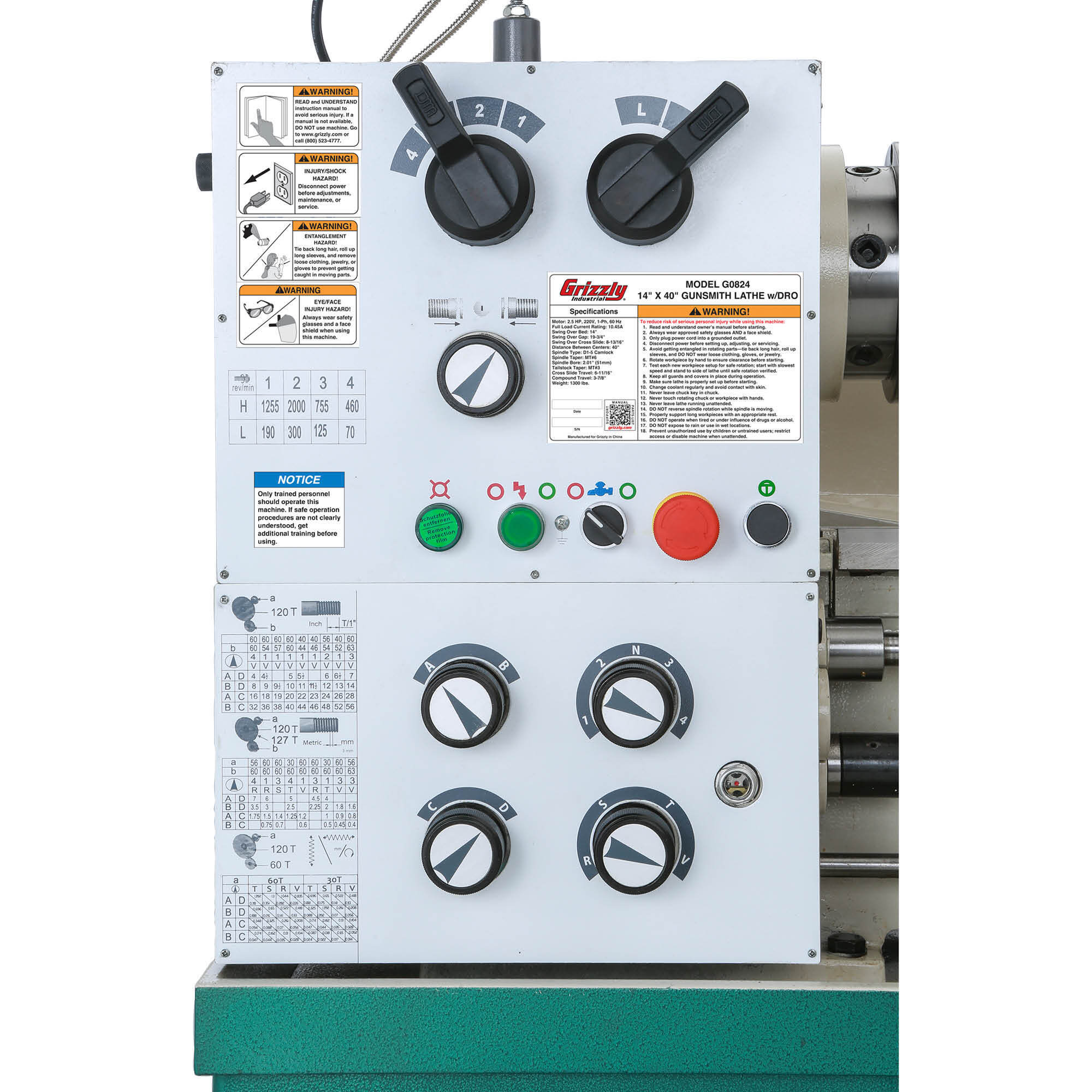

  • Quick-Change Spindle Speed and Gearbox Controls

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

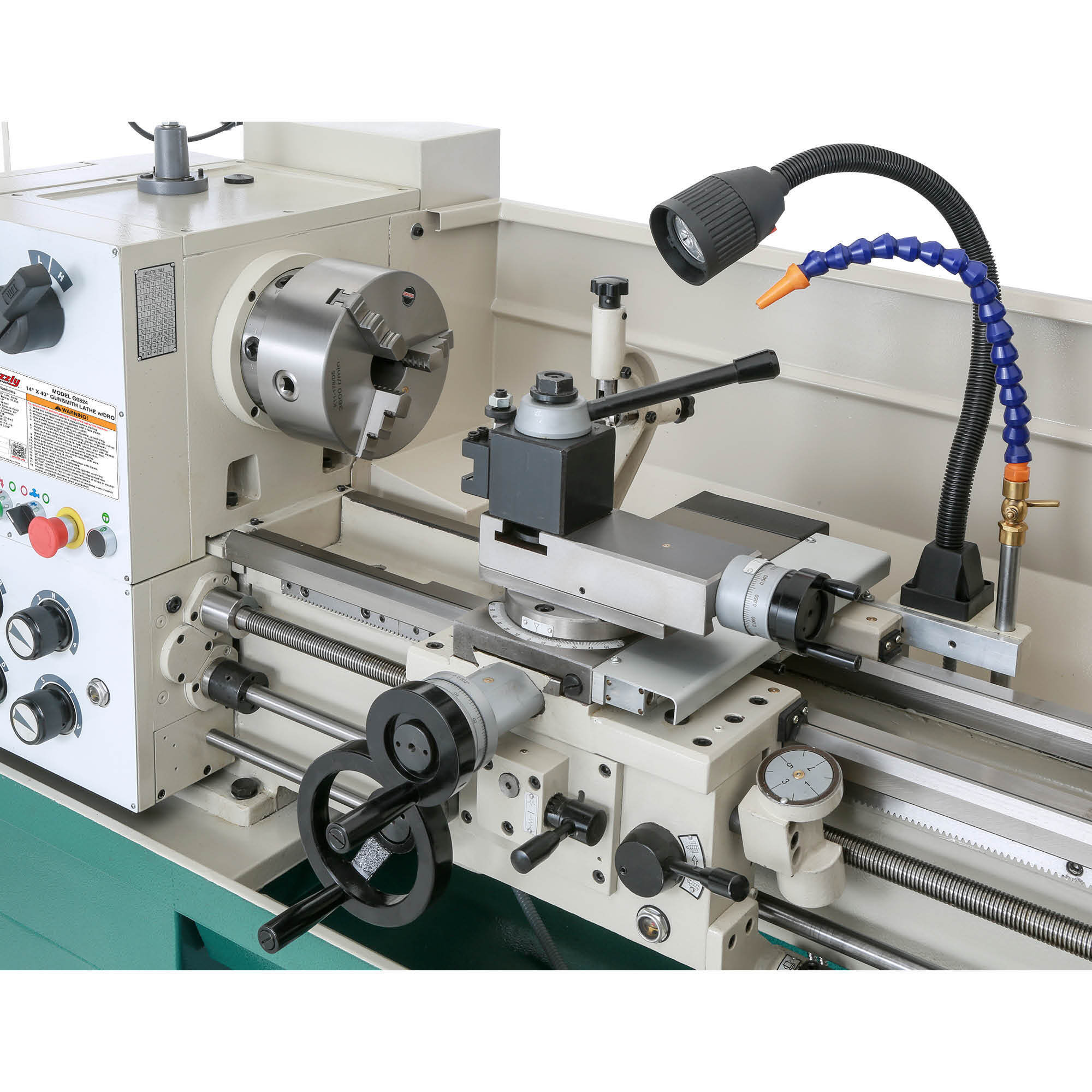

This 14in. x 40in. Big Bore Gunsmithing Lathe has a huge 2in. spindle bore - the largest of any of our 14in. x 40in. lathes - perfect for gunsmithing larger diameter barrels. It also includes one of the finest X/Z-axis DROs on the market today. It's jam-packed with other great features: an 8-speed gearhead for spindle speeds from 70–2000 RPM, a D1-5 camlock spindle, 200-series quick-change tool post, flood coolant system, LED worklight, pull-out chip tray, ball-bearing steady and follow rests, cast iron stand, and safety foot brake! To top it off, the outboard end of the spindle has a "spider" mount system - great for stabilizing long shafts and rifle barrels. Specifications:
  • Swing over bed: 14in.
  • Swing over cross slide: 8-13/16in.
  • Distance between centers: 40in.
  • Spindle nose: D1-5 camlock
  • Spindle nose taper: MT#6
  • Spindle bore: 2.01in. (51mm)
  • Spindle length: 17-1/4in.
  • Spindle length with 4-jaw chuck: 21-1/2in.
  • Tailstock barrel taper: MT#3
  • Tailstock barrel travel: 3-15/16in.
  • Cross slide travel: 6-11/16in.
  • Compound travel: 3-7/8in.
  • Motor: 2.5 HP at 1720 RPM; 220V, 10A
  • Spindle speeds: 8, 70–2000 RPM
  • Range of threads (inches): 34 4–56 TPI
  • Range of threads (metric): 26 0.4–7mm
  • Cuts LH threads
  • Width of bed: 7-3/8in.
  • Approximate shipping weight: 1550 lb.

    • What's Included

      (1) Metal Lathes

    Features + Benefits

    • X- & Z-Axis DRO
    • Quick-Change Spindle Speed and Gearbox Controls

    Key Specs

    AttributeSpecification

    item#

    		7511604

    Brand

    		Grizzly

    Manufacturer's Warranty

    		1 year limited warranty

    Ship Weight

    		1550.0 LB

    Horsepower

    		2.5 HP

    Volts

    		220

    Distance Between Centers

    		40 in

    Swing Over Bed

    		14 in

    Product Type

    		Other
    AttributeSpecification

    Carriage Travel

    		6 in

    Phase

    		Single-phase

    Variable Speed

    		No

    Max. Speed

    		2,000 rpm

    Spindle Mount

    		Yes

    Spindle Bore Size

    		2.01 in

    Stand Included

    		Yes

    Product Weight

    		1550.0000 lb

    Dimensions L x W x H (in.)

    		78.0 x 61.5 x 31.0 in

    Reviews

    Questions & Answers

    12 Reviews This action will navigate to reviews.

    Questions

    1–10 of 13 Questions
    Sort by:

    1. can you get a taper attachment?

      1 answer
      Originally posted on grizzly.com

      1. We appreciate you reaching out. Yes, the G1070 Taper is compatible with this lathe.

    2. What accessories come with this lathe?

      1 answer
      Originally posted on grizzly.com

      1. We appreciate your question. This lathe includes several accessories, including a quick change toolpost w/holder, toolbox, 8" four jaw chuck w/key, oil bottle, spindle wrench, end gears, and screwdrivers. We suggest referring to page 17 of the manual for a full list of included accessories.

    3. is there a taper attachment offered for the grizzly G0824

      1 answer
      Originally posted on grizzly.com

      1. Thank you for reaching out. The T10502 Taper Attachment is designed to work with this lathe.

    4. Can this machine be run in reverse? If so, where can I find directions on it in the Manuel?

      1 answer
      Originally posted on grizzly.com

      1. We appreciate your question. The lathe reverses the direction of the leadscrew or feed rod (and thus the carriage movement) without changing the spindle rotation. It is commonly used for left-hand threading.

    5. What is the warranty on a G0824 Lathe ?

      1 answer
      Originally posted on grizzly.com

      1. Thank you for getting in touch with us. This lathe is available with 1-year, 3-year, or 5-year warranty options.

    6. Is there a collet chuck available for this machine?

      1 answer
      Originally posted on grizzly.com

      1. Thanks for your question. Your machine has a D1-5 spindle and is compatible with chucks that fit that spindle. Our T10414 collet chuck is compatible.

    7. one of the most popular barrel threads is 1/2 x 28. Please confirm this lathe can cut a 28 tpi thread as i could not find this in the G0824 manual.

      1 answer
      Originally posted on grizzly.com

      1. Thank you for reaching out. The metal lathe is capable of cutting 28 TPI (threads per inch).

    8. Is this a gap bed lathe? there appears to be a gap in the photos but the spec list doesn't specify that. please clarify this.

      1 answer
      Originally posted on grizzly.com

      1. We appreciate your inquiry. The gunsmith lathe does not have a gap bed.

    9. WILL YOU CONVERT TO 3 PHASE -- DO YOU HAVE A TAPER ATTACHMENT FOR THIS LATHE

      1 answer
      Originally posted on grizzly.com

      1. Thank you for getting in touch with us. The metal lathe cannot be converted to 3-phase; you would need to purchase a 3-phase machine. The taper attachment required for your lathe is the T10502 Taper Attachment. For a 3-phase equivalent, the G0509G Metal Lathe is suitable and uses the T10096 Taper Attachment. To add a DRO, you can use the T33008 Lathe DRO.

    10. Is it possible to get a collet closer?

      1 answer
      Originally posted on grizzly.com

      1. We appreciate your question. A collet closer is not available for this machine.

    Warranty

    Manufacturer's Warranty

    1 year limited warranty
