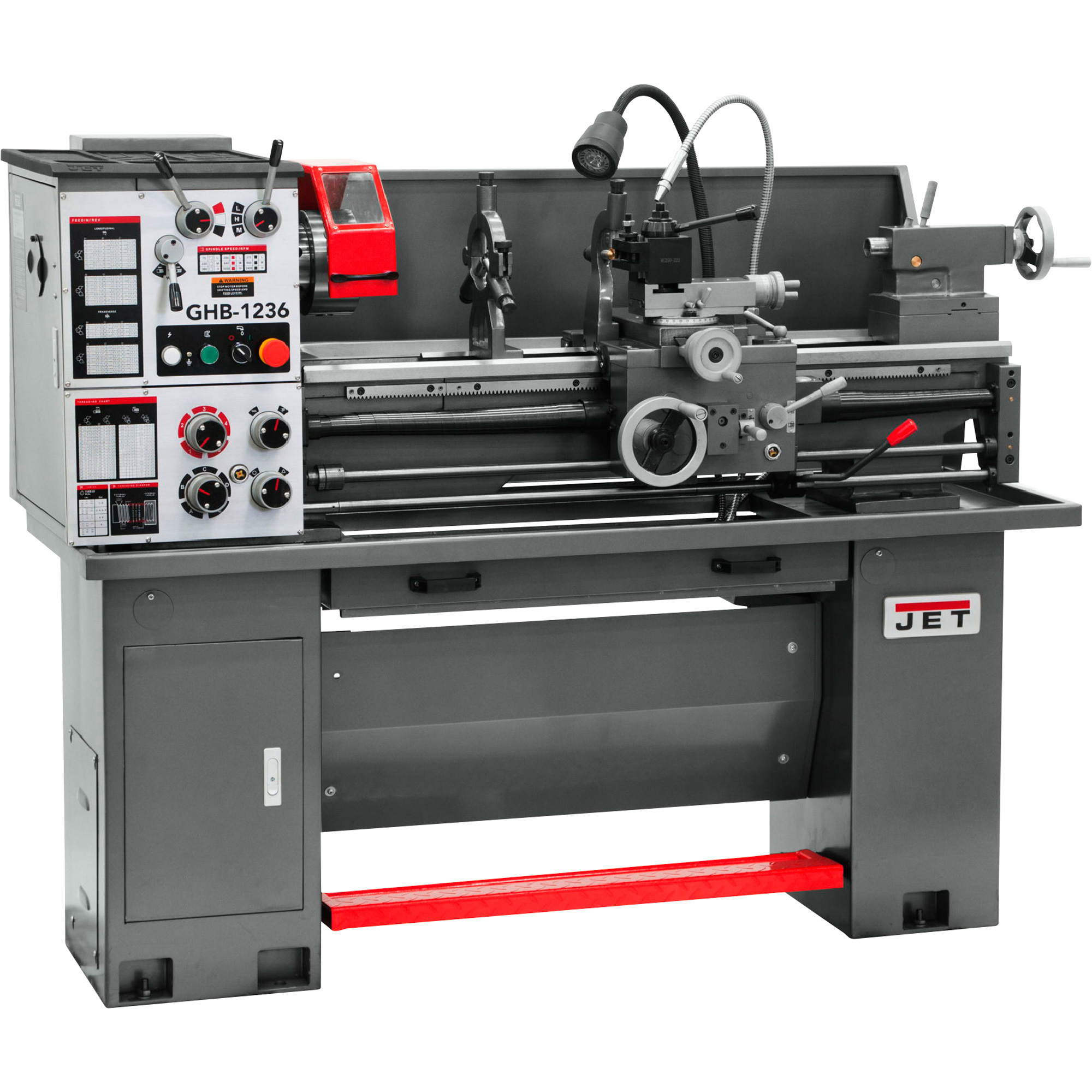

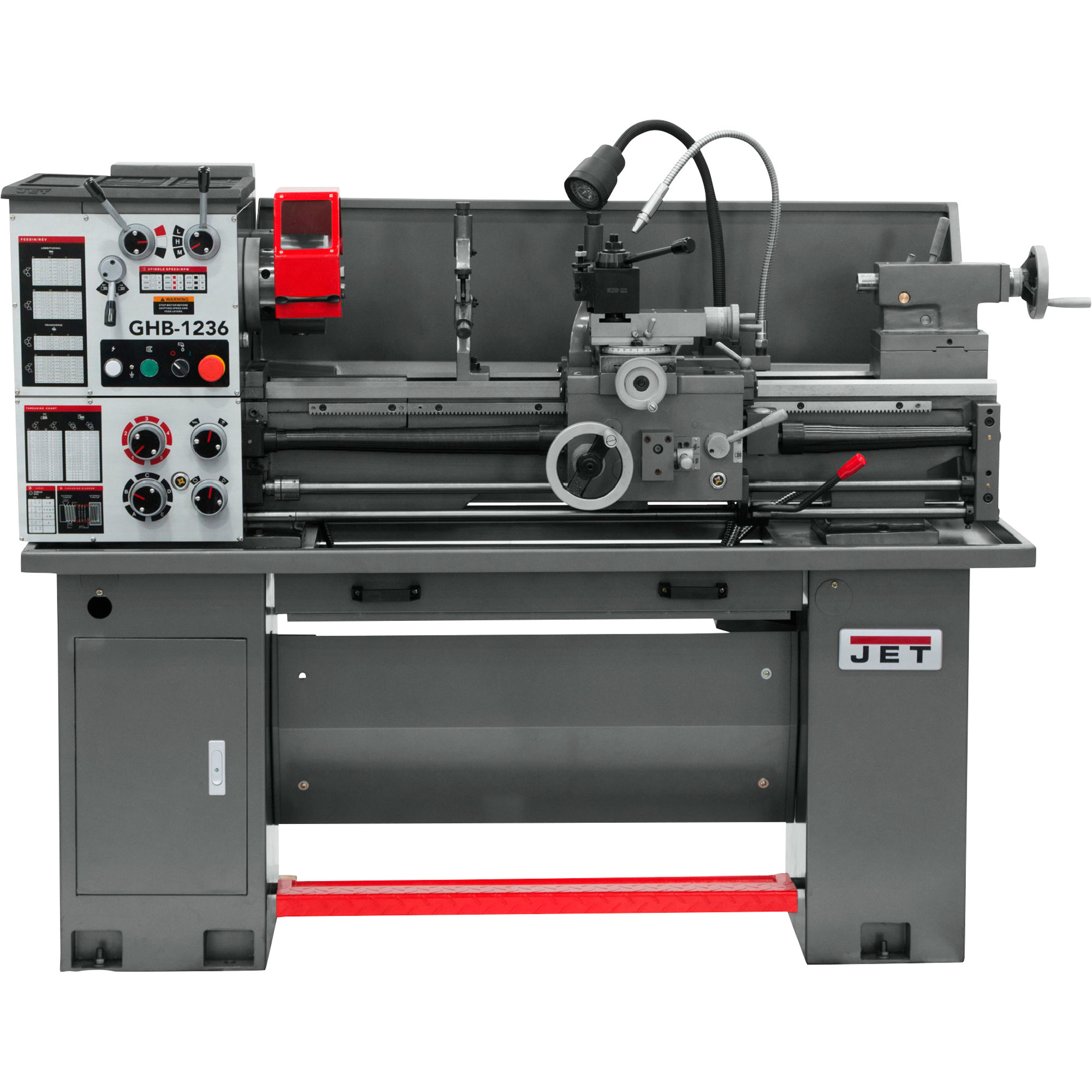

JET Geared Head Bench Lathe, 12in. x 33in., Model# GHB-1236

Item# 66095
JET Geared Head Bench Lathe, 12in. x 33in., Model# GHB-1236

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Geared Head Bench Lathe, 12in. x 33in., Model# GHB-1236

Click or Tap image to Zoom

$12,426.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Gearbox gives a wide range of inch and metric threading and feed capabilities with few gear changes
  • Compound and cross slide have backlash adjustment for versatility

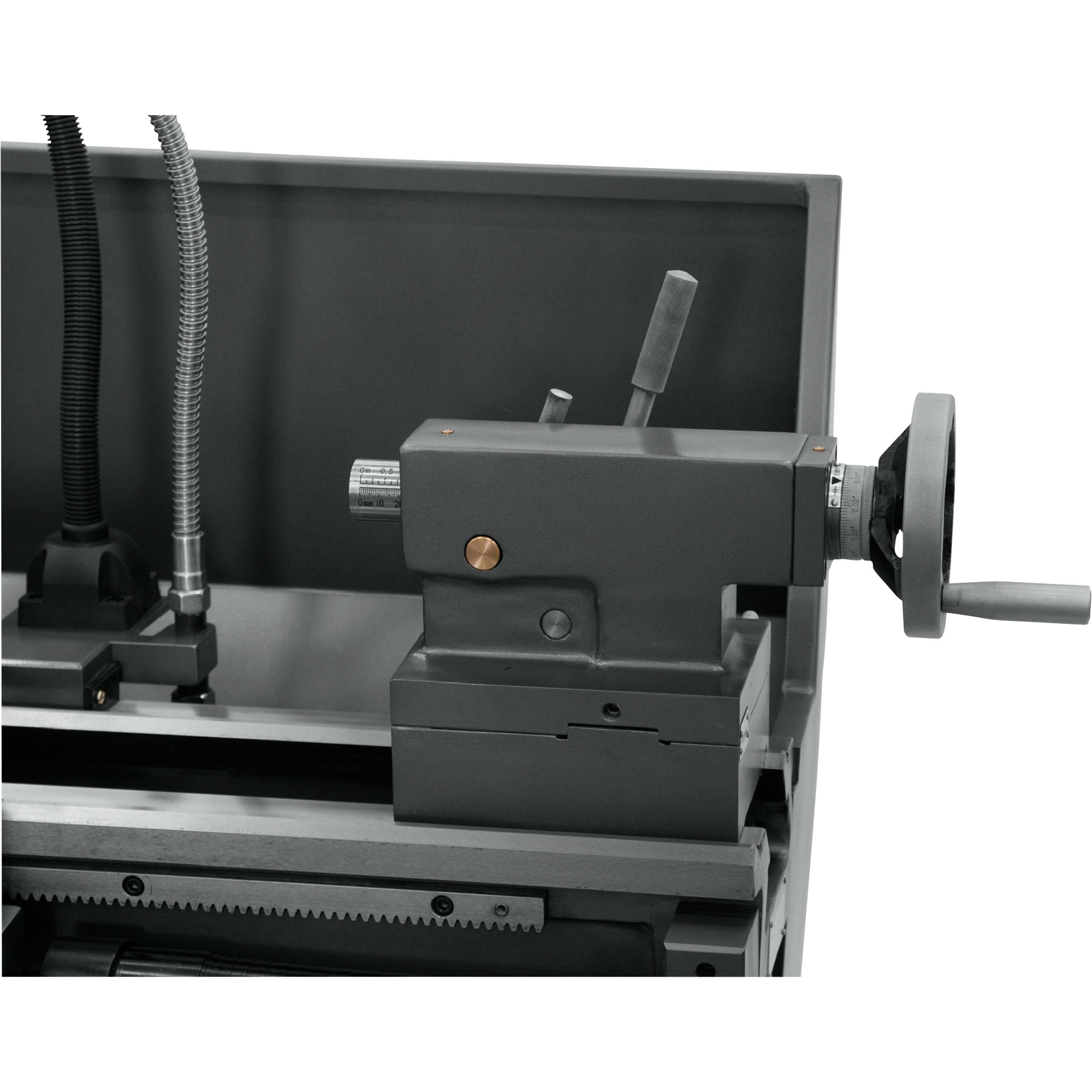

  • Tailstock may be offset for turning tapers and includes an inch/metric graduated quill
  • Spindle spider is available for ease of turning gun barrels
  • Precision induction hardened and ground bedway

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This JET Geared Head Bench Lathe is engineered to cut and taper with exacting accuracy. Positioned on a heavy-duty stand with a newly added built-in footbrake, the lathe features precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability. Features 12in. swing over bed,18in. swing through gap and 33in. distance between centers. 36 threads/ 32 metric threads. Item too large for lift gate. Forklift required for on site unloading. Please closely verify all details prior to confirming this order. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications, it is not eligible for cancellation, refund or return once the order has been placed.

What's Included

    (1) Geared head bench lathe

Downloads

Product Manual

Features + Benefits

  • Gearbox gives a wide range of inch and metric threading and feed capabilities with few gear changes
  • Compound and cross slide have backlash adjustment for versatility
  • Tailstock may be offset for turning tapers and includes an inch/metric graduated quill
  • Spindle spider is available for ease of turning gun barrels
  • Precision induction hardened and ground bedway
  • High quality steel hardened gears in headstock
  • Lead screw cover
  • Cast iron stand
  • Foot brake comes standard
  • Emergency stop within easy reach of the operator plus a chuck guard for added safety
  • Ready-to-use unit comes mounted on stand with foot pedal and coolant

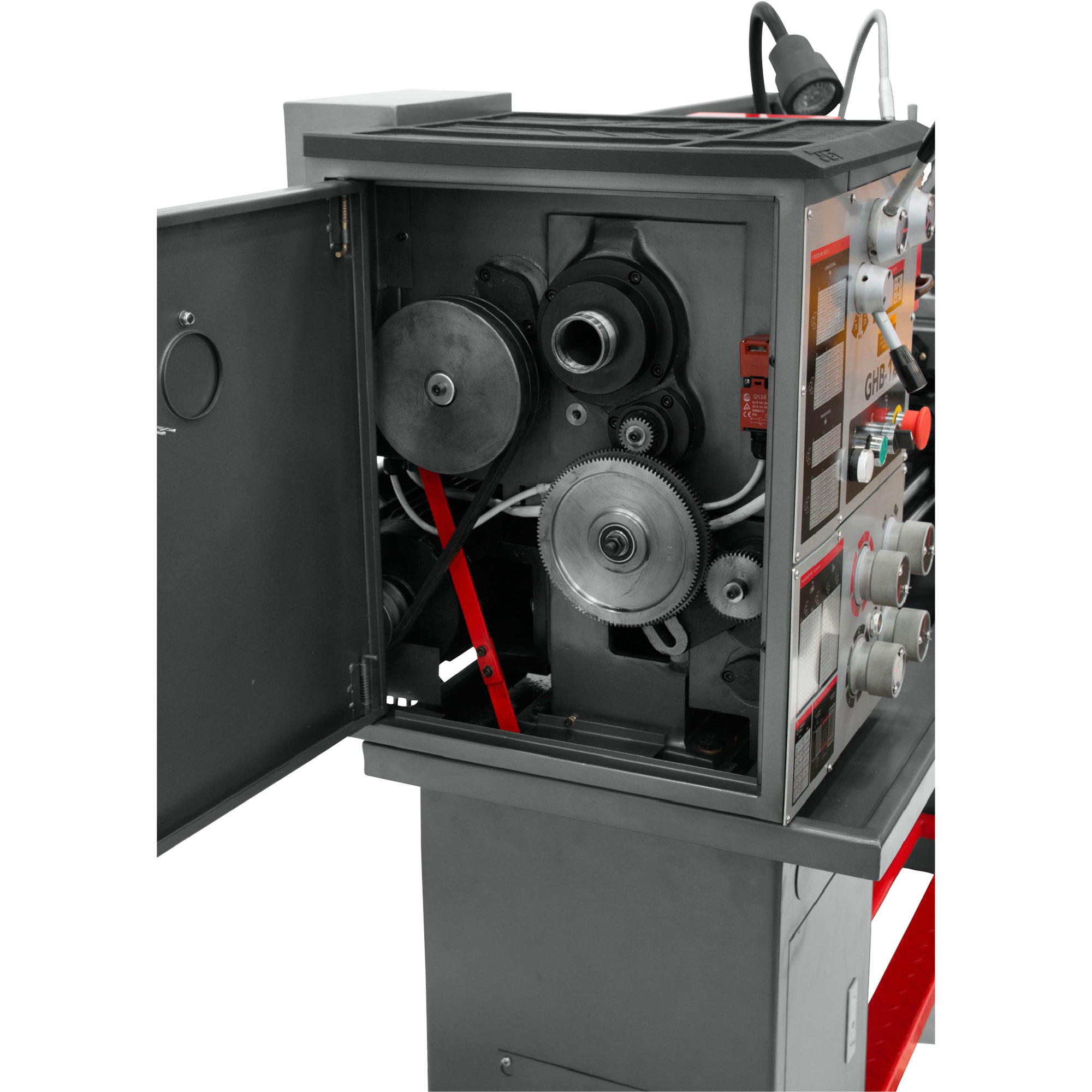

  • Enclosed gearbox design provides smooth, quiet operation
  • Gap bed section provided for larger diameter work
  • Adjustable gibs are incorporated in the carriage and slideways
  • Standard accessories include: 6in. 3-jaw chuck, 8in. 4-jaw chuck, 10in. face plate, steady rest with roller bearings, follow rest, quick-change toolpost, 5-pc. set of holders, LED work lamp, MT3 live center and MT-5/3 sleeve

Key Specs

AttributeSpecification

item#

66095

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

1252.0 LB

Horsepower

2 HP

Volts

230

Distance Between Centers

33 in

Swing Over Bed

12 in

Product Type

Other

Carriage Travel

27.375 in
AttributeSpecification

Thread Cutting Max. (SAE)

15 in

Thread Cutting Max.

7 mm

Phase

Single-phase

Variable Speed

No

Max. Speed

1,400 rpm

Spindle Mount

Yes

Spindle Bore Size

1.562 in

Stand Included

Yes

Product Weight

lb

Dimensions L x W x H (in.)

66.015 x 29.5 x 59.81 in

Reviews

Questions & Answers

Questions

1–4 of 4 Questions
Sort by:

  1. country of origin?

    1 answer

    1. The lathe is manufactured in China.

      Helpful?

  2. Oh yes, machine is pictured with a quick change to close, but I do not see that in the description list. Does it come with a quick change to a post.

    1 answer

    1. The bench lathe would have quick change tool post.

      Helpful?

  3. Single or three phase?

    1 answer

    1. This is a 230 volt single phase lathe.

      Helpful?

  4. what chucks are included

    1 answer

    1. The bench lathe would include a 3 jaw chuck and a 4 jaw chuck.

      Helpful?

Warranty

Manufacturer's Warranty

24 months parts/24months labor
