JET Geared Head Lathe, 14in. x 40in., Single Phase, Model# GH-1440-1

Item# 66106
JET Geared Head Lathe, 14in. x 40in., Single Phase, Model# GH-1440-1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Geared Head Lathe, 14in. x 40in., Single Phase, Model# GH-1440-1

Click or Tap image to Zoom

$20,674.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • V-way bed design is induction hardened and ground
  • Splined, not keyed, shafts are utilized
  • D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
  • Independent lead screw and feed rod
  • Adjustable gibs are incorporated in the carriage and slideways

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Geared Head Lathe, 14in. x 40in., Single Phase, Model# GH-1440-1
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • Radians Earplug Neckband, NRR 25dB, Orange, Model# RB2120
  • Milwaukee Men's Cut 1 Nitrile Utility Gloves, Red/Black, Large, Model# 48-22-8902
Price for all four:

$20,698.44

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This heavy-duty, single phase JET Geared Head Lathe weighs over 1 ton and comes equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide smooth and quiet operation while maintaining peak performance. Includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked. Features a 14in. swing over bed and 40in. distance between centers. 40in. threads/ 23 metric threads. Item too large for lift gate. Forklift required for on site unloading. Please closely verify all details prior to confirming this order. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications, it is not eligible for cancellation, refund or return once the order has been placed.

What's Included

    (1) Geared head lathe

Downloads

Product Manual

Features + Benefits

  • V-way bed design is induction hardened and ground
  • Splined, not keyed, shafts are utilized
  • D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
  • Independent lead screw and feed rod
  • Adjustable gibs are incorporated in the carriage and slideways
  • Safety on/off switch
  • Emergency stop within easy reach of the operator
  • Electronic chuck key docking station
  • Chuck guard
  • Foot brake

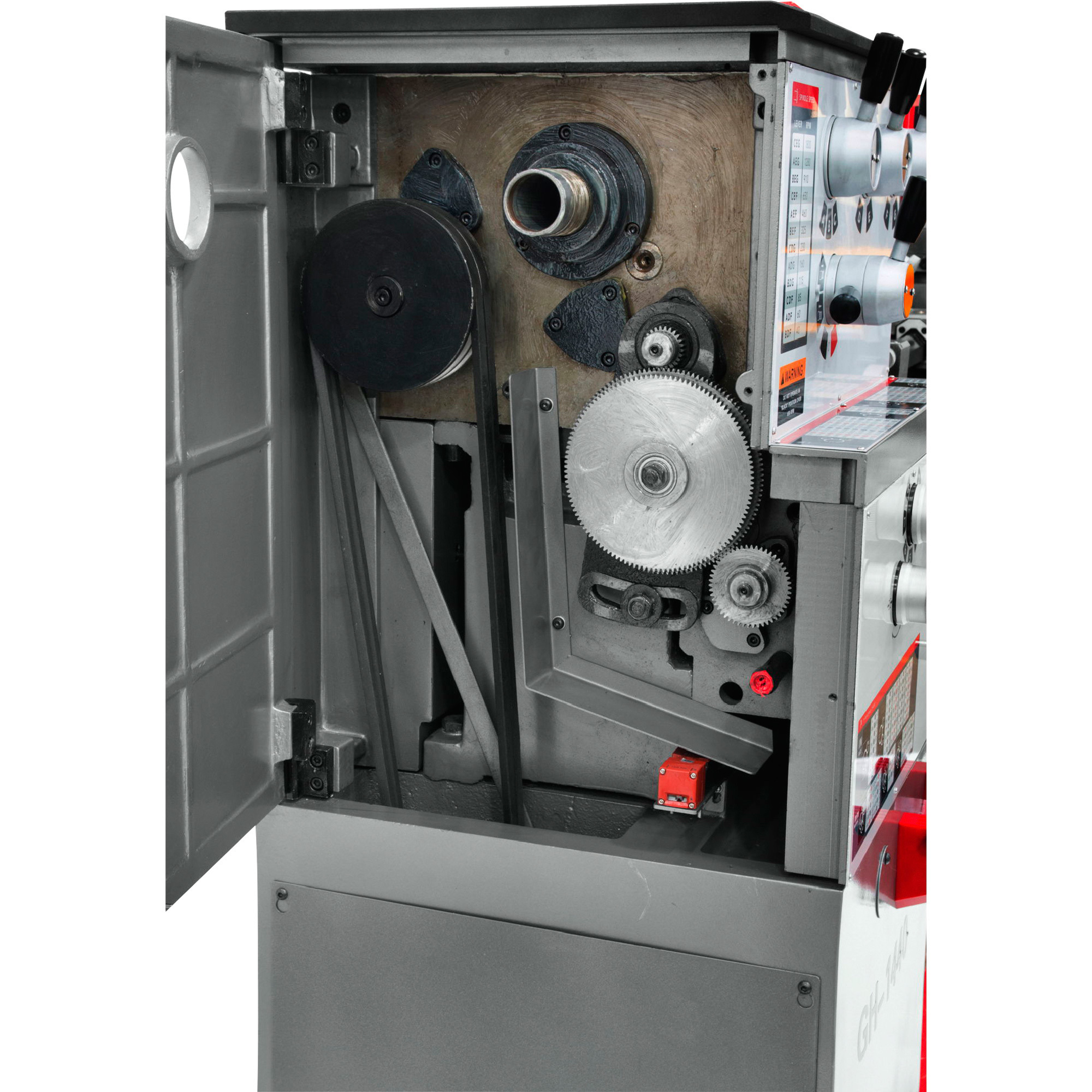

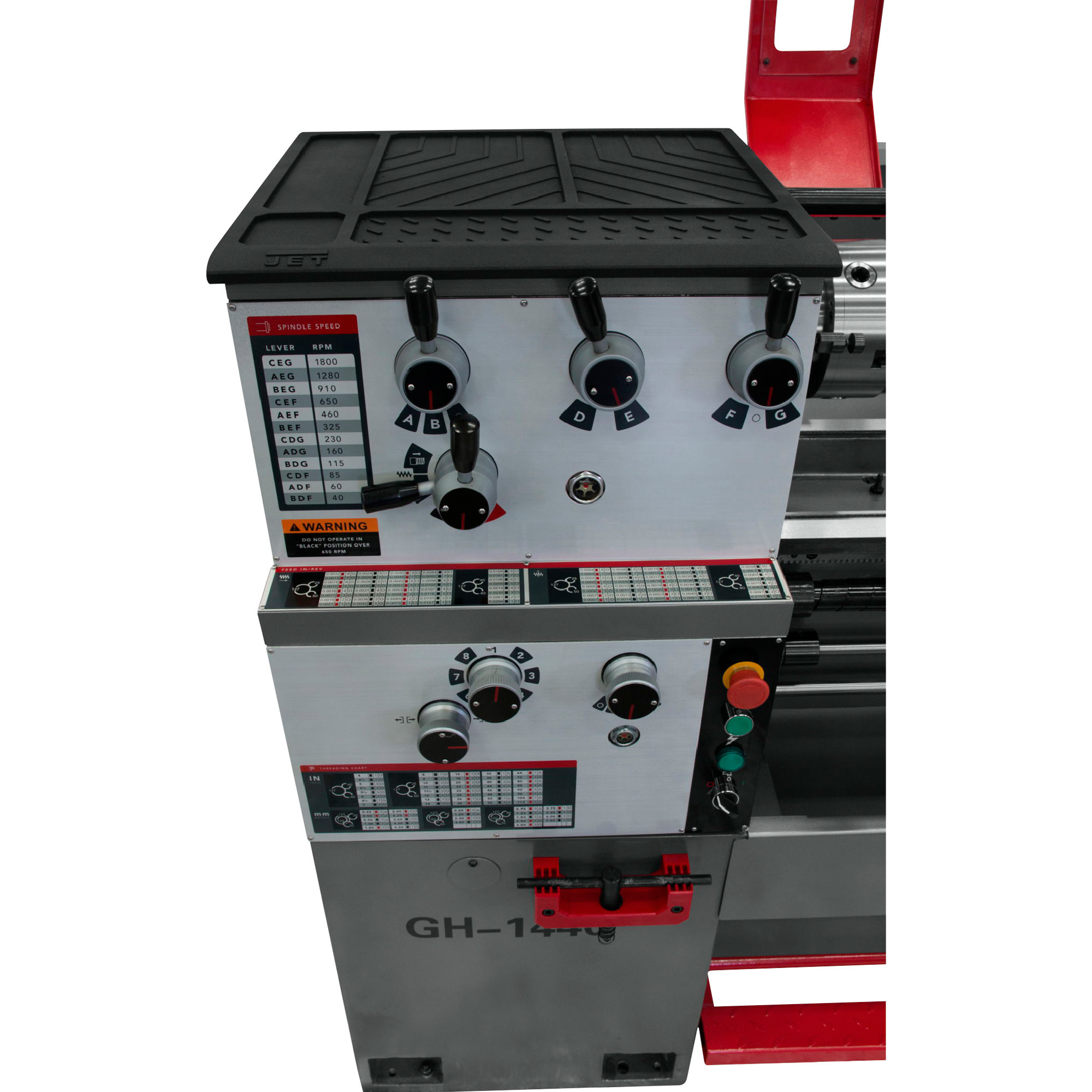

  • Gearbox provides larger threading and feed capabilities with no gear changes
  • Spindle actuation control is apron mounted
  • Gap bed section provided for larger diameter work
  • Inch-metric dials are standard
  • Compound and cross slide have backlash elimination
  • Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
  • Front removable chip tray
  • Spindle jog button for easy gear engagement and spindle inching
  • Coolant system
  • Full length splash guard

Key Specs

AttributeSpecification

item#

66106

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

2295.0 LB

Horsepower

3 HP

Volts

230

Distance Between Centers

40 in

Swing Over Bed

14 in

Product Type

Other

Carriage Travel

37.5 in
AttributeSpecification

Thread Cutting Max. (SAE)

112 in

Thread Cutting Max.

7.5 mm

Phase

Single-phase

Variable Speed

No

Max. Speed

1,800 rpm

Spindle Mount

Yes

Spindle Bore Size

1.5 in

Stand Included

Yes

Product Weight

lb

Dimensions L x W x H (in.)

74.81 x 30.0 x 56.5 in
