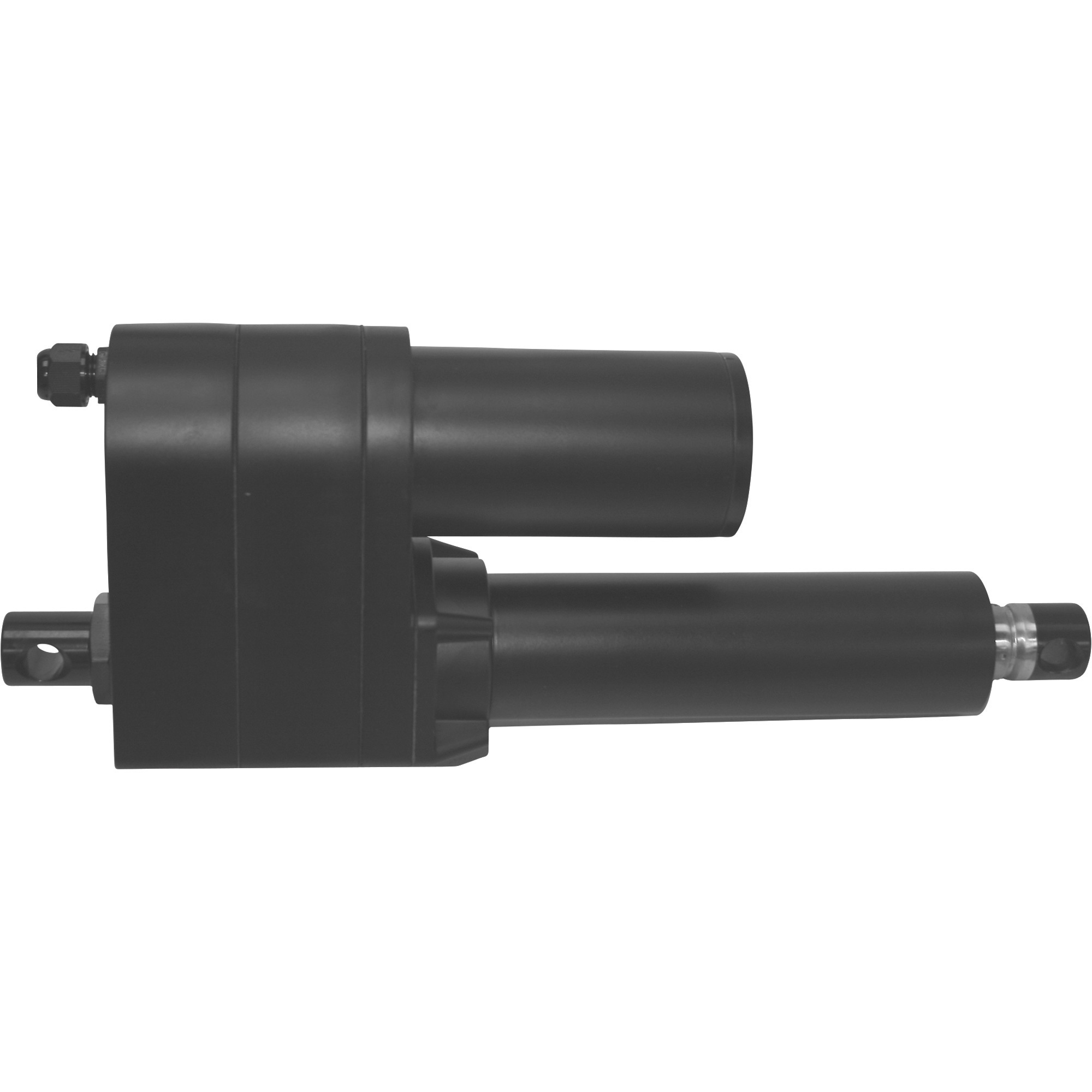

Glideforce 500-Lb. Capacity ID-ACME Linear Actuator, 6in. Stroke, Model# LACT6-500A

Item# 27323
"Glideforce 500-Lb. Capacity ID-ACME Linear Actuator, 6in. Stroke, Model# LACT6-500A"
Top Seller
Glideforce 500-Lb. Capacity ID-ACME Linear Actuator, 6in. Stroke, Model# LACT6-500A

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Glideforce 500-Lb. Capacity ID-ACME Linear Actuator, 6in. Stroke, Model# LACT6-500A

Click or Tap image to Zoom

$309.99

Buy 4 or more at $305.34 ea.

  • Shipping:

    Factory shipped

  • Store Pickup:

  • 6in. nominal/6.02in. actual stroke
  • 12V motor
  • 20:1 reduction gearbox
  • 500-lb. dynamic load rating
  • 1,000-lb. static load rating

See full description

Complete Your Solution

  • Glideforce 500-Lb. Capacity ID-ACME Linear Actuator, 6in. Stroke, Model# LACT6-500A
  • Glideforce 7-Channel Wireless Remote Control, Model# VERSA7
  • Glideforce 100 Amp DC Reversing Contactor, Model# RELAY-100-12
  • Glideforce Toggle Reversing Switch, 30 Amp Maintained Contacts, Model# SWT-TOG-4W
Price for all four:

$554.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Rugged Glideforce ID-ACME linear actuator can be used in a variety of outdoor and indoor applications. The 12V motor has a 20:1 reduction gearbox that gives ACME actuator a dynamic load rating of 500 lbs. and is rated to hold up to 1,000 lbs. when not moving. Use to raise and lower power equipment attachments, auto hoods and trunks, position solar panels, television lifts and many other applications around the home and farm.

What's Included

    (1) ACME linear actuator

Downloads

Product Manual

Features + Benefits

  • 6in. nominal/6.02in. actual stroke
  • 12V motor
  • 20:1 reduction gearbox
  • 500-lb. dynamic load rating
  • 1,000-lb. static load rating
  • Extension speed is 0.56in./sec. at max. load
  • Extension speed is 0.66in./sec at no load
  • 25% duty cycle
  • 13.2 Amps at full load
  • 2.4 Amps at no load
  • IP65 enclosure
  • ACME drive assures smooth and quiet operation
  • Built-in torque limiter prevents overdriving
  • All metal powder-coated housing is water-resistant and sealed against dust
  • 1/2in. mounting pin holes
  • 12.24in. retracted length
  • 0.787in. shaft diameter

Key Specs

AttributeSpecification

item#

27323

Brand

Concentric

Manufacturer's Warranty

1 year limited warranty

Ship Weight

9.8 LB

Stroke Length

6 in

Dynamic Load Capacity

500 lb
AttributeSpecification

Static Load Capacity

1,000 lb

Product Type

Linear Actuator

Gear Ratio

20:1

Length Retracted

12.25 in

Volts

12

Frame Material

Multiple

Reviews

Questions & Answers

7 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. which mounts does it use

    1 answer

    1. Please view item 27316 for a compatible mounting bracket.

      Helpful?

  2. Is the static load in both directions?

    I currently have this item andstarted to use it.... It does not have a holding power when out.

    1 answer

    1. The static load applies to both directions.

      Helpful?

  3. does this actuator have internal end of stroke limit switches

    1 answer

    1. This actuator has a built-in torque limiter that prevents overdriving. The actuator does not have a limit switch, It will make a ratcheting noise when it is at the end of stroke up and down.

      Helpful?
