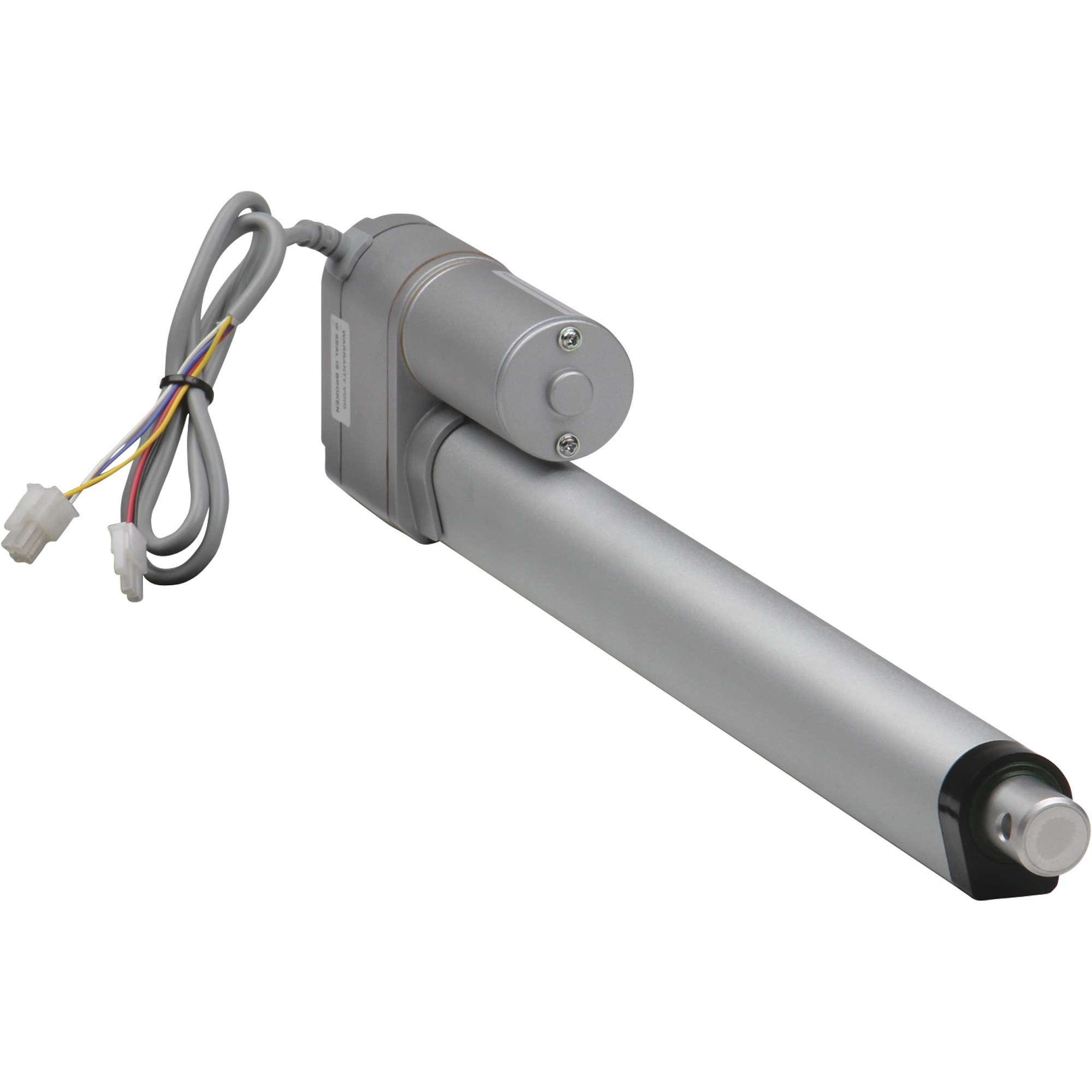

Glideforce 110-Lb. Capacity Linear Actuator, 11.81in. Stroke, Model# LACT12P

Item# 27319
Glideforce 110-Lb. Capacity Linear Actuator, 11.81in. Stroke, Model# LACT12P

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Glideforce 110-Lb. Capacity Linear Actuator, 11.81in. Stroke, Model# LACT12P

Click or Tap image to Zoom

$159.99

Buy 6 or more at $157.59 ea.

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 12in. nominal/11.8in. actual stroke
  • 12V motor
  • 20:1 reduction gearbox
  • 110-lb. dynamic load rating
  • Extension speed is 0.39in./sec. at max. load

See full description

Complete Your Solution

  • Glideforce 110-Lb. Capacity Linear Actuator, 11.81in. Stroke, Model# LACT12P
  • Glideforce 7-Channel Wireless Remote Control, Model# VERSA7
  • Glideforce Programmable Controller Kit, Controls One LD-ACME Linear Actuator, Model# LA-CONTROLLER
  • Glideforce Programmable Controller Kit, Controls Two LD-ACME Linear Actuators, Model# Dual Actuator
Price for all four:

$519.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Glideforce LD-ACME model linear actuator features an all-metal housing and is water-resistant and sealed against dust for rugged durability. 12V motor has 20:1 reduction gearbox that gives actuator a dynamic load rating of 110 lbs. and is rated to hold up to 500 lbs. when not moving. Use to raise and lower power equipment attachments, auto hoods and trunks, position solar panels, television lifts and many other applications around the home and farm. Unit can be controlled with a double pole, double throw switch or with the built-in position sensor and optional linear actuator programmable controller.

What's Included

    (1) Linear actuator

Downloads

Product Manual

Features + Benefits

  • 12in. nominal/11.8in. actual stroke
  • 12V motor
  • 20:1 reduction gearbox
  • 110-lb. dynamic load rating
  • Extension speed is 0.39in./sec. at max. load
  • Extension speed is 0.57in./sec. at no load
  • 25% duty cycle
  • 3.2 Amps at full load
  • 0.6 Amps at no load
  • IP65 enclosure
  • Nonadjustable end stop limit switches simplify installation and wiring
  • ACME drive for smooth, quiet operation
  • 1/4in. mounting pin holes
  • 17.72in. retracted length
  • 0.787in. shaft diameter
  • 18 1/4in.L x 1 1/2in.W x 3in.H overall
  • Can be controlled with a double pole, double throw switch
  • Can be controlled with built-in position sensor and optional linear actuator programmable controller

Key Specs

AttributeSpecification

item#

27319

Brand

Concentric

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3.4 LB

Stroke Length

12 in

Dynamic Load Capacity

110 lb
AttributeSpecification

Static Load Capacity

500 lb

Product Type

Linear Actuator

Gear Ratio

20:1

Length Retracted

17.75 in

Volts

12

Frame Material

Multiple

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

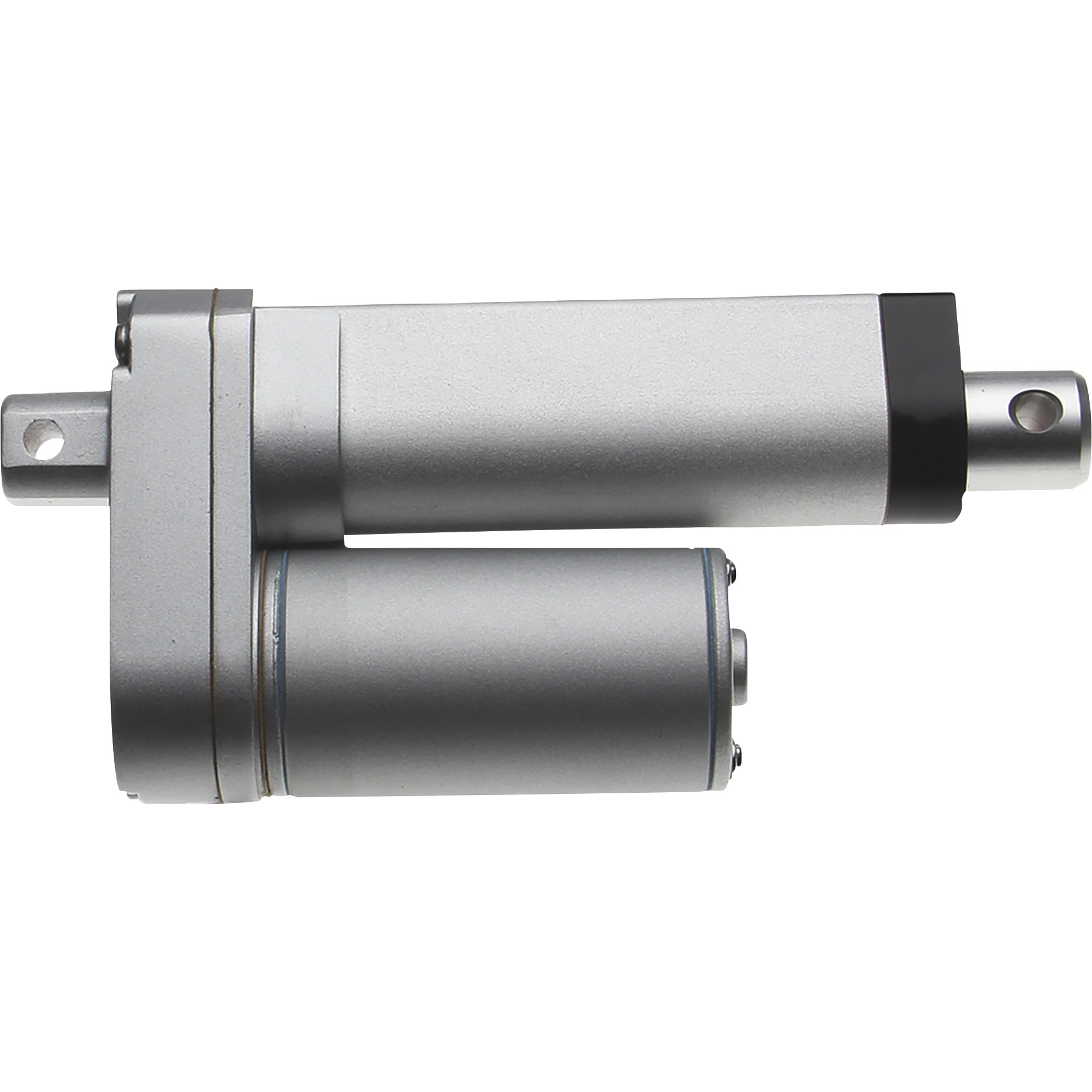

  1. How is the base end of the actuator attached?

    Please provide details on how the base end of the actuator is attached. I see the fitting for the outer end connection but nothing to indicate how the base is connected or held down.

    1. The base is molded into the body of the actuator. it is a short round stud, about 1/2" in diameter and maybe 3/4" in length (I don't have one in front of me at the moment). There is a 1/4" hold drilled for a steel pin which is oriented horizontally as the actuator is shown in the photo. The appearance of the stud molded into the base is nearly identical to the end you CAN see in the photo.

      It should be noted that the actuator arm is threaded onto a screw shaft. It is screwed on with about one inch of threads. You can adjust the static length of the actuator by about 1/4" by screwing the arm out 1/2 rotation, or a full rotation, however, by unscrewing the shaft, you are probably reducing the rated load capacity because internally you have that many LESS threads holding the arm to the internal screw.

      Helpful?

    2. This linear actuator has a short extension that comes out of the body/base on the non-moving end. This extension has a pin hole that's 1/4" which is the same diameter as the actuator shaft's pin hole. A better image of the actuator that shows the mounting setup is in the owner's manual. The owner's manual for this actuator can be viewed by clicking the link located below the Customer Product Rating area that's to the right of the main product image.

      Helpful?

  2. In addition to the red and black wires that activate the actuator, what is the 3 wire group used for

    1 answer

    1. The group that contains 3 wires is the potentiometer. It includes the V input, the RS output and the grounding wire.

      Helpful?

  3. Is this made in the USA?

    1 answer

    1. This actuator is manufactured in Taiwan.

      Helpful?
