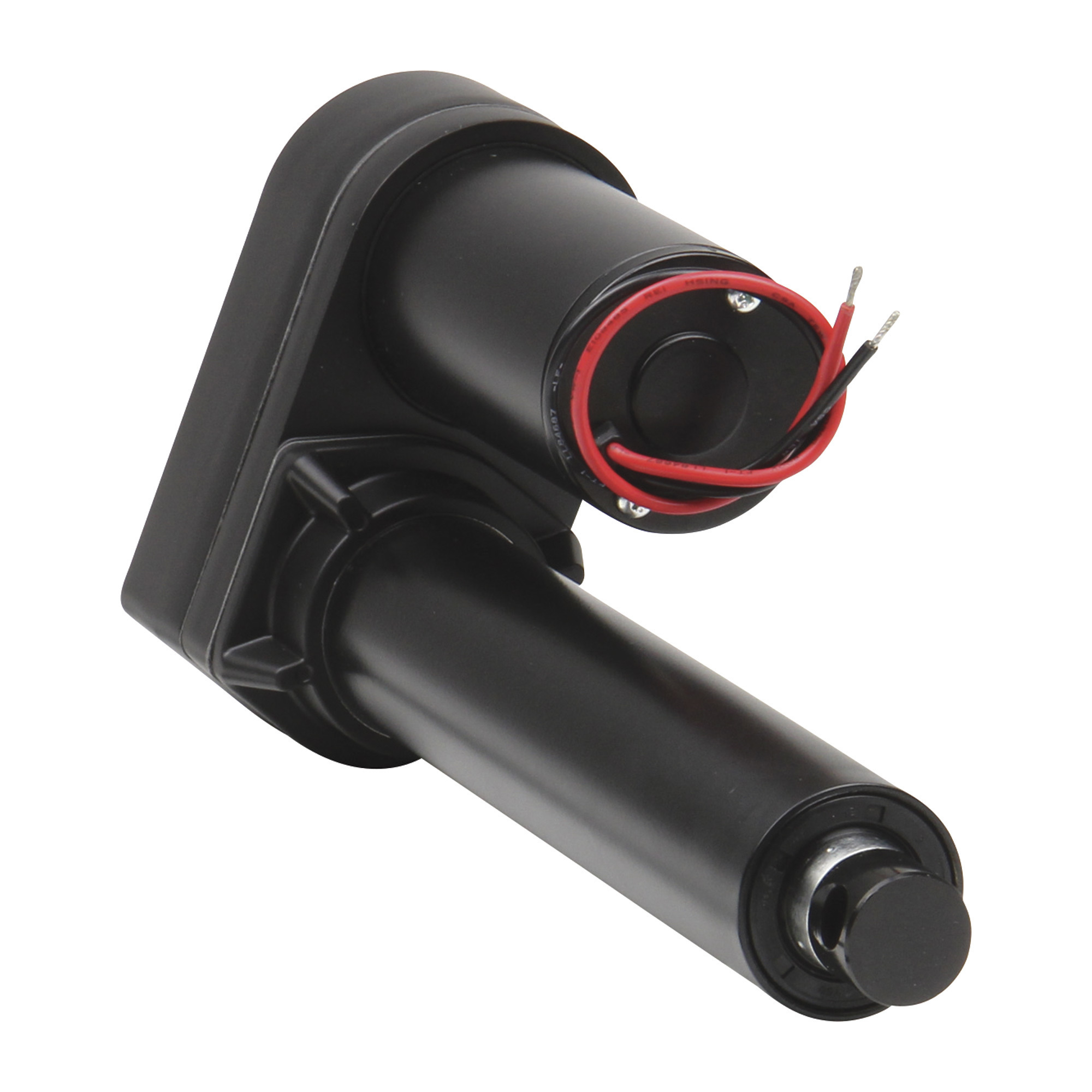

Glideforce 1,000-Lb. Capacity ID-Ballscrew Linear Actuator, 7.32in. Stroke, Model# LACT8-1000B

Item# 27325
"Glideforce 1,000-Lb. Capacity ID-Ballscrew Linear Actuator, 7.32in. Stroke, Model# LACT8-1000B"
Top Seller
Glideforce 1,000-Lb. Capacity ID-Ballscrew Linear Actuator, 7.32in. Stroke, Model# LACT8-1000B

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Glideforce 1,000-Lb. Capacity ID-Ballscrew Linear Actuator, 7.32in. Stroke, Model# LACT8-1000B

Click or Tap image to Zoom

$449.99

Buy 4 or more at $431.99 ea.

  • Shipping:

    Factory shipped

  • Store Pickup:

  • 8in. nominal/7.32in. actual stroke
  • 12V motor
  • 20:1 reduction gearbox
  • 1000-lb. dynamic load rating
  • 3,000-lb. static load rating

See full description

Complete Your Solution

  • Glideforce 1,000-Lb. Capacity ID-Ballscrew Linear Actuator, 7.32in. Stroke, Model# LACT8-1000B
  • Glideforce 7-Channel Wireless Remote Control, Model# VERSA7
  • Glideforce 100 Amp DC Reversing Contactor, Model# RELAY-100-12
  • Glideforce Toggle Reversing Switch, 30 Amp Maintained Contacts, Model# SWT-TOG-4W
Price for all four:

$694.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Rugged Glideforce ID-Ballscrew linear actuator can be used in a variety of outdoor and indoor applications. The 12V motor has a 20:1 reduction gearbox that gives Ballscrew actuator a dynamic load rating of 1,000 lbs. and is rated to hold up to 3,000 lbs. when not moving. Use to raise and lower power equipment attachments, auto hoods and trunks, position solar panels, television lifts and many other applications around the home and farm.

What's Included

    (1) Ballscrew linear actuator

Downloads

Product Manual

Features + Benefits

  • 8in. nominal/7.32in. actual stroke
  • 12V motor
  • 20:1 reduction gearbox
  • 1000-lb. dynamic load rating
  • 3,000-lb. static load rating
  • Extension speed is 0.56in./sec. at max. load
  • Extension speed is 0.66in./sec at no load
  • 25% duty cycle
  • 13.2 Amps at full load
  • 2.4 Amps at no load
  • IP65 enclosure
  • Ballscrew drive assures smooth and quiet operation
  • Built-in torque limiter prevents overdriving
  • All metal powder-coated housing is water-resistant and sealed against dust
  • 1/2in. mounting pin holes
  • 16 1/16in. retracted length, 23 3/8in. extended length
  • 1.125in. shaft diameter

Key Specs

AttributeSpecification

item#

27325

Brand

Concentric

Manufacturer's Warranty

1 year limited warranty

Ship Weight

11.8 LB

Stroke Length

8 in

Dynamic Load Capacity

1,000 lb

Static Load Capacity

3,000 lb
AttributeSpecification

Product Type

Linear Actuator

Gear Ratio

20:1

Length Retracted

16.06 in

Length Extended

23.375 in

Volts

12

Frame Material

Multiple

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. how many inches per second does it extend at?

    1 answer

    1. The extension speed is 0.56" per second at max load and 0.66" per second with no load.

      Helpful?

  2. Does this actuator push and pull with equal force?

    1 answer

    1. This linear actuator will push and pull equally with 1,012 lbs. of force.

      Helpful?

  3. what is the extended length?

    1 answer

    1. The extended length of the 1000 lb. capacity ID ballscrew linear actuator is 16.06 inches.

      Helpful?

  4. Is the ram adjustable?

    1 answer

    1. This 1000-Lb. Capacity ID-Ballscrew Linear Actuator is adjustable as the unit will go out to the desired length and back in. This actuator’s pin hole adjustment is adjustable as well.

      Helpful?
