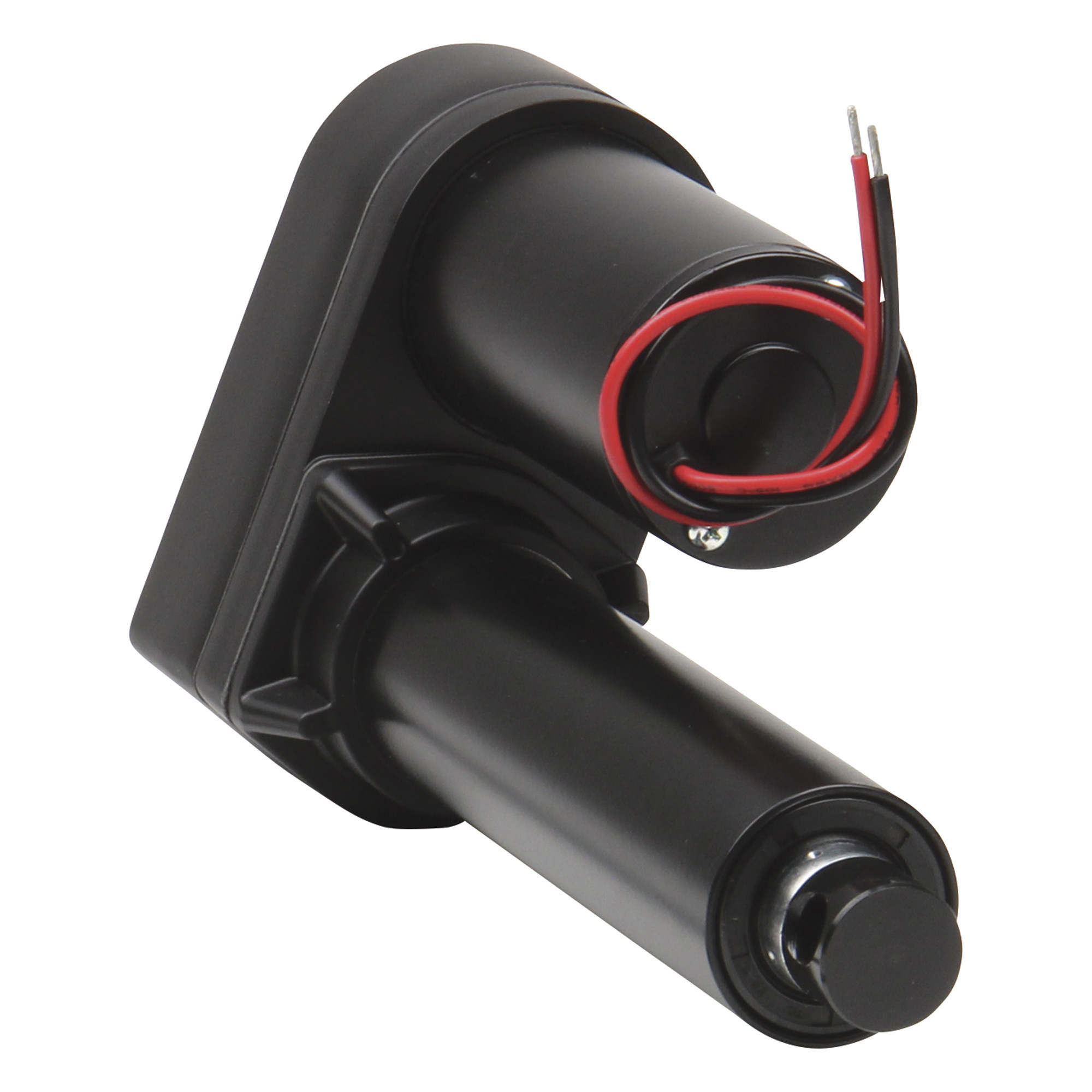

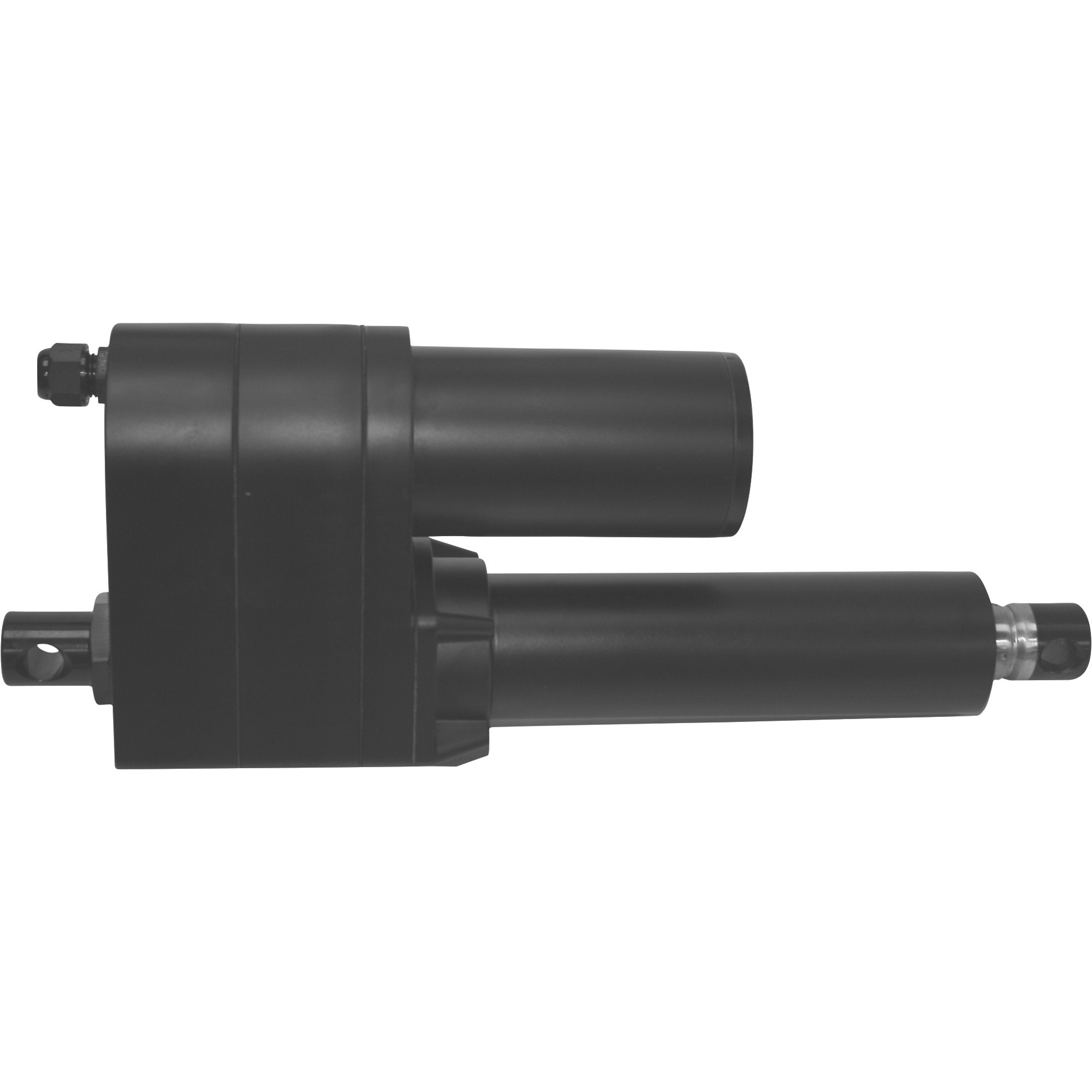

Glideforce 1.000-Lb. Capacity ID-Ballscrew Linear Actuator, 5.31in. Stroke, Model# LACT6-1000B

Item# 27322
"Glideforce 1.000-Lb. Capacity ID-Ballscrew Linear Actuator, 5.31in. Stroke, Model# LACT6-1000B"
Top Seller
Glideforce 1.000-Lb. Capacity ID-Ballscrew Linear Actuator, 5.31in. Stroke, Model# LACT6-1000B

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Glideforce 1.000-Lb. Capacity ID-Ballscrew Linear Actuator, 5.31in. Stroke, Model# LACT6-1000B

Click or Tap image to Zoom

$459.99

Buy 4 or more at $441.59 ea.

  • Shipping:

    Factory shipped

  • Store Pickup:

  • 6in. nominal/5.31in. actual stroke
  • 12V motor
  • 20:1 reduction gearbox
  • 1.000-lb. dynamic load rating
  • 3.000-lb. static load rating

See full description

Complete Your Solution

  • Glideforce 1.000-Lb. Capacity ID-Ballscrew Linear Actuator, 5.31in. Stroke, Model# LACT6-1000B
  • Glideforce 7-Channel Wireless Remote Control, Model# VERSA7
  • Glideforce 100 Amp DC Reversing Contactor, Model# RELAY-100-12
  • Glideforce Toggle Reversing Switch, 30 Amp Maintained Contacts, Model# SWT-TOG-4W
Price for all four:

$704.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Rugged Glideforce ID-Ballscrew linear actuator can be used in a variety of outdoor and indoor applications. The 12V motor has a 20:1 reduction gearbox that gives Ballscrew actuator a dynamic load rating of 1.000 lbs. and is rated to hold up to 3.000 lbs. when not moving. Use to raise and lower power equipment attachments, auto hoods and trunks, position solar panels, television lifts and many other applications around the home and farm.

What's Included

    (1) Ballscrew linear actuator

Downloads

Product Manual

Features + Benefits

  • 6in. nominal/5.31in. actual stroke
  • 12V motor
  • 20:1 reduction gearbox
  • 1.000-lb. dynamic load rating
  • 3.000-lb. static load rating
  • Extension speed is 0.56in./sec. at max. load
  • Extension speed is 0.66in./sec at no load
  • 25% duty cycle
  • 13.2 Amps at max. load
  • 2.4 Amps at no load
  • IP65 enclosure
  • Ballscrew drive assures smooth and quiet operation
  • Built-in torque limiter prevents overdriving
  • All metal powder-coated housing is water-resistant and sealed against dust
  • 1/2in. mounting pin holes
  • 14. 1/16n. retracted length
  • 1 1/8in. shaft diameter

Key Specs

AttributeSpecification

item#

27322

Brand

Concentric

Manufacturer's Warranty

1 year limited warranty

Ship Weight

11.0 LB

Stroke Length

5.31 in

Dynamic Load Capacity

1,000 lb

Static Load Capacity

3,000 lb
AttributeSpecification

Product Type

Linear Actuator

Gear Ratio

20:1

Length Retracted

14.06 in

Length Extended

19.31 in

Volts

12

Frame Material

Aluminum

Reviews

Questions & Answers

11 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. is this power both ways (out and in)

    1. Yes it is powered both in and out

      Helpful?

    2. Yes. Reversing the polarity of the red and black wires will reverse the motor's direction and the direction of the ram's movement.

      Helpful?

    3. Yes this actuator does power in and out.

      Helpful?

  2. what are the specs for this, length , ect

    1 answer

    1. The retracted length is 14.06". The extended length is 19.31". The stroke length would be 5.31".

      Helpful?

  3. What all do I need to install this electric actuator

    1 answer

    1. A 12 Volt battery that can supply 13.2 amps at max load. Additional accessories you may need are a mounting bracket and switch. You can view the mounting bracket and switch options under Accessories We Recommend.

      Helpful?

  4. How do change the base stud mount hole orientation?

    1 answer

    1. The mounting stud can be loosened and rotated so the pin hole can be oriented in a different direction.

      Helpful?

  5. Is this product available in 24V

    1 answer

    1. This 1000-Lb. Capacity ID-Ballscrew Linear Actuator does not come in 24 volts.

      Helpful?

  6. Will this fit a old john deere gator 6x4

    Heres the product identification number W006X4035261

    1 answer

    1. You will need to check the measurements on the actuator to see if it matches up to your existing unit. The actuator measures 14 1/16" when retracted and 19 5/16" when extended. You can check out other specifications listed on the website for this unit.

      Helpful?
