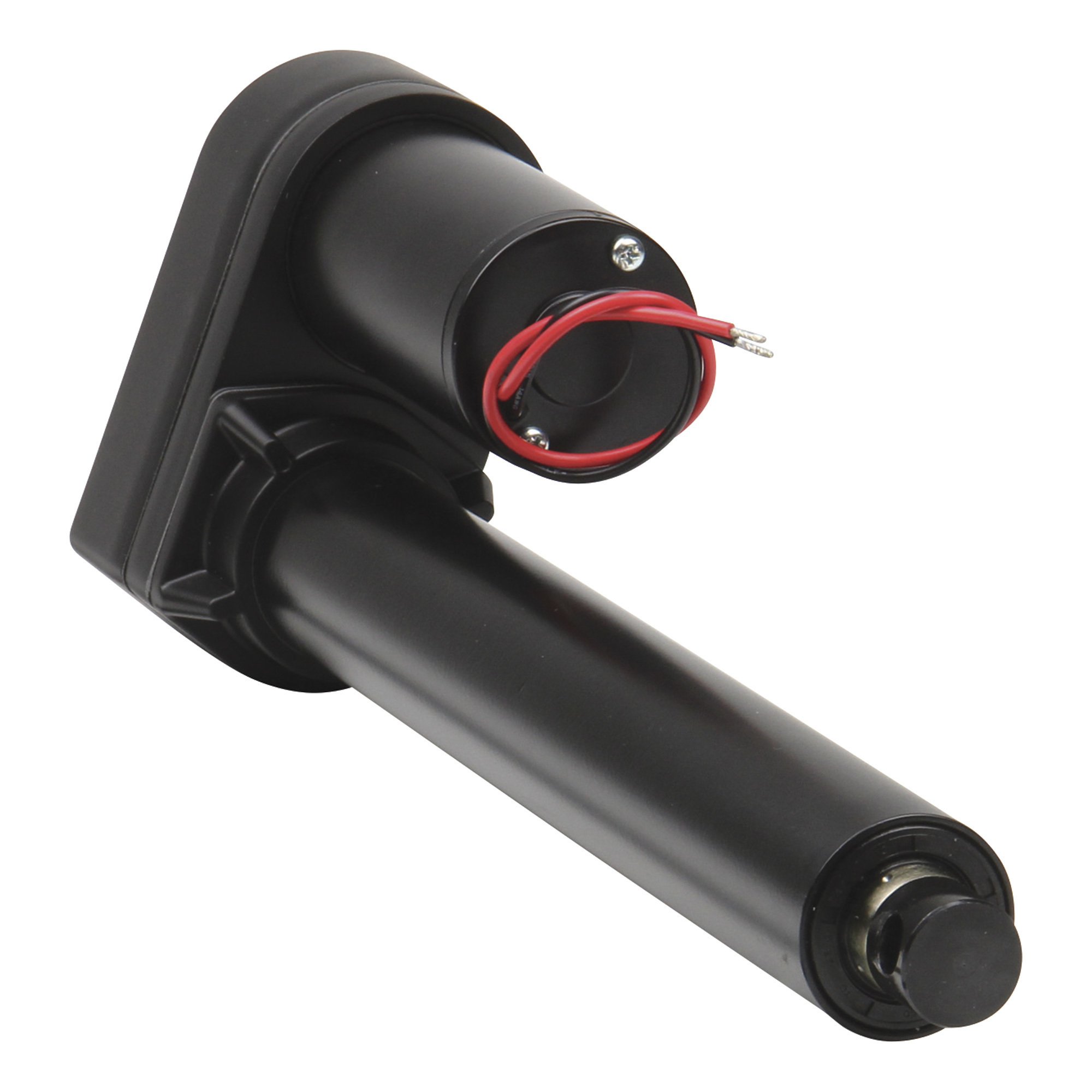

Glideforce 1,000-Lb. Capacity ID-Ballscrew Linear Actuator, 11.34in. Stroke, Model# LACT12-1000B

Item# 27312
"Glideforce 1,000-Lb. Capacity ID-Ballscrew Linear Actuator, 11.34in. Stroke, Model# LACT12-1000B"
Glideforce 1,000-Lb. Capacity ID-Ballscrew Linear Actuator, 11.34in. Stroke, Model# LACT12-1000B

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Glideforce 1,000-Lb. Capacity ID-Ballscrew Linear Actuator, 11.34in. Stroke, Model# LACT12-1000B

Click or Tap image to Zoom

$469.99

Buy 4 or more at $451.19 ea.

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 12in. nominal/11.34in. actual stroke
  • 12V motor
  • 20:1 reduction gearbox
  • 1.000-lb. dynamic load rating
  • 3.000-lb. static load rating

See full description

Complete Your Solution

  • Glideforce 1,000-Lb. Capacity ID-Ballscrew Linear Actuator, 11.34in. Stroke, Model# LACT12-1000B
  • Glideforce 7-Channel Wireless Remote Control, Model# VERSA7
  • Glideforce 100 Amp DC Reversing Contactor, Model# RELAY-100-12
  • Glideforce Toggle Reversing Switch, 30 Amp Maintained Contacts, Model# SWT-TOG-4W
Price for all four:

$714.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Rugged Glideforce ID-Ballscrew linear actuator can be used in a variety of outdoor and indoor applications. The 12V motor has a 20:1 reduction gearbox that gives Ballscrew actuator a dynamic load rating of 1,000 lbs. and is rated to hold up to 3,000 lbs. when not moving. Use to raise and lower power equipment attachments, auto hoods and trunks, position solar panels, television lifts and many other applications around the home and farm.

What's Included

    (1) Ballscrew linear actuator

Downloads

Product Manual

Features + Benefits

  • 12in. nominal/11.34in. actual stroke
  • 12V motor
  • 20:1 reduction gearbox
  • 1.000-lb. dynamic load rating
  • 3.000-lb. static load rating
  • Extension speed is 0.56in./sec. at max. load
  • Extension speed is 0.66in./sec at no load
  • 25% duty cycle
  • 13.2 Amps at max. load
  • 2.4 Amps at no load
  • IP65 enclosure
  • Ballscrew drive assures smooth and quiet operation
  • Built-in torque limiter prevents overdriving
  • All metal powder-coated housing is water-resistant and sealed against dust
  • 1/2in. mounting pin holes
  • 20.08in. retracted length
  • 1.125in. shaft diameter

Key Specs

AttributeSpecification

item#

27312

Brand

Concentric

Manufacturer's Warranty

1 year limited warranty

Ship Weight

12.9 LB

Stroke Length

12 in

Dynamic Load Capacity

1,000 lb
AttributeSpecification

Static Load Capacity

3,000 lb

Product Type

Linear Actuator

Gear Ratio

20:1

Length Retracted

20.125 in

Volts

12

Frame Material

Multiple

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. Does this actuator have dual internal limiting switches?

    1 answer

    1. This actuator will have a single overload clutch (torque limiter).

      Helpful?

  2. can i use this product to open a 6'x50" steel gate @ 250lbs

    1 answer

    1. The linear actuator has not been tested for this specific application. It would depend on what the dynamic load would be for the gate as to whether it would work to open the gate or not.

      Helpful?

  3. Is this actuator powered in both directions or just one?

    1 answer

    1. This actuator is powered both in and out.

      Helpful?

  4. Is this actuator equiped with upper and lower limit switches

    1 answer

    1. This actuator is not equipped with upper and lower limit switches.

      Helpful?

  5. Is this ignition protected?

    I have an actuator similar to this in my boat to lift the back sun pad/engine cover. Is this ignition protected to eliminate the chance of explosion/fire in the back hatch/engine area if there are flamable fumes? I really don't want to blow up.

    1 answer

    1. This actuator should not be used in close proximity to flammable fumes such as the back hatch/engine area of a boat.

      Helpful?

  6. what is the extended length?

    1 answer

    1. The extended length of this actuator is 31.42".

      Helpful?

  7. what is the duty cycle rating?

    1 answer

    1. This 1000-Lb. Capacity ID-Ballscrew Linear Actuator has a 25% duty cycle.

      Helpful?

  8. Would this work on a 3 point hitch?

    I am building a 3 point hitch on a lawn tractor that has no hydraulics.

    1 answer

    1. This actuator uses 12 volts for power and does not use hydraulics so keeping in mind it has a dynamic load rating of 1000 pounds, it should work fine.

      Helpful?
