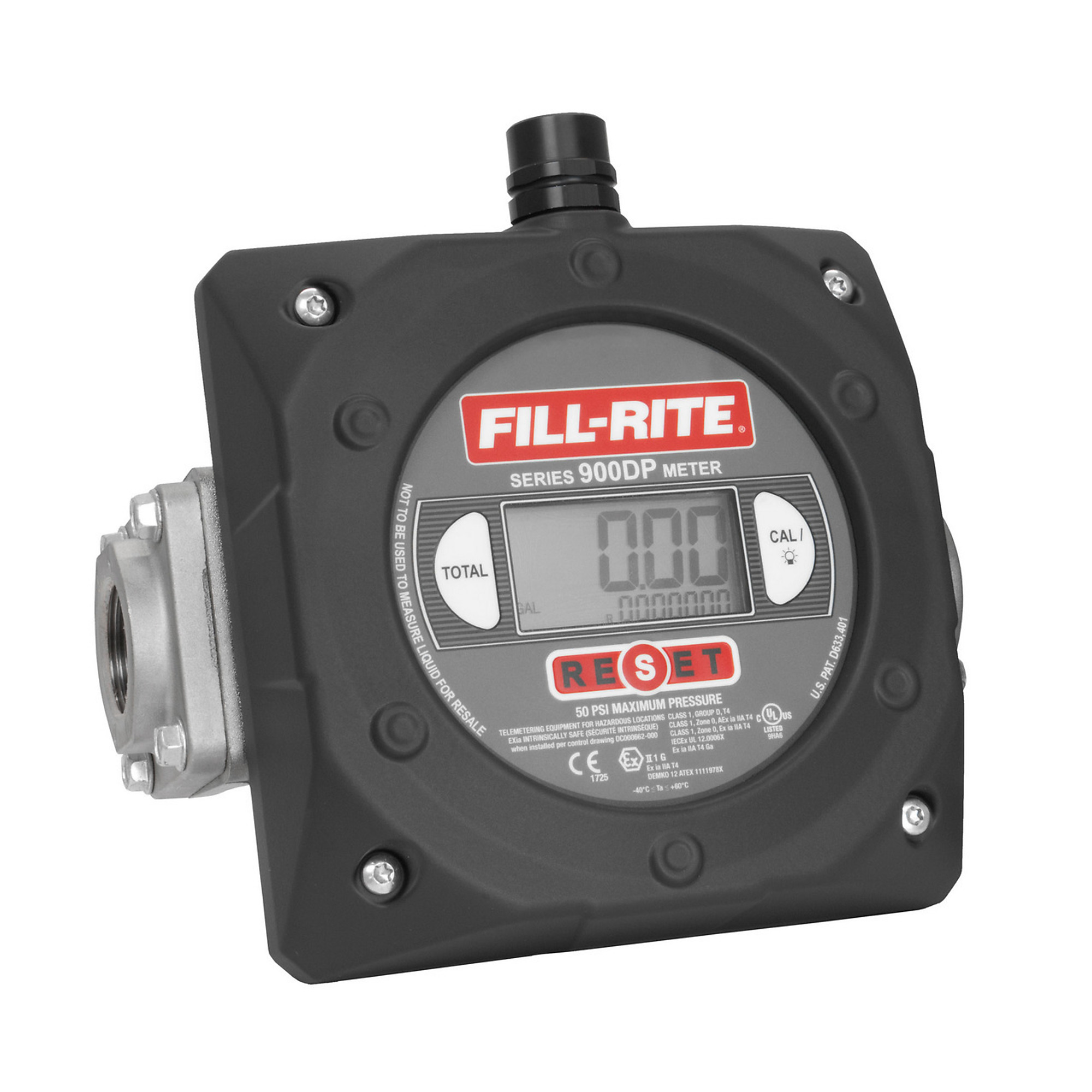

Fill-Rite, 6-40 GPM 4-Digit Digital Meter, Model# 900CDPX1.5

Item# 6151045
Fill-Rite, 6-40 GPM 4-Digit Digital Meter, Model# 900CDPX1.5

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Fill-Rite, 6-40 GPM 4-Digit Digital Meter, Model# 900CDPX1.5

Click or Tap image to Zoom

$529.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Built to last with rugged cast-aluminum construction, designed for maximum durability and lifetime corrosion resistance.
  • Thick nickel-plated exterior provides additional corrosion resistance and protection from tough environmental conditions.
  • Measures fuel more accurately than comparable mechanical models at +/- 1.25% accuracy, ensuring the most precise record-keeping for your business.
  • Designed with nutating disc technology that is capable of moving rust and small debris that jam and cause damage to other meters.
  • Factory pre-calibration for numerous fluids makes installation quick, saving you time and eliminating frustration.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The 900CDPX1.5 is a nickel-plated, 4-digit digital fuel transfer meter with pulse output. This meter is equipped with NPT threads and is designed to register 6-40 gallons per minute at +/- 1.25% accuracy. This model does not include additional installation components. Do not use this meter in an area with explosive atmospheres.

What's Included

    (1) One Digital Meter

Features + Benefits

  • Built to last with rugged cast-aluminum construction, designed for maximum durability and lifetime corrosion resistance.
  • Thick nickel-plated exterior provides additional corrosion resistance and protection from tough environmental conditions.
  • Measures fuel more accurately than comparable mechanical models at +/- 1.25% accuracy, ensuring the most precise record-keeping for your business.
  • Designed with nutating disc technology that is capable of moving rust and small debris that jam and cause damage to other meters.
  • Factory pre-calibration for numerous fluids makes installation quick, saving you time and eliminating frustration.
  • Track fluids in any user-created unit in addition to preset measurements like gallons, litres, ounces, pints, and quarts.
  • 4-digit digital counter registers flow rates between 6-40 GPM and up to 999.9 gallons or liters per batch, perfect for heavy equipment with large fuel tanks.
  • 7-digit non-resettable counter tracks total volume transferred over lifetime of meter.
  • Designed for daily use with designed for daily use with diesel, gasoline, kerosene, mineral Spirits, heptane, hexane, and biodiesel blends up to B20.

Key Specs

AttributeSpecification

item#

6151045

Brand

Fill-Rite

Manufacturer's Warranty

2 year limited warranty

Ship Weight

8.8 LB

Min. Flow Rate

6 GPM

Max. Flow Rate

40 GPM

Max. PSI

50

Product Type

Fuel Meters
AttributeSpecification

Inlet Port

1-1/2 in. NPT

Outlet Port

1-1/2 in. NPT

Min. Temperature

0 °F

Max. Temperature

140 °F

Display

Digital

Product Weight

7.1000 lb

Dimensions L x W x H (in.)

5.0 x 9.5 x 7.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
