This comes with (2) AA batteries.

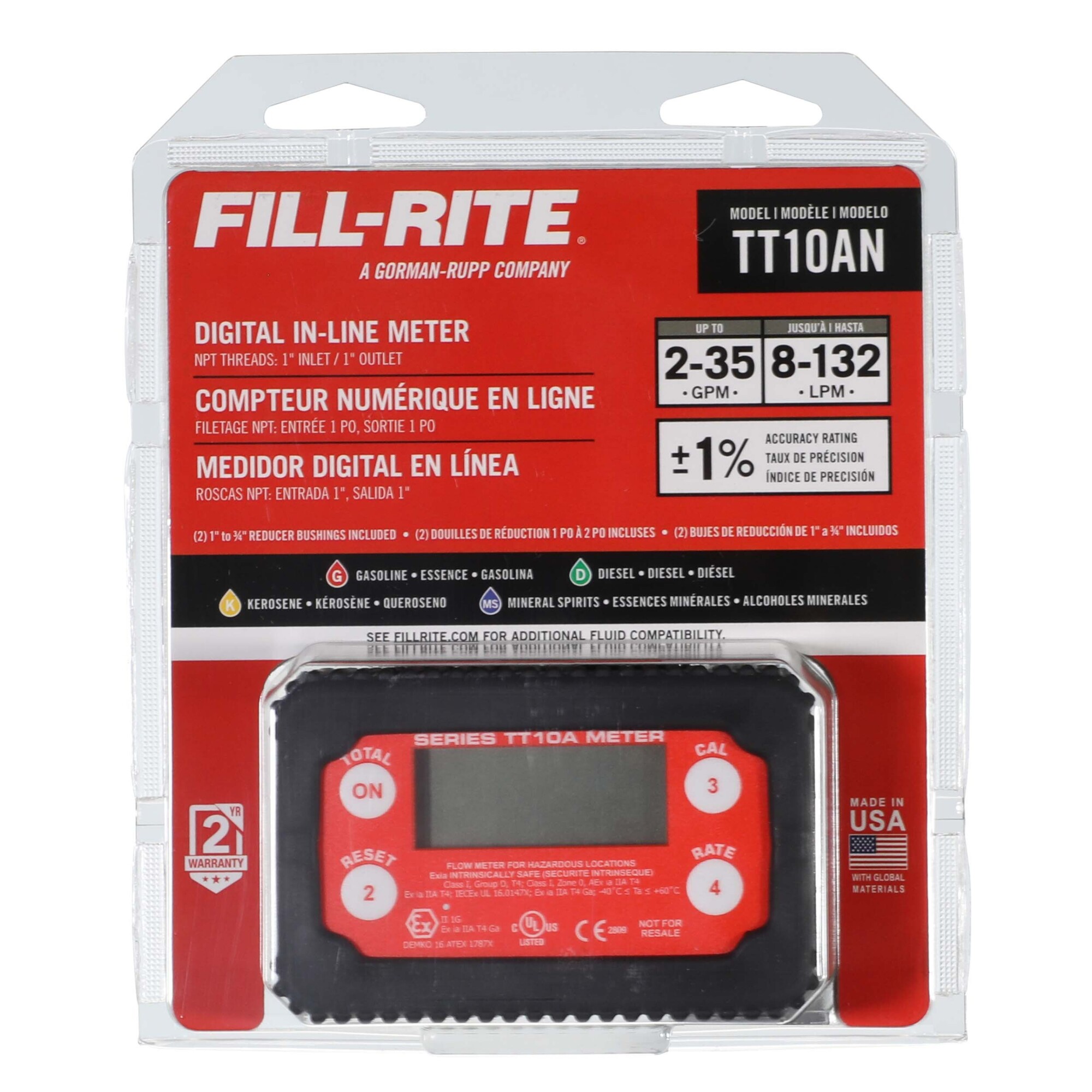

Fill-Rite Digital Turbine Fuel Meter,1in. Inlet/Outlet, 2 to 35 GPM, Aluminum Housing, Model# TT10AN
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$224.99
- Aluminum housing
- Easy-to-use design with easy-to-read digital display that's accurate to within 1%
- Measures gallons, liters, quarts, pints, and ounces for versatility
- Compatible for use with gasoline, diesel, Jet fuel, Heptane, kerosene and mineral spirits
- 50 PSI maximum operating pressure
See full description
What's Included
- (1) Digital fuel meter (2) 1in. x 0.75in. hex head reducer bushings
Features + Benefits
- Aluminum housing
- Easy-to-use design with easy-to-read digital display that's accurate to within 1%
- Measures gallons, liters, quarts, pints, and ounces for versatility
- Compatible for use with gasoline, diesel, Jet fuel, Heptane, kerosene and mineral spirits
- 50 PSI maximum operating pressure
- Operational from 2 to 35 GPM flow rates
- 1in. inlet and 1in. outlet ports
- Operates efficiently in temperatures from -40°F to +176°F
- Intrinsically safe electronics and near global regulatory approvals provide peace-of-mind
- Factory presets for use with 20 fluids and UL/ATEX listing on the entire meter
- Rubber boot helps protect the meter and electronics from impact damage
- Replaceable AA batteries keep the meter running and downtime to a minimum
See All Control Valves + Fuel Meters
See All Fill-Rite Control Valves + Fuel Meters
Currently Viewing This Product
Specifications
Specifications
Fill-Rite Digital Turbine Fuel Meter,1in. Inlet/Outlet, 2 to 35 GPM, Aluminum Housing, Model# TT10AN
Fill-Rite Digital Turbine Fuel Meter,1in. Inlet/Outlet, 2 to 35 GPM, Nickel-Plated Aluminum Housing, Model# TT10ANC
GPI 5-30 GPM Modular Mechanical Fuel Meter
Fill-Rite, 19-76 LPM 3-Digit Mechanical Liter Meter, Model# 807CL1
Min. Flow Rate
Same
2 GPM
2 GPM
-
19 GPM
Max. Flow Rate
Same
35 GPM
35 GPM
-
76 GPM
Max. PSI
Same
50
50
-
50
Operating PSI
Same
50
50
-
-
Product Type
Same
Fuel Meters
Fuel Meters
Fuel Meters
Fuel Meters
Inlet Port
Same
1 in. NPT
1 in. NPT
1 in. NPT
1 in. NPT
Outlet Port
Same
1 in. NPT
1 in. NPT
1 in. NPT
1 in. NPT
Min. Temperature
Same
-40 °F
0 °F
-
0 °F
Max. Temperature
Same
176 °F
140 °F
-
150 °F
Product Weight
Same
lb
0.8000 lb
lb
4.3000 lb

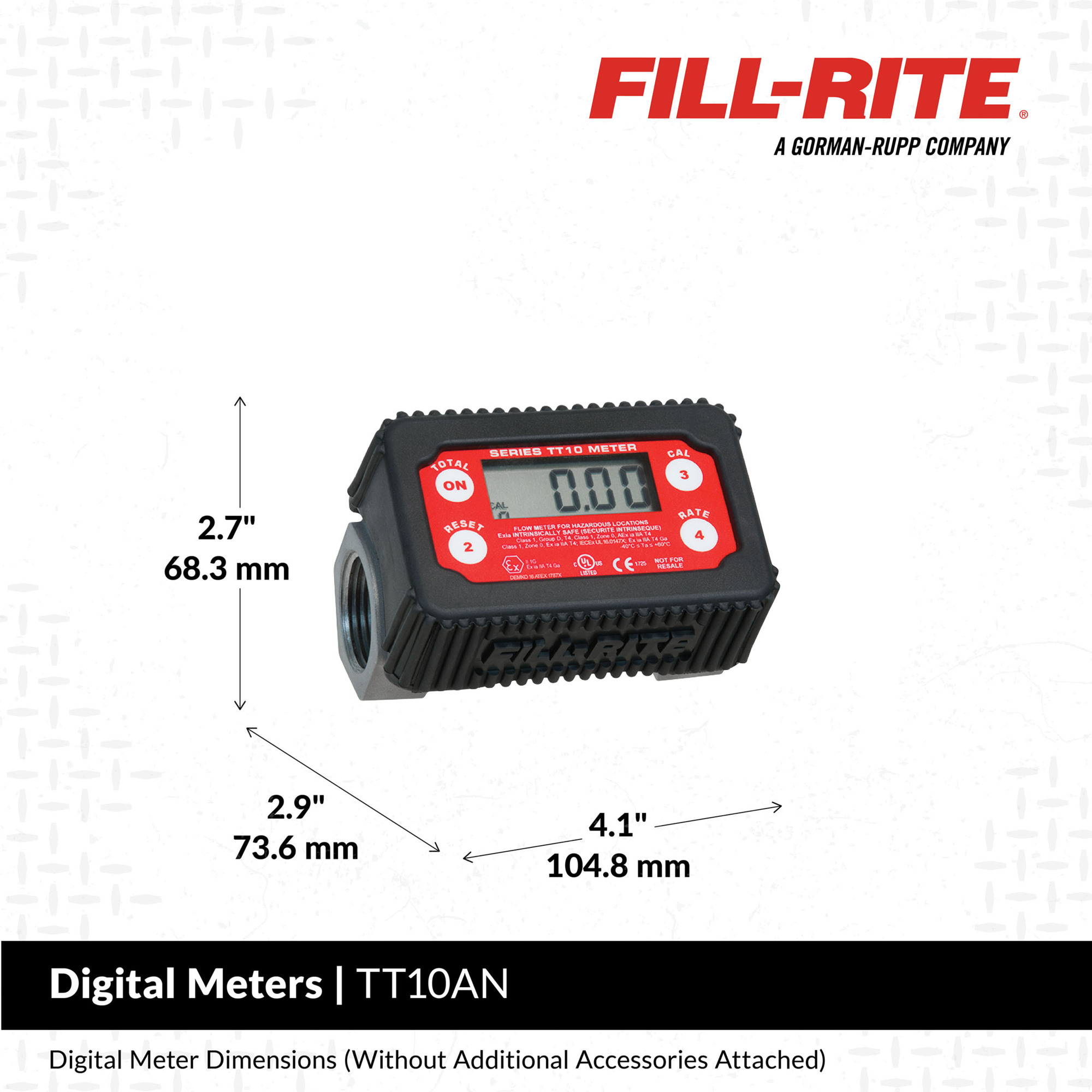

Dimensions L x W x H (in.)
Same
6.5 x 3.25 x 9.0 in
2.5 x 4.0 x 3.0 in
7.75 x 5.0 x 9.0 in
4.9 x 6.9 x 5.9 in
Display
Same
-
Digital
-
Analog
