Fill-Rite NX25 Fuel Transfer Pump, 25 GPM, 120V AC, Auto Nozzle, Model# NX25-120NB-AA

Item# 99204
Fill-Rite NX25 Fuel Transfer Pump, 25 GPM, 120V AC, Auto Nozzle, Model# NX25-120NB-AA

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Fill-Rite NX25 Fuel Transfer Pump, 25 GPM, 120V AC, Auto Nozzle, Model# NX25-120NB-AA

Click or Tap image to Zoom

$1199.99

  • Shipping:

    Factory shipped

  • Store Pickup:

  • Continuous duty cycle delivers non-stop performance that allows for all-day fuel transfer, reducing downtime
  • 120V AC operation designed for heavy duty applications on stationary aboveground storage tanks
  • Intelligent Tones™ simplify troubleshooting with audible alerts that indicate when and where attention is needed
  • Variable speed motor actively adjusts the pump's RPM speed for optimal performance while improving suction lift
  • Equipped with Fill-Rite's Ultra-High-Flow nozzle to fill equipment faster with true 25GPM/95LPM flow rates at the nozzle

See full description

Complete Your Solution

  • Fill-Rite NX25 Fuel Transfer Pump, 25 GPM, 120V AC, Auto Nozzle, Model# NX25-120NB-AA
  • Strongway Spring-Rewind Fuel and Oil Hose Reel, 3/4in. x 25ft. NBR Rubber Hose, 1250 PSI

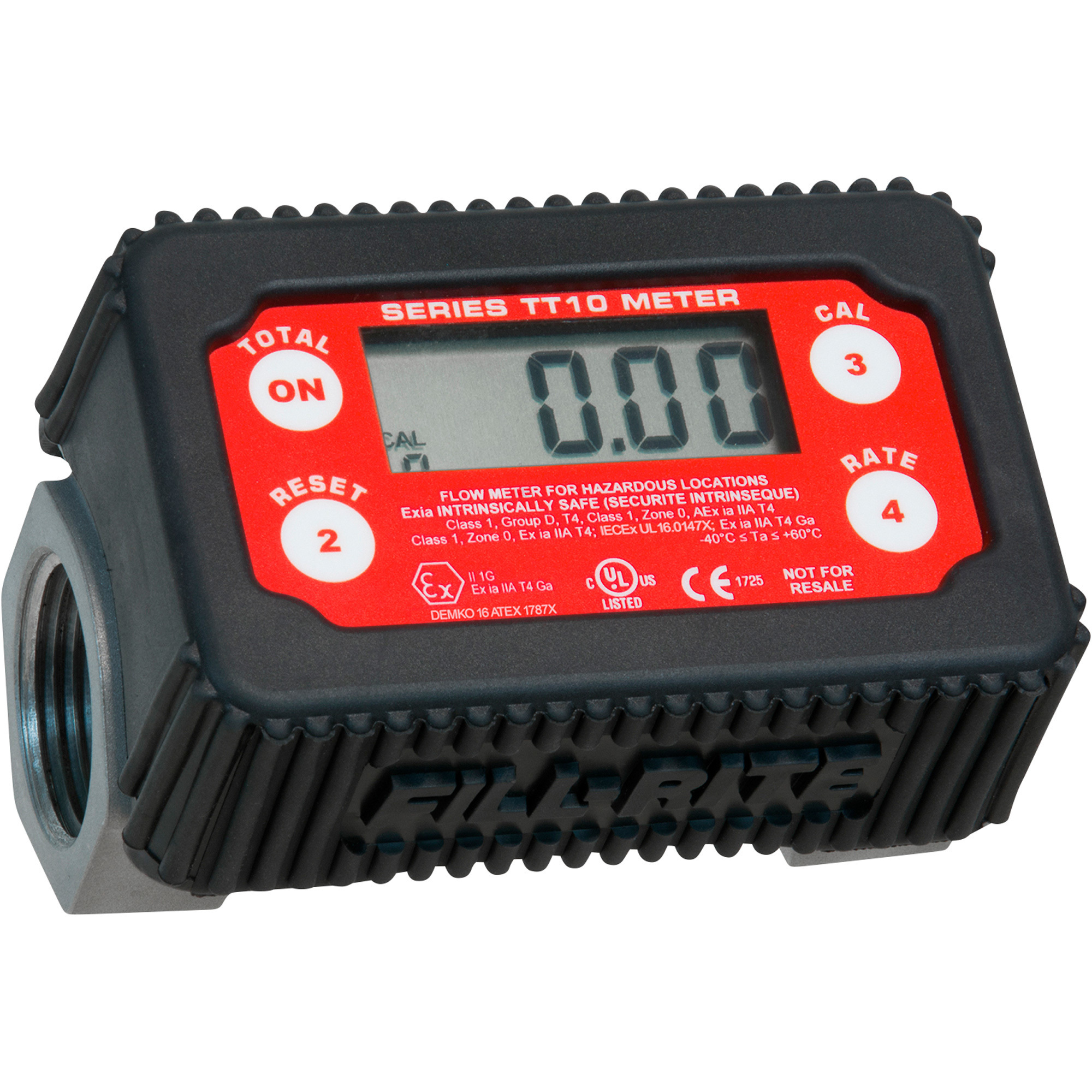

  • Fill-Rite Digital Turbine Fuel Meter,1in. Inlet/Outlet, 2 to 35 GPM, Aluminum Housing, Model# TT10AN
Price for all three:

$1824.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This industry-leading Fill-Rite 120V AC Continuous Duty Fuel Transfer Pump with Automatic Nozzle and Hose is an ultra-high flow pump designed with a proprietary combination of technologies and user functionalities that take pump performance to unprecedented levels. The pump is equipped with a variable speed motor and Fill-Rite's exclusive Nextec Intelligence technology, which dramatically extends pump and motor life while delivering unmatched performance in even the harshest applications. Its sleek, ultra-lightweight construction eases installation while still moving fuel with exceptional efficiency. The NX25 Series talks to users by using Intelligent Tones to audibly inform users when and where troubleshooting attention is needed. A variable speed motor is preprogrammed to automatically adjust for peak performance in every application and configuration while substantially increasing the life of the motor and pumping components like rotor and vanes, resulting in less downtime and maintenance. This package includes a 1in. x 18ft. UL listed static wire hose, exclusive Ultra-high-flow automatic nozzle, plus a nozzle boot for added storage and security. Compatible with diesel, gasoline, biodiesel up to B20, E15 kerosene, mineral spirits, and methanol (up to 15%), so this pump can transfer almost any fuel. The NX25 Series is designed for true durability and reliability in the field, ultimately reducing installation time, repair costs, energy consumption, and downtime costs.

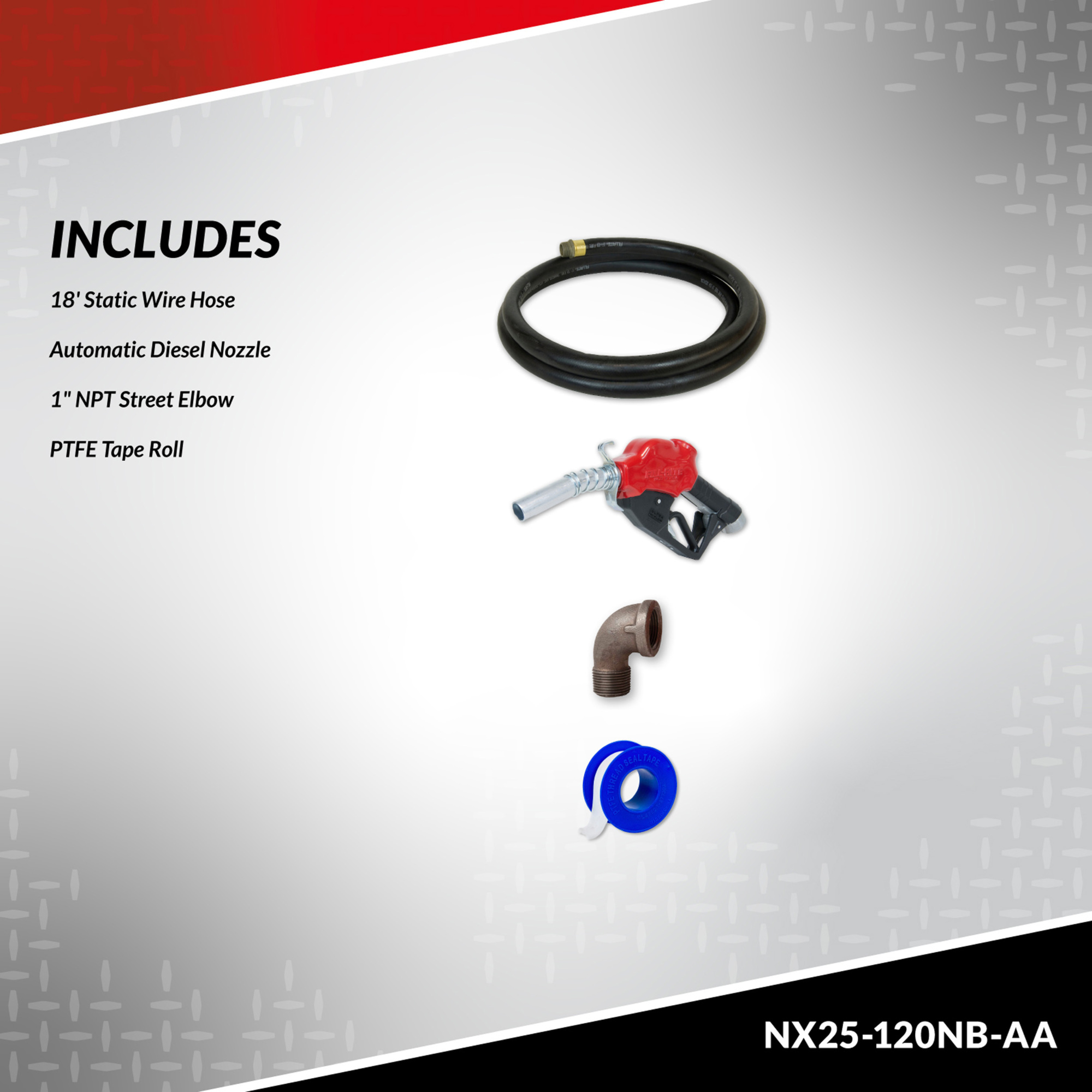

What's Included

    (1) Pump with Nextec Intelligence® (1) 1in. x 18ft. UL-listed hose with static wire (1) Ultra-High flow automatic nozzle (1) Nozzle boot
Play Item Video

Features + Benefits

  • Continuous duty cycle delivers non-stop performance that allows for all-day fuel transfer, reducing downtime
  • 120V AC operation designed for heavy duty applications on stationary aboveground storage tanks
  • Intelligent Tones™ simplify troubleshooting with audible alerts that indicate when and where attention is needed
  • Variable speed motor actively adjusts the pump's RPM speed for optimal performance while improving suction lift
  • Equipped with Fill-Rite's Ultra-High-Flow nozzle to fill equipment faster with true 25GPM/95LPM flow rates at the nozzle
  • Remote On/Off switching is built-in to make this the perfect pump for tall aboveground tanks
  • Auto Power Down prompts the pump to turn itself pff after 20 minutes of inactivity, slashing energy costs and reducing wear on internal components
  • Field replaceable magnetic switch helps reduce maintenance costs
  • Reduced Vapor Lock feature uses proprietary variable suction lift technology to eliminate vapor lock and keep things running in the harshest summer temperatures
  • Bypass Slowdown reduces energy consumption
  • Compatible with diesel, gasoline, bio-diesel up to B20, E15 kerosene, mineral spirits, and methanol (up to 15%)

Key Specs

AttributeSpecification

item#

99204

Brand

Fill-Rite

Manufacturer's Warranty

Lifetime Limited warranty

GPM

25

Flow (GPM)

25

Volts

120

Nozzle Type

Automatic

Max. Total Head

48 ft

Amps

3.5

Max. Total Head (ft.)

48

Inlet Port

1-1/4 in

Outlet Port

1 in

Discharge

18 ft
AttributeSpecification

Self-Priming

Yes

Hose Length

18 ft

Inlet Port (in.)

1 1/4 NPT

Speed

3,500 rpm

Bypass Valve

Yes

Outlet Port (in.)

1 NPT

Horsepower

0.3 HP

Product Weight

lb

Discharge (ft.)

18

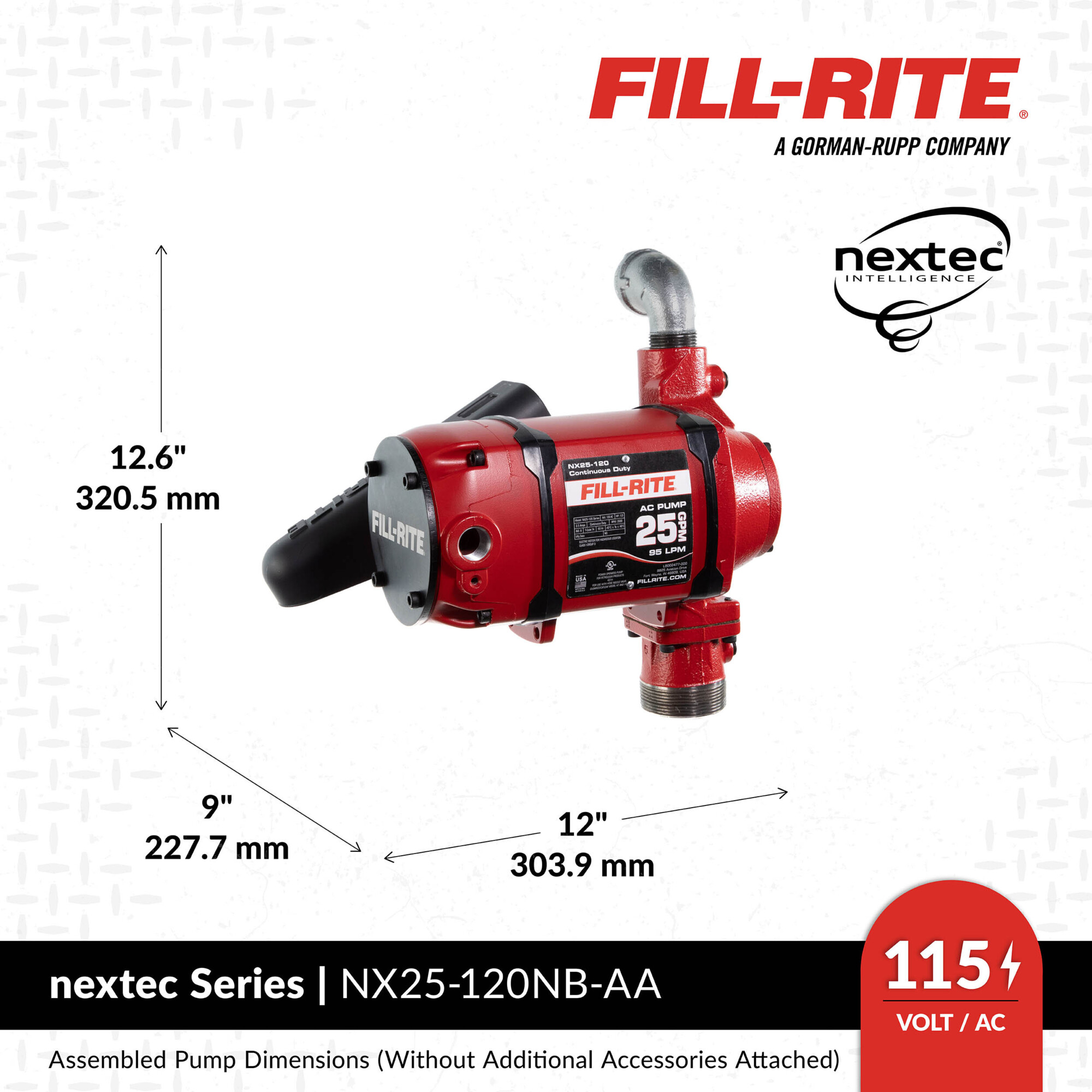

Dimensions L x W x H (in.)

22.0 x 20.0 x 12.0 in

Hose (in. x ft.)

1 x 18

Speed (RPM)

400–3,500
