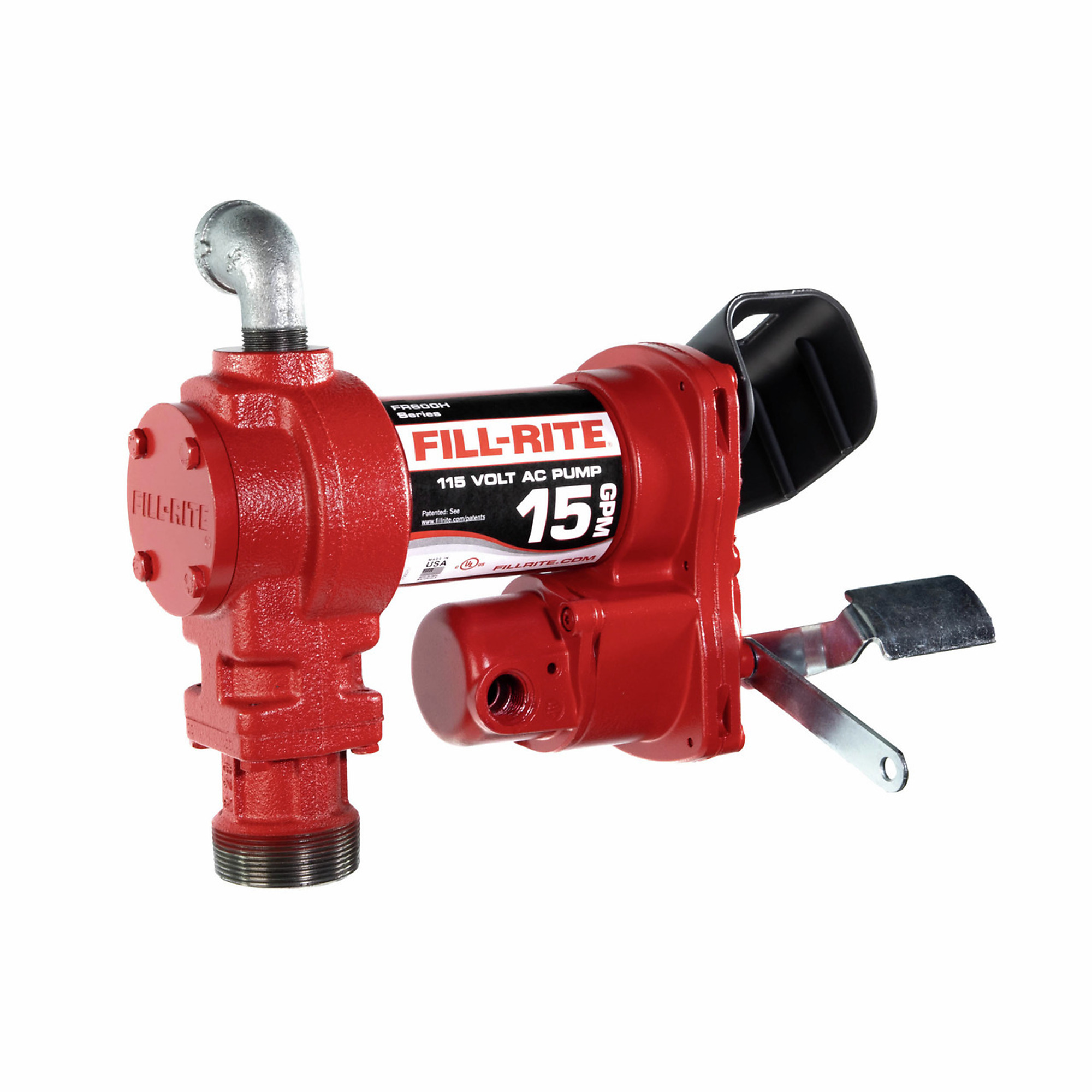

Fill-Rite Fuel Transfer Pump, 15 GPM, 115V AC, Model# FR604H

Item# 6151336
2 of 19 reviewers received a sample product or took part in a promotion
Fill-Rite Fuel Transfer Pump, 15 GPM, 115V AC, Model# FR604H

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Fill-Rite Fuel Transfer Pump, 15 GPM, 115V AC, Model# FR604H

Click or Tap image to Zoom

$474.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
  • Fill-Rite’s trusted rotary vane pump technology delivers 15 gallons per minute, perfect for filling equipment with fuel tanks from 15-60 gallons
  • Powered by a 115V AC motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to a standard 115V volt AC electrical supply and installing onto stationary aboveground tanks.
  • Designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits.
  • Adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Fill-Rite's 600 Series of heavy-duty fuel transfer pumps feature simple installation with a rotatable junction box and are built to last with cast-iron construction. The Fill-Rite FR604H is a 115V AC 15 GPM / 57 LPM fuel transfer pump built to last with durable, cast-iron construction. Designed for stationary applications in the agriculture and construction industries, it can withstand harsh conditions out in the field or at the job site. Powered by a 115V AC motor, this pump is ideal for wiring to a standard 115V AC electrical supply. Install it to an on-site storage tank and efficiently move a variety of fuels including diesel, gasonline, kerosene, mineral spirits, gasoline up to E15, and biodiesel up to B20.

What's Included

    (1) 115V AC Pump, installation components and no additional accessories.

Features + Benefits

  • Heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
  • Fill-Rite’s trusted rotary vane pump technology delivers 15 gallons per minute, perfect for filling equipment with fuel tanks from 15-60 gallons
  • Powered by a 115V AC motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to a standard 115V volt AC electrical supply and installing onto stationary aboveground tanks.
  • Designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits.
  • Adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces.
  • Thermally-protected motor prevents overheating, ensuring your pump performs for years worry free.
  • Built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment.
  • On-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use.
  • We stand behind our product with an industry-leading Limited Lifetime Warranty, protecting your investment.

Key Specs

AttributeSpecification

item#

6151336

Brand

Fill-Rite

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

21.6 LB

GPM

15

Volts

12

Max. Suction Lift

8 ft

Max. Total Head

37 ft

Amps

2

Watts

230
AttributeSpecification

Inlet Port

1 in

Outlet Port

3/4 in

Self-Priming

Yes

Speed

2,600 rpm

Duty Cycle

30 min

Bypass Valve

Yes

Horsepower

0.17 HP

Product Weight

19.9000 lb

Dimensions L x W x H (in.)

10.8 x 12.8 x 10.5 in

Reviews

Questions & Answers

19 Reviews This action will navigate to reviews.

Questions

  1. Does this pump come with a suction tube?

    1 answer

    1. The suction tube is not included with the pump.

      Helpful?

Warranty

Manufacturer's Warranty

Lifetime Limited warranty
